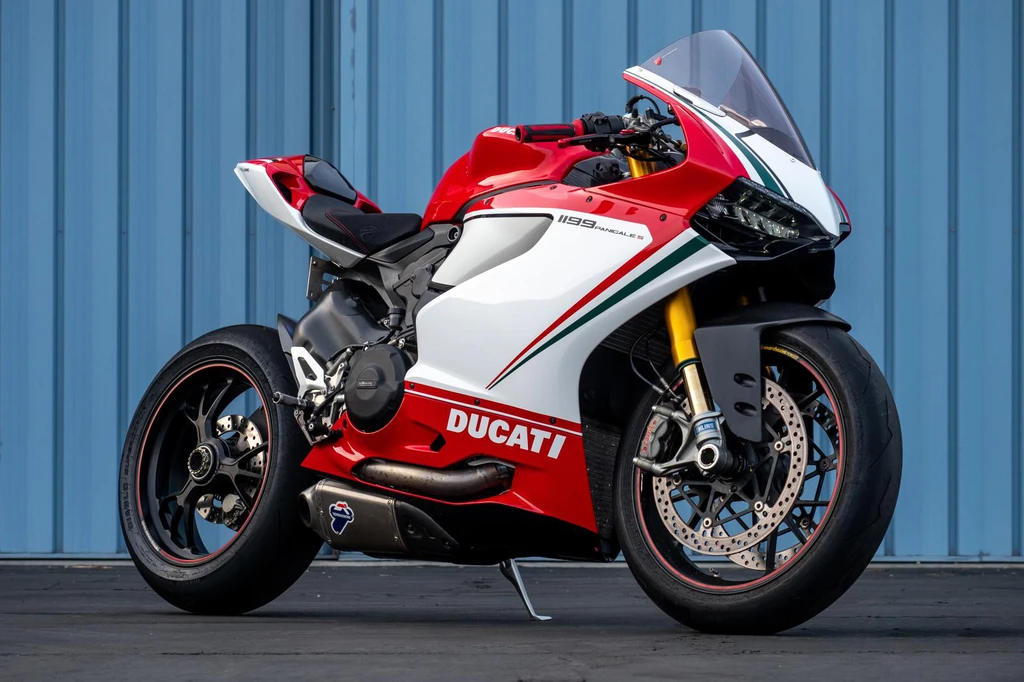

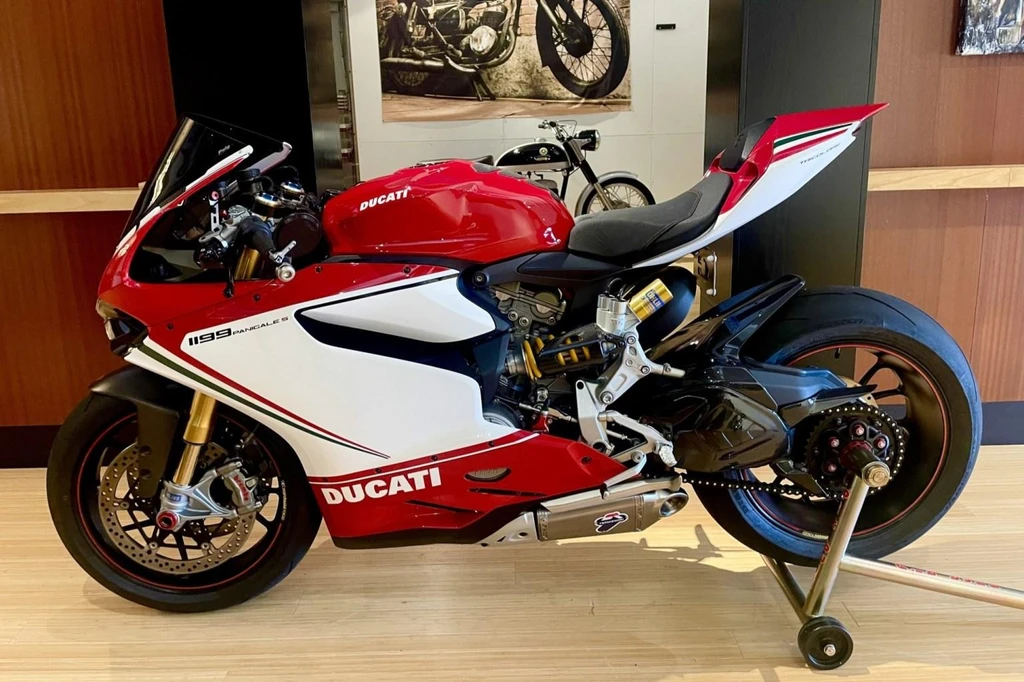

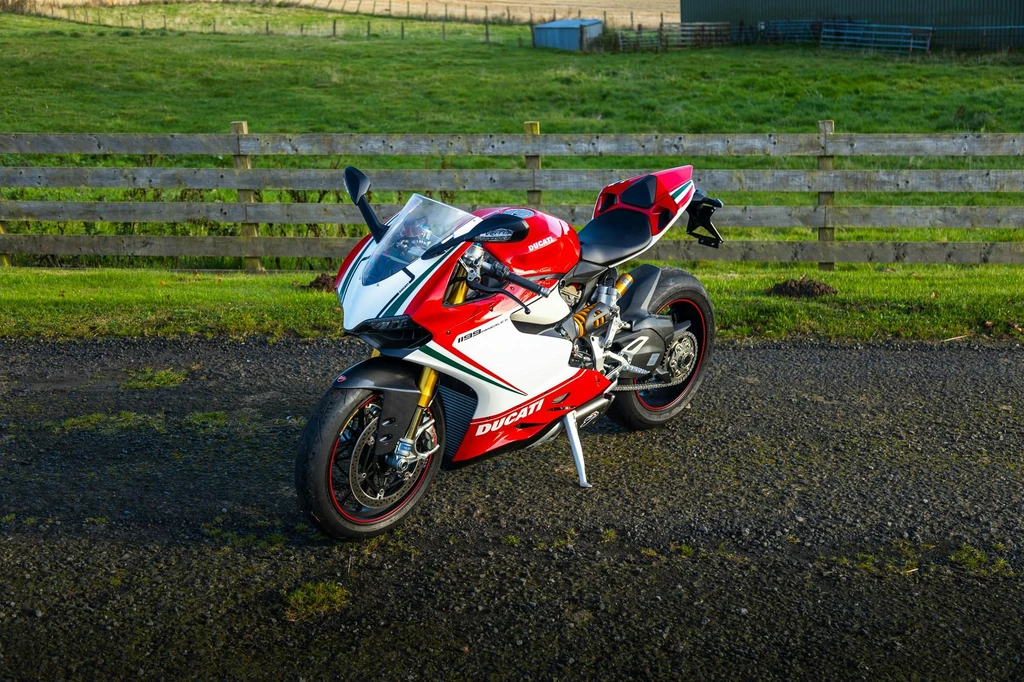

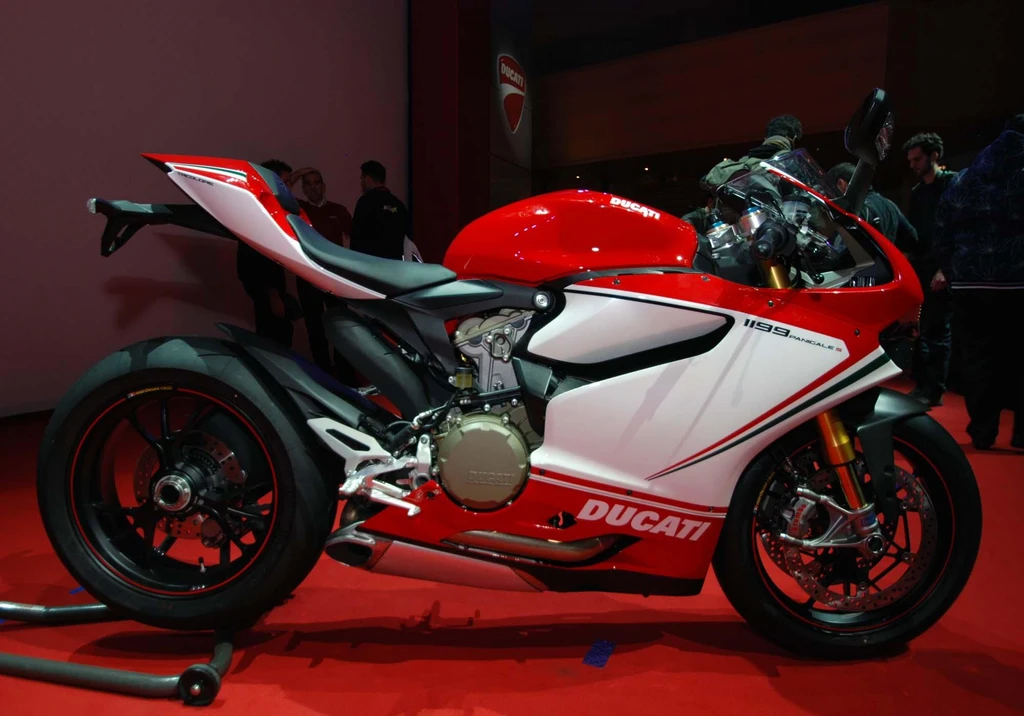

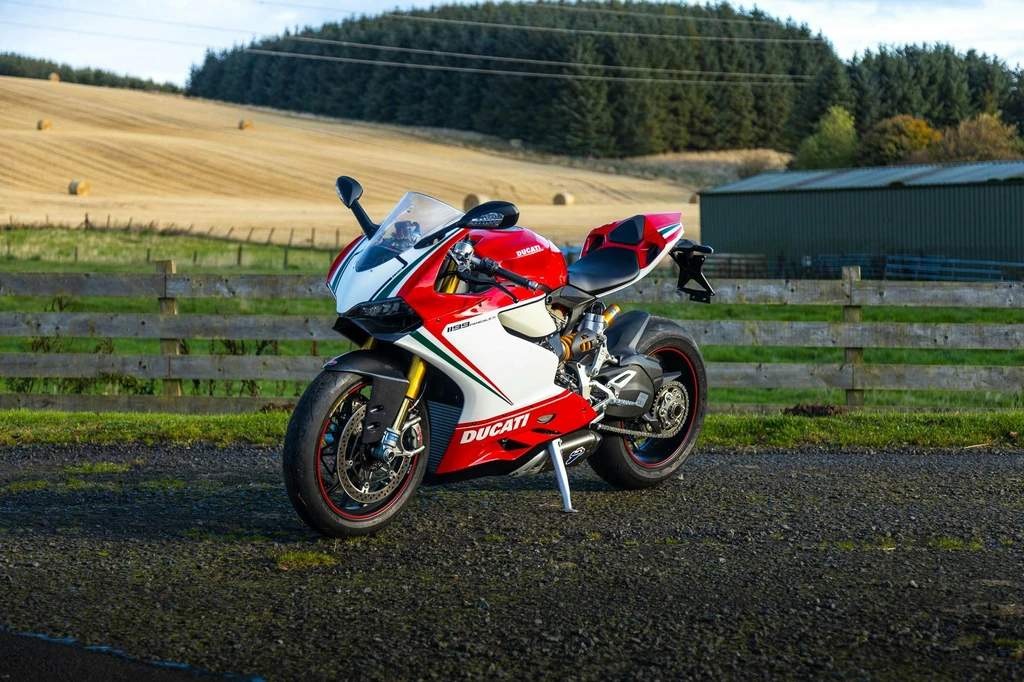

Ducati 1199S Panigale Tricolore (2013)

The 1199 Panigale Tricolore embodies the essence of Italian engineering and design, boasting a sleek and aerodynamic silhouette that screams performance. Its heart is the 1199cc Superquadro engine, delivering an exhilarating 195 horsepower and 12.6 kgm torque through its 2-1-2 system with catalytic converter.

This exceptional machine features cutting-edge components, including Marzocchi’s lightweight aluminium front forks, a fully adjustable Ohlins fork, and a Sachs rear suspension unit, ensuring unyielding stability and responsiveness on the track or road. The Ducati Riding Modes combine DTC, DQS, EBC, and Power Mode into a seamless riding experience.

The 1199 Panigale Tricolore is the epitome of Italian engineering and style, paying tribute to the country’s rich racing heritage with every meticulously crafted detail. Its presence on the road or track is nothing short of majestic, a true embodiment of the “Made in Italy” title.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Engine Capacity	1199 cc / 71.2 cu in
Max Power	143 kw / 195 hp
Max Torque	132 Nm / 13.5 kgf-m /97.4.1 lb-ft / @ 9000rpm
Fuel Tank Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Seat Height	32.4 inches / 824 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 1199S Panigale Tricolore
Year	2013

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Displacement	1199 cc / 71.2 cu in
Bore x Stroke	112 x 60.8 mm
Compression Ratio	12.5:1
Max Horsepower	143 kw / 195 hp
Max Torque	132 Nm / 13.5 kgf-m /97.4.1 lb-ft / @ 9000rpm
Engine Management System	Mitsubishi EFI, Full ride-by-wire elliptical throttle bodies
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves

Performance

Top Speed

292 km/h / 181mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Slipper and self-servo wet multiplate clutch with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 37/15, 2nd 30/16, 3rd 27/18, 4th 25/20, 5th 24/22, 6th 23/24
Final Drive	Chain 525; front sprocket 15; rear sprocket 39

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Monocoque aluminum
Front Suspension	hlins NIX30 43mm with TiN, fully adjustable usd fork.Electronic compression and rebound damping adjustment
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Fully adjustablehlinsTTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm
Rear Suspension Travel	5.12 inches / 130 mm
Rake	24.5
Trail	100 mm / 3.9 in

Wheels & Brakes

Front Tire Size	120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tire Size	200/55 ZR14 Pirelli Diablo Supercorsa SP
Front Brakes	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers, ABS optional +2.5kg (+5.5lb)
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	32.4 inches / 824 mm
Wheelbase	56.6 inches / 1437 mm
Fuel Tank Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Dry Weight	164 kg / 361.5 lbs

Features

2-1-2 system with catalytic converter and 2 lambda probes
Twin stainless steel mufflers with aluminum outer sleeves
Hlins NIX30 43mm fork with TiN, fully adjustable USD fork
Electronic compression and rebound damping adjustment on front fork
Fully adjustable Hlins TTX36 unit for rear suspension
Adjustable linkage: Progressive/Flat
Aluminum single-sided swingarm
Marzocchi’s new 50mm lightweight aluminum front forks
Sachs rear suspension unit
Ducati Riding Modes (DTC, DQS, EBC and Power Mode)
Standard ABS system available as an option
1199cc engine capacity
Short and strong aluminum monocoque chassis
Die-cast aluminum construction
Engine covers and exhaust pipe integrated into fairing surface
