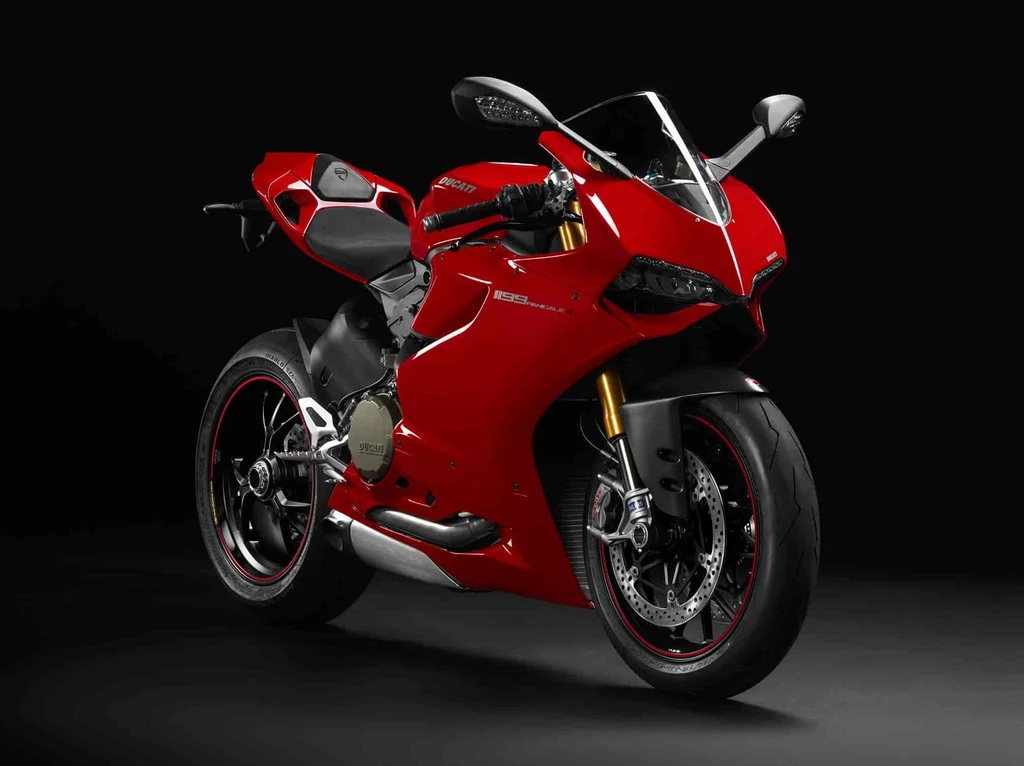

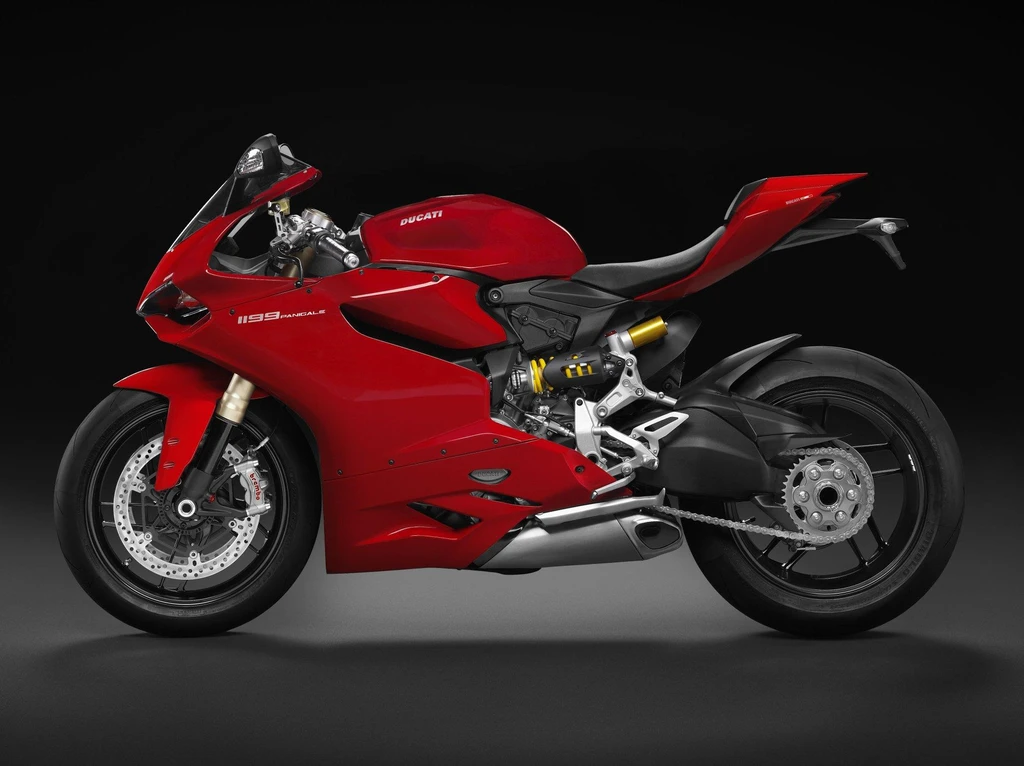

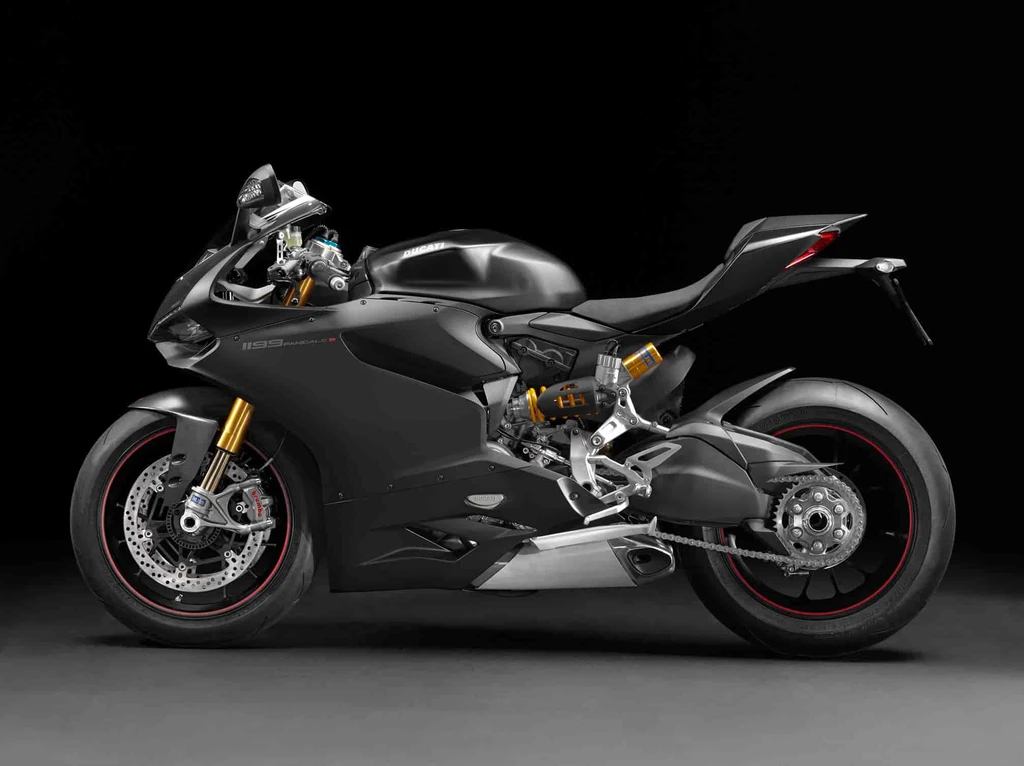

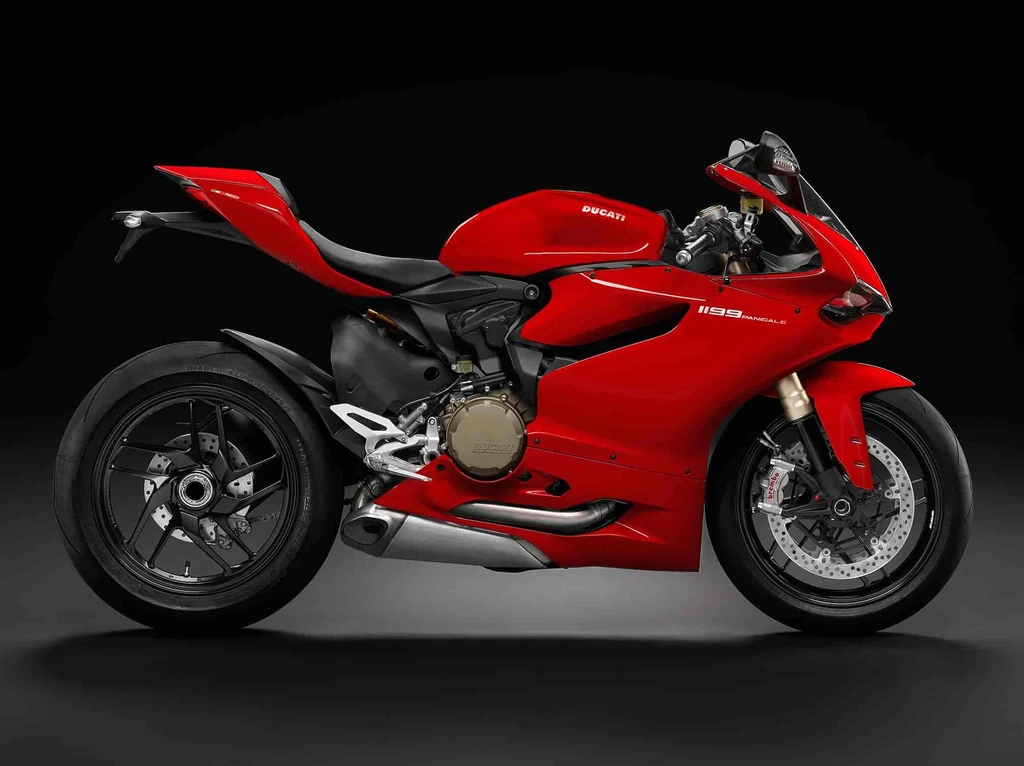

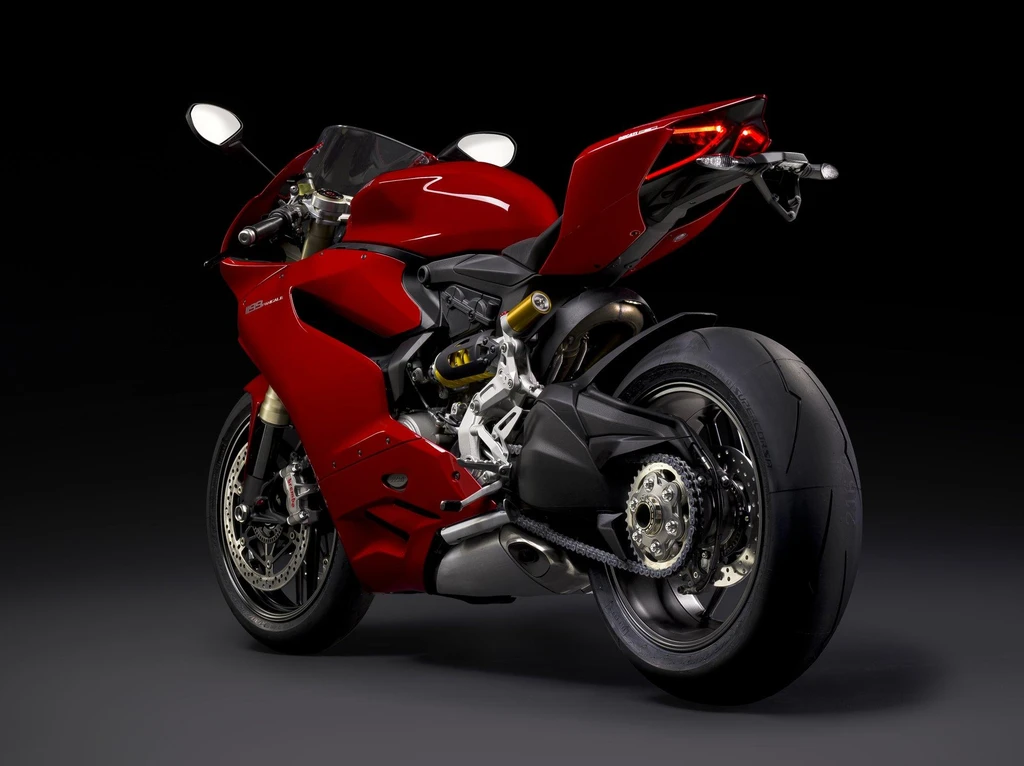

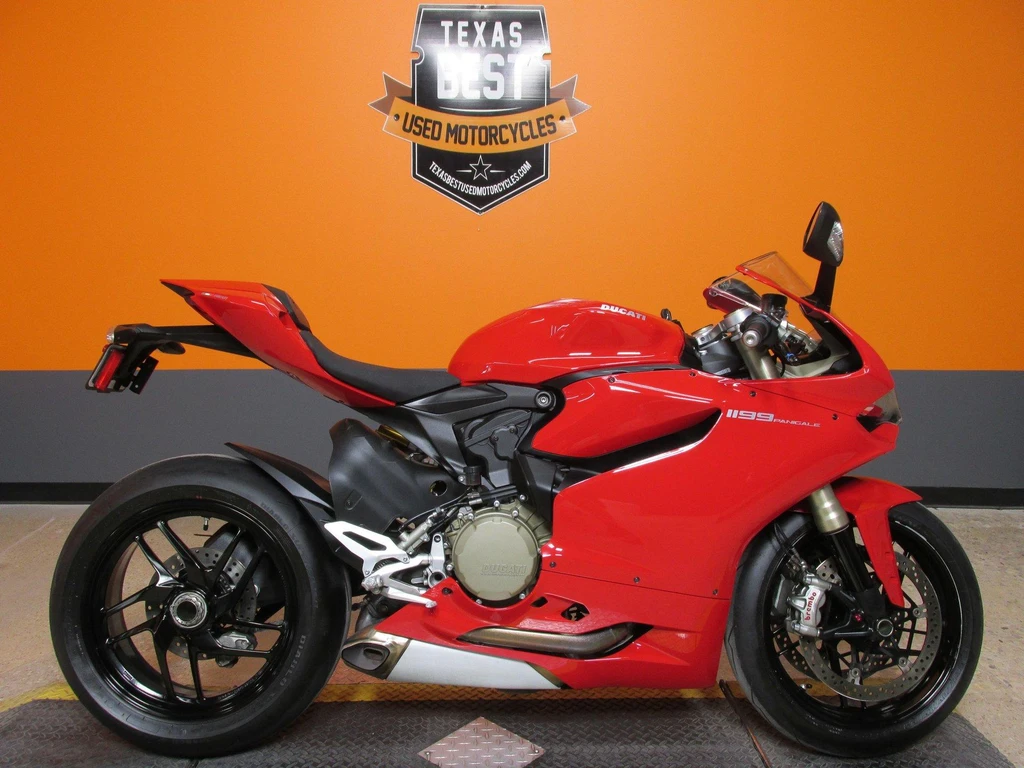

Ducati 1199S Panigale (2014)

The Ducati 1199S Panigale: a masterpiece of Italian engineering that redefines the boundaries of performance and style on both track and road. Its liquid-cooled L-twin engine produces 195 horsepower, delivering an explosive rush of acceleration and an unmistakable growl that’s music to any motorcycle enthusiast’s ears.

With its cutting-edge technology, including the innovative 2-1-2 exhaust system and fully adjustable suspension, this bike is a thrill-seeker’s dream come true. The Marzocchi fork and Sachs unit work in perfect harmony to provide unmatched handling and stability, while the Ducati Riding Modes combine ABS, DTC, DQS, EBC, and RbW for seamless control.

But what truly sets the 1199S Panigale apart is its sublime riding experience. Its razor-sharp handling and intuitive response make it a joy to navigate twisty roads or tackle the most demanding circuits, while its stunning design and unmistakable Ducati personality leave all other motorcycles in its wake.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Engine Capacity	1199 cc / 71.2 cu in
Max Power	143 kw / 195 hp
Max Torque	132 Nm / 13.5 kgf-m /97.4.1 lb-ft / @ 9000rpm
Fuel Tank Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Seat Height	32.4 inches / 824 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 1199S Panigale
Year	2014

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Displacement	1199 cc / 71.2 cu in
Bore x Stroke	112 x 60.8 mm
Compression Ratio	12.5:1
Max Horsepower	143 kw / 195 hp
Max Torque	132 Nm / 13.5 kgf-m /97.4.1 lb-ft / @ 9000rpm
Engine Management System	Mitsubishi EFI, Full ride-by-wire elliptical throttle bodies
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves

Performance

Top Speed

287km/h / 178mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Slipper and self-servo wet multiplate clutch with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 37/15, 2nd 30/16, 3rd 27/18, 4th 25/20, 5th 24/22, 6th 23/24
Final Drive	Chain 525; front sprocket 15; rear sprocket 39

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Monocoque aluminum
Front Suspension	Marzocchi 50 mm pressurised and fully adjustable USD fork with hard anodized aluminium lightweight slider
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Fully adjustable Sachsunit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm
Rear Suspension Travel	5.12 inches / 130 mm
Rake	24.5
Trail	100 mm / 3.9 in

Wheels & Brakes

Front Tire Size	120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tire Size	200/55 ZR14 Pirelli Diablo Supercorsa SP
Front Brakes	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers, ABS optional +2.5kg (+5.5lb)
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	32.4 inches / 824 mm
Wheelbase	56.6 inches / 1437 mm
Fuel Tank Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Dry Weight	164 kg / 361.5 lbs

Features

2-1-2 system with catalytic converter and 2 lambda probes
Twin stainless steel mufflers with aluminum outer sleeves
Marzocchi 50 mm pressurised and fully adjustable USD fork
Hard anodized aluminium lightweight slider
Fully adjustable Sachs rear suspension unit
Electronic compression and rebound damping adjustment
Adjustable linkage: Progressive/flat
Aluminum single-sided swingarm
3-level ABS as standard equipment
Race-derived seat material for enhanced rider feeling
Additional hazard light function (on 899 model)
Marzocchi 50mm lightweight aluminium front forks
Sachs rear suspension and steering damper
Ducati Riding Modes: ABS, DTC, DQS, EBC, RbW combined
Hlins electronic 43mm front forks with adjustable hlins steering damper (on S model)
Hlins electronic TTX suspension unit on the rear (on S model)
Super lightweight forged and machined Marchesini wheels (on S model)
Carbon fibre front mudguard (on S model)
Full LED lighting (on S model)
Aero kit with two lateral attachments for the top section of the fairing (on S model)
DES system on the 1199 Panigale S
Titanium con-rods (on R model)
Lightweight flywheel (on R model)
Higher rev-limit (on R model)
Adjustable swingarm pivot (on R model)
Carbon fibre components (on R model)
