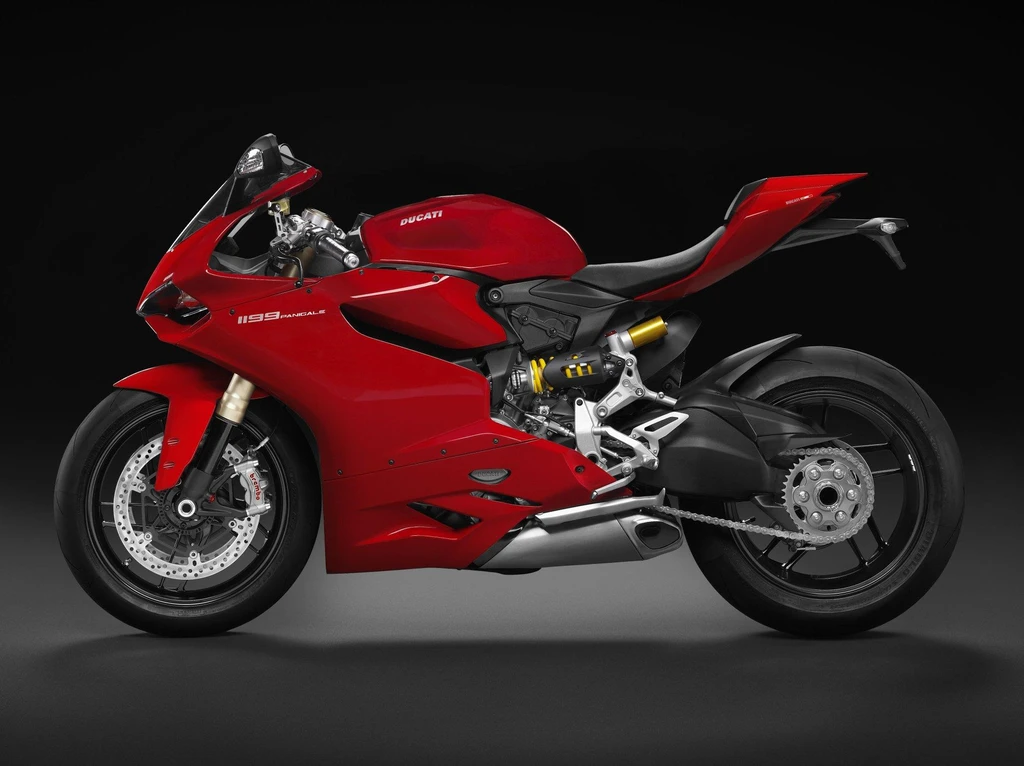

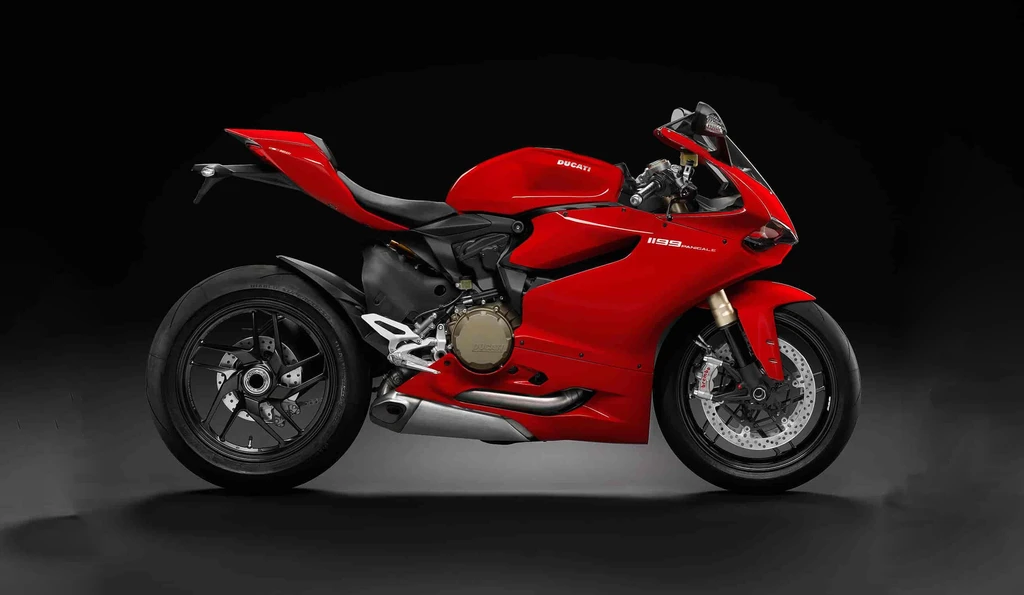

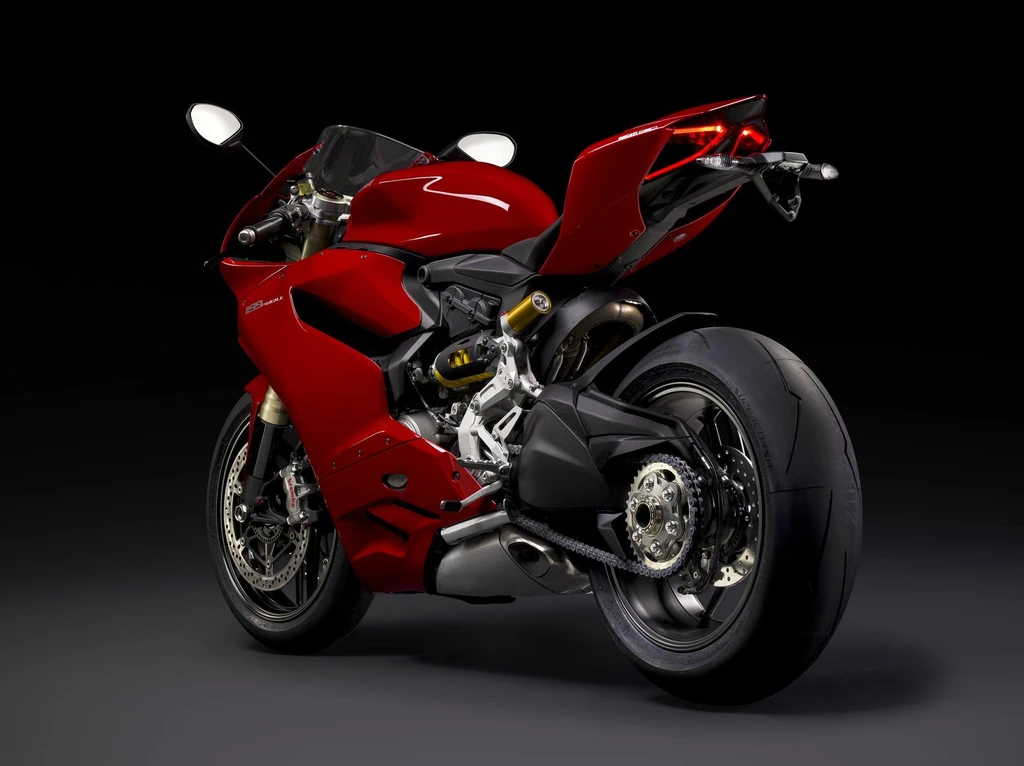

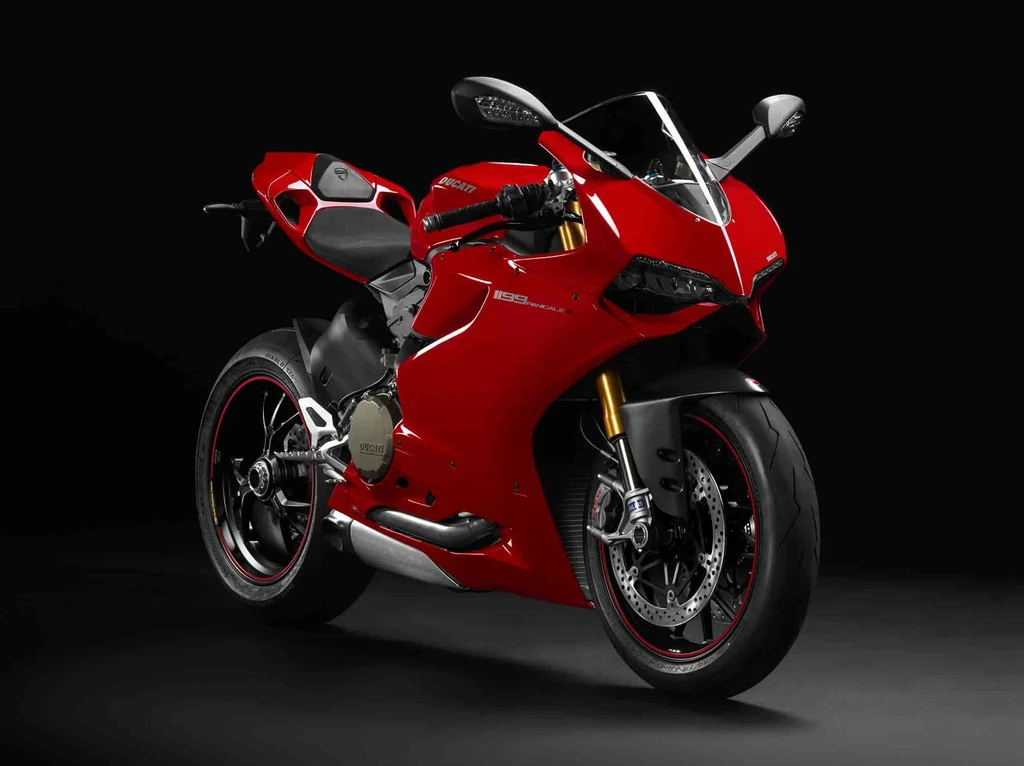

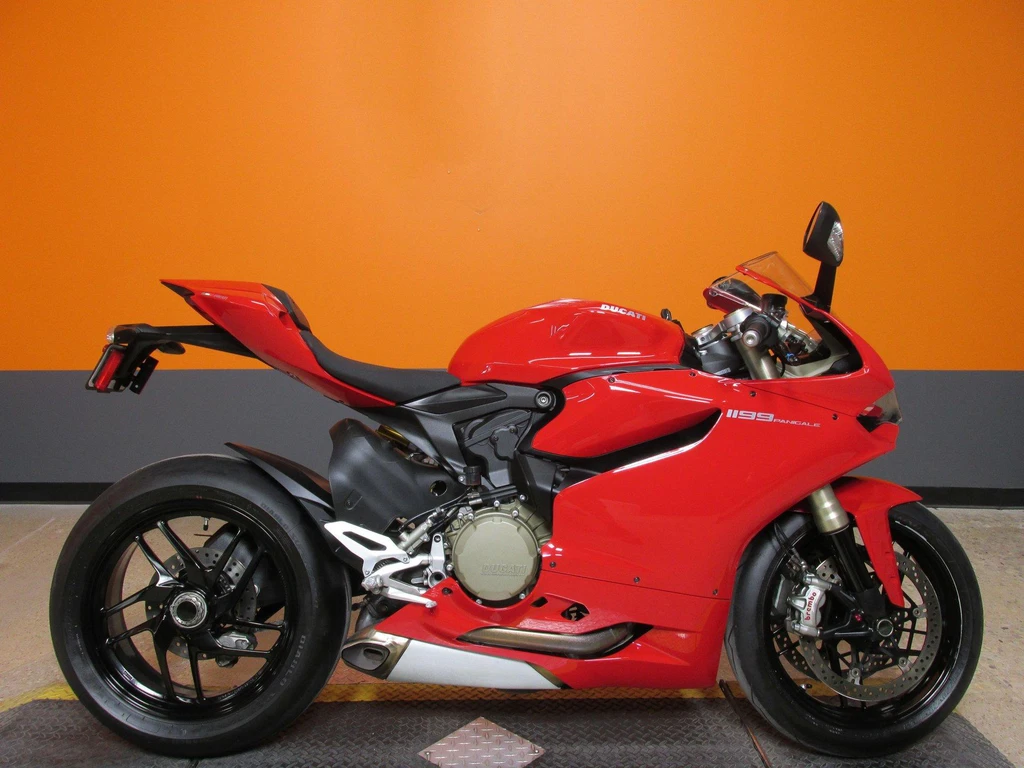

Ducati 1199S Panigale (2014)

The Ducati 1199S Panigale (2014) redefines the ultimate Superbike experience, combining exceptional performance with cutting-edge technology.

Its potent L-twin engine unleashes a visceral soundtrack and delivers breathtaking acceleration, its character perfectly balanced between raw power and agility. Riding the 1199S Panigale is akin to experiencing pure exhilaration, with every twist of the throttle met by a responsive surge forward.

Key to its exceptional performance are the advanced electronic systems, including the Ducati Quick Shift (DQS) and the state-of-the-art ABS braking system, carefully integrated into the Ducati Riding Modes.

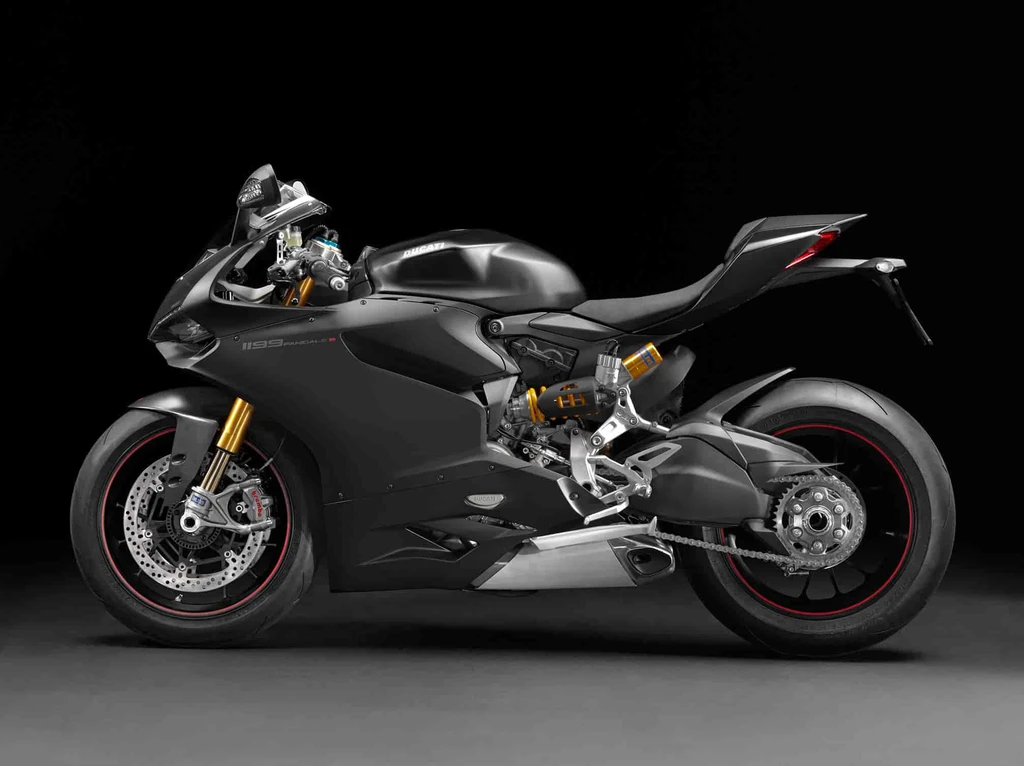

Available in striking Ducati red, or for added exclusivity, the Dark Stealth option, this stunning machine is ready to devour the tarmac.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Engine Capacity	1199 cc / 71.2 cu in
Max Power	143 kw / 195 hp
Max Torque	132 Nm / 13.5 kgf-m /97.4.1 lb-ft / @ 9000rpm
Fuel Tank Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Seat Height	32.4 inches / 824 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 1199S Panigale
Year	2014

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Displacement	1199 cc / 71.2 cu in
Bore x Stroke	112 x 60.8 mm
Compression Ratio	12.5:1
Max Horsepower	143 kw / 195 hp
Max Torque	132 Nm / 13.5 kgf-m /97.4.1 lb-ft / @ 9000rpm
Engine Management System	Mitsubishi EFI, Full ride-by-wire elliptical throttle bodies
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves

Performance

Top Speed

292 km/h / 181mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Slipper and self-servo wet multiplate clutch with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 37/15, 2nd 30/16, 3rd 27/18, 4th 25/20, 5th 24/22, 6th 23/24
Final Drive	Chain 525; front sprocket 15; rear sprocket 39

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Monocoque aluminum
Front Suspension	hlins NIX30 43mm with TiN, fully adjustable usd fork.Electronic compression and rebound damping adjustment
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Fully adjustablehlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm
Rear Suspension Travel	5.12 inches / 130 mm
Rake	24.5
Trail	100 mm / 3.9 in

Wheels & Brakes

Front Tire Size	120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tire Size	200/55 ZR14 Pirelli Diablo Supercorsa SP
Front Brakes	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers, ABS optional +2.5kg (+5.5lb)
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	32.4 inches / 824 mm
Wheelbase	56.6 inches / 1437 mm
Fuel Tank Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Dry Weight	164 kg / 361.5 lbs

Features

2-1-2 system with catalytic converter and 2 lambda probes
Twin stainless steel mufflers with aluminum outer sleeves
NIX30 43mm front forks with TiN coating
Fully adjustable USD fork
Electronic compression and rebound damping adjustment
TTX36 rear suspension unit
Adjustable linkage: Progressive/flat
Aluminum single-sided swingarm
Full LED headlights
Front carbon fiber mudguard
Marchesini machine-finished wheels
Electronically controlled suspension
Ohlins steering damper
3-level ABS as standard equipment
Race-derived seat material
Additional hazard light function
Marzocchi 50mm lightweight aluminum front forks (base model)
Sachs rear suspension and steering damper (base model)
