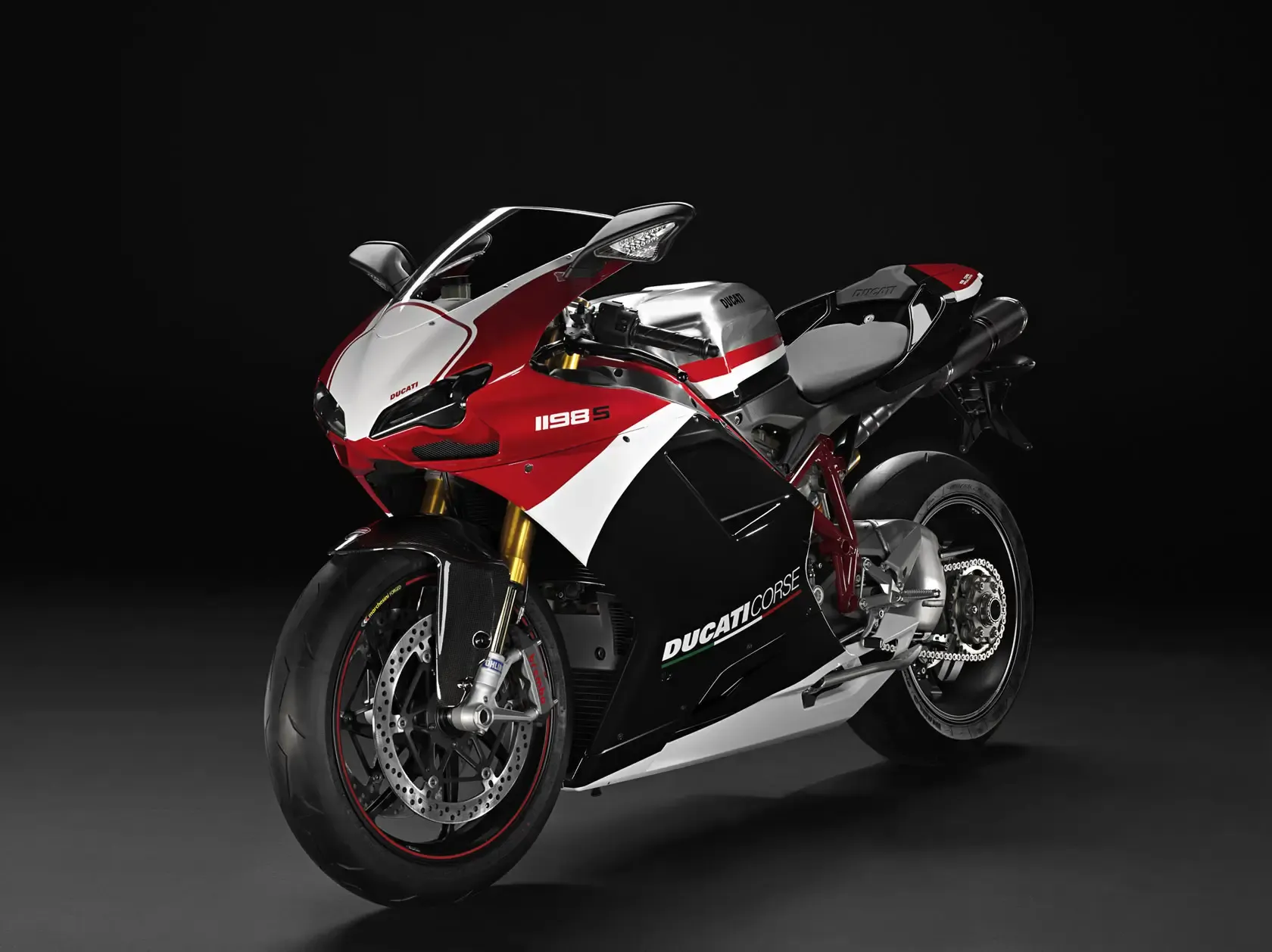

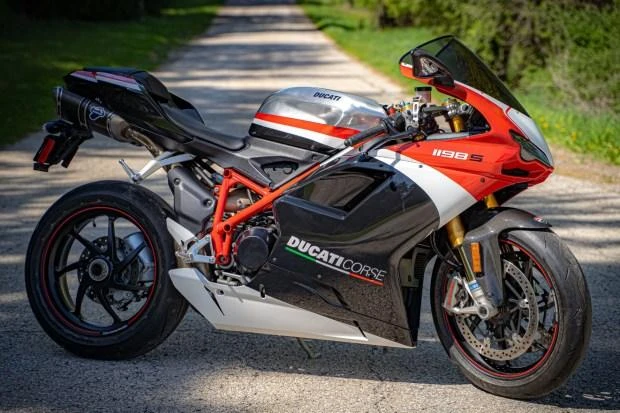

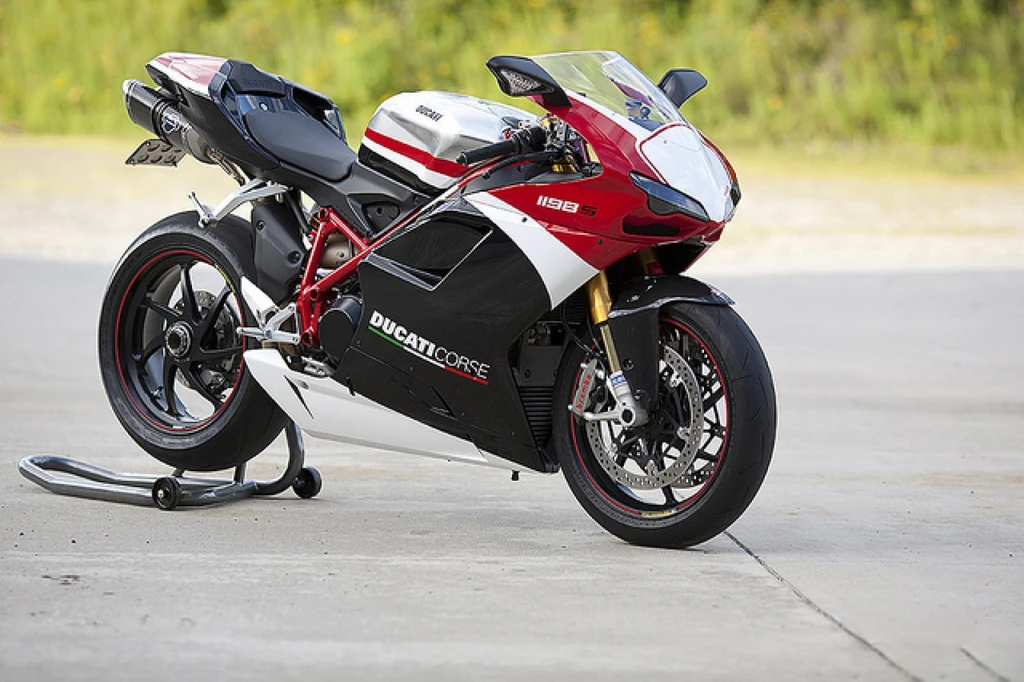

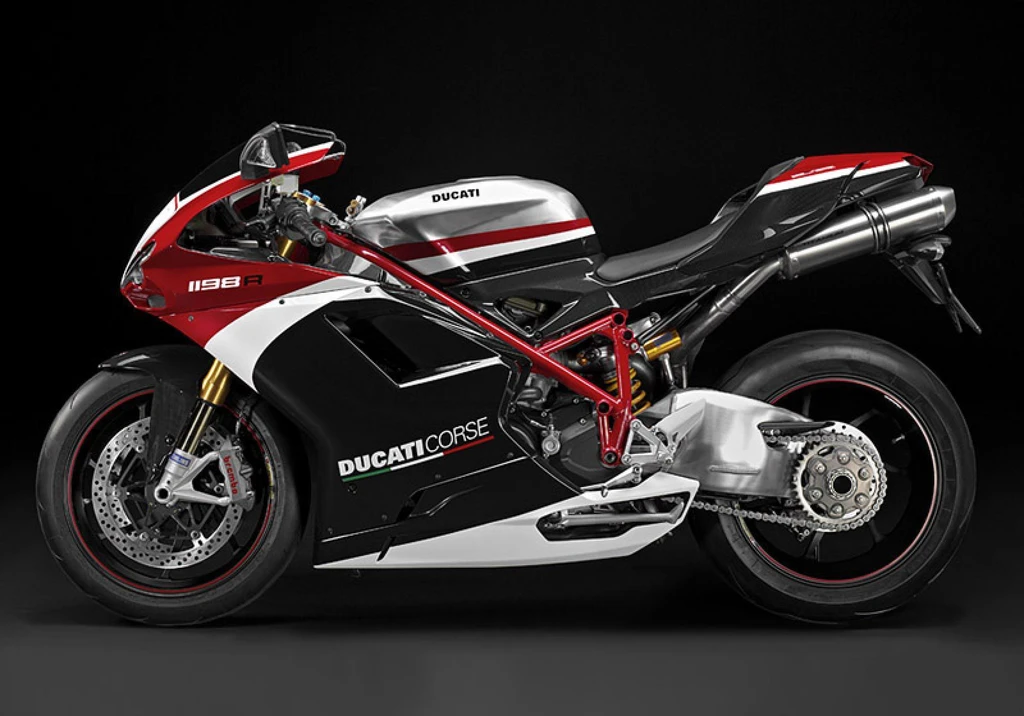

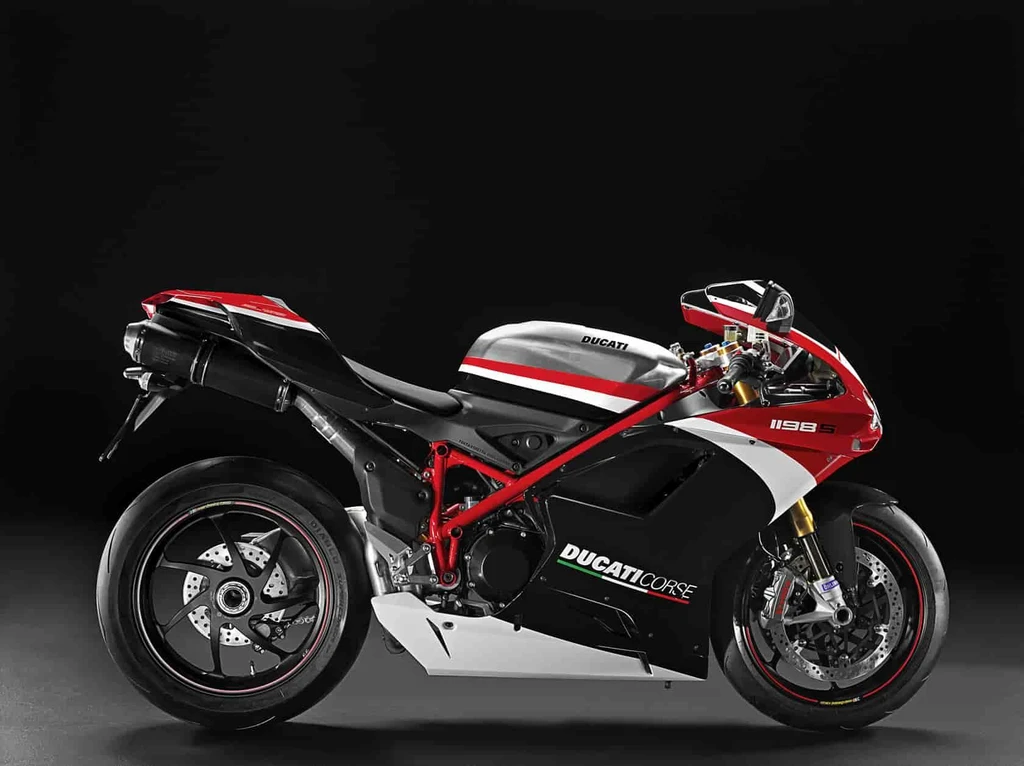

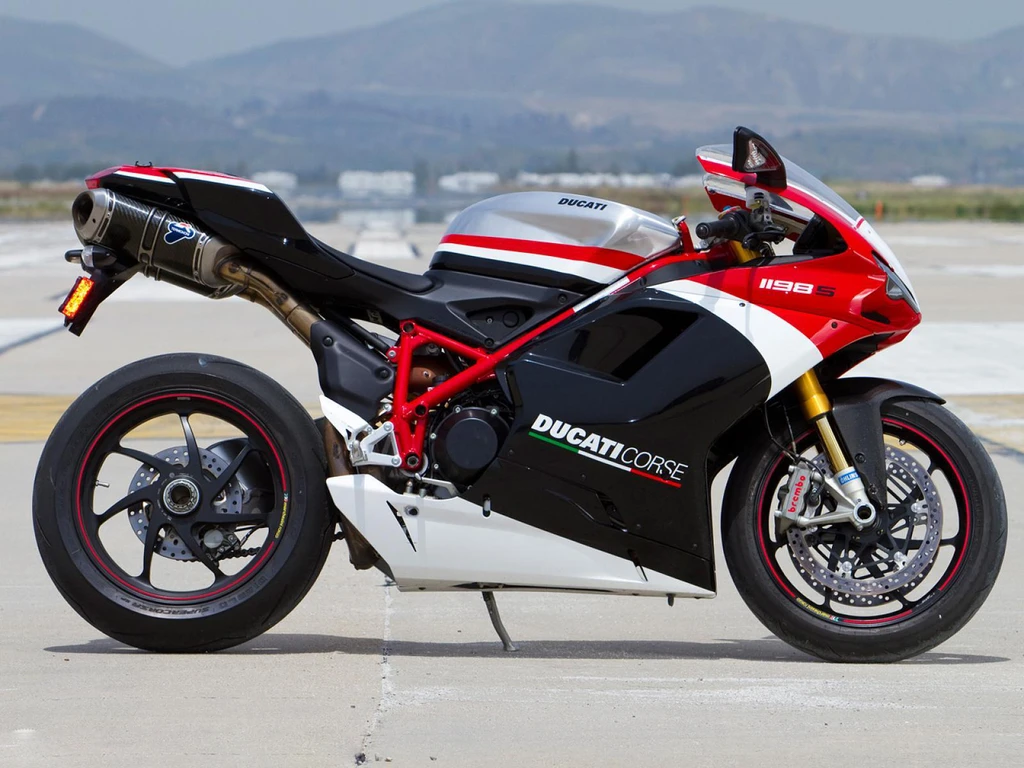

Ducati 1198SCorse Special Edition (2010)

The Ducati 1198 S Corse Special Edition is a tribute to the marque’s rich racing heritage, boasting a factory team-style aluminium fuel tank, bold Corse colour scheme, and a race kit that embodies the spirit of competition.

At its heart lies a potent 1198cc Testastretta engine, delivering unparalleled power and torque. The exhaust system features lightweight stainless steel mufflers, carefully tuned to optimize performance while adhering to emissions regulations.

The suspension setup is equally impressive, with a fully adjustable Öhlins 43mm fork and monoshock, complemented by a progressive linkage that ensures razor-sharp handling and stability.

This Special Edition marks the introduction of Ducati Corse’s new logo, symbolizing the company’s unwavering commitment to racing excellence. With its unique blend of engineering prowess and Italian flair, the 1198 S Corse Special Edition is the ultimate expression of Ducati’s passion for speed and competition, a true masterpiece that embodies the essence of World Superbike racing.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder
Engine Capacity	1198 cc / 73.1 cu in
Max Power	125 kw / 170 hp
Max Torque	131.4 Nm / 13.4 kgf-m /97 lb-ft @ 8000 rpm
Fuel Tank Capacity	4.1 US gallons / 15.5 L
Seat Height	32.2 inches / 820 mm

*n/a – information not provided by manufacturer

Ducati 1198SCorse Special Edition (2010)

All Specifications

Make & Model

Model	Ducati 1198SCorse Special Edition
Year	2010

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder
Displacement	1198 cc / 73.1 cu in
Bore x Stroke	106 x 67.9 mm
Compression Ratio	12.7:1
Max Horsepower	125 kw / 170 hp
Max Torque	131.4 Nm / 13.4 kgf-m /97 lb-ft @ 8000 rpm
Engine Management System	Marelli electronic fuel injection, elliptical throttle bodies
Cooling System	Liquid cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel mufflers

Performance

Top Speed

280.9 km/h / 174.5 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Dry multiplate with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 22/25

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame
Front Suspension	hlins 43mm with TiN fully adjustable upside-down fork
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Progressive linkage with fully adjustable hlins monoshock with top-out spring. Aluminium single-sided swingarm
Rake	2430′ / 24.5

Wheels & Brakes

Front Wheel/Rim Size	7-Spoke light alloy, 3.50 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	7-Spoke light alloy, 6.00 x 17
Rear Tire Size	190/55 ZR17
Front Brakes	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc calipers, 4-piston, 2-pad.
Rear Brakes	Single 245 mm disc 2 piston caliper

Dimension & Weights

Seat Height	32.2 inches / 820 mm
Wheelbase	56.3 inches / 1430 mm
Fuel Tank Capacity	4.1 US gallons / 15.5 L
Dry Weight	169 kg / 373 lbs

Features

Lightweight 2-1-2 exhaust system with catalytic converter and 2 lambda probes
Twin stainless steel mufflers
Fully adjustable Hlins 43mm upside-down fork
Progressive linkage with fully adjustable Hlins monoshock
Top-out spring on the monoshock
Aluminium single-sided swingarm
Factory team-style aluminium fuel tank
Bold Corse colour scheme and race kit
Ducati Traction Control (DTC) system
Testastretta EVOluzione engines
High tail section
Compact front end with twin under-seat silencers
Single-sided swingarm
DTC traction control system for safer performance on the road
