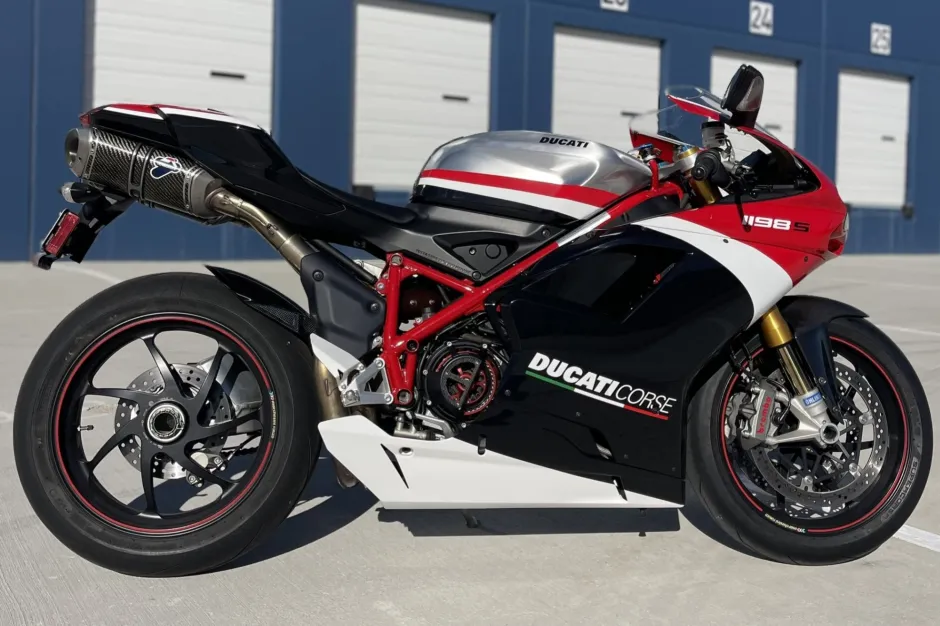

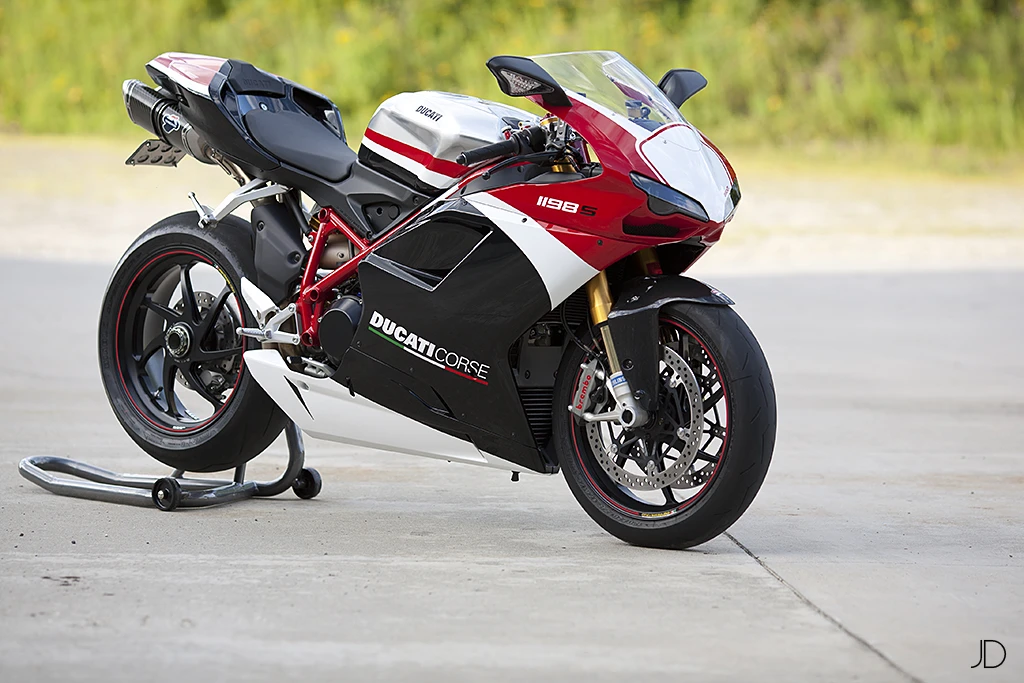

Ducati 1198R Corse Special Edition (2010)

Ducati 1198R Corse Special Edition (2010)

The Ducati 1198R Corse Special Edition is the ultimate expression of Italian performance, born from a legacy of racing dominance and technical superiority. This limited-edition motorcycle boasts a lightweight 2-1-2 exhaust system with twin stainless steel mufflers, carefully tuned to extract every last ounce of power from its 1198cc L-twin engine.

The riding experience is nothing short of exhilarating, thanks to the exceptional handling provided by the fully adjustable Hlins fork and monoshock suspension. The Ducati’s MotoGP-derived electronics package, featuring a digital instrument cluster with an array of performance data displays, ensures that every twist of the throttle is met with precision and control.

With its unique blend of power, handling, and technical sophistication, the 1198R Corse Special Edition embodies the very essence of Ducati’s racing spirit. This exceptional machine is not just a motorcycle – it’s a statement of intent, a declaration of unrelenting passion for speed and performance. The 1198R Corse Special Edition is, without doubt, one of the most thrilling riding experiences on two wheels.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder
Engine Capacity1198 cc / 73.1 cu in
Max Power132.4 kw / 180 hp
Max Torque134 Nm / 13.7 kgf-m /98.8 lb-ft @ 7750 rpm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Seat Height32.2 inches / 820 mm
Ducati 1198R Corse Special Edition (2010)

All Specifications

Make & Model

ModelDucati 1198R Corse Special Edition
Year2010

Engine

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder
Displacement1198 cc / 73.1 cu in
Bore x Stroke106 x 67.9 mm
Compression Ratio12.8:1
Max Horsepower132.4 kw / 180 hp
Max Torque134 Nm / 13.7 kgf-m /98.8 lb-ft @ 7750 rpm
Engine Management SystemMarelli electronic fuel injection, elliptical throttle bodies
Lubrication SystemWet sump
Cooling SystemLiquid cooled
ExhaustLightweight 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel mufflers

Performance

Top Speedn/a

Transmission

ClutchDry multiplate with hydraulic control slipper clutch
Gearbox6 Speed
Gear Ratios1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 22/25

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel Trellis frame in ALS450
Front Suspensionhlins43mm with TiN fully adjustable upside-down fork
Rear SuspensionProgressive linkage with fully adjustable hlins monoshock with top-out spring. Aluminium single-sided swingarm
Rake2430′ / 24.5

Wheels & Brakes

Front Wheel/Rim Size7-Spoke light alloy, 3.50 x 17
Front Tire Size120/70 ZR17
Rear Tire Size190/55 ZR17
Front Brakes2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc calipers, 4-piston, 2-pad.
Rear BrakesSingle 245 mm disc 2 piston caliper

Dimension & Weights

Seat Height32.2 inches / 820 mm
Wheelbase56.3 inches / 1430 mm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Dry Weight169 kg / 373 lbs

Features

  • Lightweight 2-1-2 system with catalytic converter and 2 lambda probes
  • Twin stainless steel mufflers
  • Fully adjustable upside-down fork (hlins 43mm)
  • Progressive linkage with fully adjustable hlins monoshock and top-out spring
  • Aluminium single-sided swingarm
  • Digital MotoGP derived unit with various displays
  • Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve
  • Immobilizer system
  • Management of DTC (Ducati Traction Control) and DDA
  • 0.66 gallon increase in gas tank capacity
  • Aluminium gas tank saving 1kg
  • Ducati Superbikes designed, engineered, and built in Bologna, Italy
