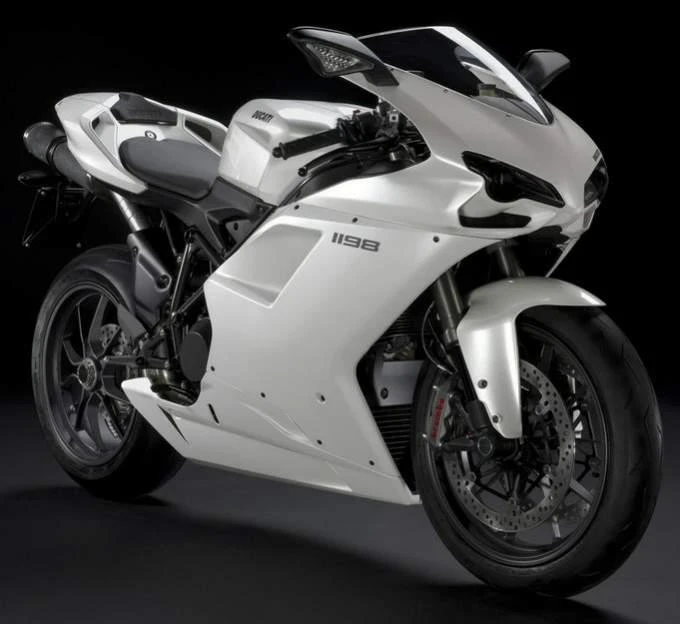

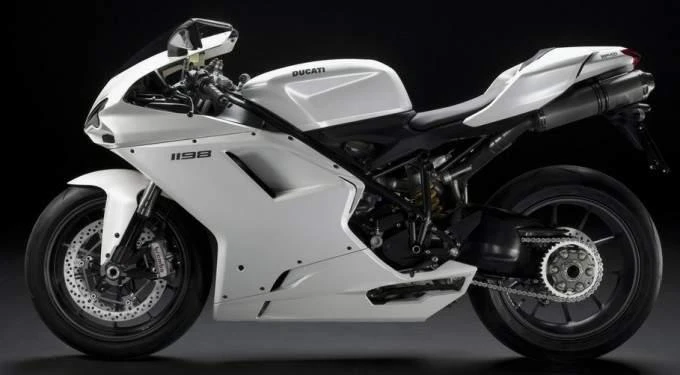

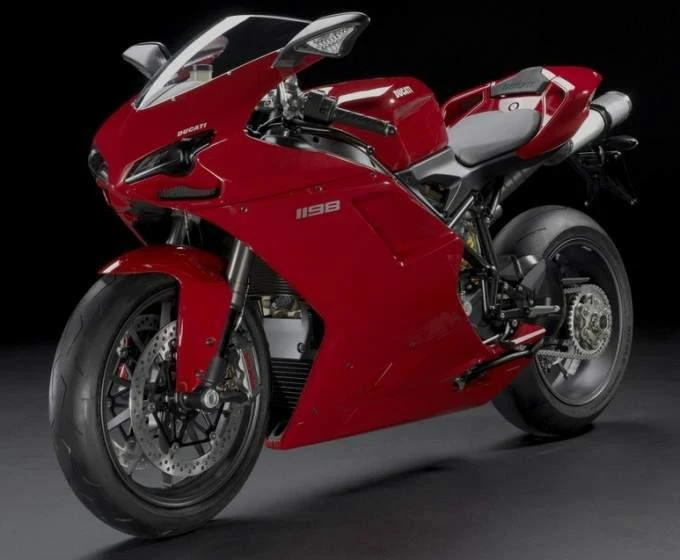

Ducati 1198 Testastretta Evoluzione (2009)

The Ducati 1198 Testastretta Evoluzione represents the pinnacle of production motorcycle engineering, boasting a lightweight 2-1-2 exhaust system and Showa suspension components.

At its heart lies the iconic Desmodromic L-twin engine, reworked for even greater power and torque. With six distinct riding modes to choose from, riders can tailor their experience to suit any road or track conditions.

The result is a razor-sharp handling machine that combines breathtaking acceleration with intuitive control. Whether carving through twisty roads or pushing the limits on the track, the 1198 Testastretta Evoluzione demands respect and inspires confidence. It’s the ultimate expression of Ducati’s World Championship-winning technology.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder
Engine Capacity	1198 cc / 73.1 cu in
Max Power	125 kw / 170 hp
Max Torque	131.4 Nm / 13.4 kgf-m /97 lb-ft @ 8000 rpm
Fuel Tank Capacity	4.1 US gallons / 15.5 L
Seat Height	32.2 inches / 820 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 1198 Testastretta Evoluzione
Year	2009

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder
Displacement	1198 cc / 73.1 cu in
Bore x Stroke	106 x 67.9 mm
Compression Ratio	12.7:1
Max Horsepower	125 kw / 170 hp
Max Torque	131.4 Nm / 13.4 kgf-m /97 lb-ft @ 8000 rpm
Engine Management System	Marelli electronic fuel injection, elliptical throttle bodies
Cooling System	Liquid cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel mufflers

Performance

Top Speed

280.2 km/h / 174.1 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Dry multiplate with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 22/25

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame
Front Suspension	Showa 43mm with TiO fully adjustable upside-down fork
Front Suspension Travel	5.0 inches / 127 mm
Rear Suspension	Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm
Rake	2430′ / 24.5

Wheels & Brakes

Front Wheel/Rim Size	10-Spoke light alloy, 3.50 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	10-Spoke light alloy, 6.00 x 17
Rear Tire Size	190/55 ZR17
Front Brakes	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc calipers, 4-piston, 2-pad.
Rear Brakes	Single 245 mm disc 2 piston caliper

Dimension & Weights

Seat Height	32.2 inches / 820 mm
Wheelbase	56.3 inches / 1430 mm
Fuel Tank Capacity	4.1 US gallons / 15.5 L
Dry Weight	171 kg / 377 lbs

Features

Lightweight 2-1-2 exhaust system with catalytic converter and 2 lambda probes
Twin stainless steel mufflers
Showa 43mm fully adjustable upside-down fork
Progressive linkage with fully adjustable Showa monoshock
Aluminium single-sided swingarm
Ducati Traction Control (DTC) system
6-speed transmission
Testastretta Evo engines
High tail section and compact front end design
Twin under-seat silencers
Single-sided swingarm
Adjustable steering head angle
Ergonomic riding position
World Championship-winning race technology
Advanced aerodynamics for improved handling and stability
