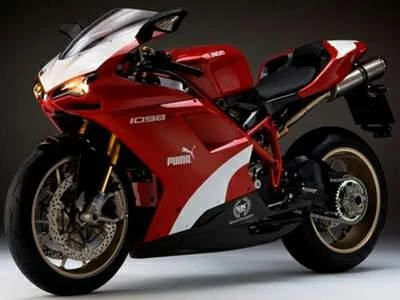

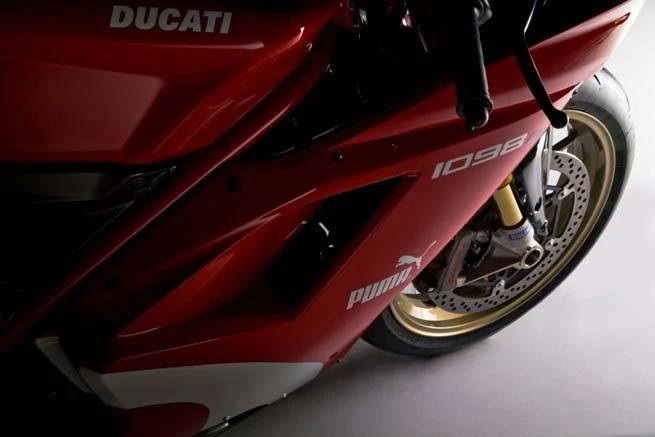

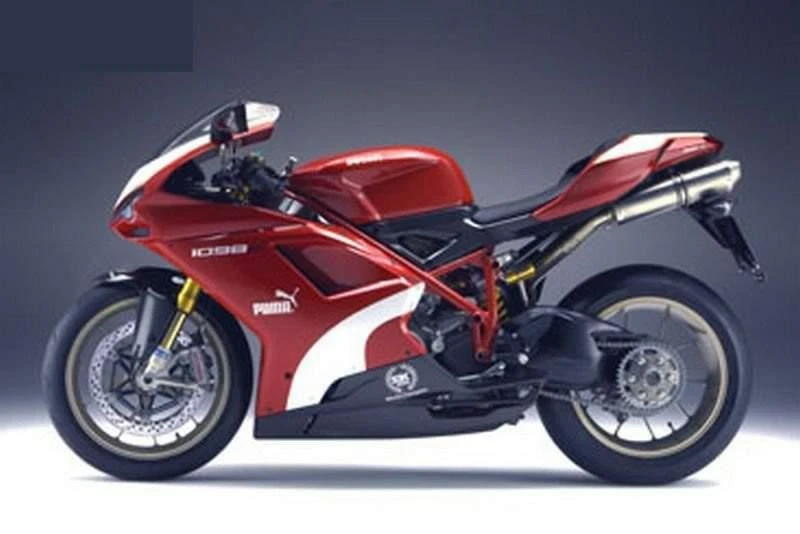

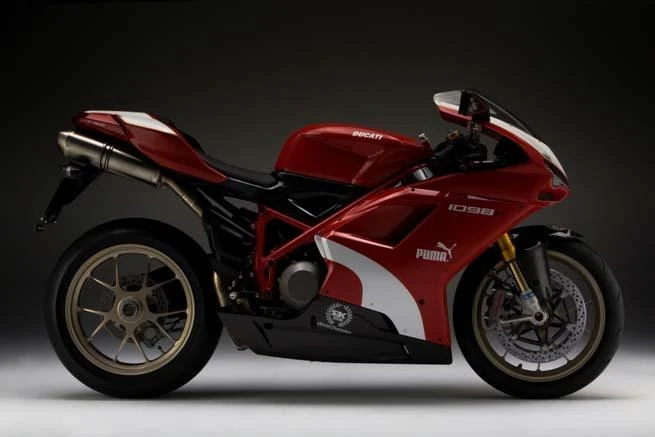

Ducati 1098 R Puma Limited Edition (2009)

Ducati 1098 R Puma Limited Edition (2009)

The Ducati 1098 R Puma Limited Edition is a tribute to the Italian manufacturer’s rich racing heritage and its latest triumph in the world Superbike championship. This exclusive version of the 1098R boasts an impressive array of cutting-edge features, including a fully adjustable Hlins fork and TTXR monoshock, as well as a lightweight, forged aluminum “GP Replica” wheelset.

The engine at the heart of this beast is a masterclass in performance and refinement. With its potent 1099cc V-twin motor delivering over 180 horsepower to the rear wheel, the Puma Edition is a force to be reckoned with on track or twisty road. And yet, despite its raw power, the Ducati’s engine is also incredibly smooth and tractable, making it an absolute joy to ride.

Built in just 10 examples for the Japanese market, this ultra-exclusive bike is truly a collector’s item for serious enthusiasts. Its unique Puma livery is eye-catching, to say the least, with its distinctive white and red scheme guaranteed to turn heads wherever you go. And as one of only 10 hand-built machines, each one comes with its own special numbered plate – a truly exclusive badge of honor. The Ducati 1098 R Puma Limited Edition is a true masterpiece that embodies the very essence of Italian style and performance.

Key Specifications

Engine TypeFour stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Engine Capacity1198 cc / 73.1 cu in
Max Power132.4 kw / 180 hp
Max Torque134 Nm / 13.7 kgf-m / 98.8 lb-ft @ 7750 rpm
Fuel Tank Capacity15.5 L / 4.1 US gal / 3.4 Imp gal
Seat Height32.2 inches / 840 mm
Ducati 1098 R Puma Limited Edition (2009)

All Specifications

Make & Model

ModelDucati 1098 R Puma Limited Edition
Year2009

Engine

Engine TypeFour stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Displacement1198 cc / 73.1 cu in
Bore x Stroke106 x 67.9 mm
Compression Ratio12.8:1
Max Horsepower132.4 kw / 180 hp
Max Torque134 Nm / 13.7 kgf-m / 98.8 lb-ft @ 7750 rpm
Engine Management SystemMarellielectronic fuel injection, elliptical throttle bodies
Lubrication SystemWet sump
Cooling SystemLiquid cooled
ExhaustLightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers

Performance

Top Speed290km/h / 180 mph

Transmission

ClutchDry multiplate with hydraulic control slipper clutch
Gearbox6 Speed
Gear Ratios1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22, 5th 24/23, 6th 22/25
Final DriveChain, front sprocket 15; rear sprocket 38

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel Trellis frame in ALS 450
Front Suspensionhlins 43mm fully adjustable upside-down fork with TiN
Rear SuspensionProgressive linkage with fully adjustable hlins TTXR monoshock with top-out spring. Aluminium single-sided swingarm.
Rear Suspension Travel5.1 inches / 127 mm
Rake24.3 – 24.5

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size190/55 ZR17
Front Brakes2 x 330 mm Discs, 4 piston calipers
Rear BrakesSingle 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height32.2 inches / 840 mm
Wheelbase56.3 inches / 1430 mm
Fuel Tank Capacity15.5 L / 4.1 US gal / 3.4 Imp gal
Dry Weight169 kg / 373 lbs

Features

  • 43mm fully adjustable upside-down fork
  • TiN Progressive linkage
  • Fully adjustable Hlins TTXR monoshock with top-out spring
  • Aluminium single-sided swingarm
  • Forged light alloy wheels (3.50 x 17)
  • Digital MotoGP derived unit with multiple displays
  • Speedometer
  • Rev counter
  • Lap times display
  • Time display
  • Air temperature display
  • Coolant temperature display
  • Battery voltage display
  • A & B trip displays
  • Fuel reserve trip display
  • Scheduled maintenance display
  • DTC level selected (if activated) display
