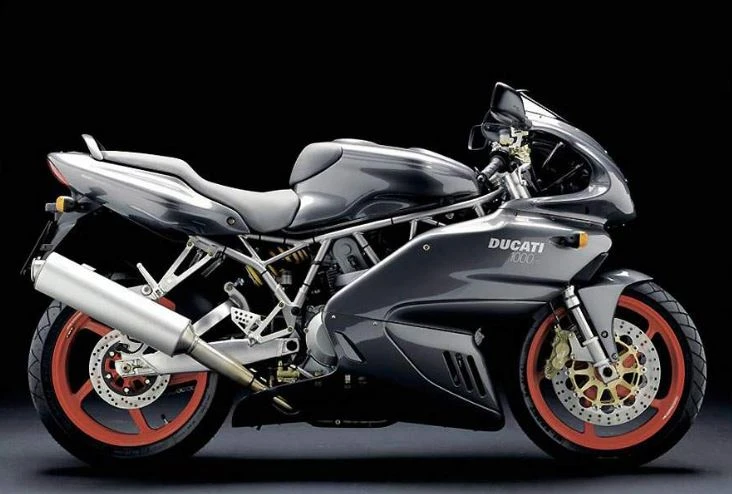

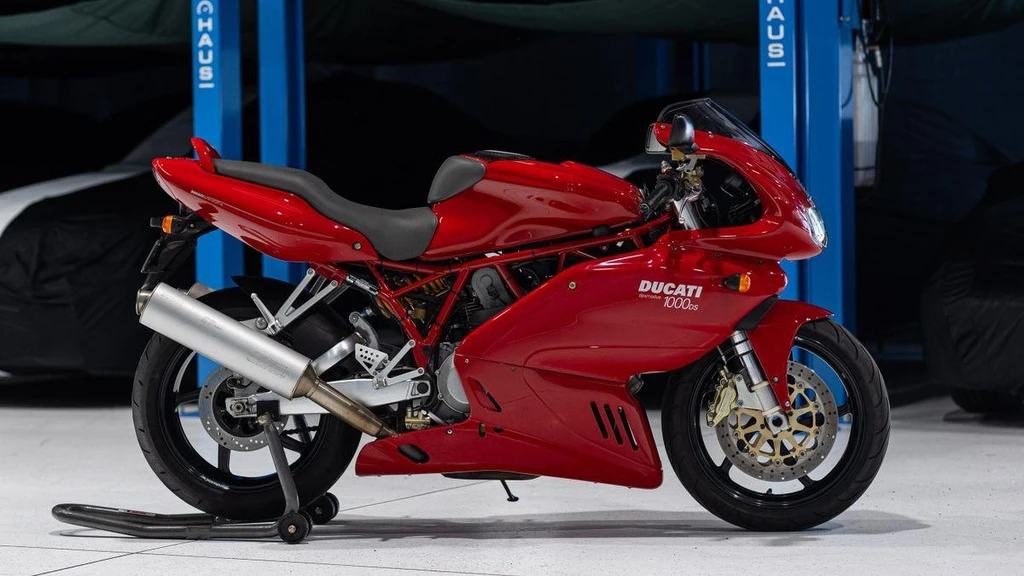

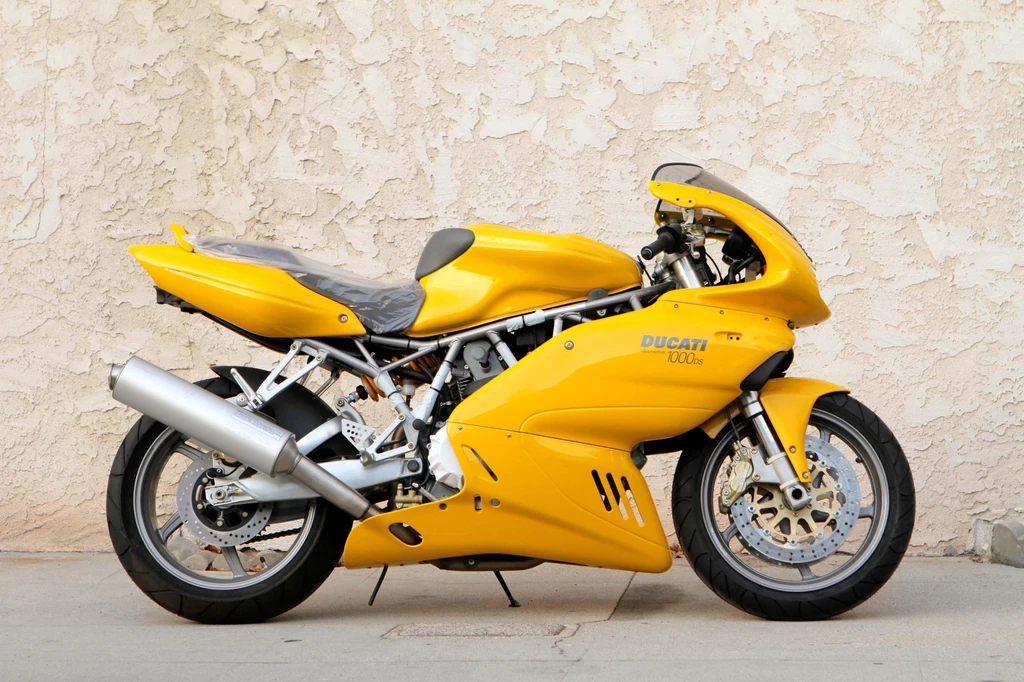

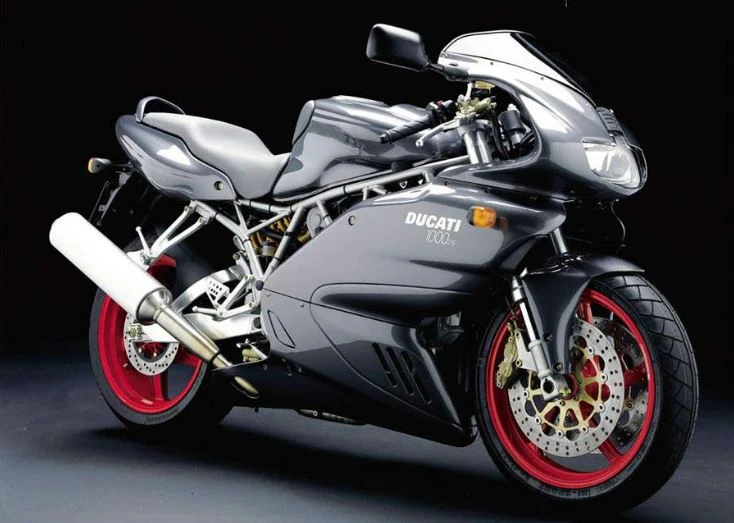

Ducati 1000SS DS (2004)

Ducati 1000SS DS (2004)

The Ducati Supersport has long been an icon of motorcycling excellence, renowned for its exceptional handling, smooth power delivery, and versatility. For over three decades, this legendary model has continued to evolve, earning a reputation as one of the most desirable sportbikes on the market.

Now in 2004, the Ducati Supersport 1000 DS proudly carries on the family legacy with an impressive blend of heritage and innovation. The air-cooled engine at its heart embodies the quintessential Ducati spirit: practical, pragmatic, and unapologetically Italian.

This is a bike that’s as much about performance as it is about passion – a razor-sharp handling machine powered by a potent 992cc Dual Spark fuel-injected Desmo engine. The advanced trellis frame and superior suspension work in perfect harmony to deliver an unforgettable riding experience, one that’s both exhilarating and accessible.

In short, the Supersport 1000 DS is a true masterpiece of motorcycle design, where heritage meets innovation, and performance meets passion – it’s a Ducati for the ages.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Engine Capacity992 cc / 60.5 cu in
Max Power63 kw / 85.5 hp
Max Torque87.5 Nm / 9 kgf-m / 64.5 lb-ft @ 5750 rpm
Fuel Tank Capacity16 L / 4.2 US gal / 3.5 Imp gal
Weight (Wet/Kerb)445.3 lbs / 202 kg
Seat Height32.3 inches / 820 mm
Ducati 1000SS DS (2004)

All Specifications

Make & Model

ModelDucati 1000SS DS
Year2004

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Displacement992 cc / 60.5 cu in
Bore x Stroke94 x 71.5 mm
Compression Ratio10.0:1
Max Horsepower63 kw / 85.5 hp
Max Torque87.5 Nm / 9 kgf-m / 64.5 lb-ft @ 5750 rpm
Engine Management SystemMarelli CPU 5.9M fuel Injection, 45 mm throttle body
Lubrication SystemWet sump
Cooling SystemAir cooled
Exhaust2 Aluminum mufflers with 3-way catalytic converter (non-catalytic on USA version)

Performance

Top Speed230 km/h / 143 mph

Transmission

ClutchDry multiplate with hydraulic control
Gearbox6 Speed
Primary Drive RatioStraight cut gears; ratio 1.84:1 (32/59)
Gear Ratios1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Final DriveChain

Electrical & Electronics System

Battery12V 10Ah
StarterElectric

Chassis & Suspension

Front SuspensionShowa 43 mm fully adjustable upside-down lightweight fork
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionProgressive cantilever linkage with fully adjustable hlins monoshock, with length adjustment, aluminium swing arm
Rear Suspension Travel5.7 inches / 145 mm
Rake24
Trail69 mm / 2.7 in

Wheels & Brakes

Front Tire Size120/70-17
Rear Tire Size180/55-17
Front Brakes2 x 320 mm Discs. 4 piston calipers
Rear BrakesSingle 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height32.3 inches / 820 mm
Wheelbase54.9 inches / 1395 mm
Fuel Tank Capacity16 L / 4.2 US gal / 3.5 Imp gal
Wet (kerb/curb) Weight445.3 lbs / 202 kg
Dry Weight185.2 kg / 407.8 lbs

Features

  • Powerful 992 cc Dual Spark fuel-injected Desmo engine
  • Advanced trellis frame
  • Superior suspension
  • Air-cooled engine design
  • Electronic ignition
  • Belt driven cams
  • Oil level sight glasses
  • Confidence-inspiring handling
  • High performance capabilities
  • Easy to maintain
  • Fun to ride
  • Beautiful design
  • Quality build throughout
  • Dual Spark technology for improved combustion
  • Desmo engine with high-performance characteristics
  • Trellis frame provides superior rigidity and stability
