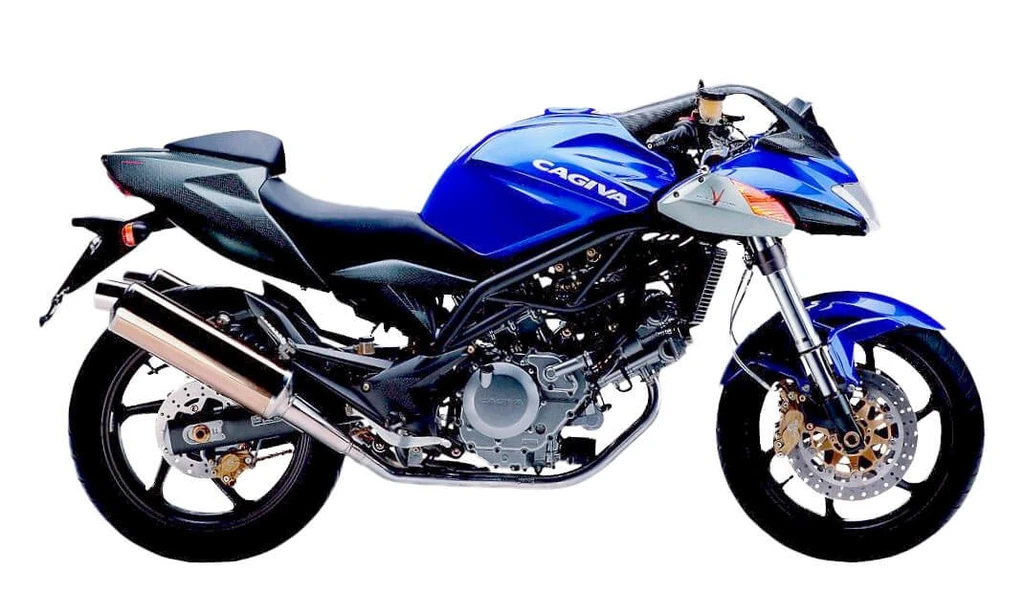

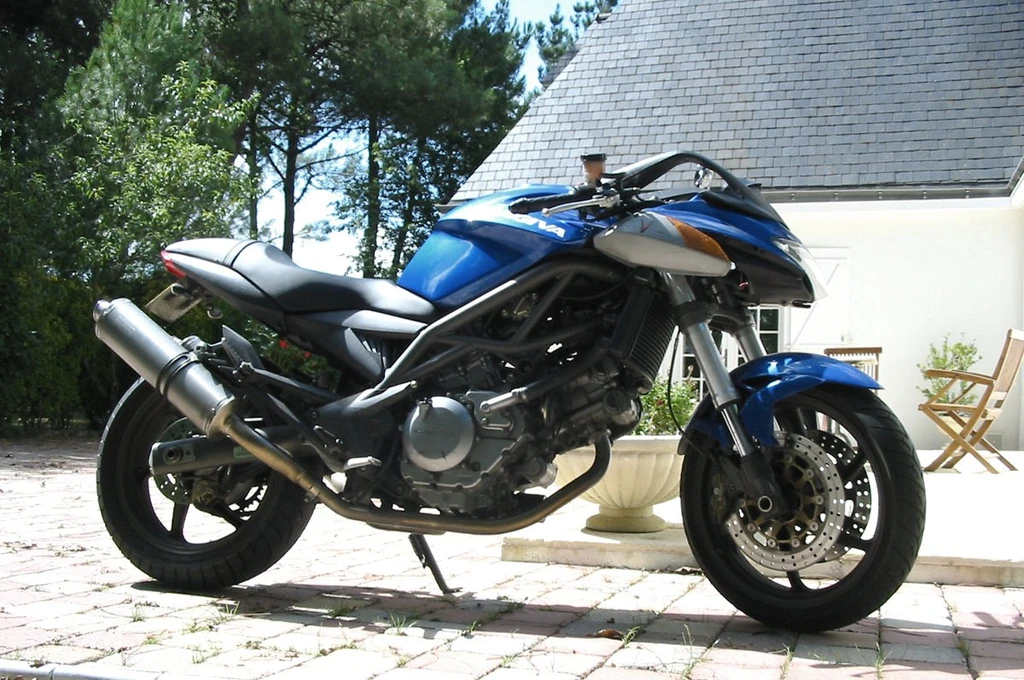

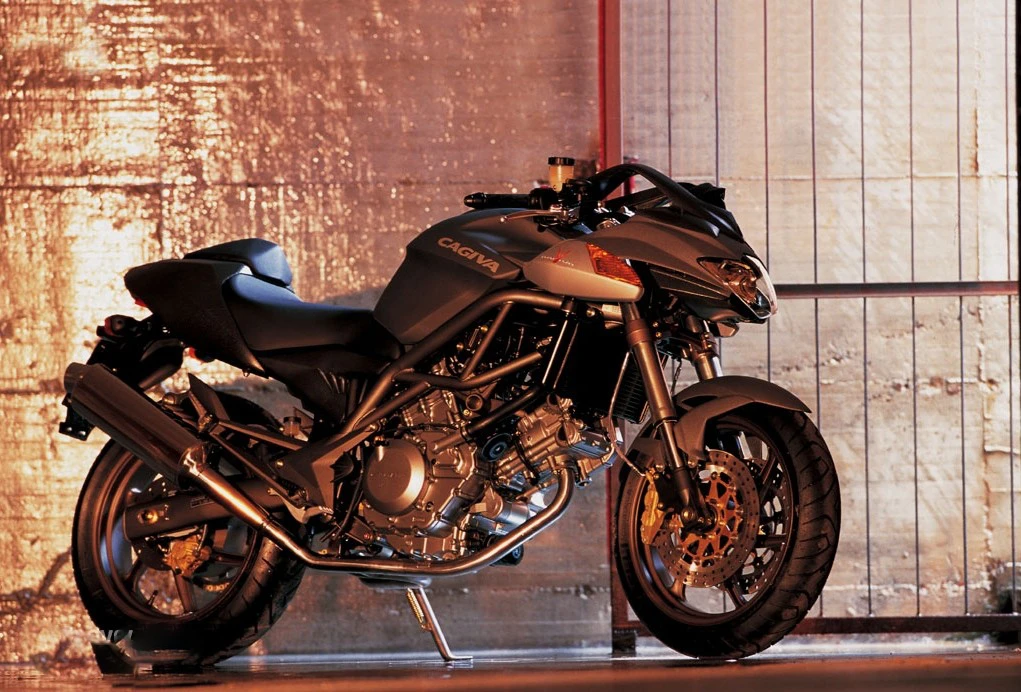

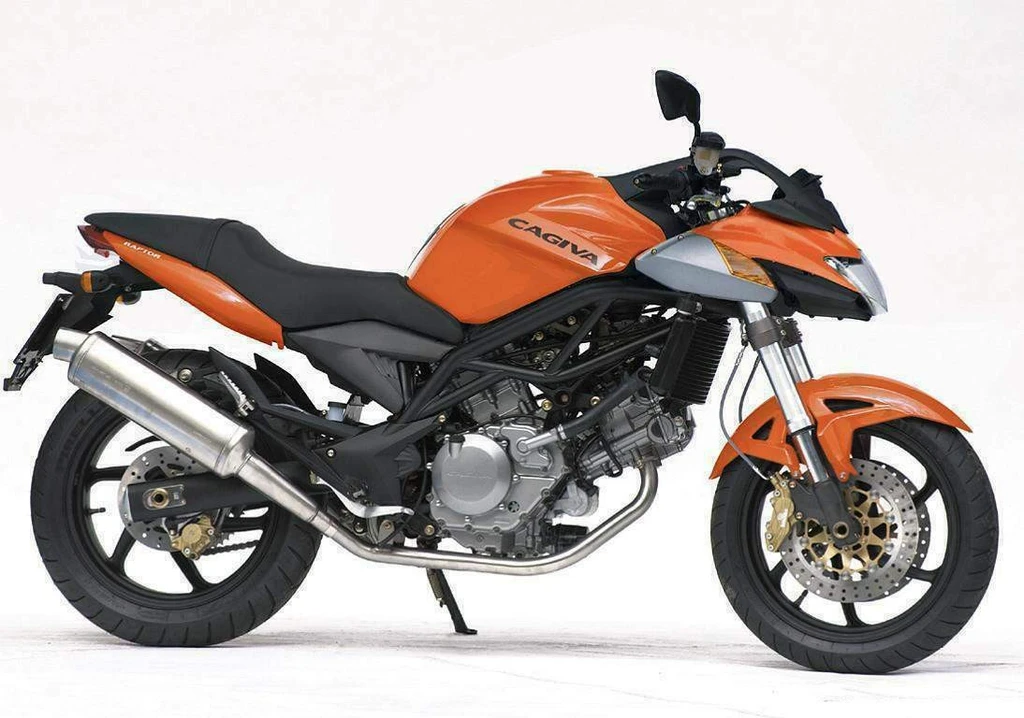

The Cagiva V-Raptor 650 is an uncompromising street fighter that wears its engineering credentials on its sleeve, with a radical, reptilian design that’s as angular as it is attention-grabbing.
Underneath its stripped-back bodywork lies a potent engine package, borrowed from Suzuki’s renowned SV650. The 645cc L-twin motor boasts oversquare dimensions and is capable of spinning safely to 10,000rpm, producing a claimed 52kW of power.
The Mikuni BDSR39 CV carbs provide instant response and a strong, evenly spread mid-range torque, making the V-Raptor 650 an absolute blast to ride. Its riding experience is characterized by an aggressive, in-your-face attitude that’s sure to leave you grinning from ear to ear.
Key Specifications
Engine Type
Four stroke, 90-V-twin, DOHC, 4 valves per cylinder.
Engine Capacity
39.3 cubic inches / 645 cc
Max Power
70 hp / 51 kW @ 9000 rpm
Max Torque
46.8 ft-lb / 63.5 nm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Seat Height
775 kg / 30.5 in
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva V-Raptor 650
Year
2001 – 2002
Engine
Engine Type
Four stroke, 90-V-twin, DOHC, 4 valves per cylinder.
Displacement
39.3 cubic inches / 645 cc
Bore x Stroke
81 x 62.6 mm
Compression Ratio
11.5:1
Max Horsepower
70 hp / 51 kW @ 9000 rpm
Max Torque
46.8 ft-lb / 63.5 nm
Engine Management System
2 x 39mm Mikuni BDSR39
Cooling System
Liquid cooled
Performance
Top Speed
204.8 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
High strength steel tubular frame
Front Suspension
43mm Upside down forks
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Monoshock
Rear Suspension Travel
5.4 inches / 138 mm
Wheels & Brakes
Front Tire Size
120/70ZR17
Rear Tire Size
160/60ZR17
Front Brakes
2x 298mm discs4piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Dimension & Weights
Seat Height
775 kg / 30.5 in
Wheelbase
56.6 inches / 1438 mm
Ground Clearance
165 mm / 6.5 in
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Dry Weight
180 kg /180.0 kg / 396.8 lbs
Features
90-V-twin engine
DOHC, 4 valves per cylinder
Suzuki’s SV650 engine used as a base
645cc L-twin engine displacement
Oversquare engine design (81×62.6mm bore x stroke)
Engine rev limit of 10,000rpm
Claimed power output of 52kW
Mikuni BDSR39 CV carbs for fueling
Instant response and evenly spread mid-range torque
Tubular steel trellis frame for the chassis
Elegant triangulation of frame tubes for added strength
Steel swing-arm with oval tubing and concealed chain tension adjusters
Cast-alloy plugs and tension screws for easy adjustment
Six-speed gearbox with heavier shift action
Clutch is light, positive, and won’t fade or judder
