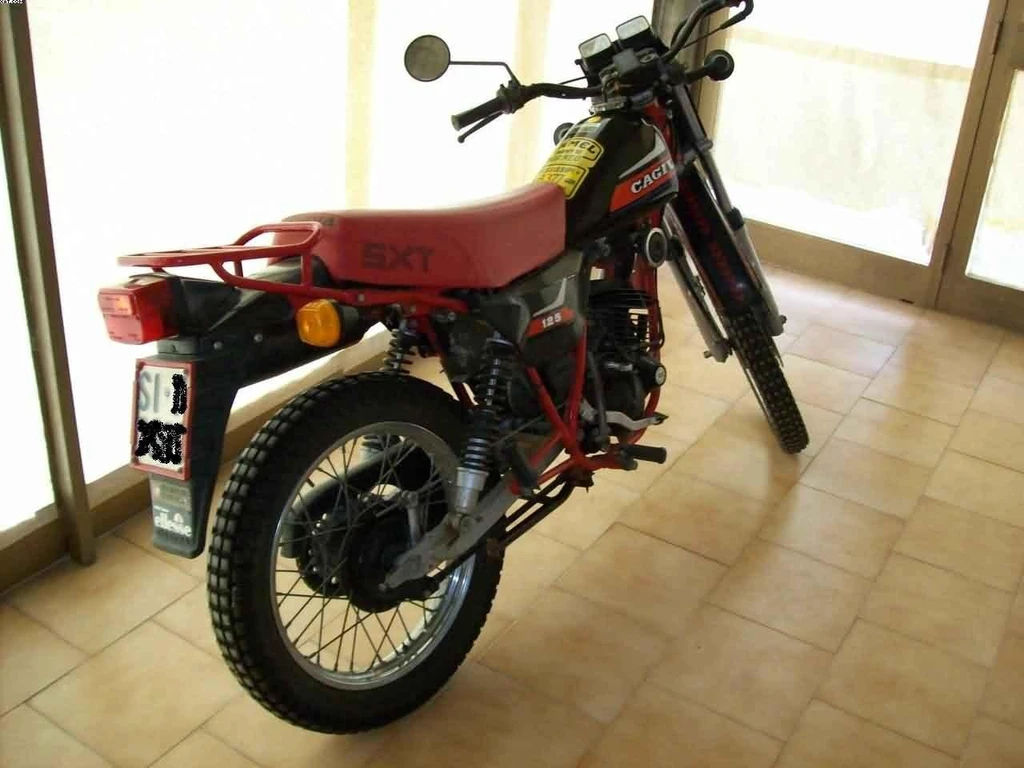

The Cagiva SXT 125 Ala Rossa, a motorbike that embodied the essence of Italian engineering and design in the early 1980s. This sleek and sporty motorcycle boasted a 125cc two-stroke engine, providing an exceptional balance of power and agility.
With its compact dimensions and lightweight frame, the SXT 125 Ala Rossa delivered a thrilling riding experience, perfect for navigating twisty roads and city streets alike. The bike’s robust engine character was characterized by a lively throttle response and a distinctive exhaust note that left a lasting impression on riders.
Built with the precision of Italian craftsmanship, every detail of the Cagiva SXT 125 Ala Rossa contributed to its overall charm and appeal.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
7.6 cubic inches / 123 cc
Max Power
17 hp / 12.4 kW @ 7000 rpm
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Seat Height
29.5 inches / 749 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva SXT 125 Ala Rossa
Year
1982 – 83
Engine
Engine Type
Two stroke, single cylinder
Displacement
7.6 cubic inches / 123 cc
Bore x Stroke
56.0 x 50 mm
Compression Ratio
14.8;1
Max Horsepower
17 hp / 12.4 kW @ 7000 rpm
Engine Management System
D24mmell’Orto VHB 27 AD
Lubrication System
Fuel and oil mixture
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multi plate
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Primary kick
Chassis & Suspension
Front Suspension
Pivoted fork
Rear Suspension
Soft damp single shock
Wheels & Brakes
Front Tire Size
2.75 -21
Rear Tire Size
3.50 -18
Front Brakes
Single 240mm disc
Rear Brakes
Drum
Dimension & Weights
Seat Height
29.5 inches / 749 mm
Wheelbase
1359 mm 53.5 in
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Dry Weight
112 kg / 247 lbs
