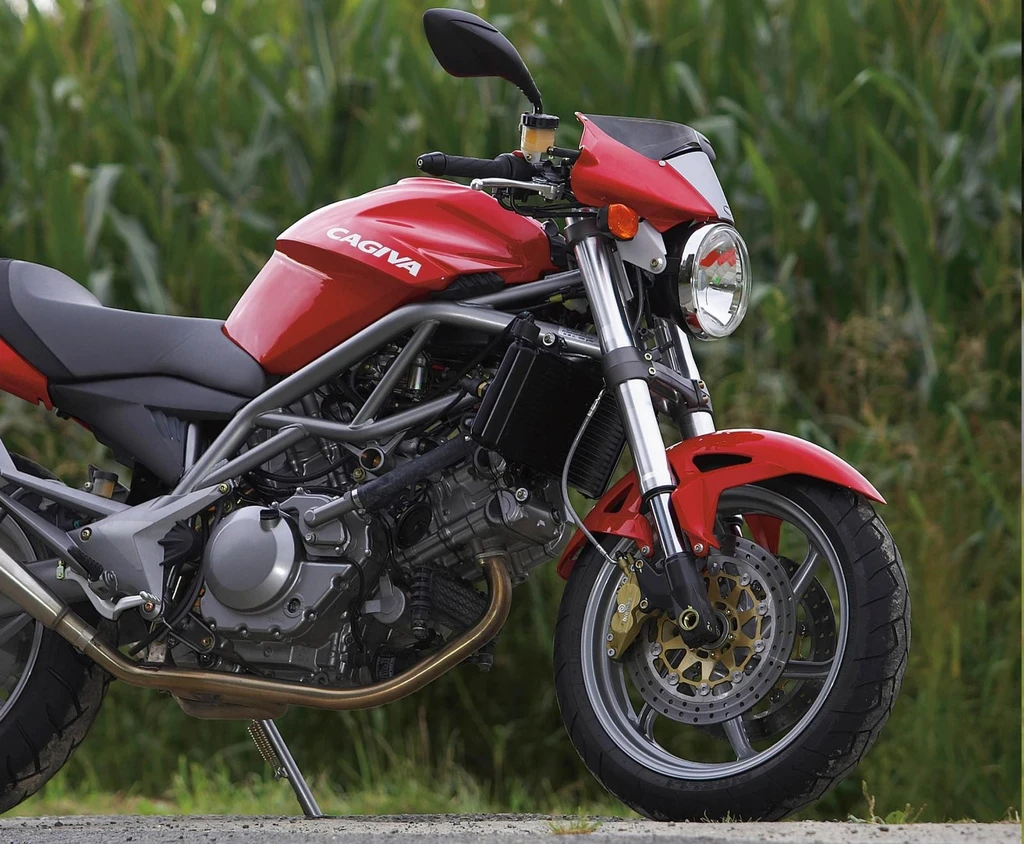

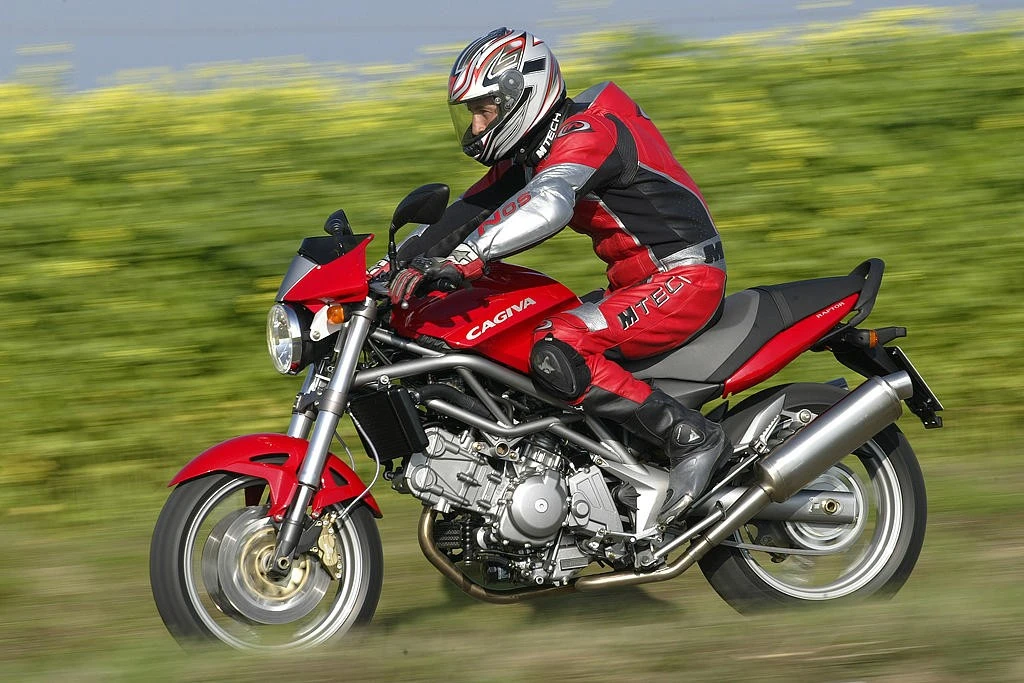

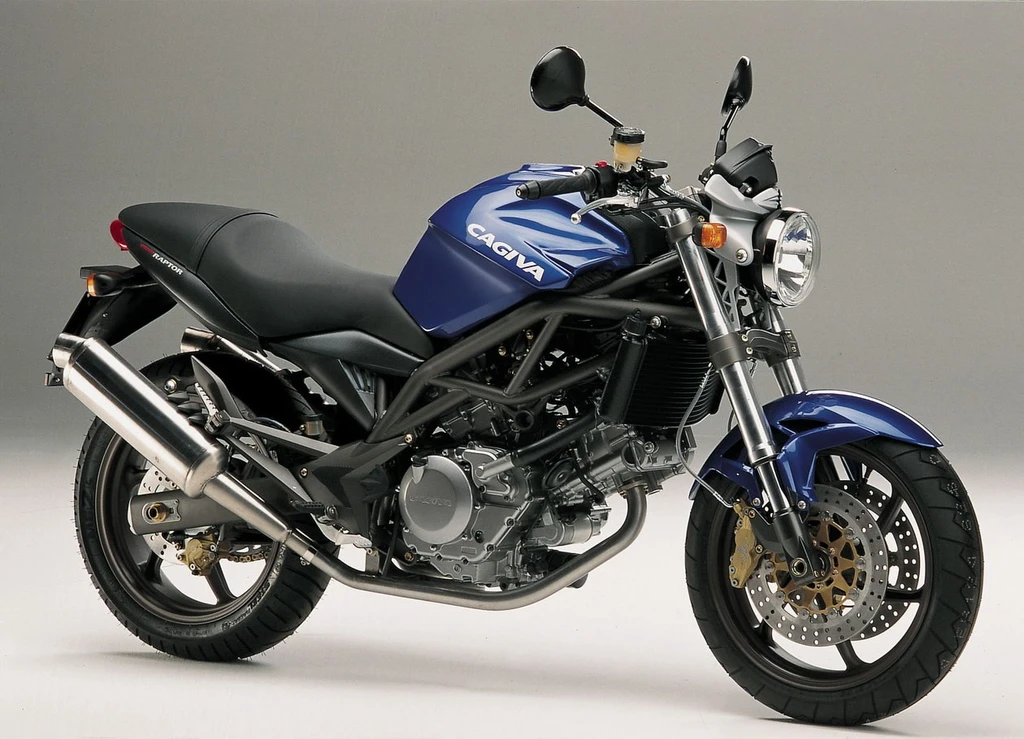

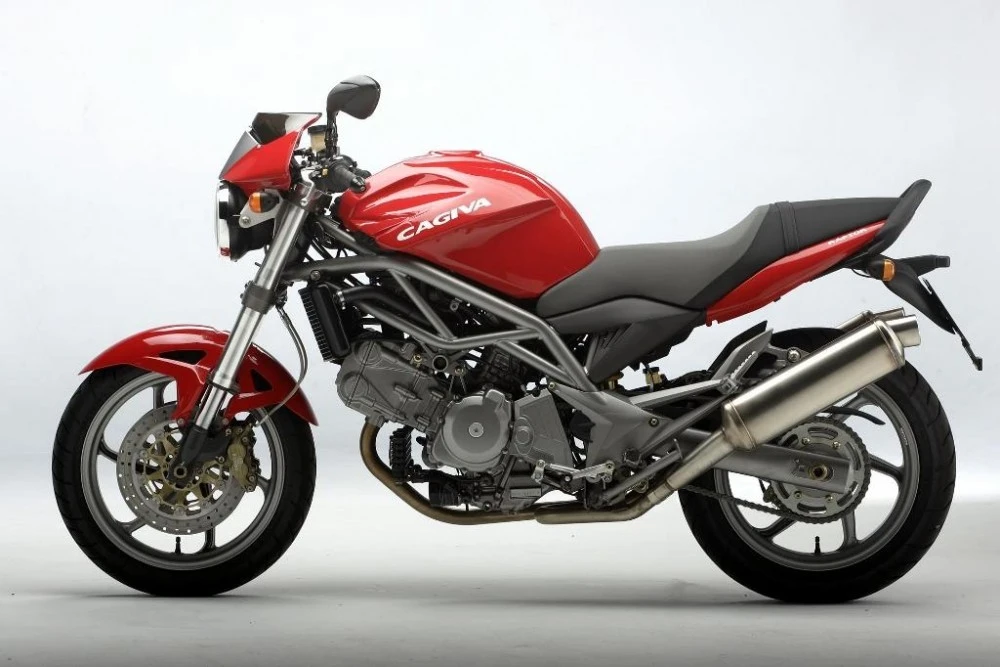

The Cagiva Raptor 650ie is an Italian mid-capacity marvel that defies expectations with its punchy 90-V-twin engine and engaging riding experience.
This DOHC, four-valve-per-cylinder powerplant may seem diminutive at first glance, but don’t be fooled – it packs a surprising wallop for its size. The Raptor’s engine character is a perfect blend of smoothness and grunt, making it an absolute joy to ride on twisty roads or cruise down the highway.
Whether you’re a seasoned rider or just starting out, the Cagiva Raptor 650ie is an incredibly capable machine that will make you feel at ease on its comfortable seat height. Its trellis frame, beautifully finished with lustrous paint and quality fittings, exudes Italian style and sophistication.
The result of this blend of performance, comfort, and style is a motorcycle experience that’s nothing short of exceptional – the Cagiva Raptor 650ie truly sets itself apart from its peers as an all-rounder that’s hard to beat.
Key Specifications
Engine Type
Four stroke, 90-V-twin, DOHC, 4 valves per cylinder.
Engine Capacity
39.3 cubic inches / 645 cc
Max Power
70 hp / 51 kW @ 9000 rpm
Max Torque
46.8 ft-lb / 63.5 nm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Seat Height
775 kg / 30.5 in
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Raptor 650ie
Year
2005 –
Engine
Engine Type
Four stroke, 90-V-twin, DOHC, 4 valves per cylinder.
Displacement
39.3 cubic inches / 645 cc
Bore x Stroke
81 x 62.6 mm
Compression Ratio
11.5:1
Max Horsepower
70 hp / 51 kW @ 9000 rpm
Max Torque
46.8 ft-lb / 63.5 nm
Engine Management System
Fuel injection
Cooling System
Liquid cooled
Performance
Top Speed
207 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
High strength steel tubular frame
Front Suspension
43mm Upside down forks
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Monoshock
Rear Suspension Travel
5.4 inches / 138 mm
Wheels & Brakes
Front Tire Size
120/70ZR17
Rear Tire Size
160/60ZR17
Front Brakes
2x 298mm discs4piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Dimension & Weights
Seat Height
775 kg / 30.5 in
Wheelbase
56.6 inches / 1438 mm
Ground Clearance
165 mm / 6.5 in
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Dry Weight
180 kg /180.0 kg / 396.8 lbs
Features
Four stroke engine
90-V-twin configuration
DOHC (dual overhead camshaft) design
4 valves per cylinder
Mid-sized engine with useable power and torque throughout rev range
Flexible V-twin powerplant
Nimble handling around town
Light weight for a mid-capacity bike
Relatively upright ride position
Acceptable legroom for riders of various heights
Firmish but supportive seat
Surprisingly effective bikini-fairing and screen
770mm seat height
Trellis frame with nicely welded construction
Beautiful brackets and quality fittings throughout
