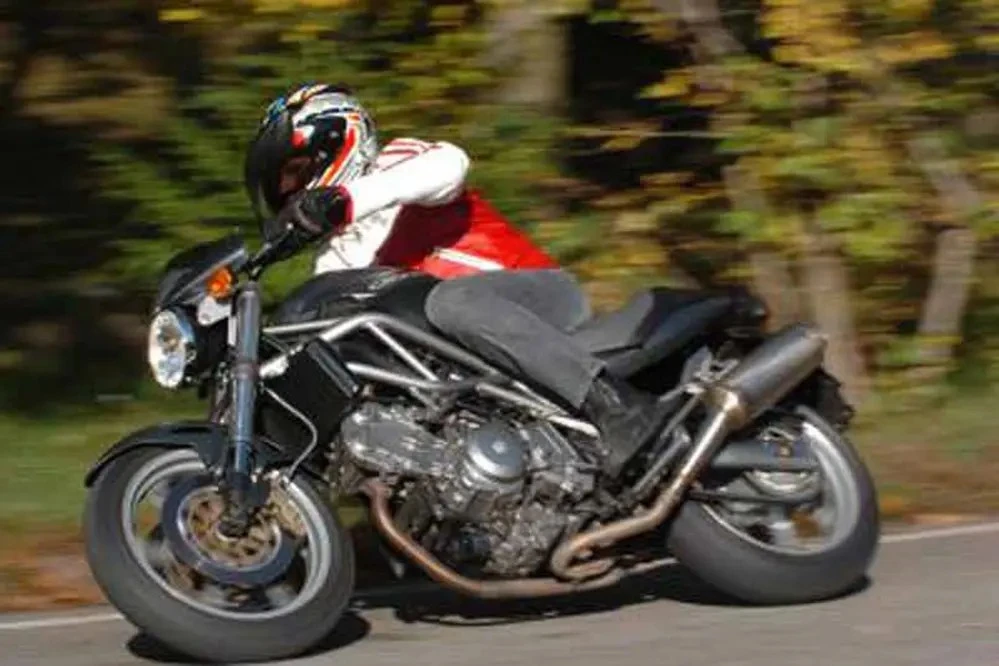

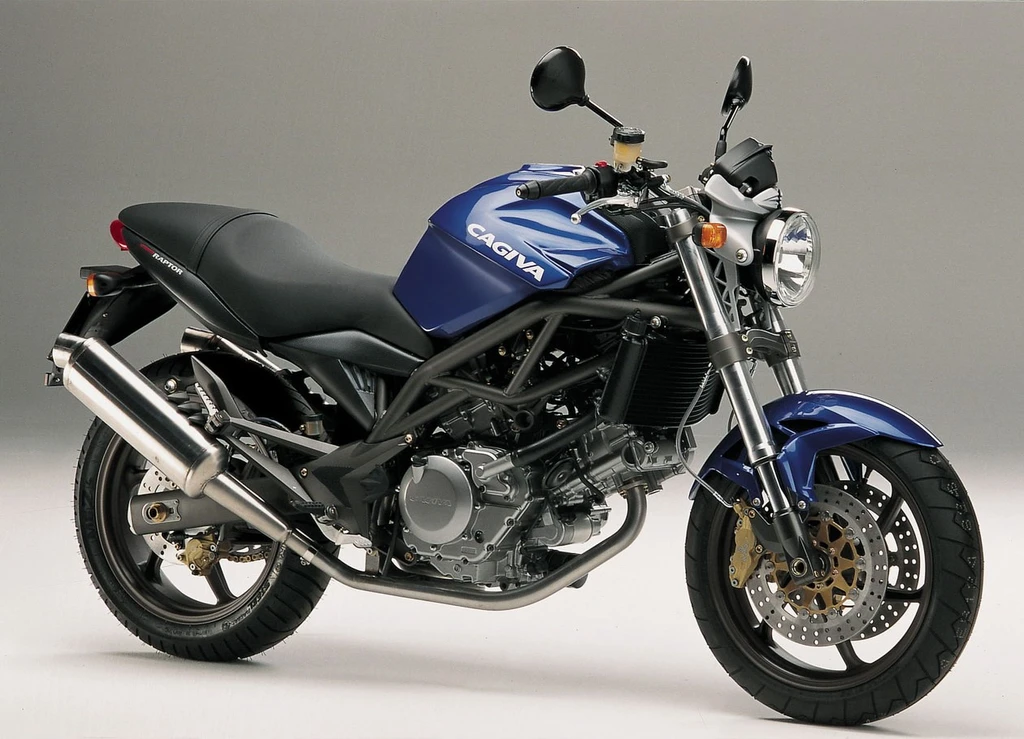

The Cagiva Raptor 650 is a middleweight marvel that boasts the same stunning aesthetics as its larger sibling, but with a more humble heart – a Suzuki SV650 liquid-cooled V-twin engine.
This 90-degree twin-cylinder powerhouse may not match the outright performance of the TL1000-powered Raptor 1000, but it still delivers an exhilarating riding experience that’s perfectly suited to those seeking agility and responsiveness.
The result is a bike that’s both easy to handle and incredibly fun to ride, thanks in part to its significantly lighter weight and narrower rear tire, which allows for quicker steering and enhanced maneuverability. With exceptional stopping power courtesy of its twin 298mm front disc brakes, the Raptor 650 offers an unbeatable combination of style and substance that will leave you grinning from ear to ear every time you take it out for a spin.
Key Specifications
Engine Type
Four stroke, 90-V-twin, DOHC, 4 valves per cylinder.
Engine Capacity
39.3 cubic inches / 645 cc
Max Power
70 hp / 51 kW @ 9000 rpm
Max Torque
46.8 ft-lb / 63.5 nm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Seat Height
775 kg / 30.5 in
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Raptor 650
Year
2003 – 2004
Engine
Engine Type
Four stroke, 90-V-twin, DOHC, 4 valves per cylinder.
Displacement
39.3 cubic inches / 645 cc
Bore x Stroke
81 x 62.6 mm
Compression Ratio
11.5:1
Max Horsepower
70 hp / 51 kW @ 9000 rpm
Max Torque
46.8 ft-lb / 63.5 nm
Engine Management System
2 x 39mm Mikuni BDSR39
Cooling System
Liquid cooled
Performance
Top Speed
207 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
High strength steel tubular frame
Front Suspension
43mm Upside down forks
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Monoshock
Rear Suspension Travel
5.4 inches / 138 mm
Wheels & Brakes
Front Tire Size
120/70ZR17
Rear Tire Size
160/60ZR17
Front Brakes
2x 298mm discs4piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Dimension & Weights
Seat Height
775 kg / 30.5 in
Wheelbase
56.6 inches / 1438 mm
Ground Clearance
165 mm / 6.5 in
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Dry Weight
180 kg /180.0 kg / 396.8 lbs
Features
Four stroke engine
90-V-twin configuration
DOHC cylinder head design
4 valves per cylinder
Liquid-cooled V-twin powerplant
Suzuki SV650 engine
Twin front disc brakes (298mm)
Narrower rear tyre (160-section)
