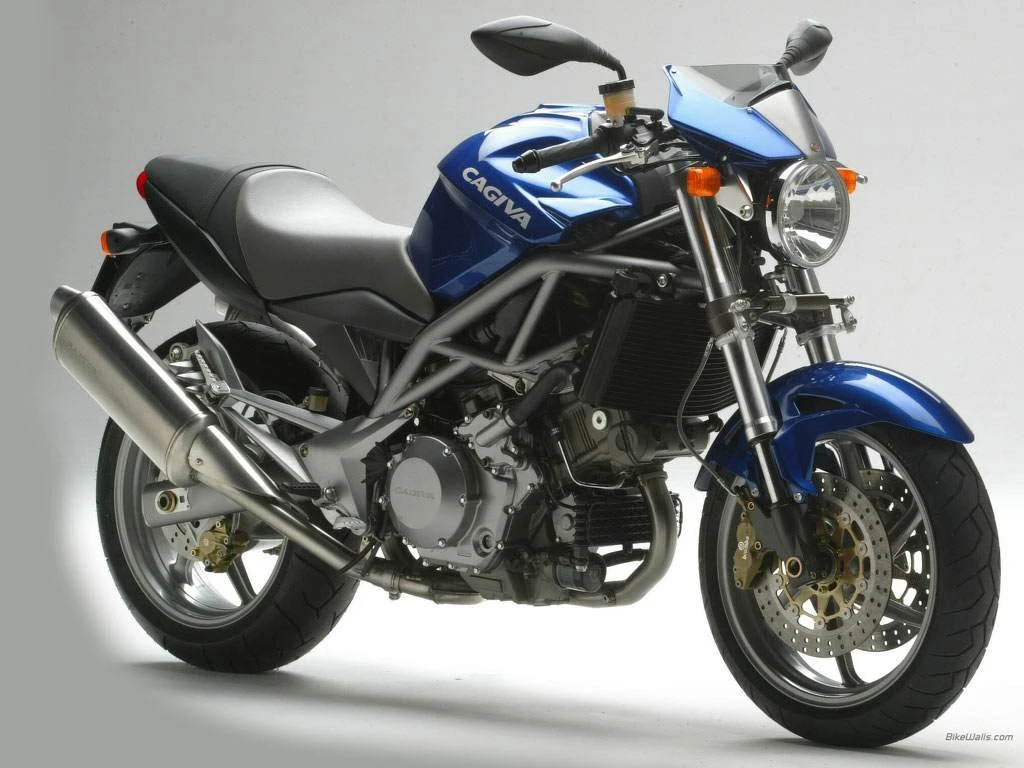

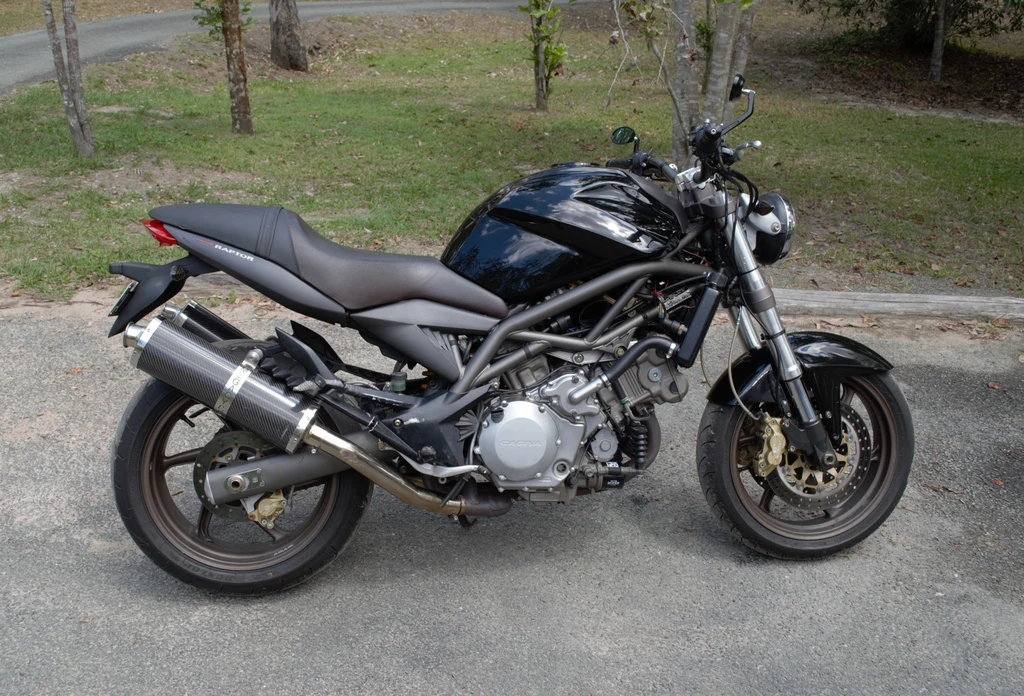

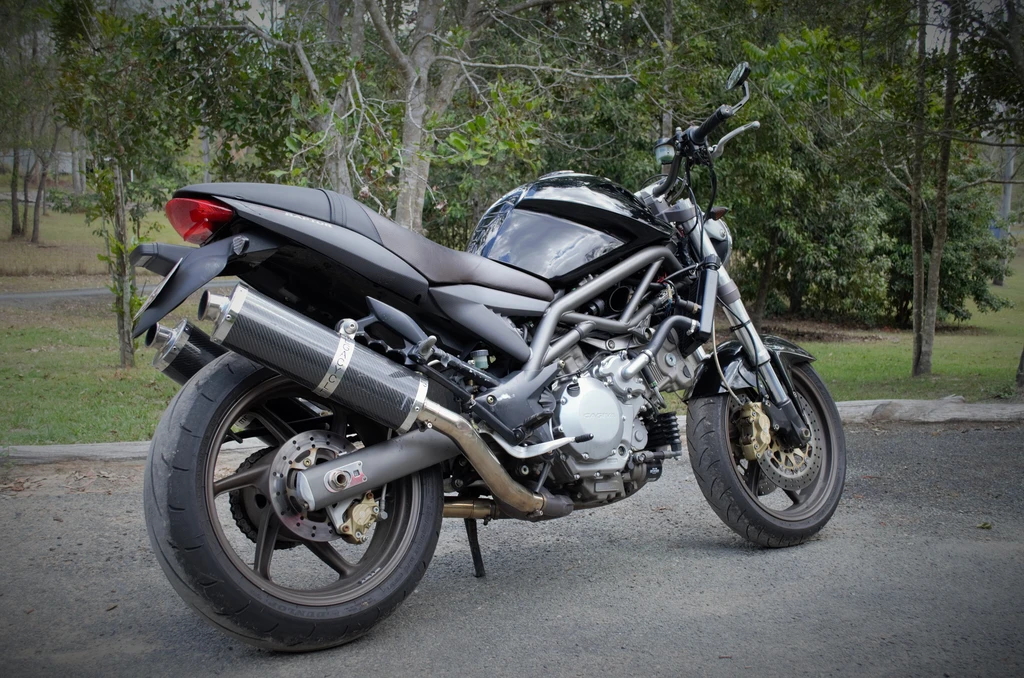

The Cagiva Raptor 1000 – a bike that embodies the perfect blend of raw power, agile handling, and Italian flair. Its 90-degree V-twin engine, inspired by the Suzuki DL100, delivers a unique character with its DOHC configuration and four valves per cylinder. This potent combination enables riders to experience an exhilarating ride, with crisp acceleration and effortless cruising.
The Raptor’s engine is more than just a powerplant – it’s an extension of the rider’s personality, inviting them to explore twisty roads and carve through mountain passes with confidence. Miguel-Angel Galluzzi, the mastermind behind this creation, envisioned a bike that could handle both urban commutes and high-speed adventures.
With its robust build quality and attention to detail, the Cagiva Raptor 1000 stands as a testament to Italian ingenuity and passion for motorcycling. Its legacy may be marred by circumstance, but this exceptional machine remains an unmissable experience for riders seeking an authentic, adrenaline-fueled ride.
Key Specifications
Engine Type
Four stroke, 90 V-twin, DOHC, 4 valves per cylinder (Suzuki DL100)
Engine Capacity
60.7 cubic inches / 996 cc
Max Power
105.5 / 78.7 kW @ 8500 rpm
Max Torque
66.4 ft-lb / 90.4 nm
Fuel Tank Capacity
4.0 US gallons / 15.2 L
Seat Height
30.3 inches / 770 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Raptor 1000
Year
2004 – 2005
Engine
Engine Type
Four stroke, 90 V-twin, DOHC, 4 valves per cylinder (Suzuki DL100)
Displacement
60.7 cubic inches / 996 cc
Bore x Stroke
11.3:1
Compression Ratio
99 x 66 mm
Max Horsepower
105.5 / 78.7 kW @ 8500 rpm
Max Torque
66.4 ft-lb / 90.4 nm
Engine Management System
Electronic fuel injection
Performance
Top Speed
232 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
43mm Upside down hydraulic fork
Rear Suspension
Rising rate monoshock preload adjustable
Wheels & Brakes
Front Tire Size
120/70 ZR17
Rear Tire Size
180/55 ZR17
Front Brakes
2x 298mm discs 4 piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Dimension & Weights
Seat Height
30.3 inches / 770 mm
Wheelbase
56.7 inches / 1440 mm
Fuel Tank Capacity
4.0 US gallons / 15.2 L
Dry Weight
192 kg / 423 lbs
Features
90 V-twin engine
Four stroke DOHC configuration
4 valves per cylinder
Suzuki DL100 engine (sometimes mentioned)
Cagiva Raptor model name
Naked streetfighter design
Urban hyper sportbike characteristics
Streetfighter styling
High performance capabilities
Italian market focus
Engine sourced from Suzuki
Suzuki TL1000 V-Twin powerplant
Triumph Speed Triple Three considered as alternative engine
