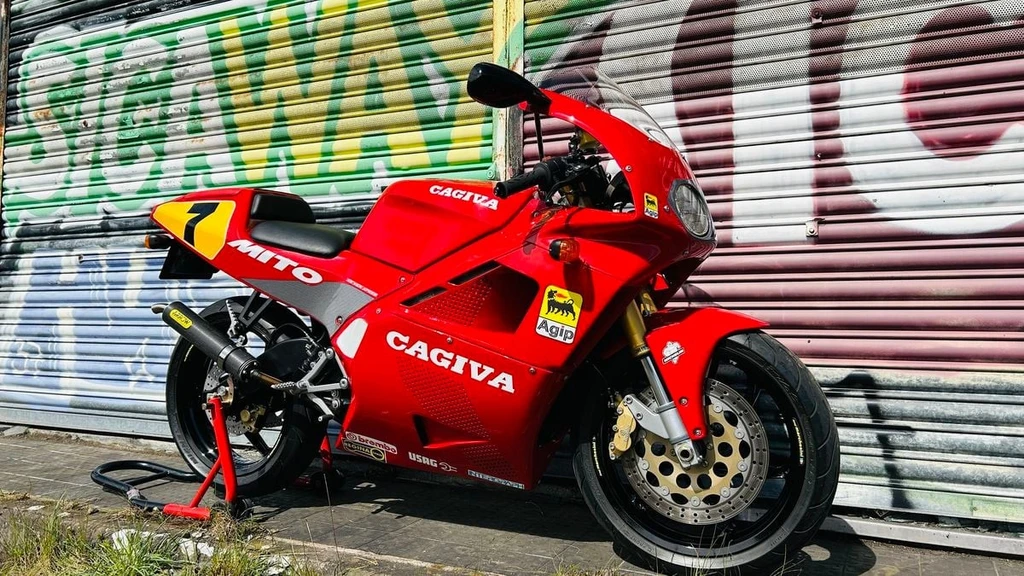

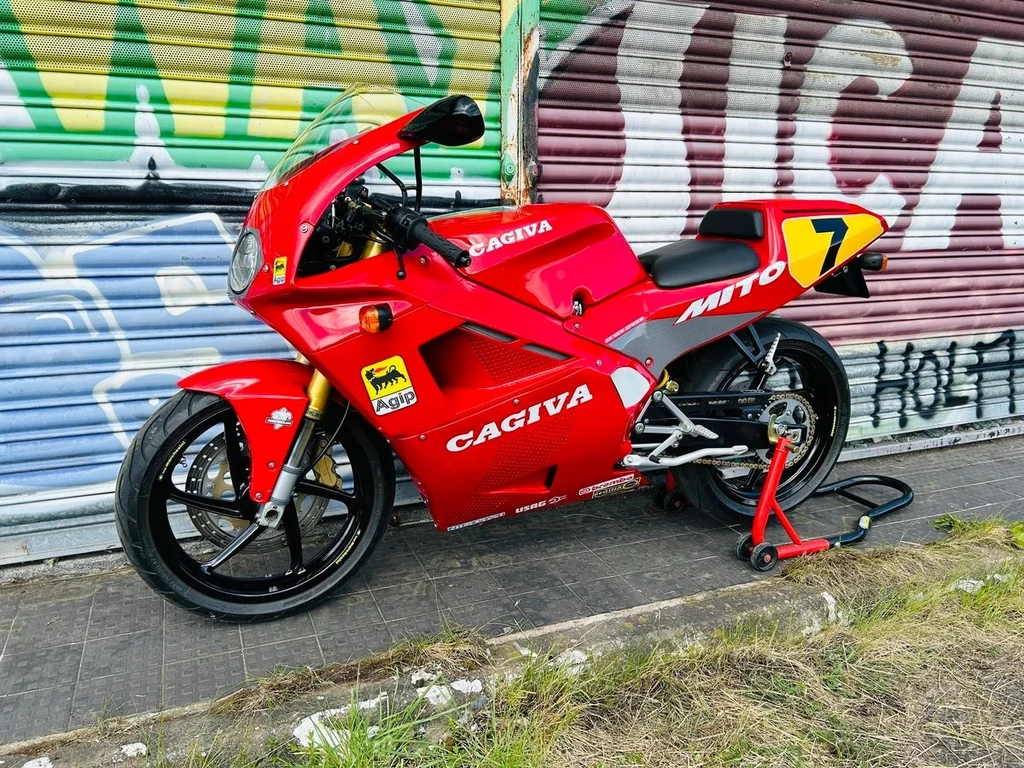

The Cagiva MitoILawson Replica – a 125cc motorcycle with a pedigree that’s hard to match. Its reputation was cemented when “The Man Himself” used one as his trusty paddock bike last season, and fans would often knock on his door hoping to catch a glimpse of this little beauty.
The stock Mito is already mischievous enough, thanks to its 206bhp/litre engine, but the Lawson Replica takes things to an even more outrageous level with its Sports Production motor. This includes a modded piston, cylinder head, and exhaust valve, all of which come together to produce a staggering amount of power.
Despite being a 125cc two-stroke, this bike’s engine character is nothing short of phenomenal, delivering a sweeping power band that spans an incredible 1500rpm from 9,500 to 11,000 rpm. The seven-speed gearbox may seem excessive, but when you’re dealing with such a narrow powerband, every gear counts.
Riding the MitoILawson Replica is an exhilarating experience, with the bike seeming to come alive in your hands as you push it towards its screaming redline. It’s a true thrill ride that will leave even the most seasoned riders grinning from ear to ear.
Key Specifications
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Engine Capacity
7.6 cubic inches / 125.6 cc
Max Power
33.5 hp / 23 kW @ 10500 rpm
Max Torque
14 ft-lb / 19 nm
Fuel Tank Capacity
3.38 US gallons / 12.8 L
Weight (Wet/Kerb)
275.5 lbs / 125 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva MitoILawson Replica
Year
1992
Engine
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Displacement
7.6 cubic inches / 125.6 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
13.0:1
Max Horsepower
33.5 hp / 23 kW @ 10500 rpm
Max Torque
14 ft-lb / 19 nm
Engine Management System
28mm Dell’Orto flat slide carburetor
Performance
Top Speed
164.2 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
7 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
USD Telescopic forks
Rear Suspension
Swinging arm single shock
Wheels & Brakes
Front Tire Size
110/70-17
Rear Tire Size
150/70-17
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 230mm disc 1 piston caliper
Dimension & Weights
Fuel Tank Capacity
3.38 US gallons / 12.8 L
Wet (kerb/curb) Weight
275.5 lbs / 125 kg
Dry Weight
117 kg / 258 lbs
Features
Here is the list of features:
3,449 pounds dry weight
Lawson replica styling
Sports Production motor with ported cylinder head and piston
206bhp/litre power output (nominal)
Up to 240bhp per litre power output (estimated)
28mm carburetor
Reed valve induction
CTS power valve
Seven-speed gearbox
Electric starter
Alloy beam frame
Invisible motor beneath bodywork
GP-style sponsorship stickers
Meaningful number seven race numbers
Carbon fibre-esque spanner on the stock Mito
Modified exhaust valve and carburetor on the Lawson replica
