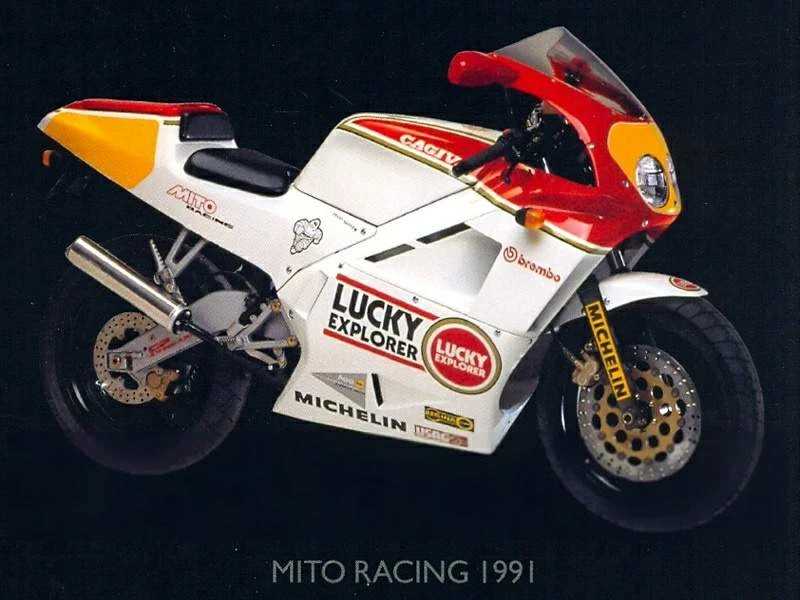

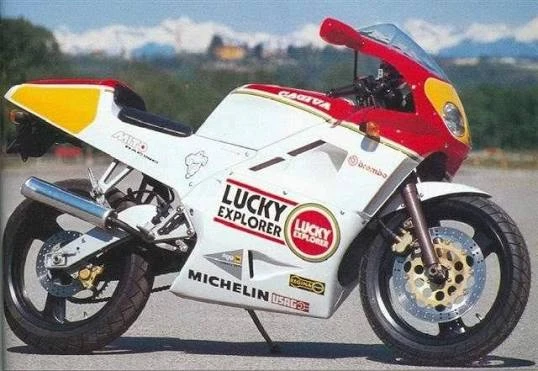

Cagiva Mito 125SP II Sport Production Lucky Explorer (1992 – 93)
The Cagiva Mito 125SP II Sport Production Lucky Explorer is a marvel of innovation, boasting a sleek design and impressive mechanical upgrades. This 1992 model boasts a striking fairing adorned with red circles and gold accents, while the Mito II Replica variant that followed in 1993 introduced new graphics, including the iconic Eddie Lawson and Kocinski liveries.
Underneath its stylish skin lies a refined engine, featuring a cylinder head upgrade with discharge valve ‘8A0067781 and expansion/exhaust bushings inspired by the Mito Racing series. The silencer is now attached to the platform without a band, and the fuel tap has been upgraded to a three-position faucet (ON, OFF, RES) governed by the collector of the carburetor.
But what truly sets this bike apart is its riding experience, with a responsive front brake caliper featuring 30mm and 34mm pistons for increased modularity. The forks have also been tweaked, with 40mm gold stems and reduced steering rake to 120mm. Whether you’re carving through twisties or cruising the open road, the Cagiva Mito 125SP II Sport Production Lucky Explorer is sure to deliver an exhilarating ride that will leave you breathless and begging for more.
Key Specifications
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Engine Capacity
7.6 cubic inches / 125.6 cc
Max Power
33.5 hp / 23 kW @ 10500 rpm
Max Torque
14 ft-lb / 19 nm
Fuel Tank Capacity
3.38 US gallons / 12.8 L
Weight (Wet/Kerb)
275.5 lbs / 125 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Mito 125SP II Sport Production Lucky Explorer
Year
1992 – 93
Engine
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Displacement
7.6 cubic inches / 125.6 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
13.0:1
Max Horsepower
33.5 hp / 23 kW @ 10500 rpm
Max Torque
14 ft-lb / 19 nm
Engine Management System
28mm Dell’Orto flat slide carburetor
Performance
Top Speed
164.2 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
7 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
USD Telescopic forks
Rear Suspension
Swinging arm single shock
Wheels & Brakes
Front Tire Size
110/70-17
Rear Tire Size
150/70-17
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 230mm disc 1 piston caliper
Dimension & Weights
Fuel Tank Capacity
3.38 US gallons / 12.8 L
Wet (kerb/curb) Weight
275.5 lbs / 125 kg
Dry Weight
117 kg / 258 lbs
Features
Red fairing with gold circles
Gold fork stems (40mm)
Front disc brake type float instead of drive
Fixed front brake calipers
Variable diameter pistons (30 mm and 34 mm)
New pump for increased modularity
New front wheel
Reduced fork travel to 120 mm
No preload adjustment on the left stem
Mito Racing motor with discharge valve ‘8A0067781
Expansion and exhaust bushing of Mito Racing
Silencer attached to the platform without band
Fuel tap diaphragm vacuum replaced
Three-position fuel tap (ON, OFF, RES)
Collector without system
New engine (cylinder head and piston) for 1993 Replica model
Carbon silencer cover and platform
Fairings Forelle (fairing, side fairings, lower)
Various colors of replica motorcycle competition
Advanced ignition timing by 1 mm to 1.55 mm
Different graduated grid for speedometer and tachometer
