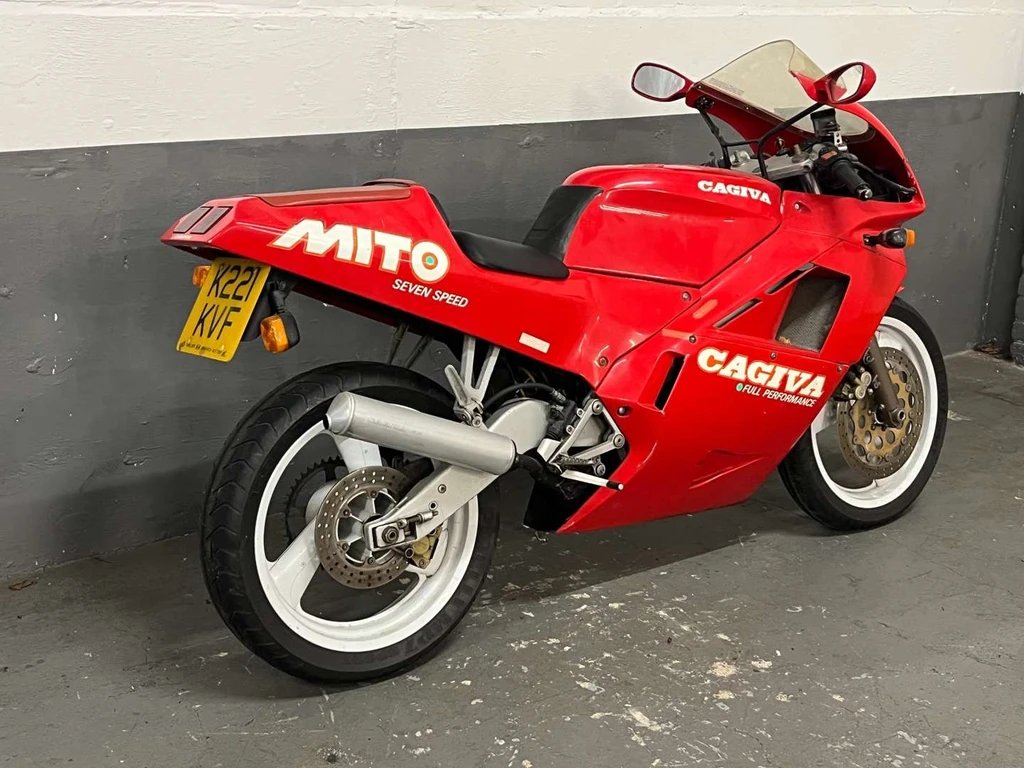

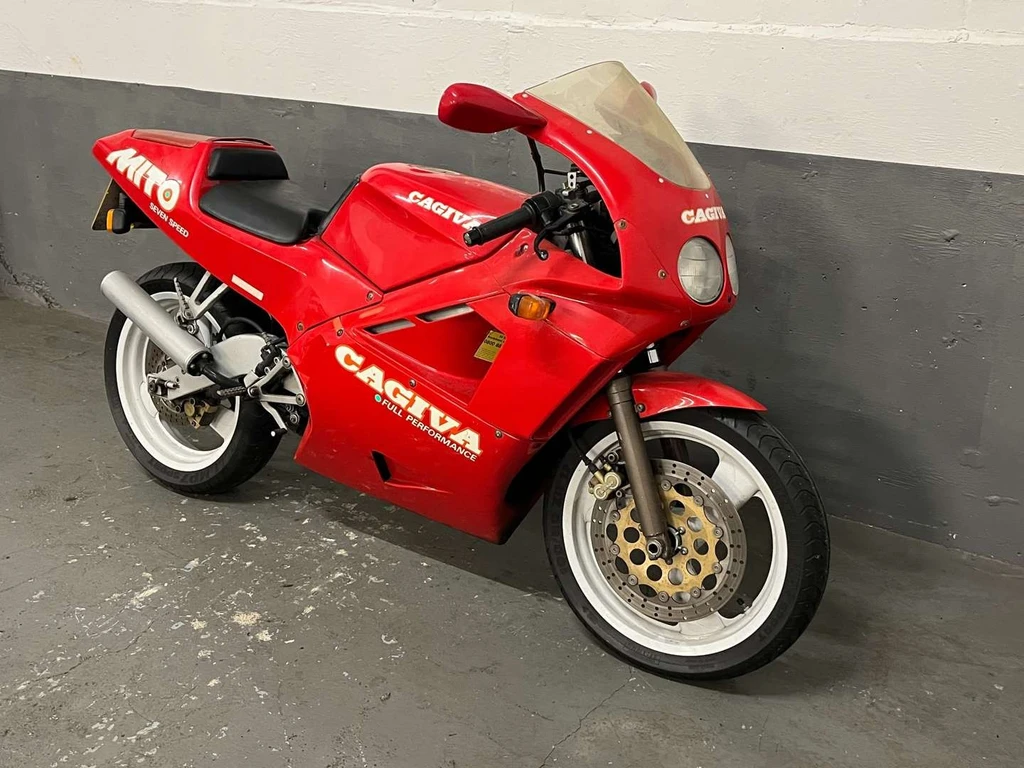

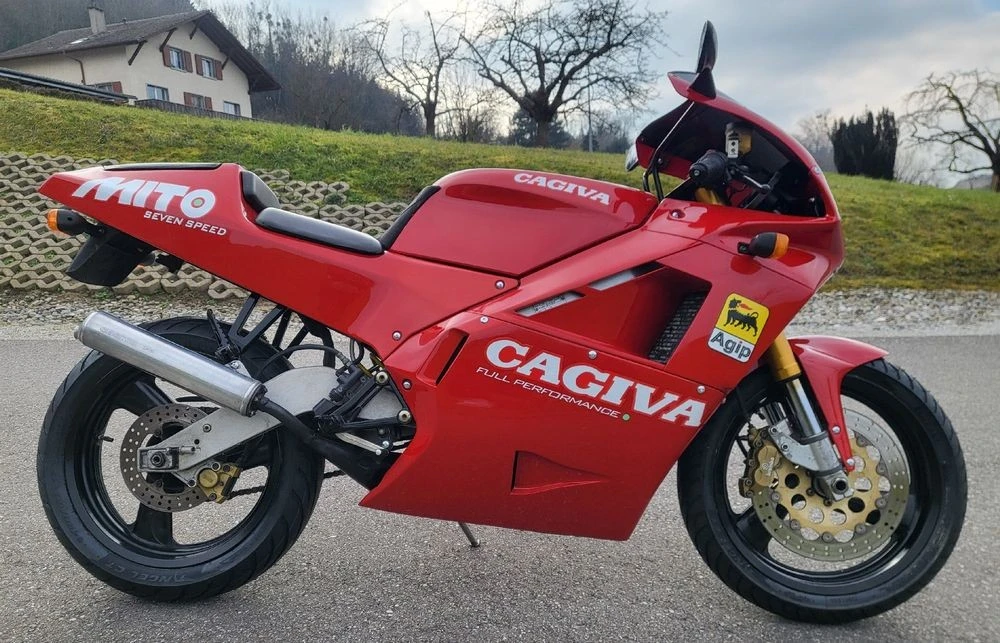

The Cagiva Mito 125II Replica is a thrilling addition to the motorcycle world. This stunning bike boasts a striking fairing adorned with red circles and gold, reminiscent of its racing roots. The Lucky Explorer and Forelle graphics are exclusive to this model, while the Eddie Lawson Kocinski design mimics the iconic samples of Cagiva’s past.
The Mito 125II Replica introduces several significant upgrades, including a new front disc brake with fixed calipers and adjustable diameter pistons for enhanced modularity. The fork has been revised with a 40mm gold stem and reduced rake, but unfortunately, this means sacrificing preload adjustment. A new engine is also featured, boasting an updated cylinder head and piston design.
The Mito 125II Replica is not just a bike – it’s an exhilarating riding experience. With its potent engine character and sleek design, it’s sure to leave riders grinning from ear to ear. Whether you’re carving through twisties or cruising down the highway, this bike promises to deliver thrilling performance and style.
Key Specifications
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Engine Capacity
7.6 cubic inches / 125.6 cc
Max Power
33.5 hp / 23 kW @ 10500 rpm
Max Torque
14 ft-lb / 19 nm
Fuel Tank Capacity
3.38 US gallons / 12.8 L
Weight (Wet/Kerb)
275.5 lbs / 125 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Mito 125IIReplica
Year
1993
Engine
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Displacement
7.6 cubic inches / 125.6 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
13.0:1
Max Horsepower
33.5 hp / 23 kW @ 10500 rpm
Max Torque
14 ft-lb / 19 nm
Engine Management System
28mm Dell’Orto flat slide carburetor
Performance
Top Speed
164.2 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
7 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
USD Telescopic forks
Rear Suspension
Swinging arm single shock
Wheels & Brakes
Front Tire Size
110/70-17
Rear Tire Size
150/70-17
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 230mm disc 1 piston caliper
Dimension & Weights
Fuel Tank Capacity
3.38 US gallons / 12.8 L
Wet (kerb/curb) Weight
275.5 lbs / 125 kg
Dry Weight
117 kg / 258 lbs
Features
Red painted fairing with gold circles
Mito II Replica version available in 1993 and early ’94
Fire graphics on hull (Lucky Explorer)
Eddie Lawson and Kocinski designs on hull
Cagiva home samples with number 7 and 3
Front disc brake type float changed to fixed caliper design
Brake pistons changed to 30mm and 34mm diameter instead of 28mm
New front wheel due to incompatibility with previous brake caliper
Fork stanchions changed from 38mm to 40mm gold
Reduced fork stem race length to 120mm
No preload adjustment on left fork stem
Updated motor with discharge valve’8A0067781 and Mito Racing expansion
Silencer attached without band, no fuel tap diaphragm vacuum
Three-position faucet (ON, OFF, RES)
Revised collector without system
New engine in 1993 Mito II Replica version
Carbon silencer cover on platform with lock
Passenger platform attack moved to behind the platform
Forelle fairing and side panels available
Various replica motorcycle competition colors available
Power valve changed to 800072272, opening at 8000 rpm instead of 7250 rpm
Ignition timing advanced by 1 mm to 1.55 mm in Mito II Replica version
