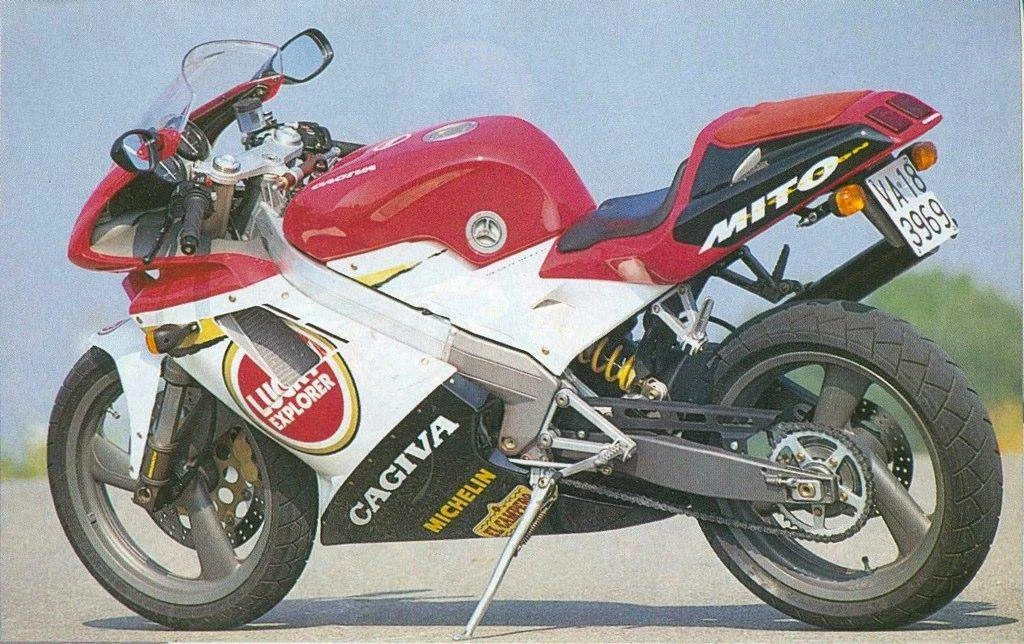

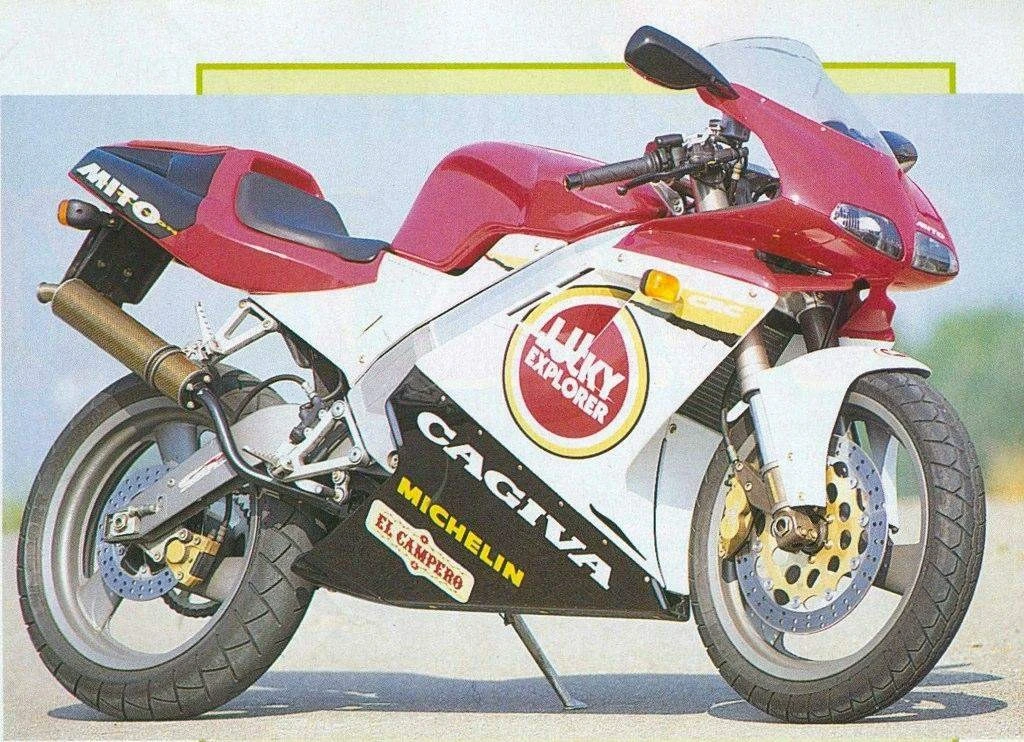

The Cagiva Mito 125Evoluziono (1995) is a potent blend of high-performance engineering and sleek, aggressive design. Restyled by Massimo Tamburini in 1994, this stylish road bike boasts lines reminiscent of his iconic Ducati 916.
Its single-cylinder two-stroke engine delivers an impressive 22kW (30bhp), with an astonishing specific output of 179kW (240bhp) per litre – a testament to its compact yet potent powerplant.
Key Specifications
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Engine Capacity
7.6 cubic inches / 125.6 cc
Max Power
34 hp / 24.8 kW @ 12000 rpm
Max Torque
16.9 ft-lb / 23 nm
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Seat Height
29.9 inches / 760 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Mito 125Evoluziono
Year
1995
Engine
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Displacement
7.6 cubic inches / 125.6 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
6.3:1
Max Horsepower
34 hp / 24.8 kW @ 12000 rpm
Max Torque
16.9 ft-lb / 23 nm
Engine Management System
Dell’Orto carb
Cooling System
Liquid cooled
Performance
Top Speed
172.3 km/h / / 107.3 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multiple discs, cable operated
Gearbox
7 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
40mm Marzocchi telescopic forks
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Progressive with hydralyc shock, adjustable spring preload
Rear Suspension Travel
5.2 inches / 133 mm
Wheels & Brakes
Front Tire Size
110/70 ZR17
Rear Tire Size
150/60 ZR17
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 230mm disc 2 piston caliper
Dimension & Weights
Seat Height
29.9 inches / 760 mm
Wheelbase
54.1 inches / 1375 mm
Ground Clearance
150 mm / 5.9 in
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Dry Weight
129.0 kg / 284.4 lbs
Features
Single-cylinder two-stroke engine
High-specification sportsbike chassis
Twin-spar aluminium frame
Upside-down front forks
Rear monoshock suspension
Gull-wing-type swingarm
Large expansion chamber exhaust
Big-bike styling
Racing-style 125cc bike for the road
22kW (30bhp) engine output
179kW (240bhp) per litre bhp-to-litre ratio
High-specification sportsbike chassis
