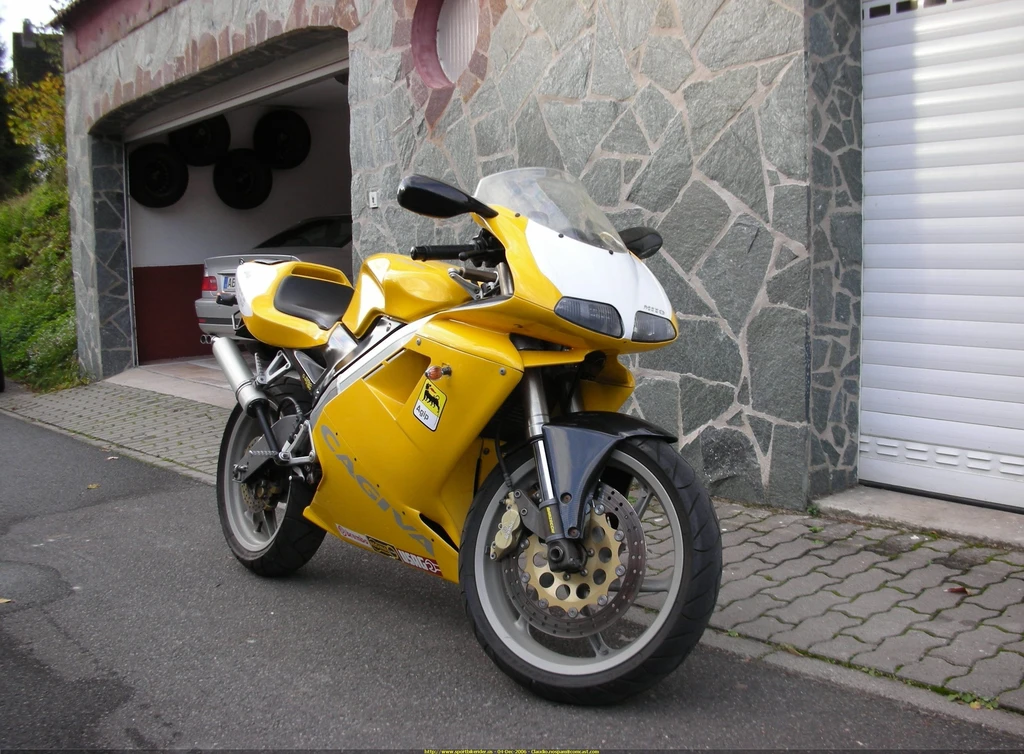

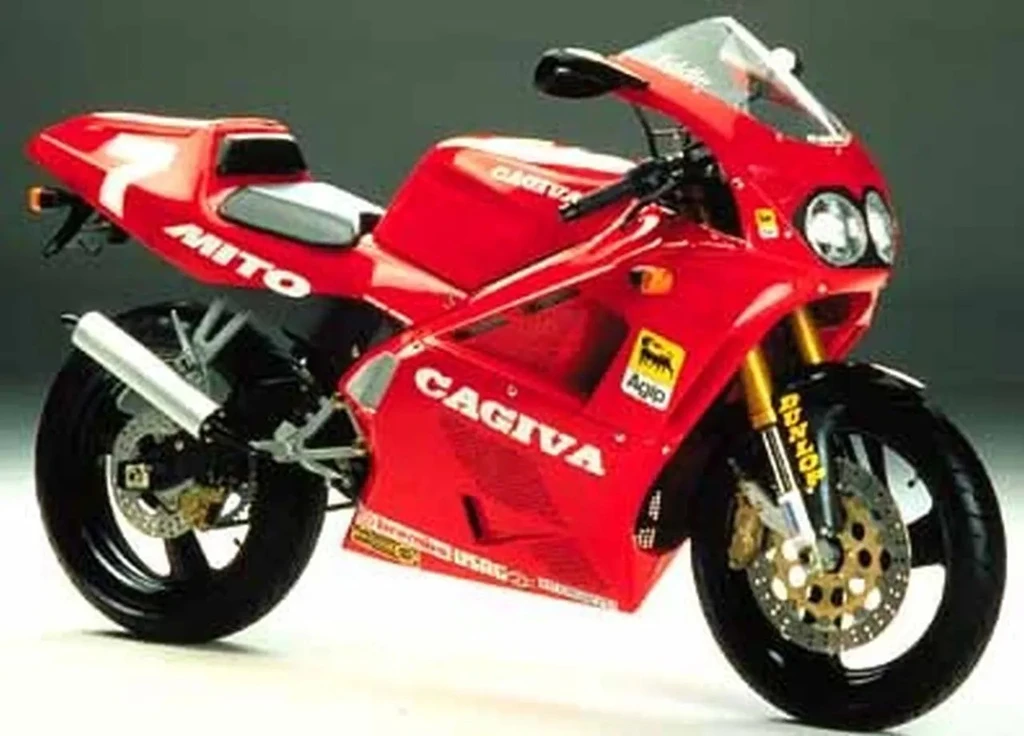

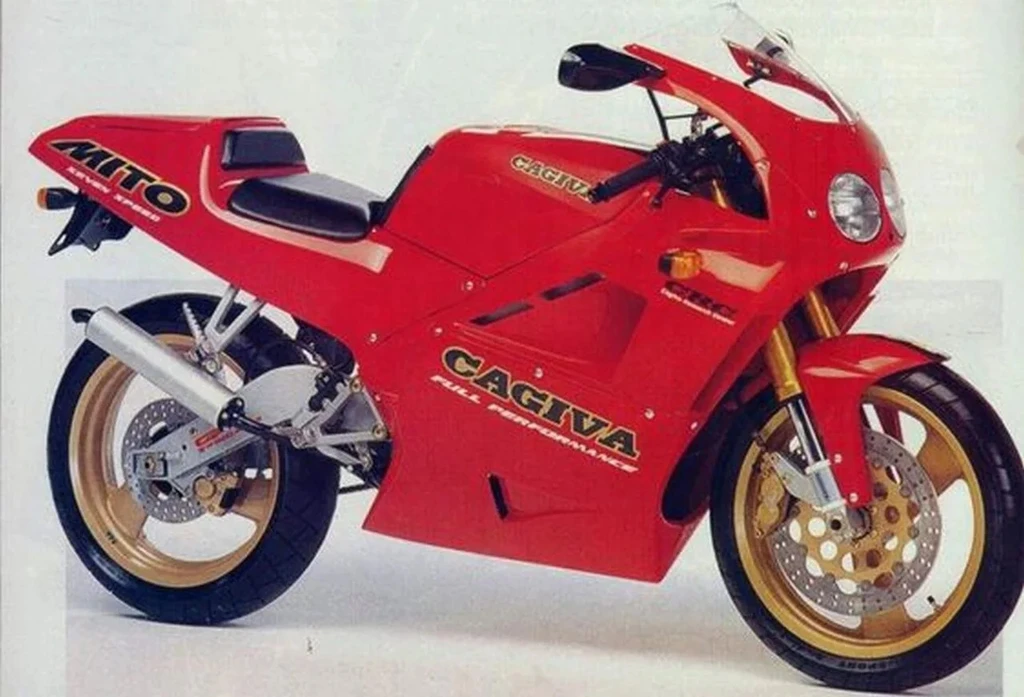

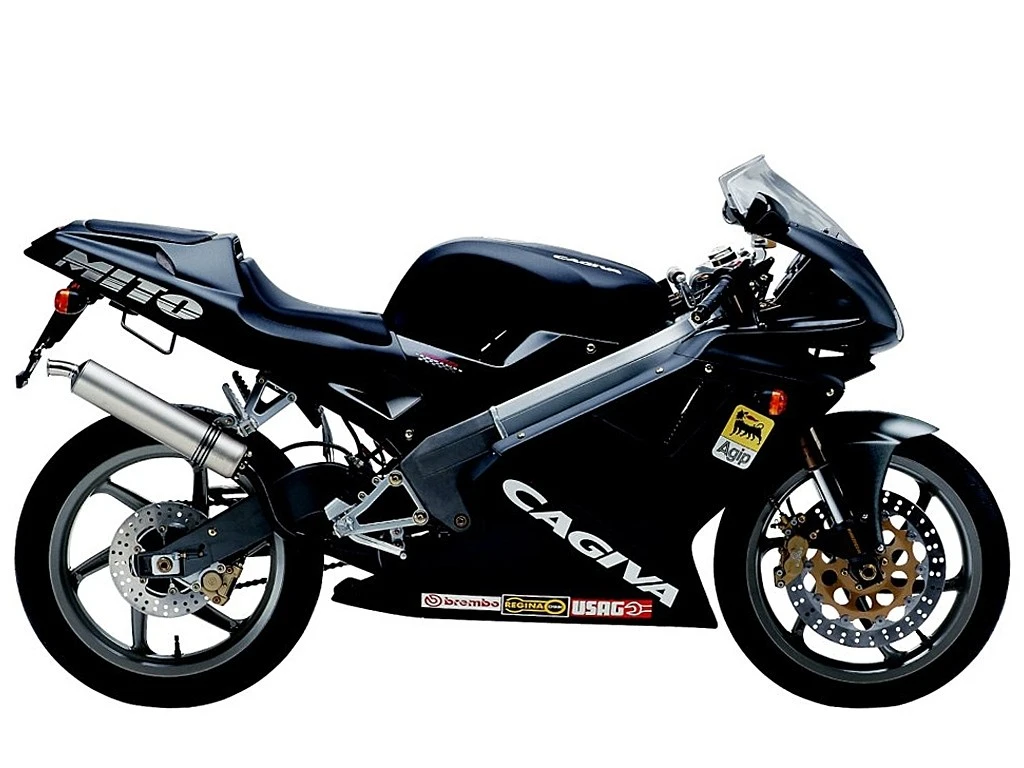

The Cagiva Mito 125 – a razor-sharp 125cc two-stroke replica of the ultimate superbike experience.
Its potent engine produces over 30bhp at 11,000rpm, making it one of the most thrilling and agile motorcycles on the road. When ridden with finesse, its responsive handling and pinpoint accuracy allow for breathtaking cornering speeds and effortless acceleration.
However, this bike demands a highly skilled rider who can harness its power and maintain a consistent pace. A moment’s hesitation or inattention can result in a loss of momentum and a struggle to regain speed.
Riding the Mito 125 is an exhilarating experience that rewards precision and anticipation, but also tests the mettle of even the most accomplished riders. It is not for the faint of heart.
Key Specifications
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Engine Capacity
7.6 cubic inches / 125.6 cc
Max Power
34 hp / 24.8 kW @ 12000 rpm
Max Torque
16.9 ft-lb / 23 nm
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Seat Height
29.9 inches / 760 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Mito 125
Year
2002 – 2003
Engine
Engine Type
Two stroke, single cylinder, electricvariablepower read valve
Displacement
7.6 cubic inches / 125.6 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
6.3:1
Max Horsepower
34 hp / 24.8 kW @ 12000 rpm
Max Torque
16.9 ft-lb / 23 nm
Engine Management System
Dell’Orto carb
Cooling System
Liquid cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multiple discs, cable operated
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
40mm Marzocchi telescopic forks
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Progressive with hydralyc shock, adjustable spring preload
Rear Suspension Travel
5.2 inches / 133 mm
Wheels & Brakes
Front Tire Size
110/70 ZR17
Rear Tire Size
150/60 ZR17
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 230mm disc 2 piston caliper
Dimension & Weights
Seat Height
29.9 inches / 760 mm
Wheelbase
54.1 inches / 1375 mm
Ground Clearance
150 mm / 5.9 in
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Dry Weight
129.0 kg / 284.4 lbs
Features
Twin-beam frame
Single-cylinder engine
30bhp at 11,000rpm
240bhp/litre power-to-weight ratio
Dual headlights
Carbon-wrapped alloy exhaust silencer
Thinly-padded pillion perch
Streamlined seat design
Circular fuel tap
Low-level fuel light
Cagiva’s CRC project engineering input
Designed by Massimo Tamburini, Massimo Parenti, and Giorgio Bordi
Similar styling to Ducati 916
Single-cylinder stroker engine
