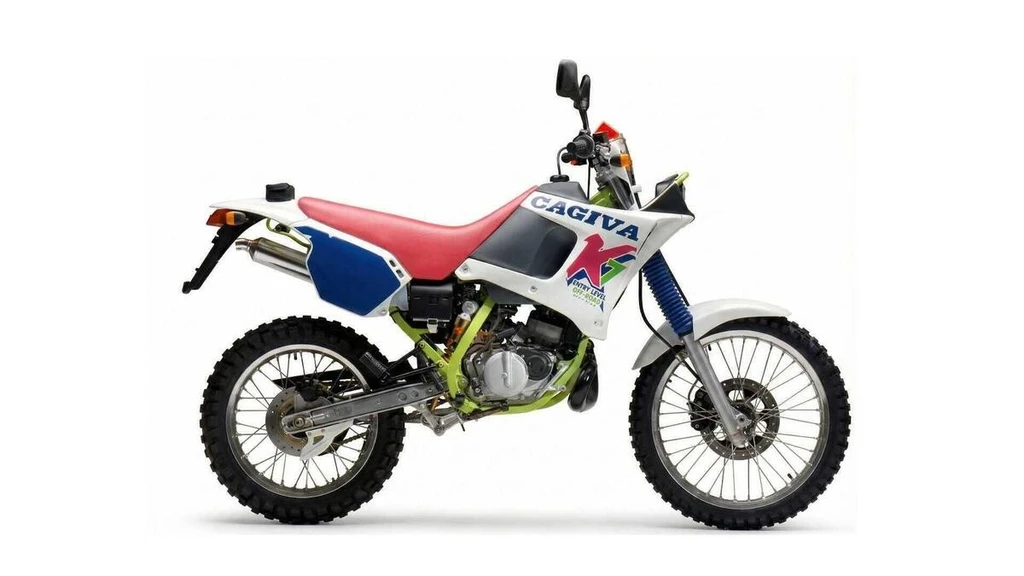

Cagiva K7 125 (1990)

The Cagiva K7 125 is an off-road motorcycle that packs a punch with its 125cc engine, borrowed from the Myth. This compact powerhouse delivers a thrilling riding experience, with a smooth and responsive character that’s perfect for tackling challenging terrain.

With its sleek design and reduced weight compared to previous models, the K7 is built for agility and speed. The bike’s unique “hybrid” front end features a number plate integrated into the fork, while the half-dome windshield and tubular protection add to its distinctive look.

But what truly sets the K7 apart is its exceptional handling and maneuverability. Equipped with normal forks and die-cast fork components for added stability, this bike is an absolute blast to ride. Whether you’re carving through tight trails or tackling rough off-road terrain, the Cagiva K7 125 is the ultimate companion for any adventure-seeker. The K7 125 is a true trailblazer that embodies the spirit of freedom and excitement on two wheels.

Key Specifications

Engine Type	Two stroke, single cylinder
Engine Capacity	7.6 cubic inches / 124.8 cc
Max Power	28.2 hp / 20.74 kW @ 9800 rpm
Max Torque	15.14 ft-lb / 20.53 nm
Fuel Tank Capacity	3.7 US gallons / 14.0 L
Seat Height	37.0 inches / 940 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Cagiva K7 125
Year	1990

Engine

Engine Type	Two stroke, single cylinder
Displacement	7.6 cubic inches / 124.8 cc
Bore x Stroke	56 x 50.6 mm
Compression Ratio	5.9:1
Max Horsepower	28.2 hp / 20.74 kW @ 9800 rpm
Max Torque	15.14 ft-lb / 20.53 nm
Engine Management System	Single Dell’Orto VHSB 34 ES carburetor

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate
Gearbox	7 speed
Final Drive	Chain

Electrical & Electronics System

Starter

Kick

Chassis & Suspension

Front Suspension	40 mm Marzocchi hydraulic telescopic forks
Front Suspension Travel	10.2 inches / 260 mm
Rear Suspension	Swinging arm single shock
Rear Suspension Travel	10.6 inches / 270 mm

Wheels & Brakes

Front Tire Size	90/90-21
Rear Tire Size	120/80-18
Front Brakes	Single 260mm disc
Rear Brakes	Single 220mm disc

Dimension & Weights

Seat Height	37.0 inches / 940 mm
Wheelbase	54.7 inches / 1390 mm
Ground Clearance	360 mm / 14.1 in
Fuel Tank Capacity	3.7 US gallons / 14.0 L
Dry Weight	120 kg / 264.5 lbs

Features

Displacement: 50cc and 125cc
Derived from Cagiva Cruiser
Flanked by Cagiva Super City and N 90 models
Slimmer design than previous versions
Conceived to compete with Aprilia RX and Gilera RC
Lower technical equipment compared to competitors
Produced from 1991 to 1993 (K3)
Produced from 1990 to 1992 (K7)
Engine block derived from Myth model
Unique expansion design for K7 model
Single silencer on K7 model
Cylinders used same as Mito model (in 1990)
Piston type: bifascia double piston code 8A0054888
“Hybrid” front with number plate and cross-style fork
Half dome design without windshield
Tubular protection in same color frame
Traditional dome adopted later
Normal forks with elastic protection for stem (K7)
Die-cast fork instead of boxed fork (only on 125cc model)
Double round lighthouse
