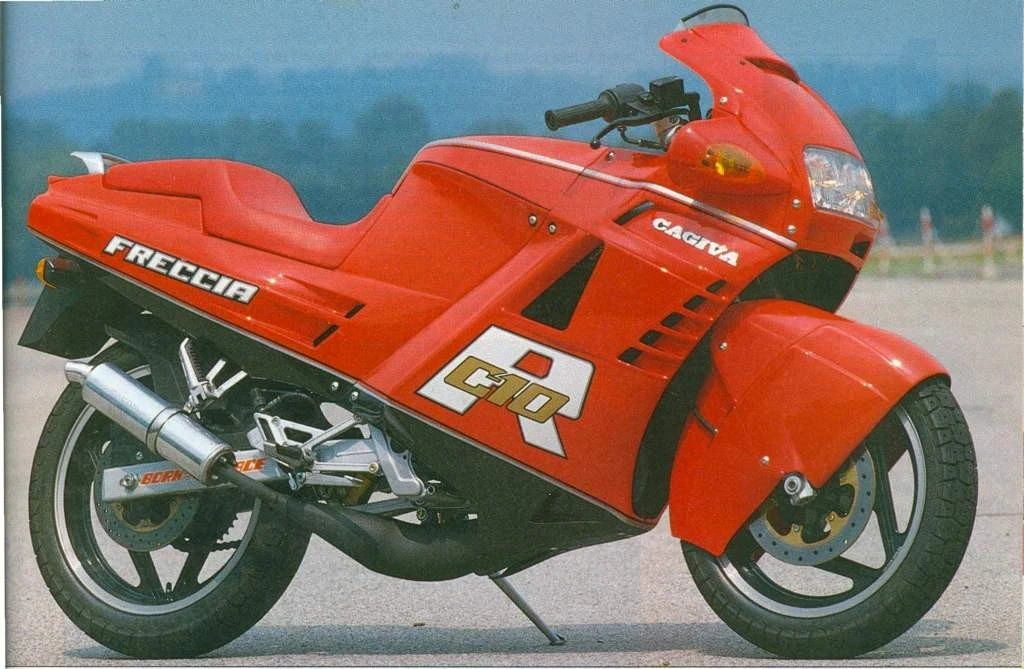

The Cagiva Freccia 125 C9, born from the visionary mind of Massimo Tamburini in 1987, marked a significant milestone for the Italian manufacturer. This sleek sports bike boasted a revised engine and chassis, setting it apart from its predecessors, the Gold Fin S1 and S2.
Its design, heavily influenced by the Ducati Paso, exuded an air of understated elegance, with clean lines and minimalistic features that belied its potent performance capabilities. The Freccia’s riding experience was characterized by agile handling, thanks to its revised engine and chassis, which delivered a thrilling ride for enthusiasts.

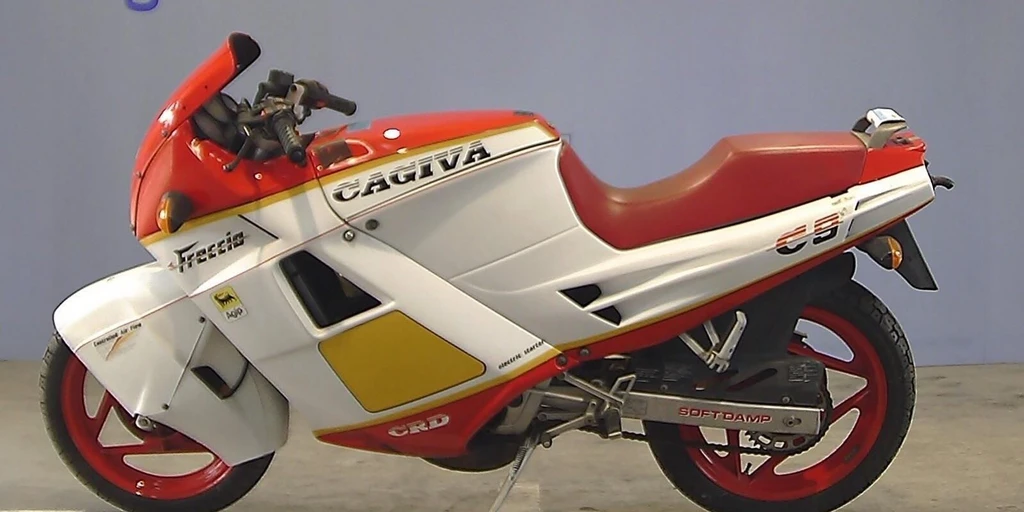

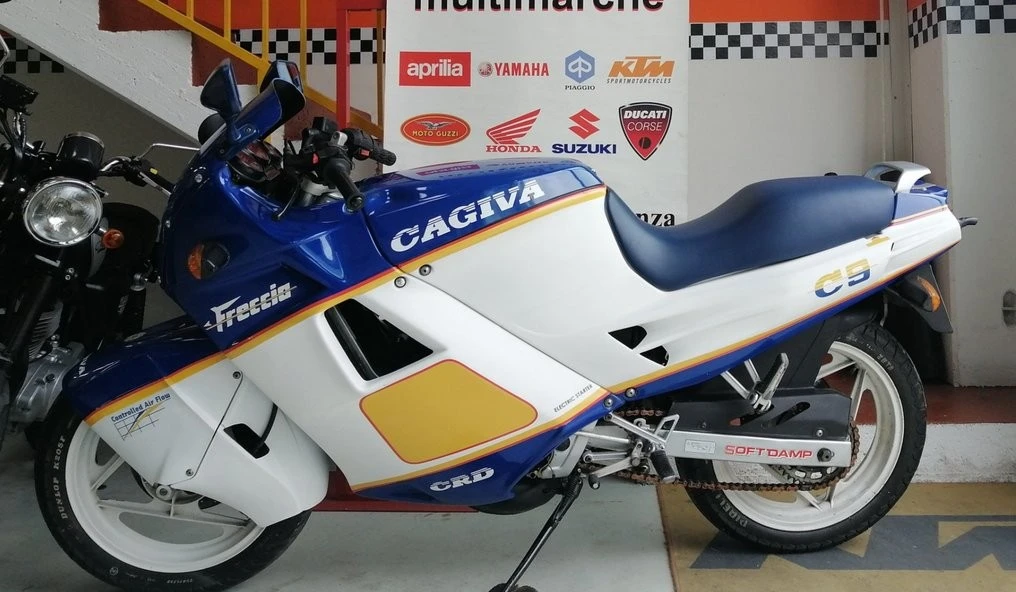

Available in two vibrant color schemes – Red/White and Blue/White – the Cagiva Freccia 125 C9 boasted impressive finish quality and an array of practical features, including comprehensive CEV instrumentation and electrical controls on the handlebars. With its innovative design and exceptional performance, the Cagiva Freccia 125 C9 cemented its place as a formidable competitor in the market, leaving an indelible mark on the world of motorcycling.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
7.6 cubic inches / 125 cc
Max Power
27 hp / 19.9 kW @ 10500 rpm
Max Torque
14.7 ft-lb / 20 nm
Fuel Tank Capacity
4.2 US gallons / 16.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Freccia 125 C9
Year
1987
Engine
Engine Type
Two stroke, single cylinder
Displacement
7.6 cubic inches / 125 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
13.0:1
Max Horsepower
27 hp / 19.9 kW @ 10500 rpm
Max Torque
14.7 ft-lb / 20 nm
Engine Management System
28mm Dell’Orto premix carburetor
Cooling System
Liquid cooled
Performance
Top Speed
155.2 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Marzocchi telescopic, adjustable anti-dive
Rear Suspension
Marzocchi monoshock
Wheels & Brakes
Front Tire Size
100/80-16
Rear Tire Size
110/80-16
Front Brakes
Single 260mm Brembo disc
Rear Brakes
Single 240mm Brembo disc
Dimension & Weights
Fuel Tank Capacity
4.2 US gallons / 16.0 L
Dry Weight
123 kg / 271 lbs
Features
Monolithic body integrates tank and side panels
Hinged lid on body allows access to fuel tank filler and oil tank
Large openings for hot air exit from radiator
Practical spark plug access through side body panels
Generous seat size, especially for passenger
Aluminum handle for passenger compartment in tail
Small briefcase with special lock in rear of tail
Original exhaust system with split terminal
Modern double-beam rectangular steel tubes frame
Semicircle square tube steel supports engine
Long rear shelf holds seat
35mm Marzocchi telescopic hydraulic fork
Adjustable Soft Damp Marzocchi shock absorber
Combined spring preload and compression adjustment on rear suspension
CEV instrumentation
Complete electrical controls on handlebars
