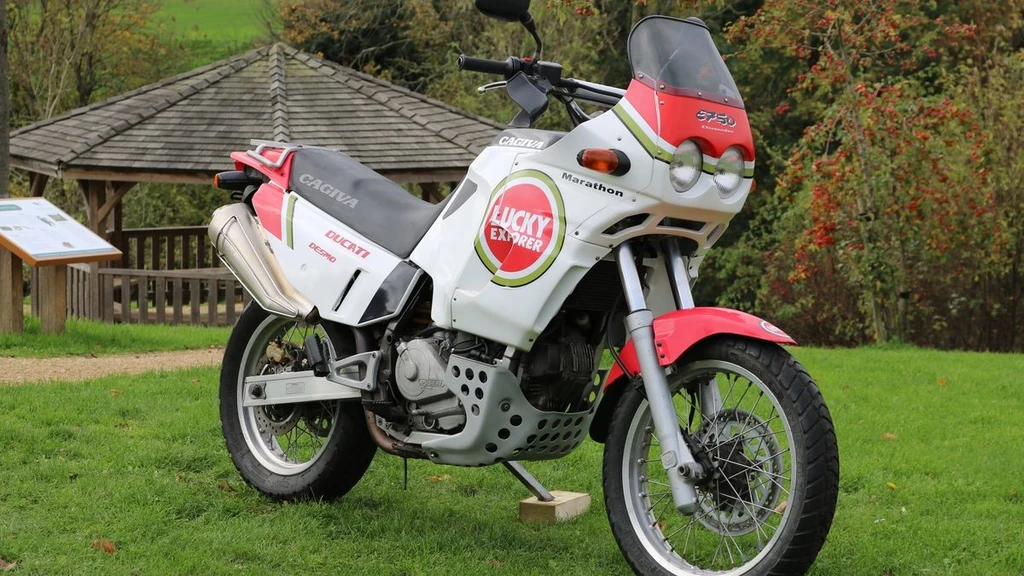

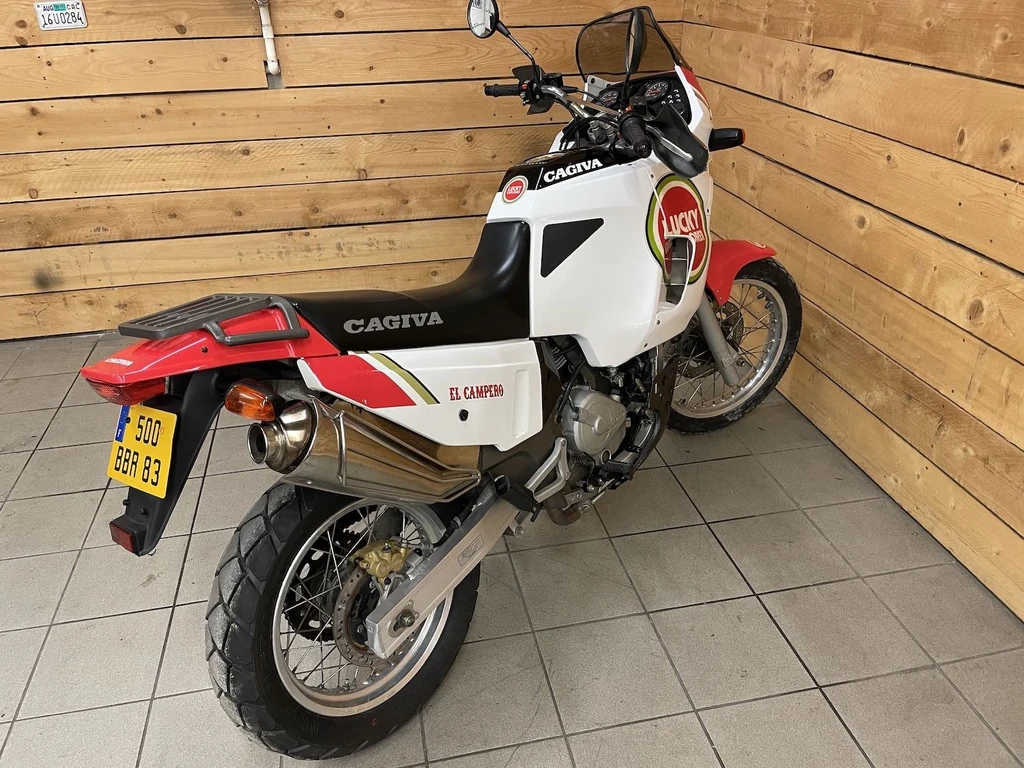

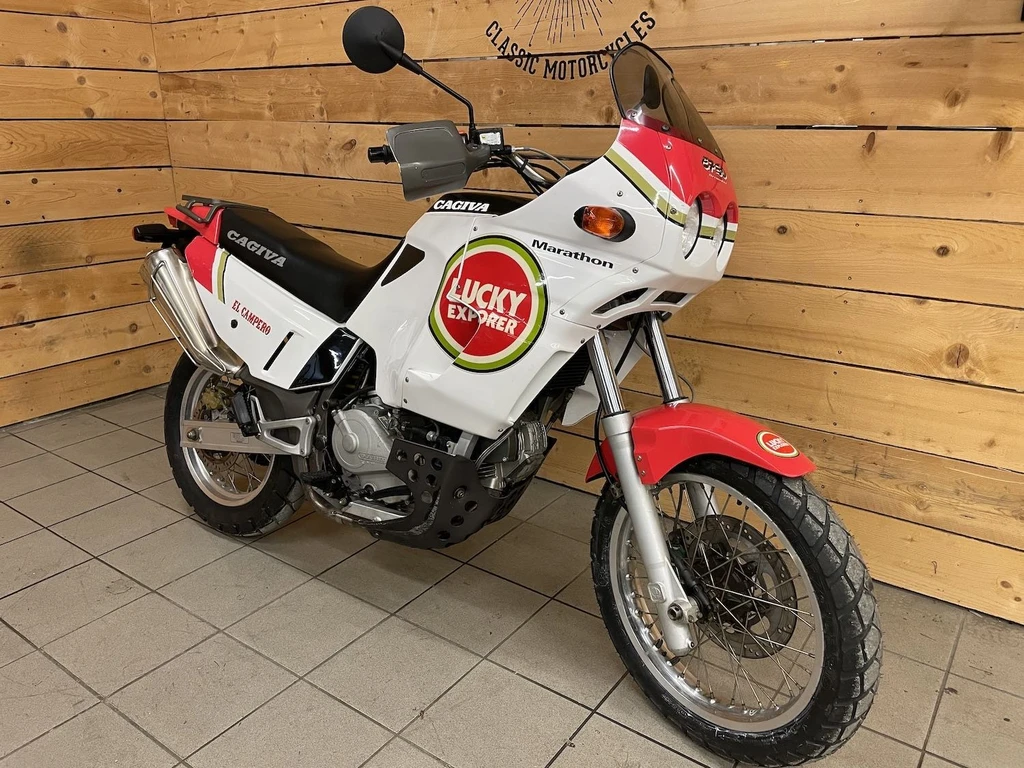

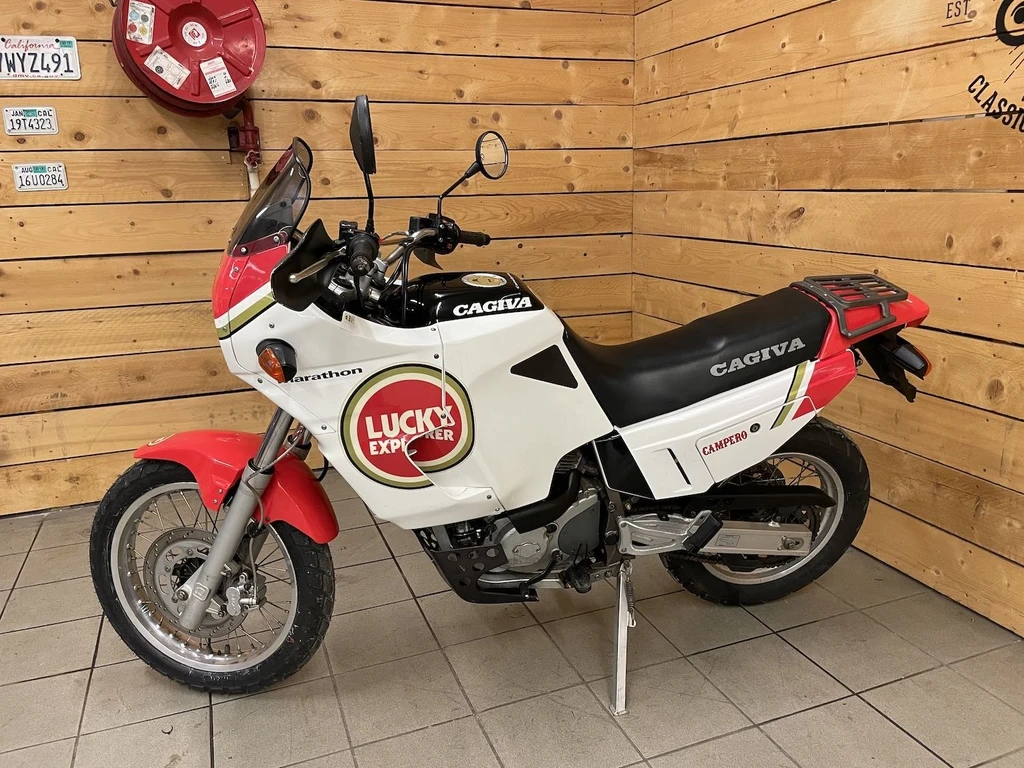

The Cagiva ElefantE750: a motorcycle that embodies the perfect blend of power and precision. Powered by a liquid-cooled 749cc V-twin engine, this Italian stallion delivers an impressive 83 horsepower at 8,500 rpm.
Its engine is renowned for its smooth, linear power delivery, making it a joy to ride in both urban and twisty terrain.
As you settle into the comfortable seat, you’ll be struck by the ease with which the ElefantE750 handles the twists and turns of your favorite road. The intuitive controls and responsive handling make navigating even the most challenging routes a breeze.
The Cagiva ElefantE750 is an exceptional motorcycle that will leave you eager to ride further and explore new horizons, every time you fire up its engine.
Key Specifications
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity
45.6 cubic inches / 748 cc
Max Power
60 hp /49.6kW @ 6000 rpm
Max Torque
43 ft-lb / 60 nm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Seat Height
32.9 inches / 835 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva ElefantE750
Year
1996 – 97
Engine
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement
45.6 cubic inches / 748 cc
Bore x Stroke
88 x 61.5 mm
Compression Ratio
10.0:1
Max Horsepower
60 hp /49.6kW @ 6000 rpm
Max Torque
43 ft-lb / 60 nm
Engine Management System
BDST Mikuni constant velocity carburetors
Cooling System
Air cooled
Performance
Top Speed
174 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
45mm Telescopic forks
Rear Suspension
Single shock with rising rate linkage preload rebound and damping
Wheels & Brakes
Front Tire Size
100/90-19
Rear Tire Size
140/80-17
Front Brakes
Single 296mm disc 2 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Dimension & Weights
Seat Height
32.9 inches / 835 mm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Dry Weight
185 kg / 407.9 lbs
