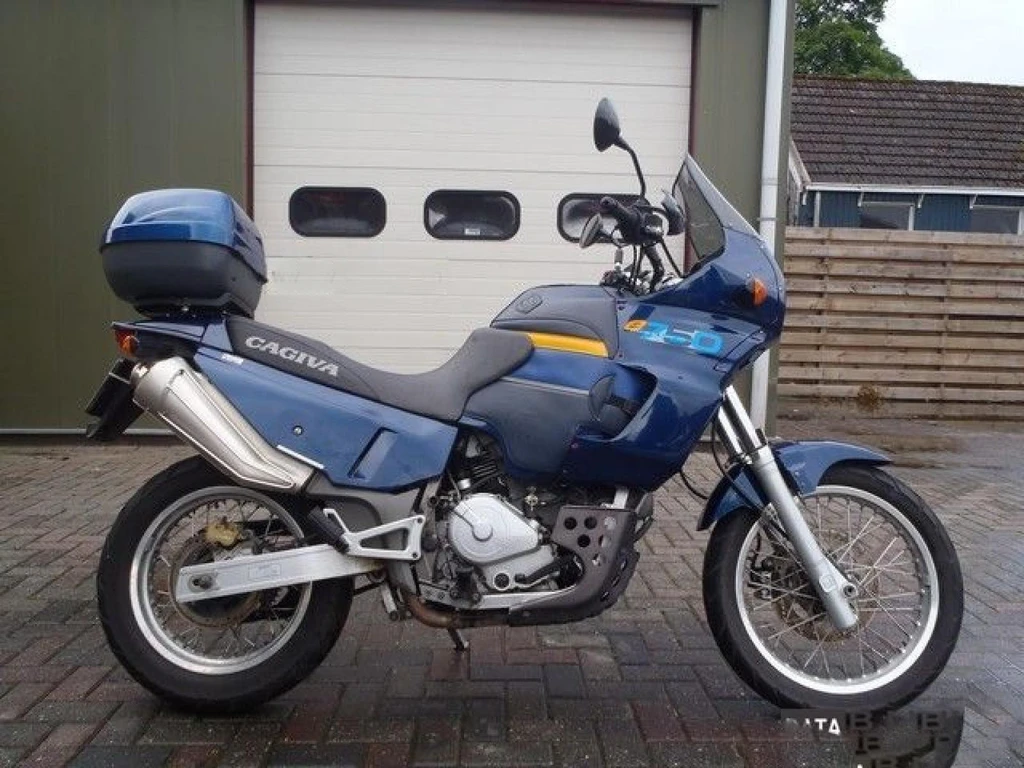

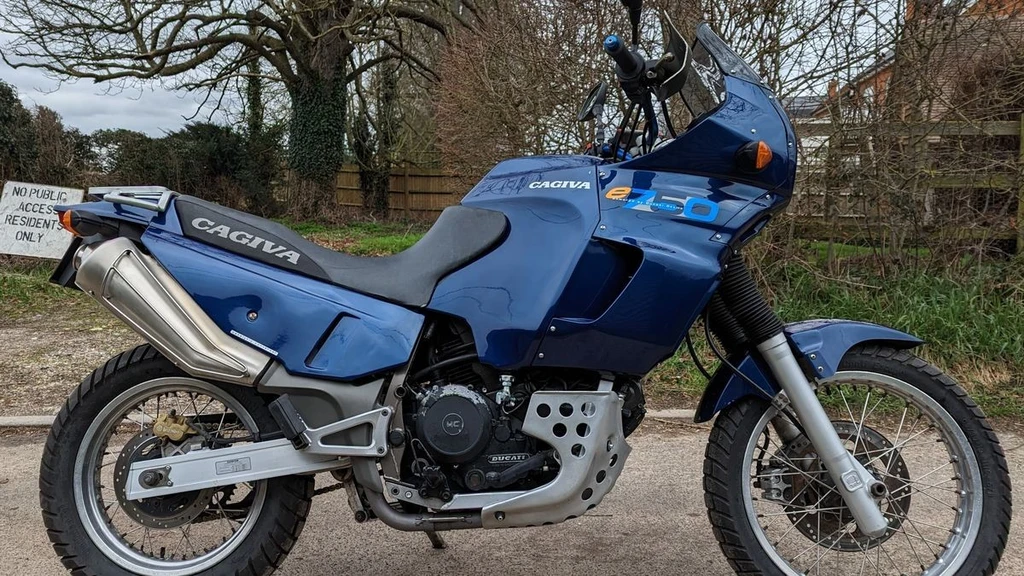

In a bold departure from conventional wisdom, Cagiva proudly presents its 750cc trail bike, the Elefant750C ie. This behemoth of an engine, sourced from the 750SS, boasts a unique blend of characteristics that set it apart from its larger sibling, the 900ie Elefant.
The 750 motor, with its 88 x 61.5mm bore and stroke configuration, is not merely a downsized version of the 900’s powerplant. Rather, it offers a distinct performance profile, with a commendable 60 ponies at 6500rpm. While induction comes through Mikuni carbs, rather than fuel injection, this setup still manages to deliver respectable power.
The riding experience on the Elefant750C ie is nothing short of intimidating, with its massive stainless steel exhaust, aluminium honeycomb catalytic converter, and air-cooled engine. The rolling chassis, nearly identical to that of its larger brother, only adds to the overall sense of enormity. Yet, beneath all this bulk lies a capable and exhilarating machine, begging to be unleashed on twisty roads and rugged terrain.
Built for thrill-seekers who crave unbridled power and raw excitement, the Cagiva Elefant750C ie promises an unforgettable experience, one that will leave even the most seasoned riders in awe of its sheer might.
Key Specifications
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity
45.6 cubic inches / 748 cc
Max Power
60 hp /49.6kW @ 6000 rpm
Max Torque
43 ft-lb / 60 nm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Seat Height
32.9 inches / 835 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant750C ie
Year
1995
Engine
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement
45.6 cubic inches / 748 cc
Bore x Stroke
88 x 61.5 mm
Compression Ratio
10.0:1
Max Horsepower
60 hp /49.6kW @ 6000 rpm
Max Torque
43 ft-lb / 60 nm
Engine Management System
BDST Mikuni constant velocity carburetors
Cooling System
Air cooled
Performance
Top Speed
174 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
45mm Telescopic forks
Rear Suspension
Single shock with rising rate linkage preload rebound and damping
Wheels & Brakes
Front Tire Size
100/90-19
Rear Tire Size
140/80-17
Front Brakes
Single 296mm disc 2 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Dimension & Weights
Seat Height
32.9 inches / 835 mm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Dry Weight
185 kg / 407.9 lbs
Features
750cc engine
Derived from Ducati 900SS
Bore and stroke: 88 x 61.5mm
Induction through 38mm Mikunis carburetors
Air-cooled with oil-cooler
Aluminium honeycomb catalytic converter in exhaust system
60 horsepower at 6500rpm
Similar rolling chassis to 900ie Elefant
Girder-like steel cradle
Untapered box-section aluminium swing-arm
Oversized, non-adjustable front forks
Leading axle with 42mm teles
Big 21″ laced Akront alloy rim at front
Soft-Damp rising-rate monoshock rear suspension
Seat height: 30mm lower than Yamaha Super Tenere
Tall and upright riding position
Large 24 litre fuel tank
Chrome, cross-braced handlebars
High-mounted mirrors
