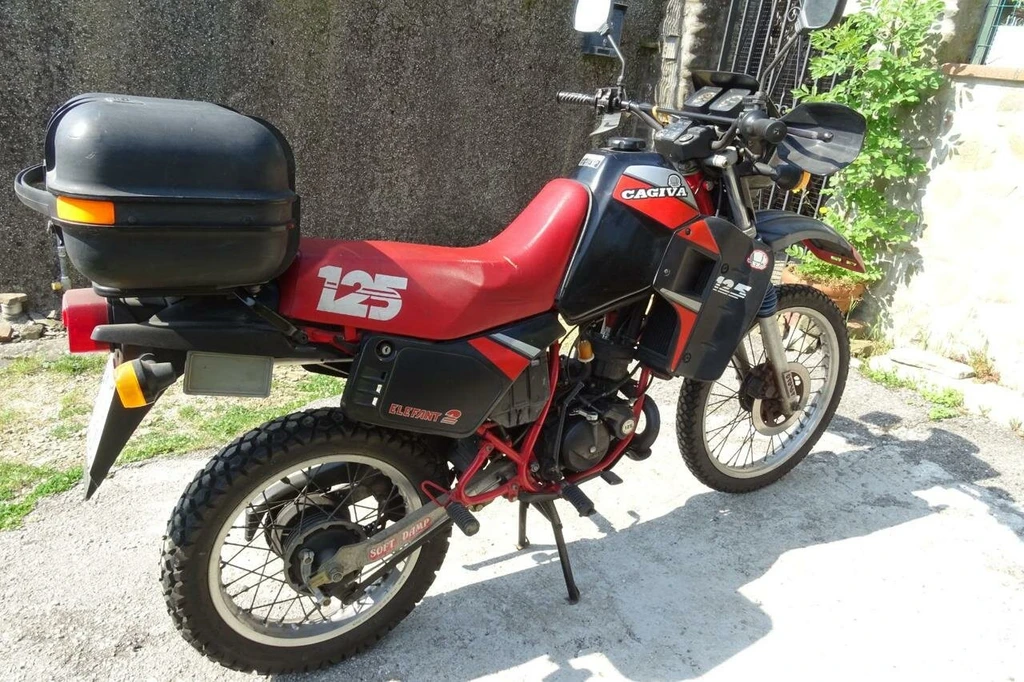

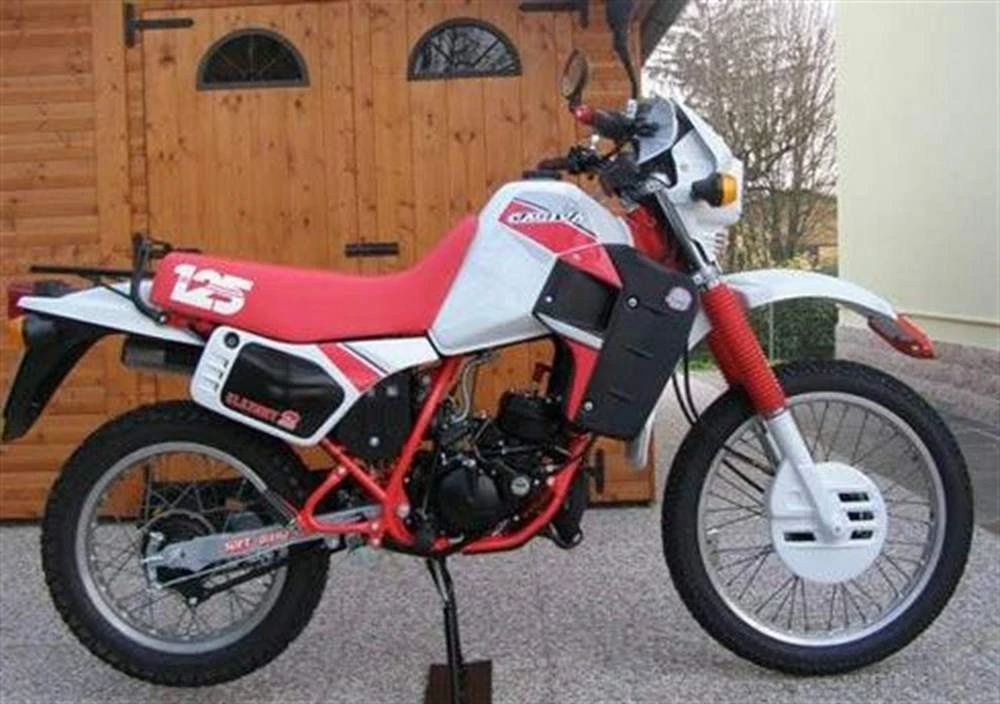

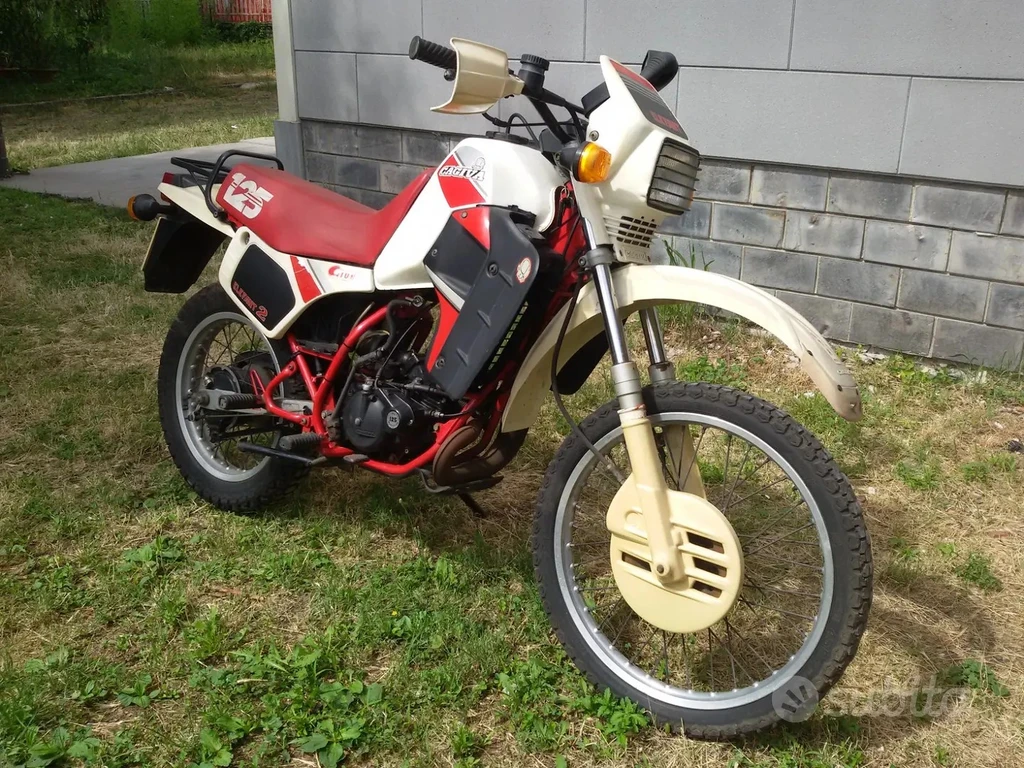

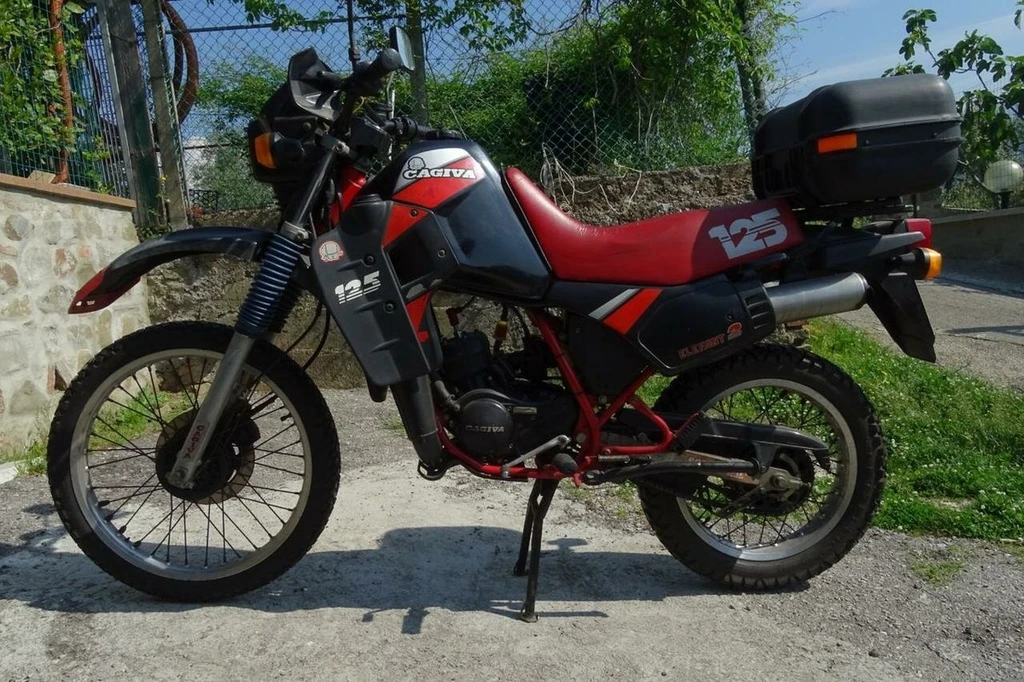

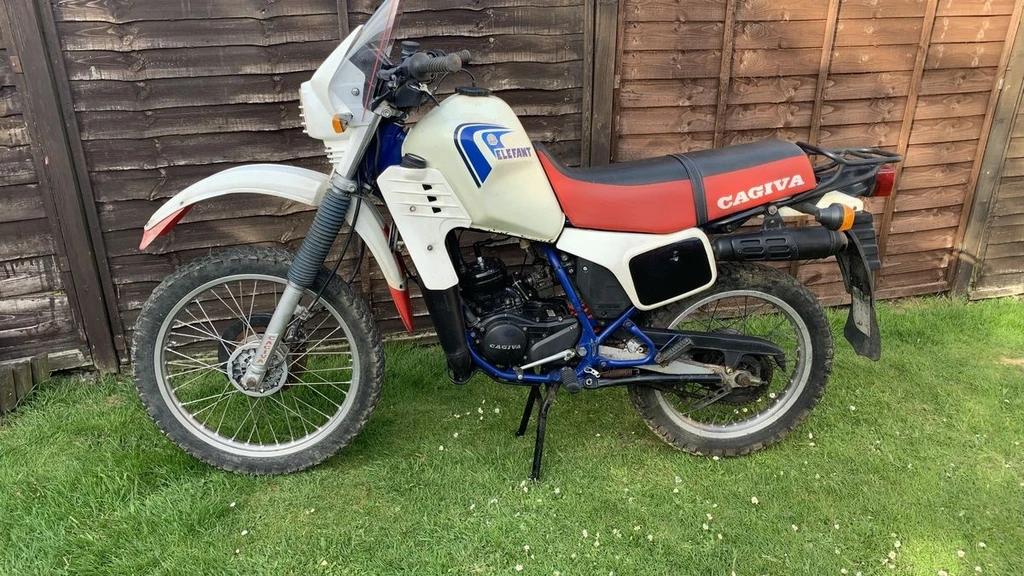

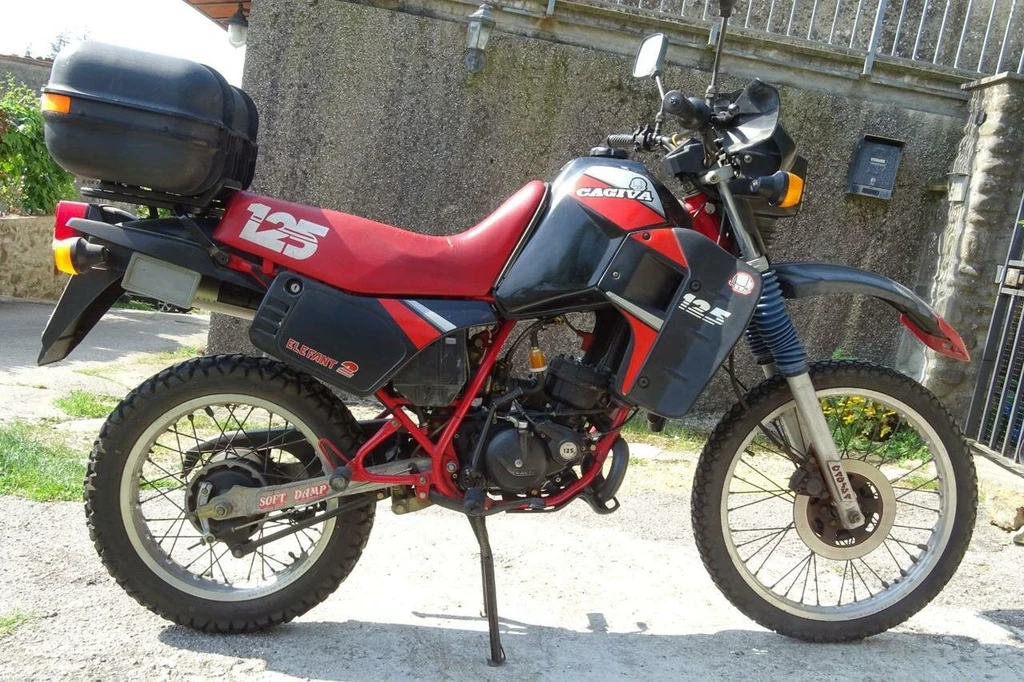

The Cagiva Elefant II 125, a motorcycle born from Dakar racing experience, brings a thrilling riding experience to the table. This variant, produced from 1985, is based on the red Aletta but boasts distinct design elements reminiscent of its larger sibling, the Elephant 750. Its liquid-cooled engine provides a unique character, while the chassis features a rear shock absorber and forked front brake.
The riding experience is enhanced by the large tank with varied color options, adding to the bike’s distinctive look. As we delve into this variant, it becomes clear that Cagiva has taken inspiration from its successful Dakar endeavors and infused it into this smaller, yet equally impressive, model.
The Elefant II 125 is a testament to Cagiva’s innovative spirit and racing heritage, resulting in an exhilarating ride for motorcyclists. With its advanced design elements and liquid-cooled engine, this bike stands out from the crowd, solidifying its place as a true enthusiast’s choice.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
7.6 cubic inches / 125 cc
Max Power
23.6 hp / 17.5 kW @ 9100 rpm
Max Torque
1.8 kgf-m @ 8000 rpm
Fuel Tank Capacity
3.7 US gallons / 14.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant II 125
Year
1985 – 86
Engine
Engine Type
Two stroke, single cylinder
Displacement
7.6 cubic inches / 125 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
12.9:1
Max Horsepower
23.6 hp / 17.5 kW @ 9100 rpm
Max Torque
1.8 kgf-m @ 8000 rpm
Engine Management System
Single Dell’Orto premixcarburetor
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Swinging arm single shock
Wheels & Brakes
Front Tire Size
2.75-21
Rear Tire Size
4.60-17
Front Brakes
Single 240mm disc
Rear Brakes
Single 130mm drum
Dimension & Weights
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Dry Weight
125 kg
Features
2-stroke engine
Liquid cooling system
Rear shock absorber
Mixer
Lamellar aspiration
Front forked brake
New forks with sprocket in advanced position (from 1986 model)
Larger cupola and visor
Larger side curtains of radiators
Shorter saddle covering reservoir less
