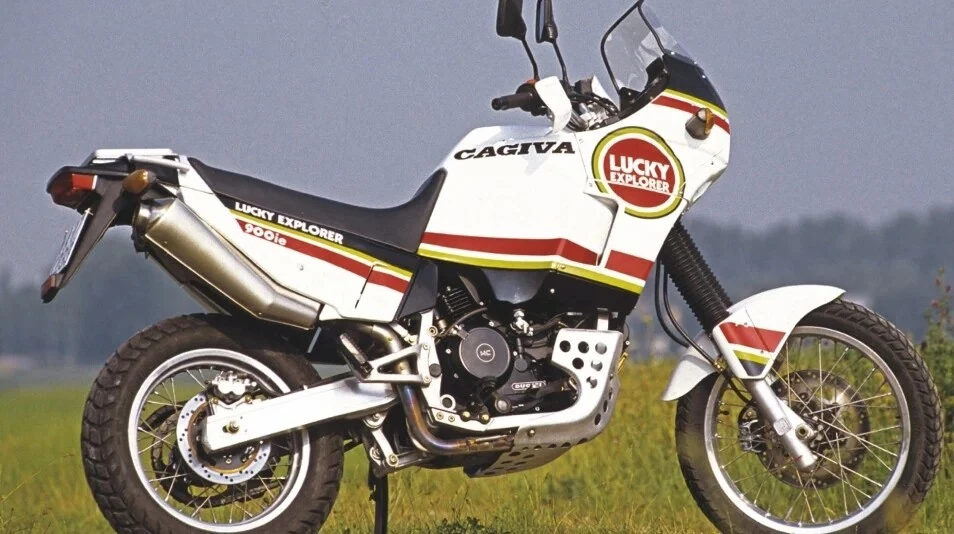

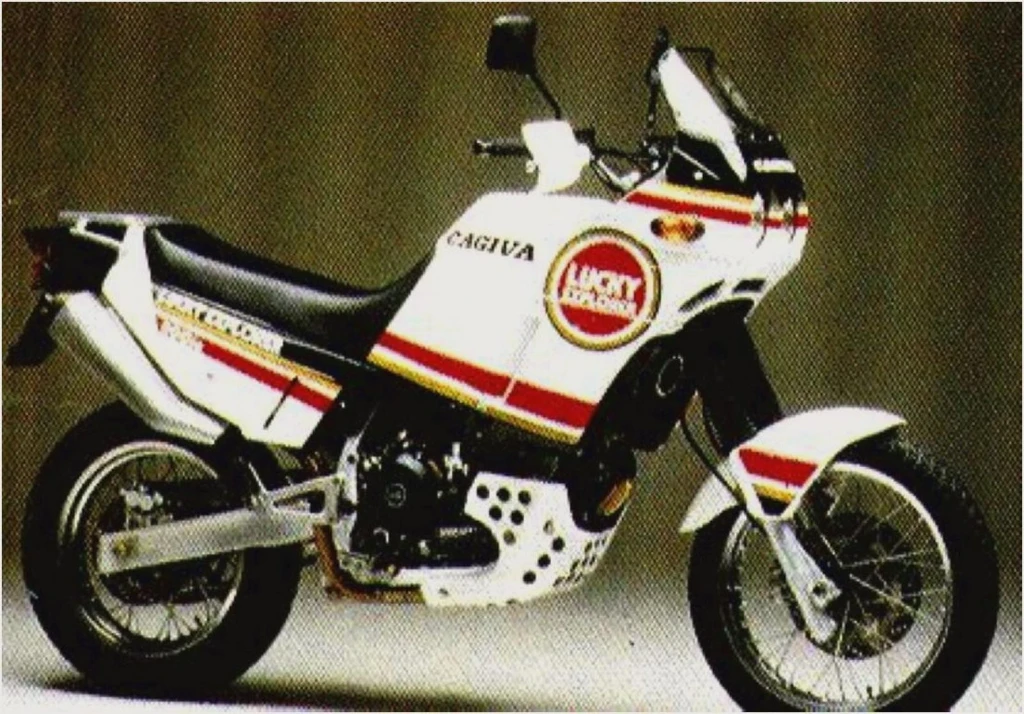

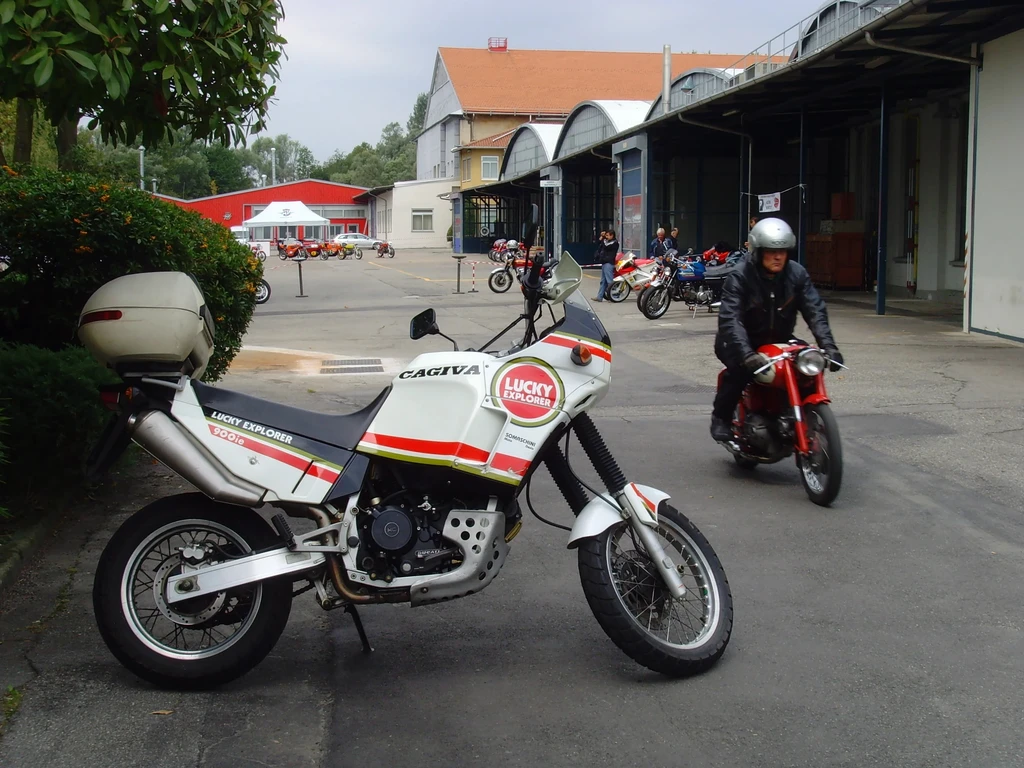

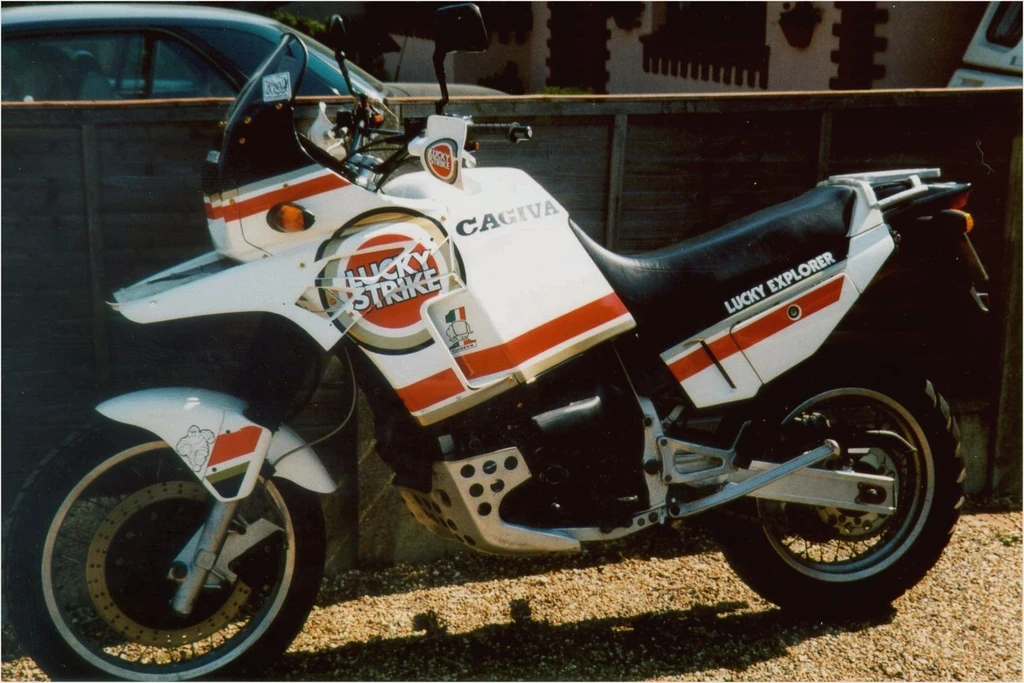

The 1990 Cagiva Elefant 900ie Lucky Explorer is an imposing figure on the trail scene, bred from the same DNA as their Paris-Dakar winning machines.
This Italian powerhouse boasts a potent fuel-injected V-twin engine, sharing its roots with the 904cc unit found in the 900SS road bike. The result is a thrilling power delivery that belies its intimidating appearance.
The riding experience is an exhilarating blend of agility and raw power, making it a formidable contender in the big-cube trail arena. With a seat height significantly lower than its Dakar-bred counterpart, the Elefant 900ie Lucky Explorer invites riders to tackle challenging terrain with confidence.
And yet, despite its fearsome reputation, this Italian giant has an undeniable charm that sets it apart from its more refined rivals – it’s a true off-road warrior.
Key Specifications
Engine Type
Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity
55.1 cubic inches / 904 cc
Max Power
68 hp / 49.6 kW @ 8000 rpm
Max Torque
57.5 ft-lb / 78 nm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Weight (Wet/Kerb)
458.5 lbs / 208 kg
Seat Height
35.4 inches / 900 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant 900ie Lucky Explorer
Year
1990
Engine
Engine Type
Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement
55.1 cubic inches / 904 cc
Bore x Stroke
92 x 68 mm
Compression Ratio
9.2:1
Max Horsepower
68 hp / 49.6 kW @ 8000 rpm
Max Torque
57.5 ft-lb / 78 nm
Engine Management System
Weber L.A.W fuel injection
Cooling System
Air cooled
Performance
Top Speed
190.2 km/h / 118 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry Multi-disc
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Double steel tubular cradle
Front Suspension
42.7mmMarzocchiclamped stanchion telescopic forks non adjustable
Rear Suspension
hlinsRising rate box, monoshock adjustable for preload
Wheels & Brakes
Front Tire Size
100/90-19
Rear Tire Size
140/80-17
Front Brakes
Single 296mm disc
Rear Brakes
Single 240mm disc 4 piston caliper
Dimension & Weights
Seat Height
35.4 inches / 900 mm
Wheelbase
61.8 inches / 1570 mm
Ground Clearance
260 mm / 10.2 in
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Wet (kerb/curb) Weight
458.5 lbs / 208 kg
Dry Weight
189 kg / 416.6 lbs
Features
Hydraulically operated dry seven-plate clutch
Five-speed box
Indirect fuel injection controlled by a black box
904cc V-twin motor
Fuel injected V-twin motor
Compression ratio of 9.2:1
Bore and stroke of 92 x 64mm
Air and oil cooling system
Two radiators for oil cooling
Tubular cradle frame with rectangular struts
Soft-Damp monoshock rising-rate link with Hlins damper
Solid 42mm Marzocchi fork
Front wheel size: 19in
Rear wheel size: 17in
Rear tire size: 140/80x17in
Front tire size: 100/90
