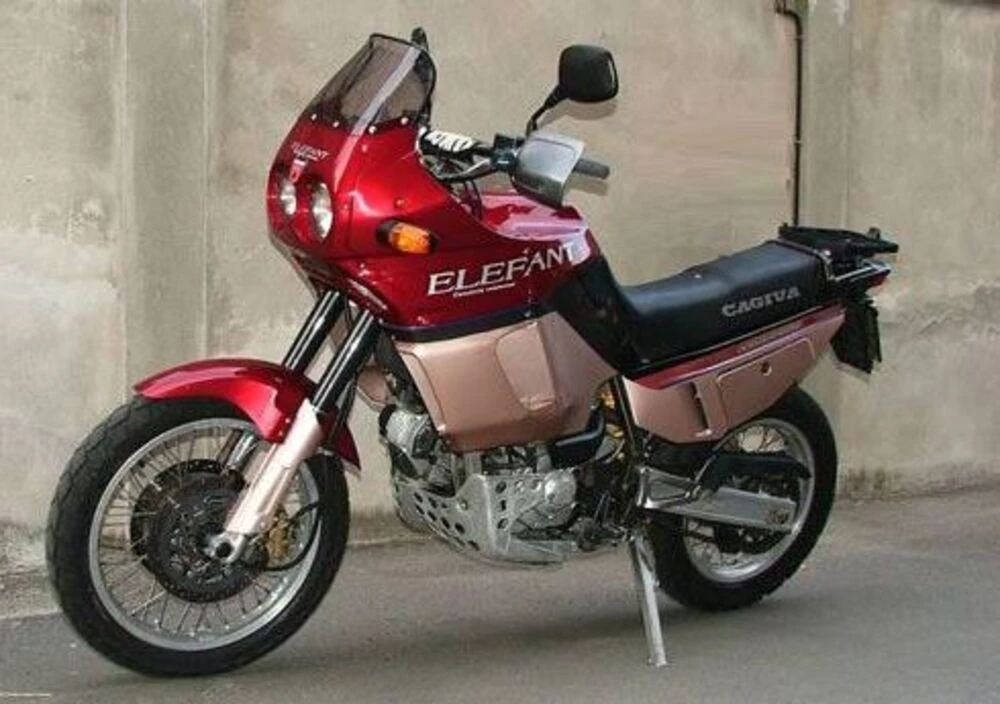

The Cagiva Elefant 900ie GT is a tour-ready marvel that takes the best of its predecessor and elevates it to new heights. Born from a collaboration with Ducati, this Elephant boasts an 904cc engine, a five-speed gearbox, and electronic injection courtesy of Weber-Marelli.
Its riding experience is nothing short of exceptional, thanks to the Ohlins mono shock absorber and Nissin brakes that provide unparalleled control and stopping power.
The GT version’s gray metallic livery gives it a sleek, touring-oriented look, while its 45mm Marzocchi Magnum forks offer improved suspension and stability.
Key Specifications
Engine Type
Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity
55.1 cubic inches / 904 cc
Max Power
68 hp / 49.6 kW @ 8000 rpm
Max Torque
57.5 ft-lb / 78 nm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Weight (Wet/Kerb)
458.5 lbs / 208 kg
Seat Height
35.4 inches / 900 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant 900ie GT
Year
1992
Engine
Engine Type
Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement
55.1 cubic inches / 904 cc
Bore x Stroke
92 x 68 mm
Compression Ratio
9.2:1
Max Horsepower
68 hp / 49.6 kW @ 8000 rpm
Max Torque
57.5 ft-lb / 78 nm
Engine Management System
2mm Weber L.A.W fuel injection
Cooling System
Air cooled
Performance
Top Speed
190.2 km/h
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry Multi-disc
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Double steel tubular cradle
Front Suspension
45mmMarzocchiclamped stanchion telescopic forks non adjustable
Rear Suspension
hlinsRising rate box, monoshock adjustable for preload
Wheels & Brakes
Front Tire Size
100/90-19
Rear Tire Size
140/80-17
Front Brakes
Single 296mm disc
Rear Brakes
Single 240mm disc 4 piston caliper
Dimension & Weights
Seat Height
35.4 inches / 900 mm
Wheelbase
61.8 inches / 1570 mm
Ground Clearance
260 mm / 10.2 in
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Wet (kerb/curb) Weight
458.5 lbs / 208 kg
Dry Weight
189 kg / 416.6 lbs
Features
Ducati-derived 904 cm engine
Electronic injection Weber-Marelli
5-speed gearbox
Ohlins mono shock absorber (IE series)
Nissin brakes (IE series)
Silver keychain with progressive number and signed by Edi Orioli (IE series)
Marzocchi Magnum forks (GT version)
Gray metallic livery (GT version)
900 AC carburetors
“Thrust” clutch
Six-speed gearbox
Boge hydraulic spring preload type shock absorber (AC series)
45 mm Showa USD fork (AC series)
Double disc brakes (AC series)
Brembo floating calipers (AC series)
