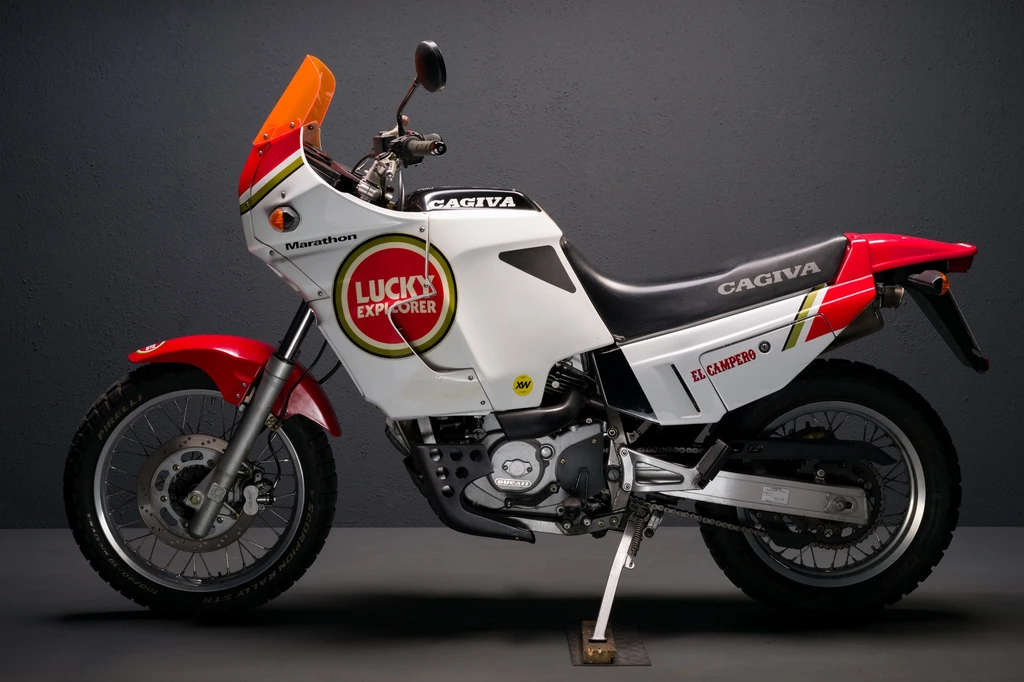

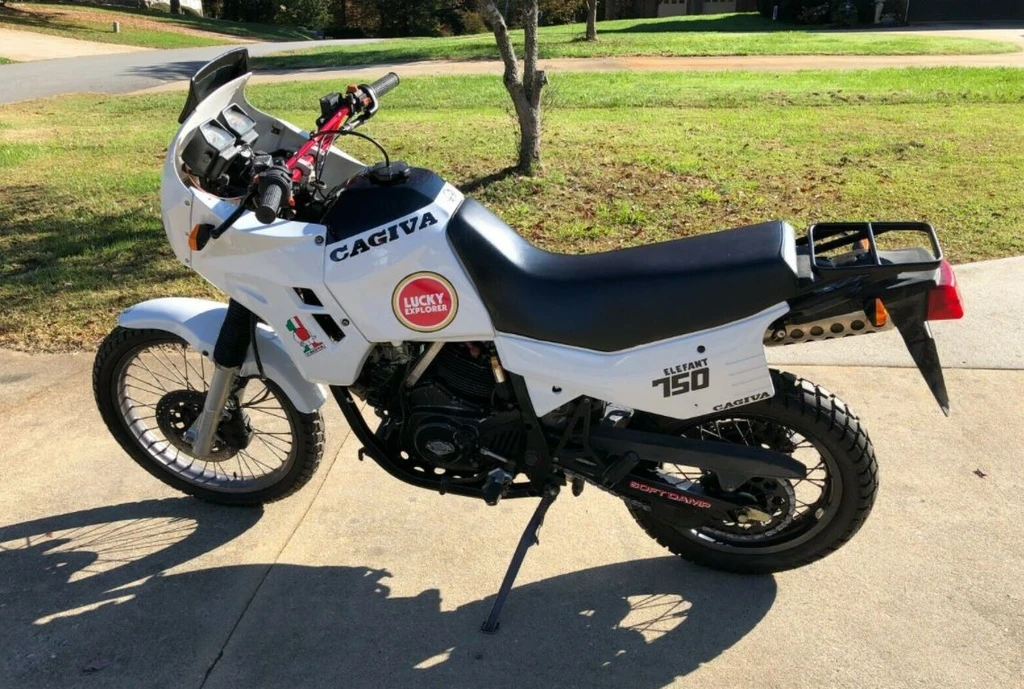

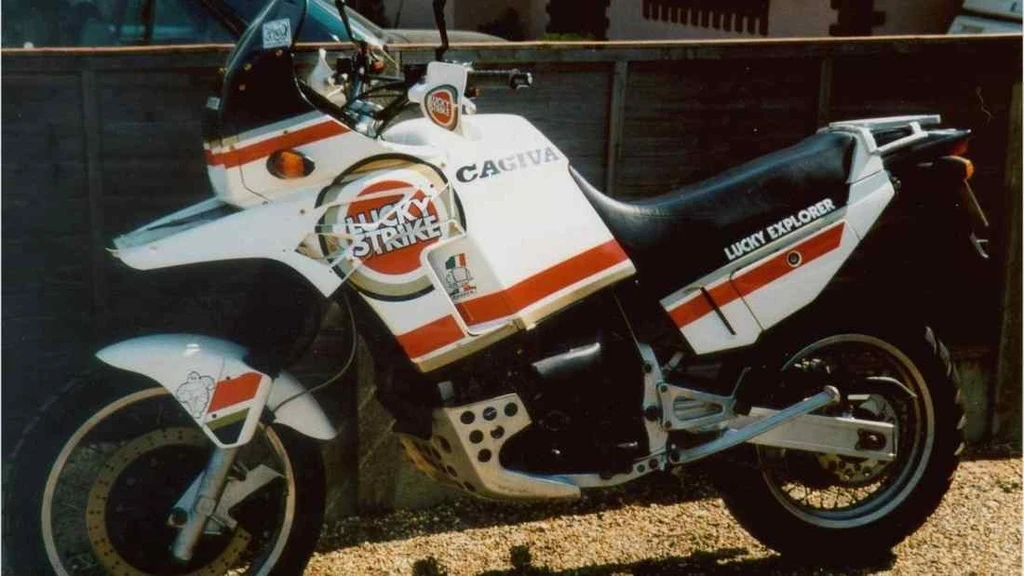

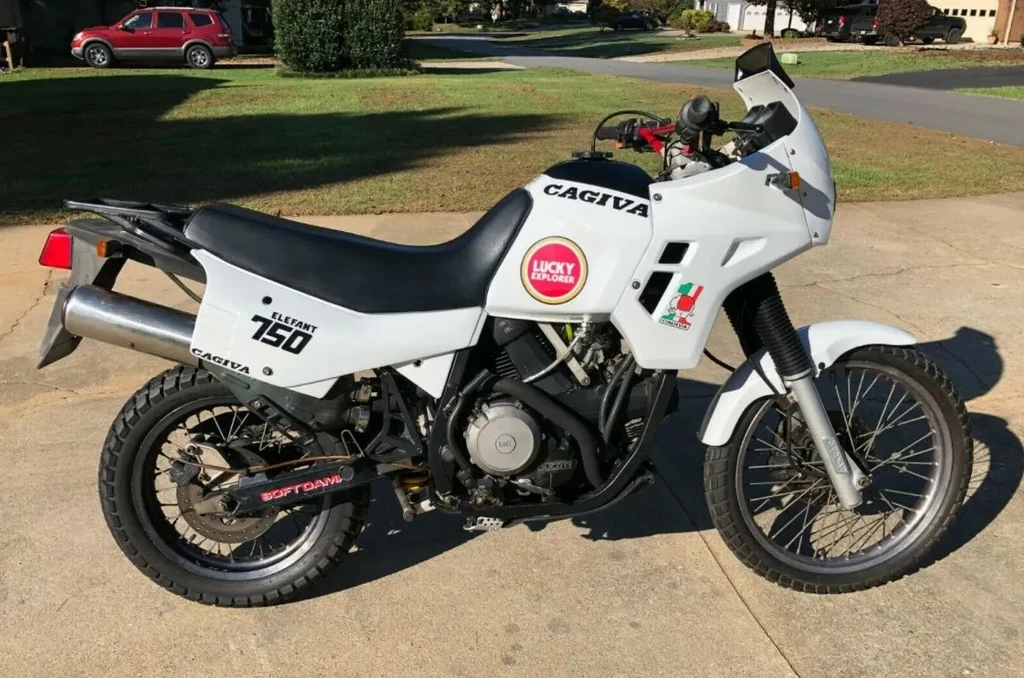

The Cagiva Elefant 750: a revolutionary motorcycle that redefined the boundaries of adventure touring. Introduced in 1989, this Italian powerhouse boasted an impressive 748cc inline-four engine, delivering a remarkable 64 horsepower and 54 lb-ft of torque.
This potent powerplant was perfectly complemented by its six-speed transmission and five-gallon fuel tank, providing riders with the freedom to explore the open road without restriction. The Elefant’s engine character was defined by its smooth, linear power delivery and responsive throttle, making it an absolute joy to ride.
From the outset, the Cagiva Elefant 750 proved itself to be a formidable contender in the adventure touring segment, earning widespread acclaim for its exceptional handling, impressive performance, and rugged, dependable build.
Key Specifications
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity
45.6 cubic inches / 748 cc
Max Power
60.5 hp /44.5kW @ 8000 rpm
Max Torque
47 ft-lb @ 5500 rpm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Seat Height
35.4 inches / 900 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant 750
Year
1989
Engine
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement
45.6 cubic inches / 748 cc
Bore x Stroke
88 x 61.5 mm
Compression Ratio
9.3:1
Max Horsepower
60.5 hp /44.5kW @ 8000 rpm
Max Torque
47 ft-lb @ 5500 rpm
Engine Management System
2x Bing 64/32/375 carburetor
Cooling System
Air cooled
Performance
Top Speed
174 km/h / 108 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
41mm Marzocchi forks
Rear Suspension
hlins rising-rate swingarm
Wheels & Brakes
Front Tire Size
90/90-21
Rear Tire Size
130/90-17
Front Brakes
Single 260mm disc 4 piston caliper
Rear Brakes
Single240mmdisc 2 piston caliper
Dimension & Weights
Seat Height
35.4 inches / 900 mm
Wheelbase
59.8 inches / 1520 mm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Dry Weight
191 kg/ 421 lbs
