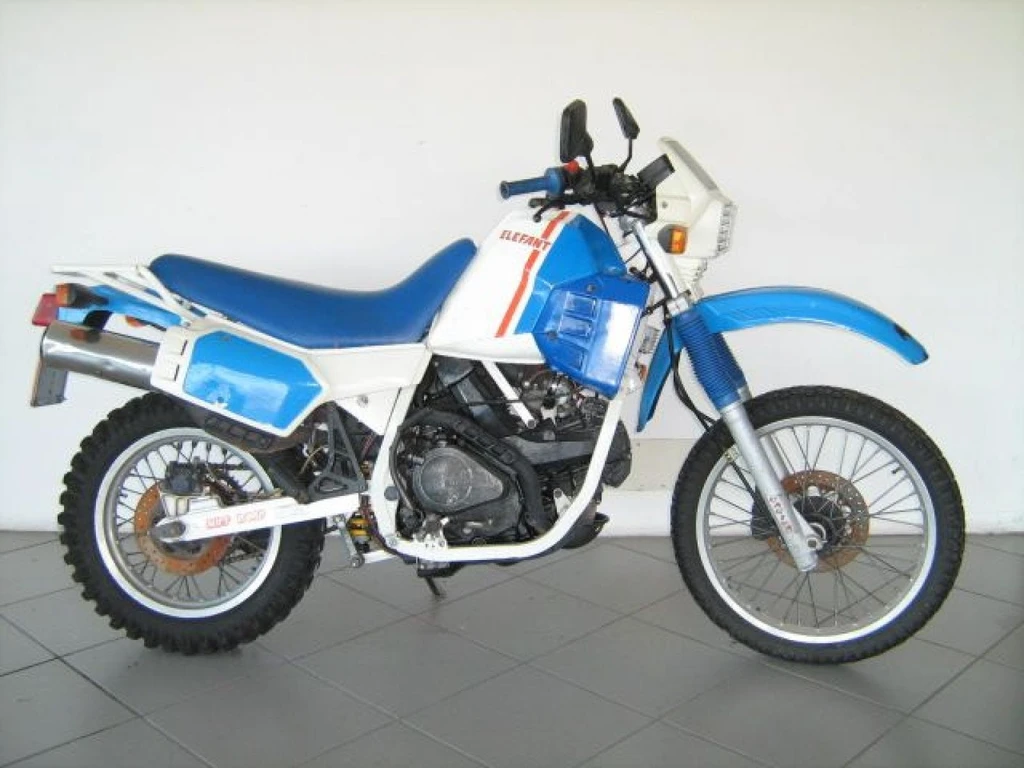

The Cagiva Elefant 350 is a bike that defies expectations. Despite its bulkier build and sluggish performance, this Italian machine boasts an impressive array of high-end components, borrowed directly from the larger 650 and 750 models.
Its heart is the renowned Ducati-derived dimo-twin engine, providing a unique blend of character and performance. The Hlins mono shock absorber and Marzocchi forks ensure a smooth ride, while the Brembo braking system offers reassuring stopping power.
Riding the Elefant 350 is an experience that’s as much about the journey as it is about reaching your destination – with its distinctive engine note and agile handling, you’ll be hooked from the very first twist of the throttle.
Key Specifications
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder.
Engine Capacity
21.2 cubic inches / 349 cc
Max Power
34.5 hp /25.4kW @ 8000 rpm (rear tyre 30.6 hp @ 8800 rpm)
Max Torque
22.1 ft-lb / 30 nm
Fuel Tank Capacity
4.7 US gallons / 18.0 L
Seat Height
35.6 inches / 905 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant 350
Year
1987 – 89
Engine
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder.
Displacement
21.2 cubic inches / 349 cc
Bore x Stroke
66 x 51 mm
Compression Ratio
10.3:1
Max Horsepower
34.5 hp /25.4kW @ 8000 rpm (rear tyre 30.6 hp @ 8800 rpm)
Max Torque
22.1 ft-lb / 30 nm
Engine Management System
2x Dell’Orto carburetors
Cooling System
Air cooled
Performance
Top Speed
145.1 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric & kick
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Alloy swing arm single shock
Wheels & Brakes
Front Tire Size
3.00-21
Rear Tire Size
4.60-17
Front Brakes
Single disc
Rear Brakes
Single disc
Dimension & Weights
Seat Height
35.6 inches / 905 mm
Wheelbase
59.8 inches / 1520 mm
Fuel Tank Capacity
4.7 US gallons / 18.0 L
Dry Weight
190 kg / 418.8 lbs
Features
Kick starter
Electric starter
Ducati dimo-twin engine
Hlins mono shock absorber
Marzocchi forks
Brembo braking system
Cross type fender
