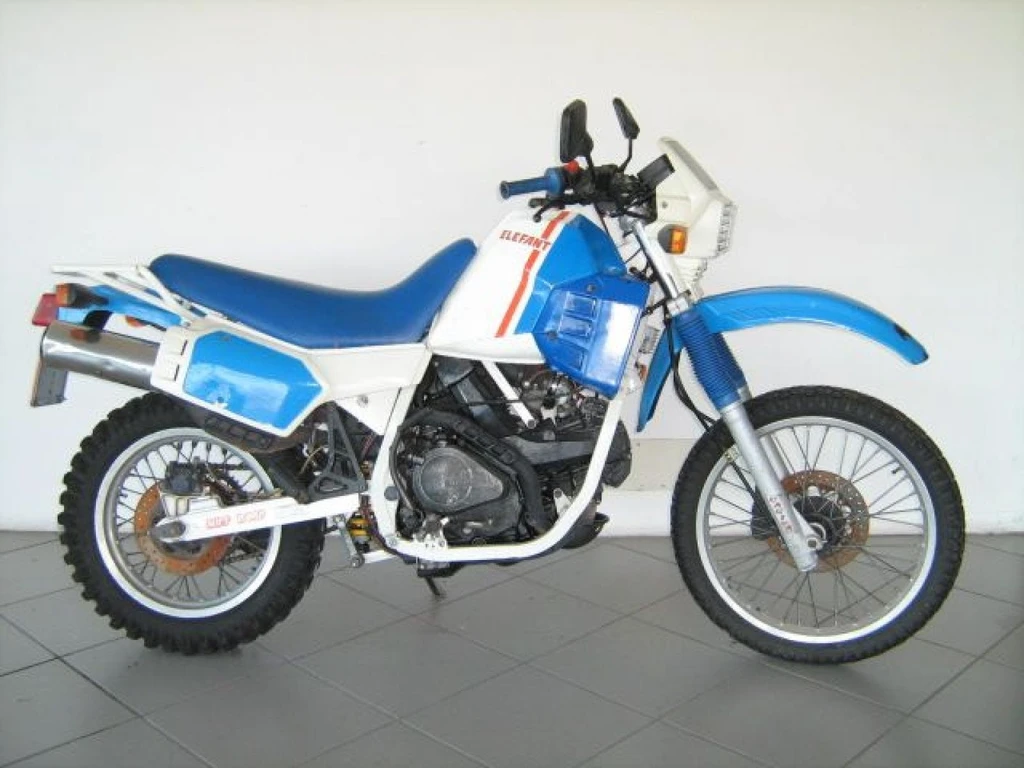

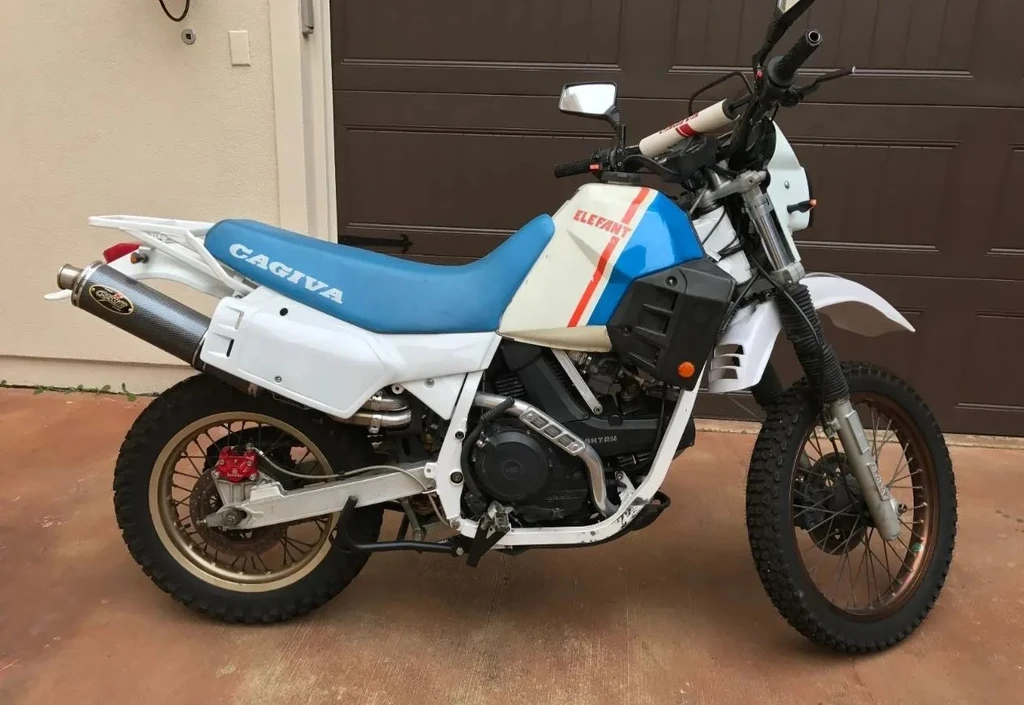

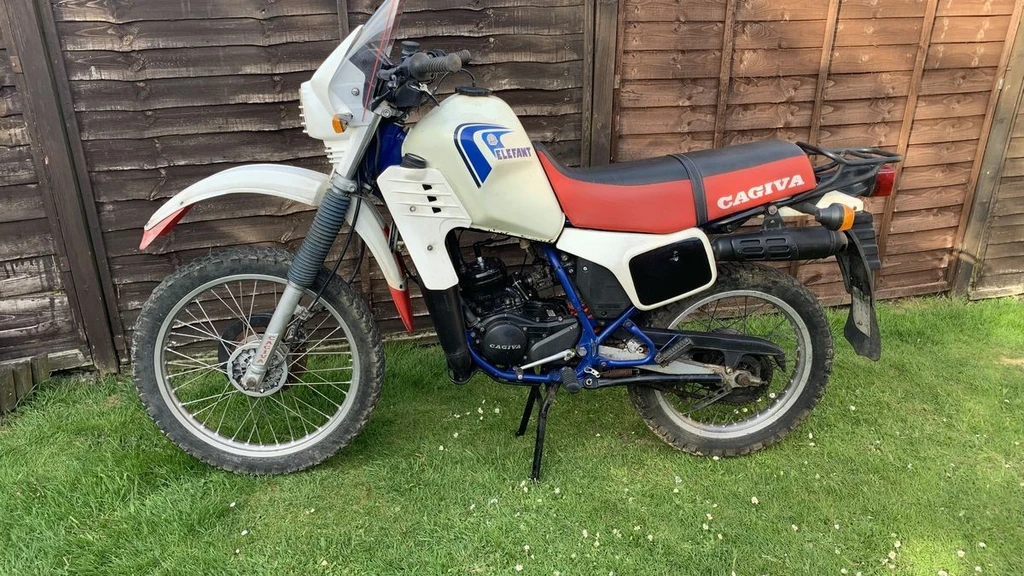

The Cagiva Elefant 350 is a motorcycle that defies its somewhat unflattering reputation. Despite its heavier build and less-than-stellar performance, this model boasts an impressive array of high-quality components.
At the heart of the Elefant lies the potent Ducati-derived dimo-twin engine, providing a unique blend of power and character to the ride. Paired with Hlins mono shock absorber, Marzocchi forks, and Brembo braking system – all borrowed from larger models – this motorcycle delivers an exceptional riding experience.
Whether navigating twisty roads or cruising down straightaways, the Elefant 350 rewards riders with a thrilling blend of agility and control, thanks to its precise handling and responsive engine.
Key Specifications
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity
21.2 cubic inches / 349 cc
Max Power
34.5 hp /25.4kW @ 8000 rpm (rear tyre 30.6 hp @ 8800 rpm)
Max Torque
22.1 ft-lb / 30 nm
Fuel Tank Capacity
4.7 US gallons / 18.0 L
Seat Height
35.6 inches / 905 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant 350
Year
1985 – 86
Engine
Engine Type
Four stroke, 90 Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement
21.2 cubic inches / 349 cc
Bore x Stroke
66 x 51 mm
Compression Ratio
10.3:1
Max Horsepower
34.5 hp /25.4kW @ 8000 rpm (rear tyre 30.6 hp @ 8800 rpm)
Max Torque
22.1 ft-lb / 30 nm
Engine Management System
2x Dell’Orto carburetors
Cooling System
Air cooled
Performance
Top Speed
145.1 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric & kick
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Alloy swing arm single shock
Wheels & Brakes
Front Tire Size
3.00-21
Rear Tire Size
4.60-17
Front Brakes
Single disc
Rear Brakes
Single disc
Dimension & Weights
Seat Height
35.6 inches / 905 mm
Wheelbase
59.8 inches / 1520 mm
Fuel Tank Capacity
4.7 US gallons / 18.0 L
Dry Weight
190 kg / 418.8 lbs
Features
Dual ignition (kick and electric starter)
Ducati Dimo-twin engine
Hlins mono shock absorber
Marzocchi forks
Brembo braking system
Cross-type fender design
Poor performance
Heavy build
