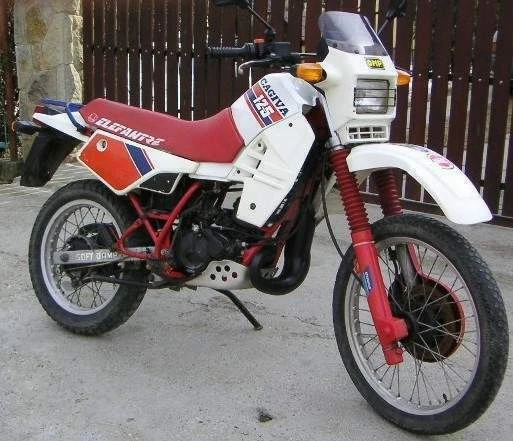

The Cagiva Elefant 125 is a rugged and reliable motorcycle that embodies the spirit of adventure. First introduced in 1984, this Dakar-inspired bike features a bold design language that pays homage to its off-road heritage.
With its Liquid Cooling system and high-performance components, such as the rear shock absorber and lamellar aspiration, the Elefant 125 delivers impressive engine character and handling capabilities. Its 125cc engine is perfectly suited for urban commuting and twisty roads alike.
For riders seeking a unique blend of style and substance, the Cagiva Elefant 125 offers an exhilarating experience that’s both accessible and enjoyable. Whether navigating tight city streets or carving up winding mountain passes, this versatile motorcycle is sure to leave a lasting impression.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
7.6 cubic inches / 125 cc
Max Power
23.6 hp / 17.5 kW @ 9100 rpm
Max Torque
1.8 kgf-m @ 8000 rpm
Fuel Tank Capacity
3.7 US gallons / 14.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva Elefant 125
Year
1987 – 88
Engine
Engine Type
Two stroke, single cylinder
Displacement
7.6 cubic inches / 125 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
12.9:1
Max Horsepower
23.6 hp / 17.5 kW @ 9100 rpm
Max Torque
1.8 kgf-m @ 8000 rpm
Engine Management System
Single Dell’Orto premix carburetor
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Swinging arm single shock
Wheels & Brakes
Front Tire Size
2.75-21
Rear Tire Size
4.60-17
Front Brakes
Single 240mm disc
Rear Brakes
Single 130mm drum
Dimension & Weights
Fuel Tank Capacity
3.7 US gallons / 14.0 L
Dry Weight
125 kg
Features
2-stroke engine
Red Aletta base model
Liquid Cooling system
Rear shock absorber
Mixer (presumably air/fuel mixer)
Lamellar aspiration
Front forked brake
New forks with sprocket in advanced position
Larger cupola (fairing)
Visor
Larger side curtains for radiators
Shorter saddle
