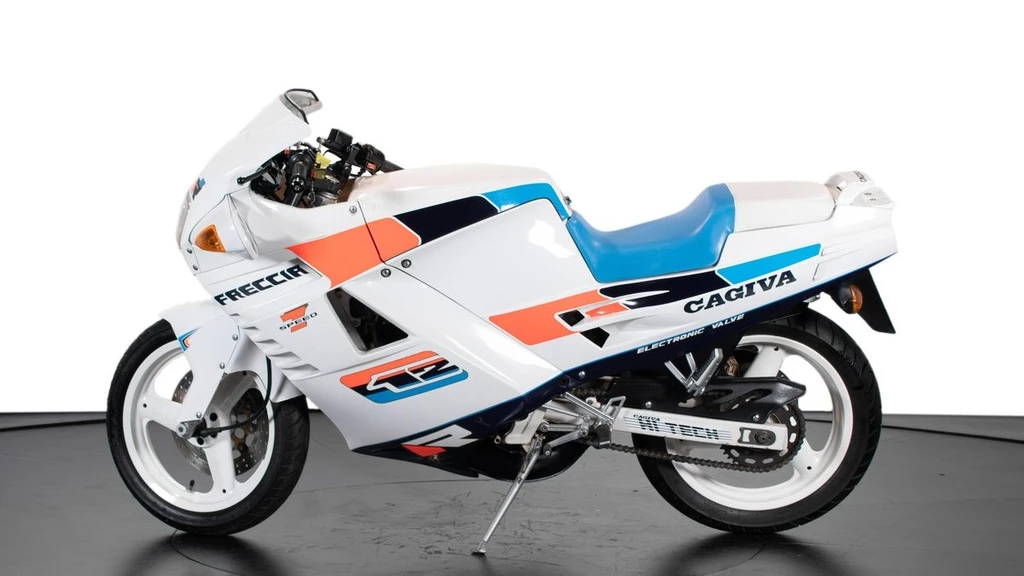

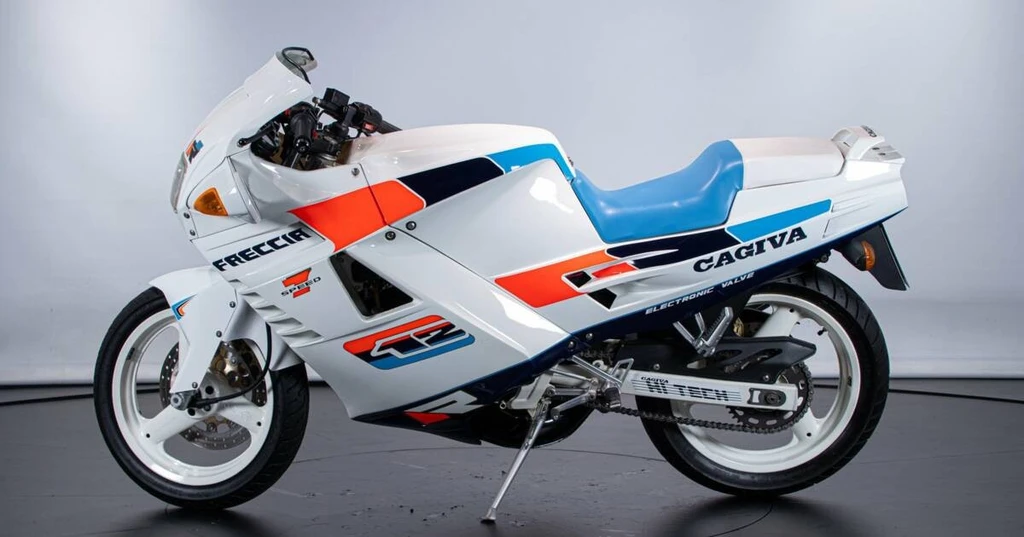

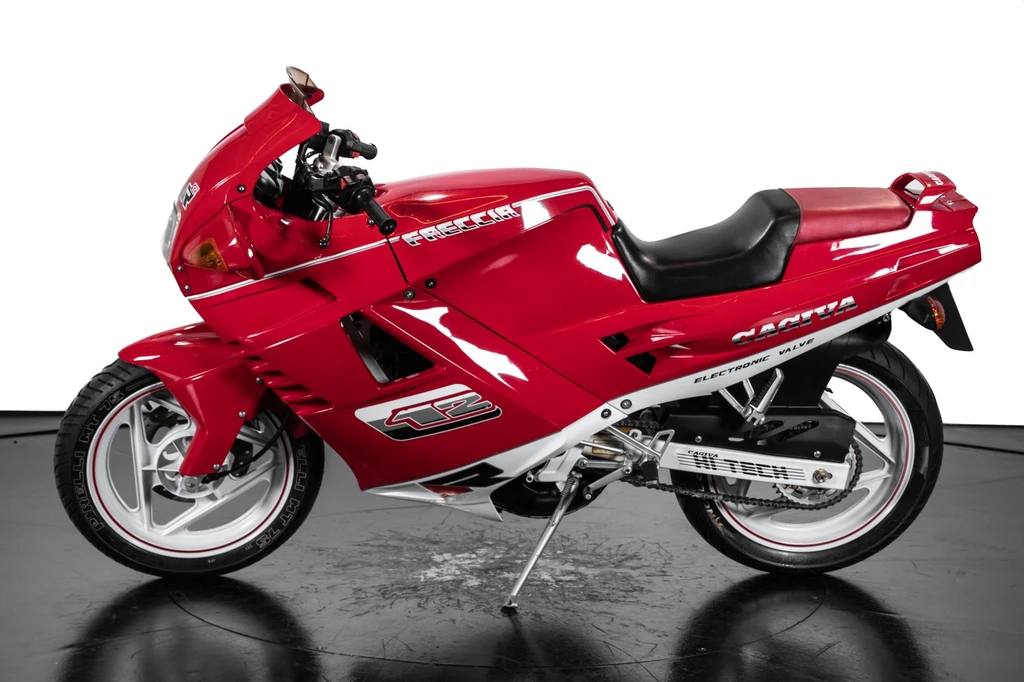

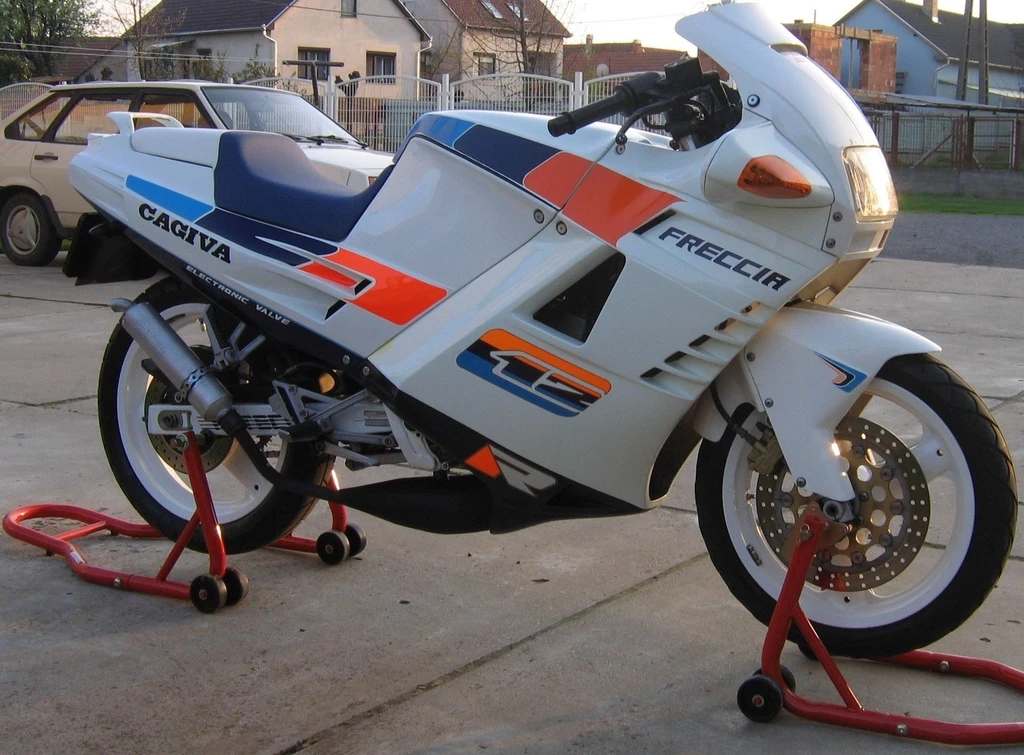

The Cagiva 125 C12R Final Edition, presented at the Milan Show in November 1991, marks the culmination of a decade-long evolution of the Arrow. This final iteration was not designed for racing nor a limited edition, but rather a response to market demand for more practical and affordable motorcycles.
Unlike its competitors, the FY boasted an incredible value-to-price ratio, with a purchase price of just Lire 4,400,000, significantly lower than that of the powerful and expensive Myth. This was achieved through Taiwan production, which took advantage of local labor costs and technical adjustments to optimize efficiency.
The result is a well-balanced motorcycle that delivers on both performance and affordability. Its engine character shines through in its smooth, responsive delivery, making it an ideal choice for riders seeking a practical and enjoyable experience on the road or off.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
7.6 cubic inches / 125 cc
Max Torque
14.7 ft-lb / 20 nm
Fuel Tank Capacity
4.2 US gallons / 16.0 L
Weight (Wet/Kerb)
291 lbs / 132 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Cagiva 125 C12R Final Edition
Year
1992
Engine
Engine Type
Two stroke, single cylinder
Displacement
7.6 cubic inches / 125 cc
Bore x Stroke
56 x 50.6 mm
Compression Ratio
13.0:1
Max Torque
14.7 ft-lb / 20 nm
Engine Management System
28mm Dell’Orto premix carburetor
Cooling System
Liquid cooled
Performance
Top Speed
165.9 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
7 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Marzocchi telescopic, adjustable anti-dive
Rear Suspension
Marzocchi monoshock
Wheels & Brakes
Front Tire Size
100/80-16
Rear Tire Size
120/80-17
Front Brakes
Single 298mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 1 piston caliper
Dimension & Weights
Fuel Tank Capacity
4.2 US gallons / 16.0 L
Wet (kerb/curb) Weight
291 lbs / 132 kg
Dry Weight
125 kg / 275.5 Llbs
Features
New rims in white by design similar to those mounted on C9 C10R
Adoption of a six-speed gearbox instead of seven
Produced in Taiwan to reduce labor costs and production time
