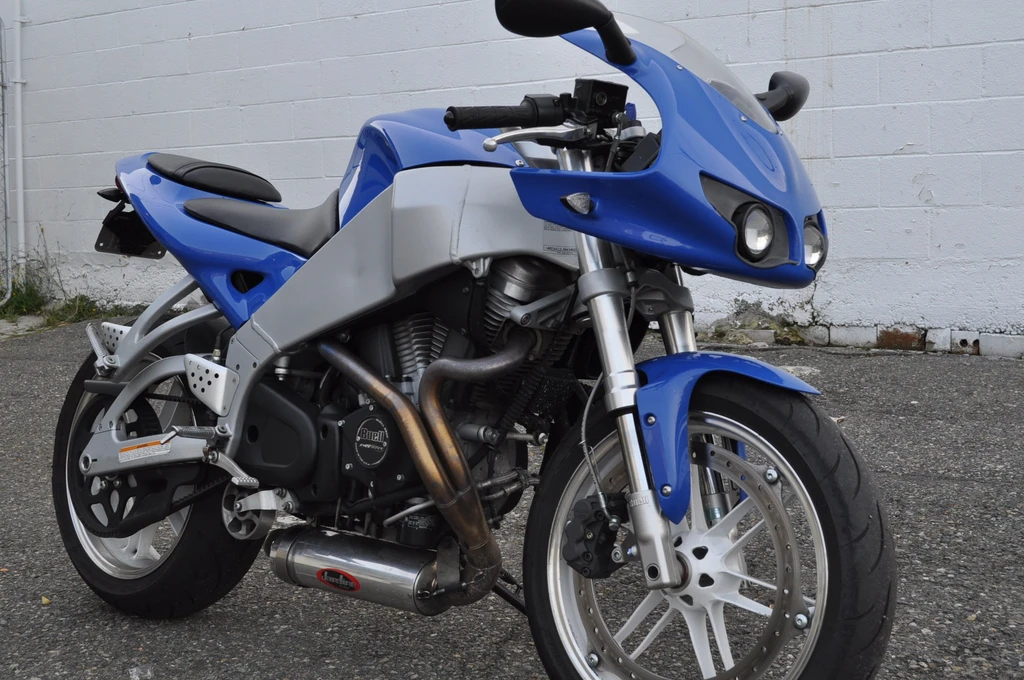

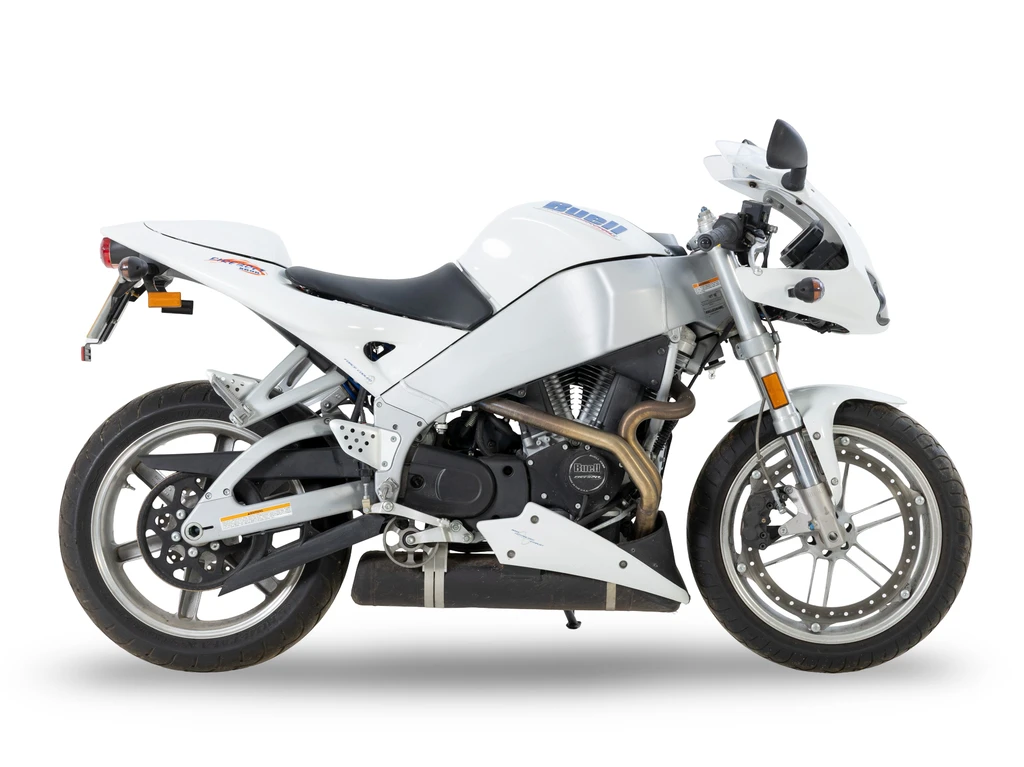

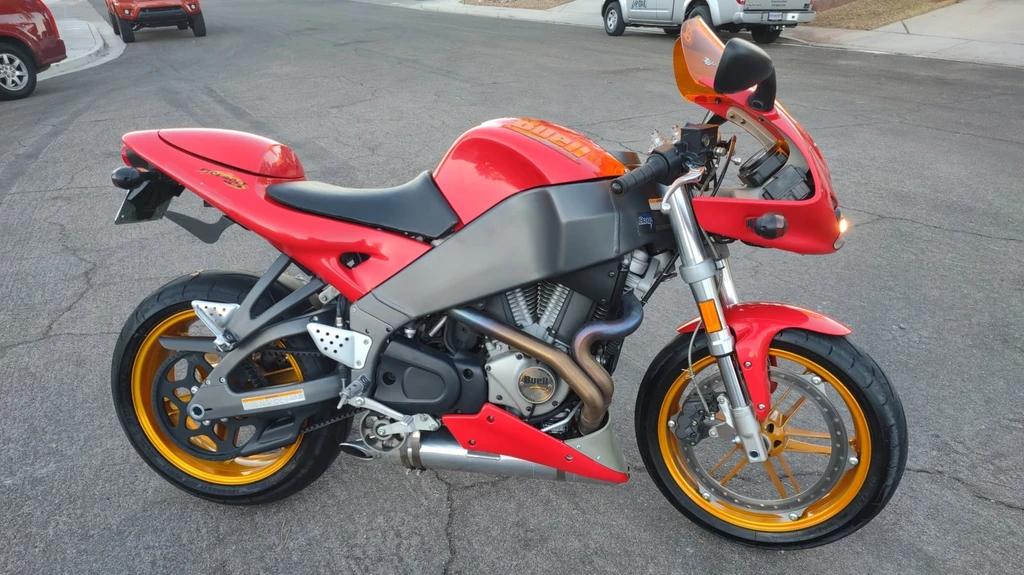

The Buell XB9R Firebolt is reborn for 2004 with a slew of refinements that hone its razor-sharp edge in the Sportfighter category.
With a chassis that responds instantly to rider input and the potent XB984 V-Twin engine delivering a smooth, torquey powerband, this bike was designed to dominate the twisty backroads and sweeping mountain byways that challenge even the most seasoned riders.
The Firebolt’s innovative design is built around the Buell Trilogy of Tech: frame rigidity, mass centralization, and minimal unsprung weight. The rigid aluminum frame, which also serves as a fuel tank, carries fuel within its structure to lower the center of gravity. The Uniplanar engine mounting system reduces vibration and incorporates the engine as a stressed member of the chassis.
The massive aluminum swingarm further enhances stiffness, while minimizing unsprung weight keeps wheels in contact with pavement and reduces steering effort. Buell’s Zero Torsional Load braking system eliminates torsional load to the front wheel, allowing for a lightweight design that complements the bike’s agile handling.
And yet, all these innovations come together to create an experience that is anything but overwhelming: instead, they conspire to deliver a thrilling ride that is both manageable and exhilarating.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
984 cc / 60 cu in
Max Power
67.1 kw / 92 hp
Max Torque
97 Nm / 9.9 kgf-m / 71.5 ft.lbs @ 5500 rpm
Fuel Tank Capacity
14 L / 3.7 US gal
Seat Height
775 mm / 30.5″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell XR9R Firebolt
Year
2004
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Center of gravity reduced by carrying fuel within the frame
Patented Buell Uniplanar engine mounting system reduces vibration
Engine acts as a stressed member of the chassis
Massive aluminum swingarm serves as reservoir for engine oil
Zero Torsional Load front braking system
Single 375mm brake rotor mounted close to wheel rim
Six-piston caliper squeezes brake rotor
Front fork is a fully-adjustable 41mm inverted Showa unit
Ultra-short 52-inch wheelbase
Chassis geometry with 21-degree fork and 83mm of trail
Rigid frame and swingarm for dominating performance in corners
Low center of gravity
984cc, 45-degree V-Twin engine
Dynamic Digital Fuel Injection (DDFI) for crisp throttle response
Air/fan and oil-cooled engine design
Short stroke, lightweight valvetrain
High-flow heads
Redline at 7500 rpm
