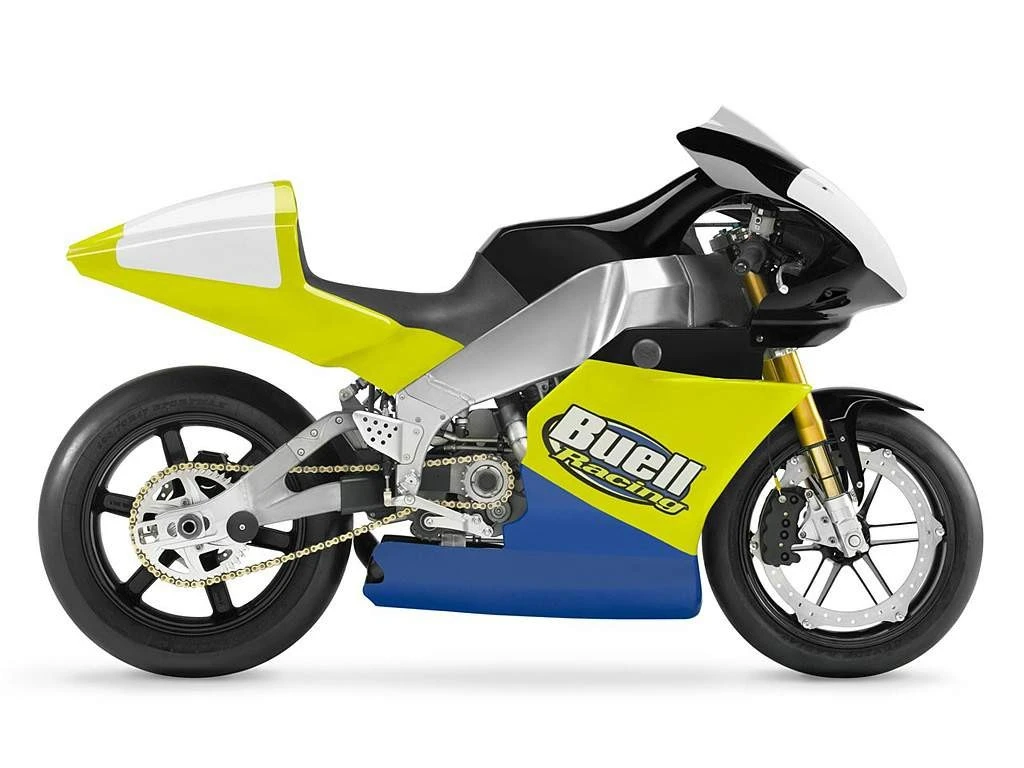

Buell XBRR (2007)

The Buell XBRR marks a triumphant return to its racing roots, channeling the pioneering spirit of Erik Buell’s earliest creations.

This limited-edition production motorcycle is designed exclusively for closed-course competition, boasting cutting-edge technology and innovative design that embodies the essence of privateer racing. The 1339cc air/oil-cooled V-Twin engine, derived from the XB Thunderstorm platform, unleashes a potent 150-hp at the crankshaft, courtesy of dual-downdraft fuel injection and a ram-air intake system.

The XBRR’s aerodynamic full fairing, crafted with wind-tunnel precision, seamlessly integrates ducts for cooling and features an advanced lightweight carbon design. This production-based platform represents the culmination of Buell’s leading-edge chassis technology and Harley-Davidson’s air-cooled V-Twin powertrain development, expertly blended to deliver a professional-level riding experience.

The Buell XBRR is poised to dominate privateer racing with its unparalleled performance, precision engineering, and attention to detail – an unyielding testament to Erik Buell’s unwavering passion for motorcycle innovation.

Key Specifications

Engine Type	45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity	1339 cc / 81.7 cu in
Max Power	111.9+ kW /150+ hp @ 8000 rpm
Max Torque	135 Nm / 13.8 kgf-m / 100 ft-lb @ 6500 rpm
Seat Height	775 mm / 30.5″

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Buell XBRR
Year	2007

Engine

Engine Type	45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement	1339 cc / 81.7 cu in
Bore x Stroke	103.6x 79.4 mm
Compression Ratio	12.5:1
Max Horsepower	111.9+ kW /150+ hp @ 8000 rpm
Max Torque	135 Nm / 13.8 kgf-m / 100 ft-lb @ 6500 rpm
Engine Management System	2 x62mmdown-draftfuel injectionthrottlebodies
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	5 Speed
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Front Suspension	Inverted forks,43 mmhlinsadjustable
Rear Suspension	hlinsfully-adjustablerearsuspensionwithcoil-overmonoshockwithremotereservoir
Rake	21
Trail	86 mm / 3.4″

Wheels & Brakes

Wheels	6-Spoke cast Magnesium
Front Wheel/Rim Size	3.50 x 17″
Front Tire Size	120/70R-17
Rear Wheel/Rim Size	5.50 x 17″
Rear Tire Size	190/55R-17
Front Brakes	ZTL2reversedrotor, eight-pistonNissincaliper
Rear Brakes	Single 240mm disc, 1 piston floating caliper

Dimension & Weights

Seat Height	775 mm / 30.5″
Wheelbase	1341 mm / 52.8″

Features

Modified XB Thunderstorm 1339cc air/oil-cooled V-Twin motor
Rated at 150-hp (measured at the crankshaft)
Dual-downdraft 62mm throttle-body electronic fuel injection system
Ram-air intake system integrated with wind-tunnel developed carbon fiber fairing
Full fairing made of lightweight carbon with ducts for engine and oil cooler cooling
Billet axle adjustment system
Chain-drive to allow gearing changes for different race tracks
Fully adjustable Hlins units with 43mm front forks and remote-reservoir rear shock
ZTL2 eight-piston front caliper
Standard XB front rotor
New XBRR six-spoke magnesium wheels
33 percent lighter than standard XB wheels
Tachometer
Indicator lamps for shift, power on, and low oil pressure
Unique Buell Racing paint scheme
