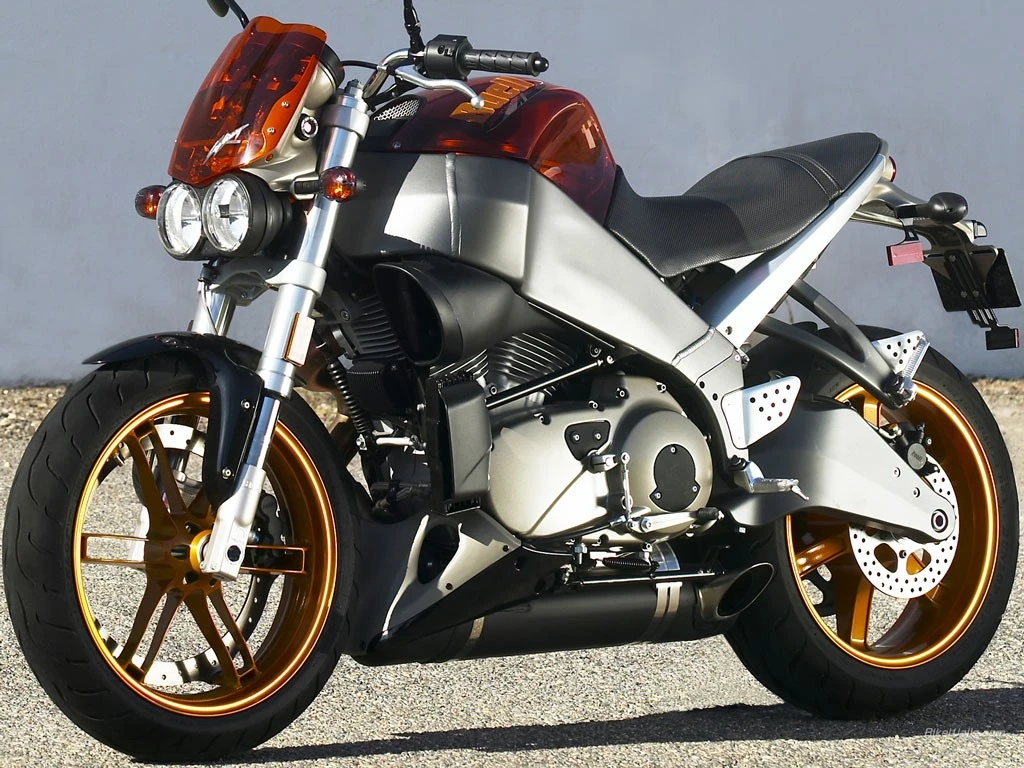

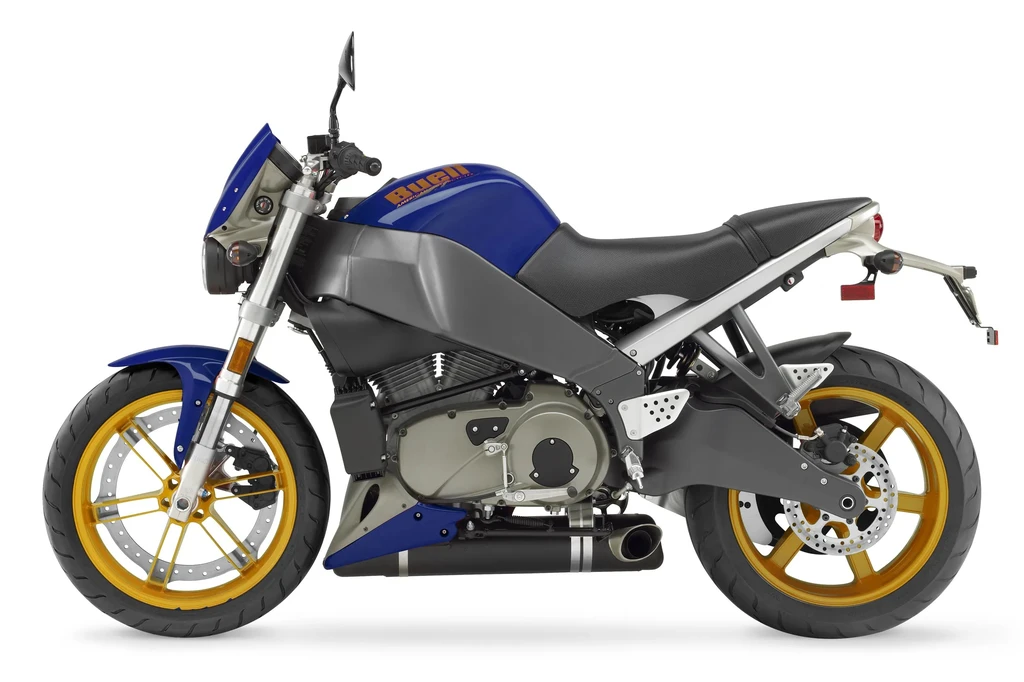

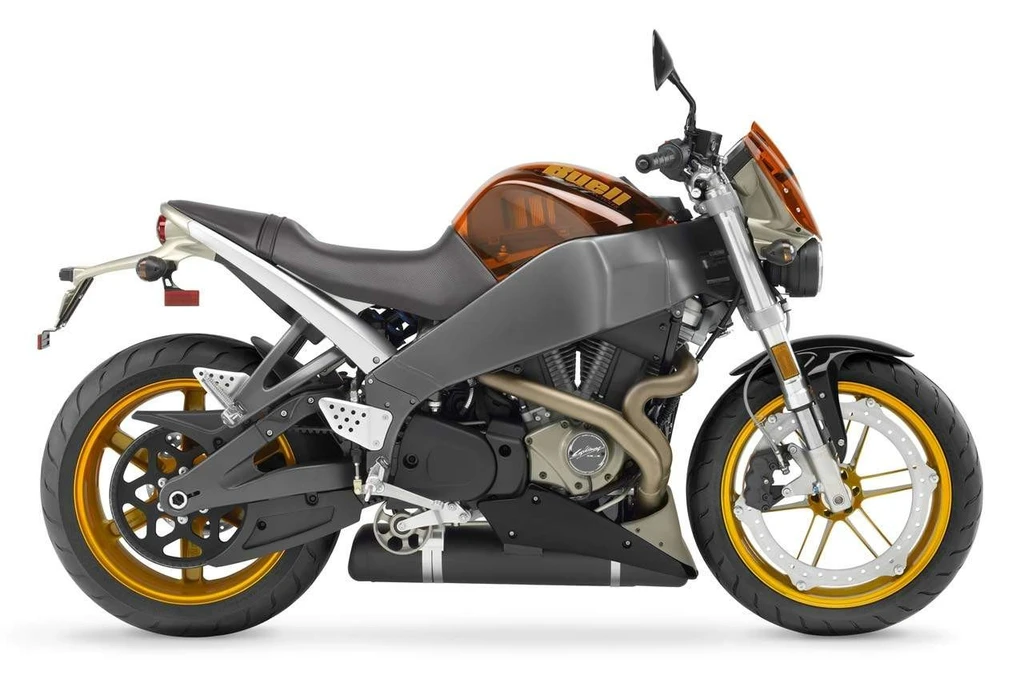

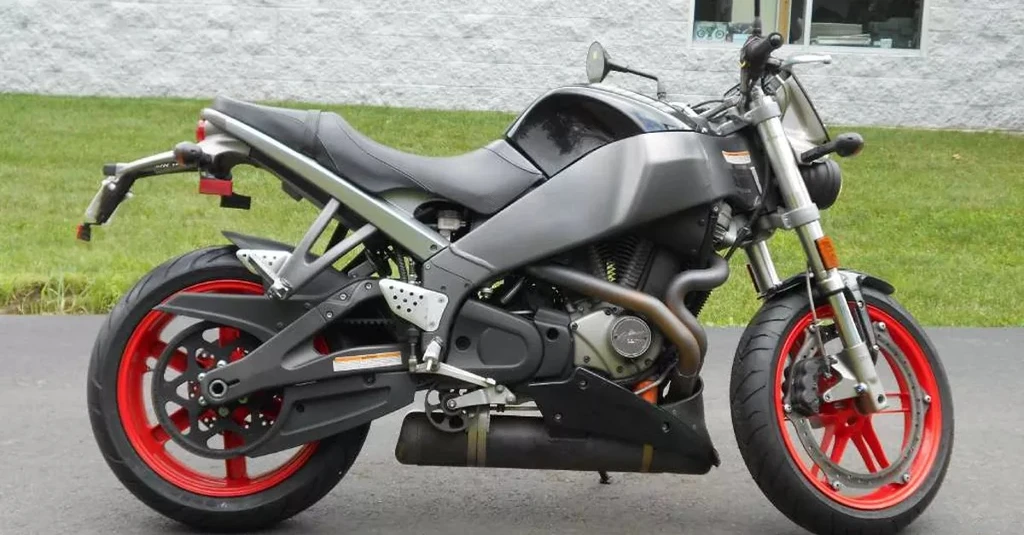

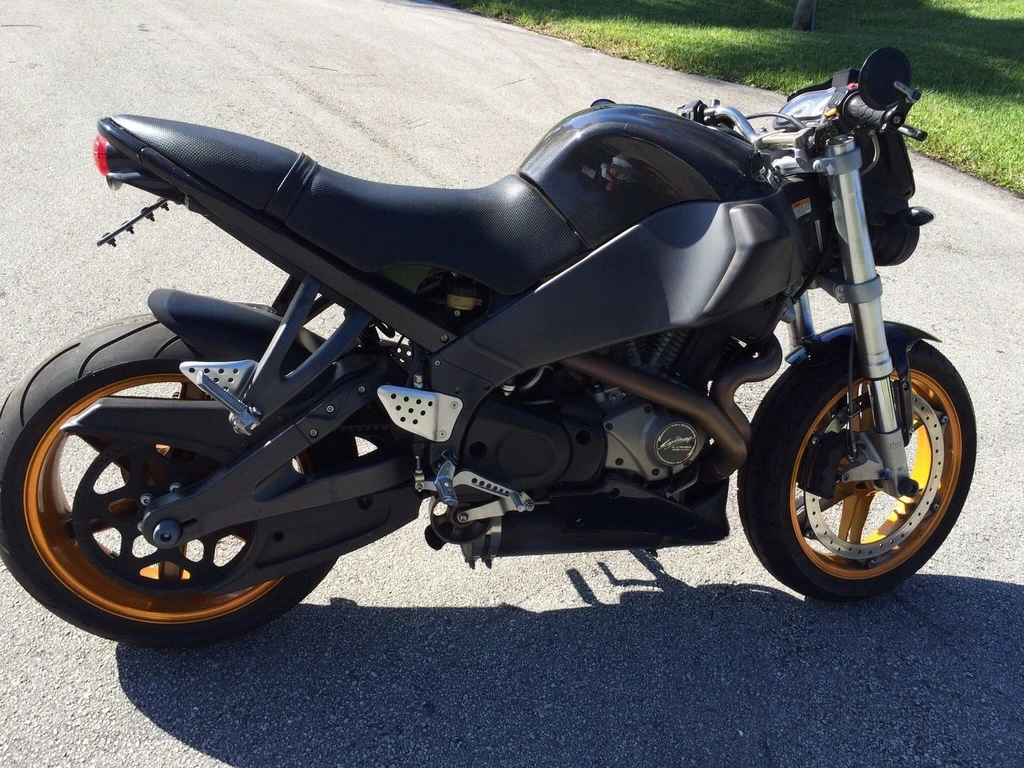

The Buell XB12Ss Lightning Long is a streetfighter designed to deliver a unique blend of agility and comfort. Its 45-degree V-Twin engine, the Thunderstorm 1203, produces 103 peak horsepower and 84 ft-lbs of torque, with smooth power delivery thanks to Buell’s InterActive Exhaust system.
This impressive engine is paired with an aluminum frame featuring Buell’s innovative Uniplanar Powertrain vibration isolation system, which ensures a smooth ride. Suspension components include Showa inverted forks and coil-over monoshock, both adjustable for compression damping, rebound damping, and spring preload.
The Lightning Long boasts a 54-inch wheelbase, two inches longer than its sibling, the XB12S, with increased fork rake and trail for more relaxed handling and expanded ergonomics. This results in a bike that’s better suited to taller riders, offering ample room for passengers and storage under the seat.
With three distinct color schemes available – Sunset Orange, Midnight Black, and Thrust Blue – the Buell XB12Ss Lightning Long is an attractive option for those seeking a high-performance ride with exceptional comfort and versatility.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73 cu in
Max Power
86.9 kw / 103 hp
Max Torque
114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Fuel Tank Capacity
16.7 L / 4.4 US gal
Seat Height
775 mm / 30.5″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell XB12Ss Lightning Long
Year
2005 – 2006
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73 cu in
Bore x Stroke
88.9 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
86.9 kw / 103 hp
Max Torque
114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Engine Management System
49 mm downdraft DDFI II fuel injection
Lubrication System
Dry sump
Cooling System
Air cooled
Exhaust
Free breathing, 2-into-1 Tuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting
Aluminium frame with Uniplanar Powertrain vibration isolation system, fuel in frame
Front Suspension
Showa 43 mm inverted forks compression damping, rebound damping and spring preload adjustable
Front Suspension Travel
120 mm / 4.7″
Rear Suspension
Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload
Rear Suspension Travel
127 mm / 5.0″
Rake
22
Trail
119mm / 4.7″
Wheels & Brakes
Wheels
6-Spoke, ZTL cast aluminium
Front Wheel/Rim Size
3.50 x 17″
Front Tire Size
120/70 ZR17 Dunlop D208FW
Rear Wheel/Rim Size
5.50 x 17″
Rear Tire Size
180/55 ZR17 Dunlop D208FW
Front Brakes
ZTL type brake, 6 piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Rear Brakes
Single 240 mm disc, 1 piston floating caliper
Dimension & Weights
Overall Length
2023 mm / 79.6 inches
Overall Width
755 mm / 29.7 inches
Overall Height
1091 mm / 43 inches
Seat Height
775 mm / 30.5″
Wheelbase
1372 mm / 54.0″
Ground Clearance
118 mm / 4.6″
Fuel Tank Capacity
16.7 L / 4.4 US gal
Dry Weight
181.5 kg / 400 lbs
Features
45 V-Twin engine
Four stroke, pushrod actuated overhead valve
Hydraulic self-adjusting lifters
2 valves per cylinder
Free breathing exhaust system
Tuned, tri-pass resonance chamber
InterActive valve and mass-centralized mounting
Aluminium frame with Uniplanar Powertrain vibration isolation system
Fuel in frame design
Showa 43 mm inverted forks with adjustable compression damping, rebound damping, and spring preload
Showa coil-over monoshock with remote underseat reservoir and adjustable compression damping, rebound damping, and spring preload
ZTL type brake with 6 piston fixed caliper and 375mm single-sided, inside out, stainless steel floating rotor
Extended swingarm
Increased fork rake from 21 to 22 degrees
Longer wheelbase of 54 inches
Larger under-seat storage compartment
Buell InterActive Exhaust system
Fuel-injected air/oil/fan-cooled V-Twin engine with 103 peak hp and 84 ft. lbs. peak torque
