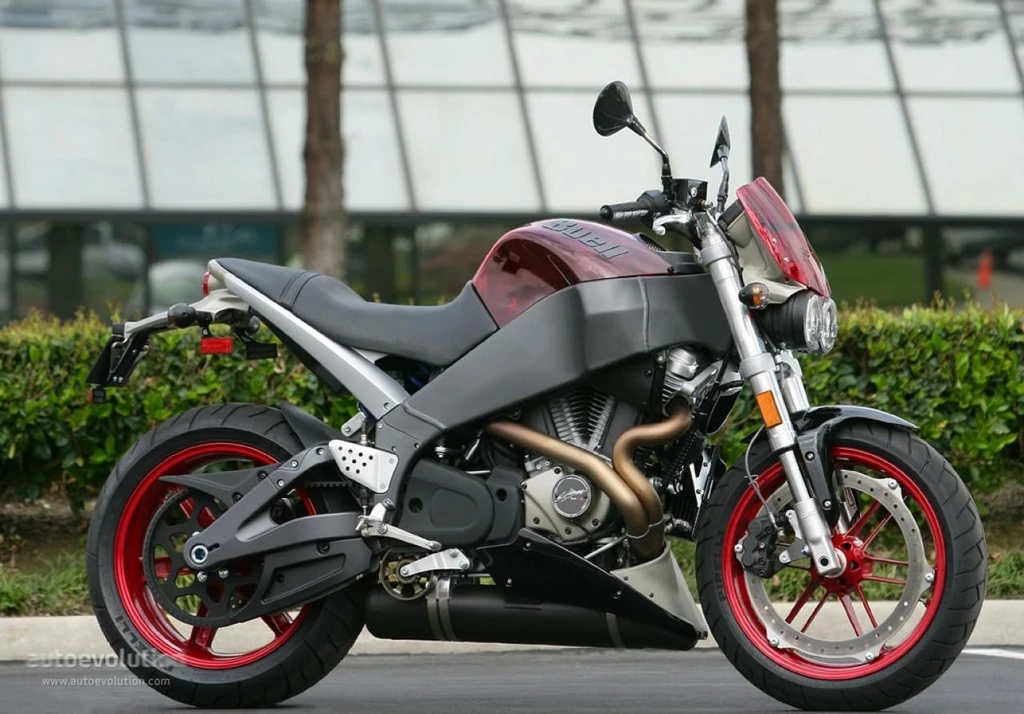

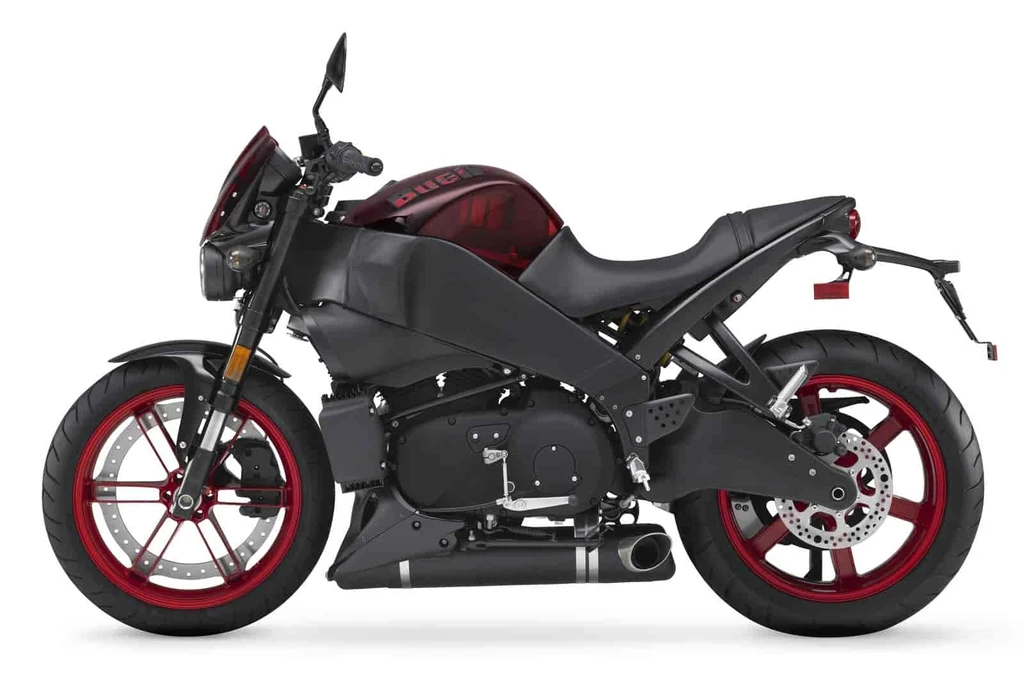

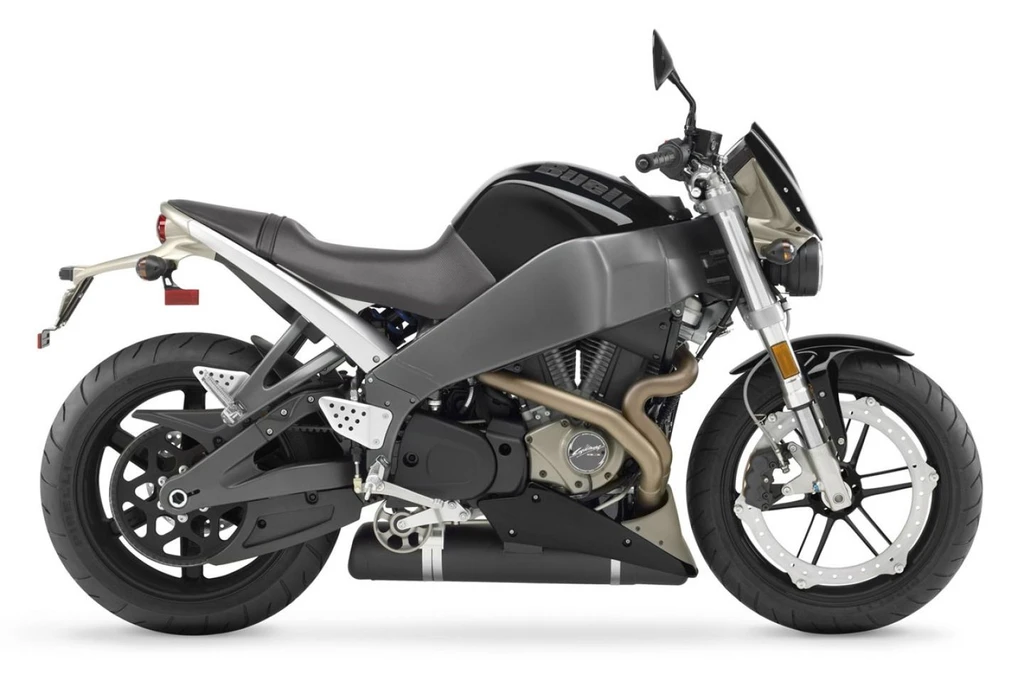

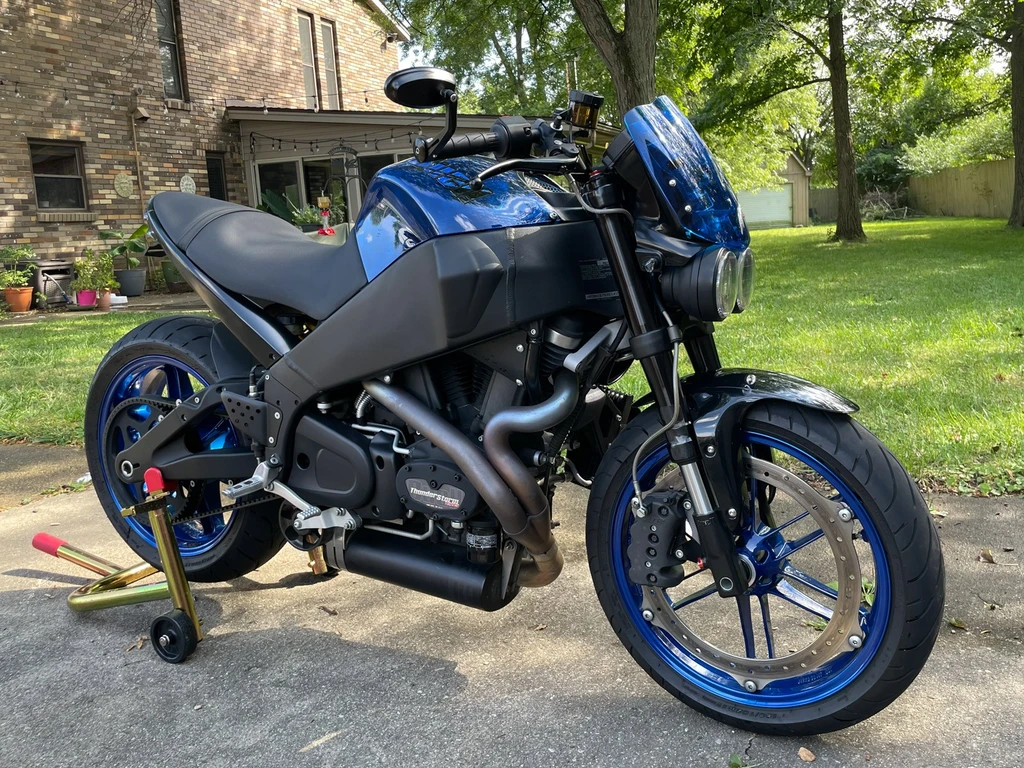

Buell XB12Scg Lightning (2009 - 2010)

The Buell XB12Scg Lightning is a raw and aggressive streetfighter that embodies the essence of American V-Twin power. Its 45-degree, four-stroke engine produces a free-breathing soundtrack with its Tuned, tri-pass resonance chamber and InterActive valve.

With a lightweight aluminium frame and Uniplanar Powertrain vibration isolation system, this motorcycle delivers instant response to rider input, ensuring a thrilling riding experience. The Showa suspension components provide exceptional handling and control, while the ZTL type brake offers exceptional stopping power.

Featuring a lowered seat and front suspension, the XB12Scg Lightning is designed for aggressive riding with minimal compromise on performance or handling.

Key Specifications

Engine Type	45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity	1203 cc / 73 cu in
Max Power	86.9 kw / 103 hp
Max Torque	114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Fuel Tank Capacity	14 L / 3.7 US gal
Seat Height	726 mm / 28.6″

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Buell XB12Scg Lightning
Year	2009 – 2010

Engine

Engine Type	45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement	1203 cc / 73 cu in
Bore x Stroke	88.9 x 96.8 mm
Compression Ratio	10.0:1
Max Horsepower	86.9 kw / 103 hp
Max Torque	114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Engine Management System	49 mm downdraft DDFI II fuel injection
Lubrication System	Dry sump
Cooling System	Air cooled
Exhaust	Free breathing, 2-into-1 Tuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting

Performance

Top Speed

216.2 km/h / 134 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multi-plate
Gearbox	5 Speed
Gear Ratios	1st2.649 / 2nd1.892 / 3rd1.407 / 4th1.166 / 5th1.000
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Aluminium frame with Uniplanar Powertrain vibration isolation system, fuel in frame
Front Suspension	Showa 43 mm inverted forks compression damping, rebound damping and spring preload adjustable
Front Suspension Travel	120 mm / 4.7″
Rear Suspension	Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload
Rear Suspension Travel	127 mm / 5.0″
Rake	21
Trail	83 mm / 3.3″

Wheels & Brakes

Wheels	6-Spoke, ZTL cast aluminium
Front Wheel/Rim Size	3.50 x 17″
Front Tire Size	120/70 ZR17 Pirelli
Rear Wheel/Rim Size	5.50 x 17″
Rear Tire Size	180/55 ZR17 Pirelli
Front Brakes	ZTL type brake, 6 piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Rear Brakes	Single 240 mm disc, 1 piston floating caliper

Dimension & Weights

Overall Length	1935 mm / 76.2″
Overall Width	754 mm / 29.7″
Seat Height	726 mm / 28.6″
Wheelbase	1320 mm / 52.0″
Ground Clearance	110 mm / 4.4″
Fuel Tank Capacity	14 L / 3.7 US gal
Dry Weight	179 kg / 395 lbs

Features

45 V-Twin engine
Four stroke, pushrod actuated overhead valve design
Hydraulic self-adjusting lifters
Two valves per cylinder
Free breathing exhaust system
InterActive valve and mass-centralized mounting
Aluminium frame with Uniplanar Powertrain vibration isolation system
Fuel in frame design
Showa 43 mm inverted forks with adjustable compression damping, rebound damping, and spring preload
Showa coil-over monoshock with remote underseat reservoir and adjustable compression damping, rebound damping, and spring preload
ZTL type brake with 6 piston, fixed caliper, and 375 mm single-sided, inside out, stainless steel floating rotor
Lowered suspension and seat for lower center of gravity and shorter reach to the ground
Streetfighter styling
Potent American V-Twin power
Master cylinder piston seals for improved brake feel
LED taillight
Clear-lens front and rear turn signals
Thin-film airbox graphics and fly cut brake logos
Second oxygen sensor and updated EFI calibration improves fuel economy and drivability
Pirelli Scorpion Sync tires
Battery tender plug
