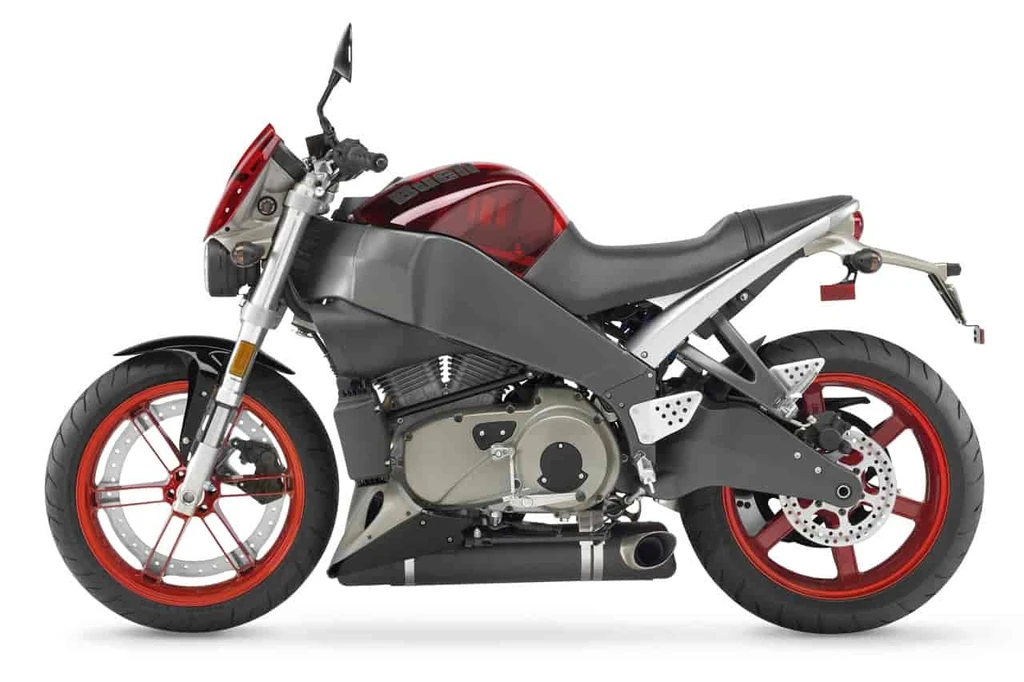

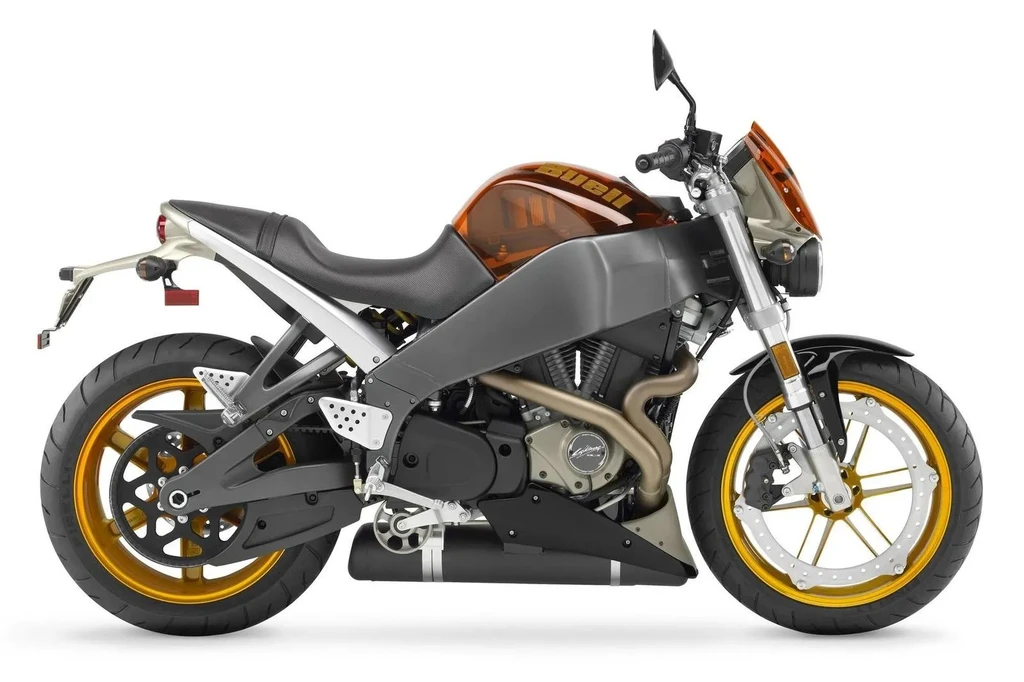

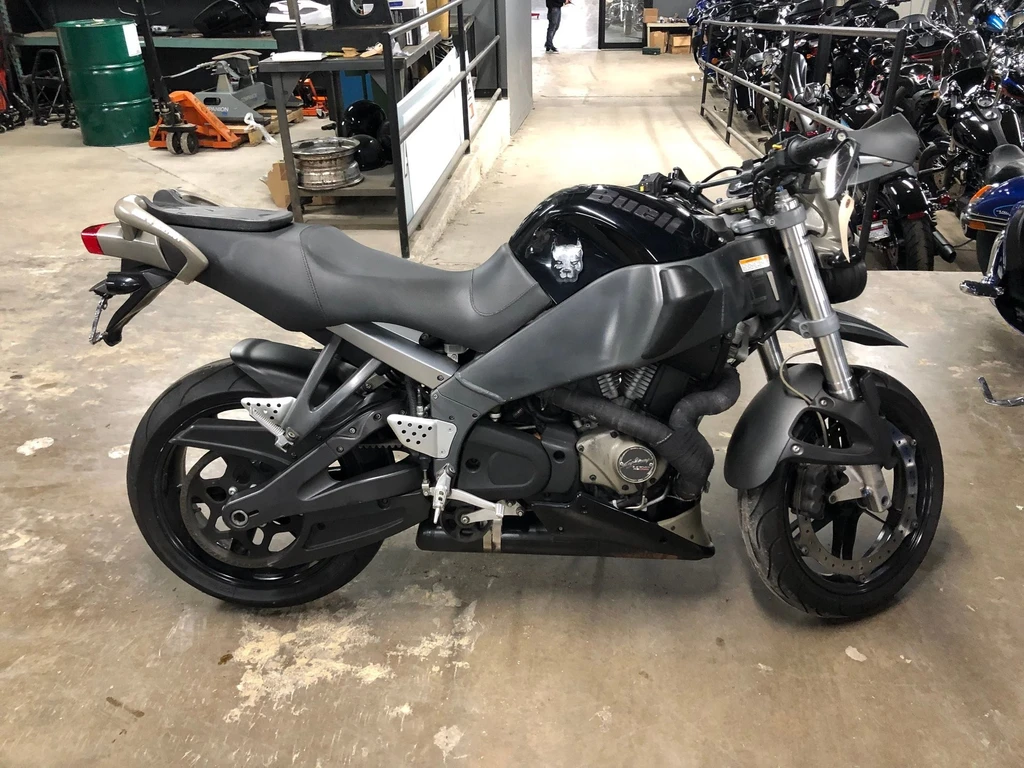

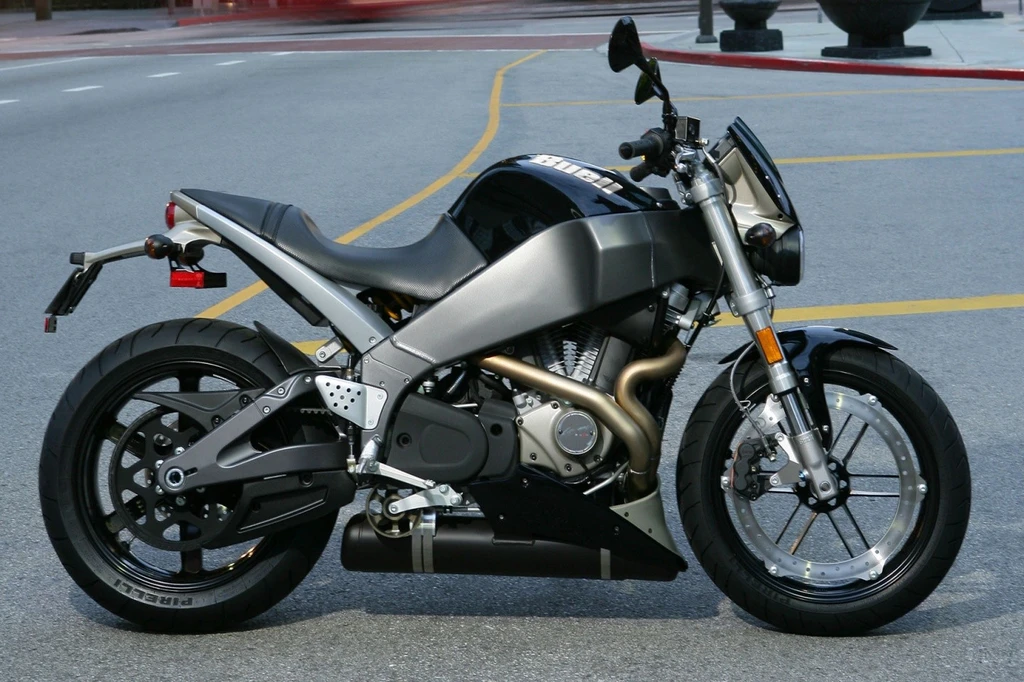

The Buell XB12S Lightning is a street fighter that refuses to be tamed. The Thunderstorm 1203 V-Twin engine unleashes a potent blend of torque and power, thanks in part to the innovative Buell InterActive Exhaust system.
A key contributor to this riding experience is the athletic riding position and coarse-texture seat, which work together to provide outstanding control and connection with the bike. Meanwhile, the smooth-shifting transmission and new, stiffer swingarm have significantly improved performance for 2006.
With its aggressive styling and impressive specifications – including 103 peak hp and 84 ft. lbs. of torque – it’s no wonder that the XB12S Lightning has a reputation for unleashing the rider’s inner “Buelligun”. Whether you’re carving up twisties or dominating the streets, this bike is sure to leave you grinning wildly and playing fast and loose with the road ahead.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73 cu in
Max Power
86.9 kw / 103 hp
Max Torque
114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Fuel Tank Capacity
14 L / 3.7 US gal
Seat Height
775 mm / 30.5″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell XB12S Lightning
Year
2007
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73 cu in
Bore x Stroke
88.9 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
86.9 kw / 103 hp
Max Torque
114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Engine Management System
49 mm downdraft DDFI II fuel injection
Cooling System
Air cooled
Exhaust
Free breathing, 2-into-1 Buell Interactive exhaust system
Performance
Top Speed
216.2 km/h / 134 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Aluminium frame with Uniplanar Powertrain vibration isolation system
Front Suspension
Showa inverted forks compression damping, rebound damping and spring preload adjustable
Front Suspension Travel
120 mm / 4.7″
Rear Suspension
Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload, 127mm wheel travel
Rear Suspension Travel
127 mm / 5.0″
Rake
21
Trail
83 mm / 3.3″
Wheels & Brakes
Front Wheel/Rim Size
3.50 x 17″
Front Tire Size
120/70 ZR17
Rear Wheel/Rim Size
5.50 x 17″
Rear Tire Size
180/55 ZR17
Front Brakes
ZTL type brake, 6 piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Goodyear Hibrex drive belt with Flexten Plus technology
Lighter, stiffer swingarm design
Air intake location change
Valencia Orange Translucid bodywork
Fuel-in-frame, oil-in-swingarm design
43mm fully adjustable Showa upside-down fork
Fully adjustable Showa rear shock absorber
Buell ZTL front brake system
Translucent Amber wheels
Flat track-style handlebars
