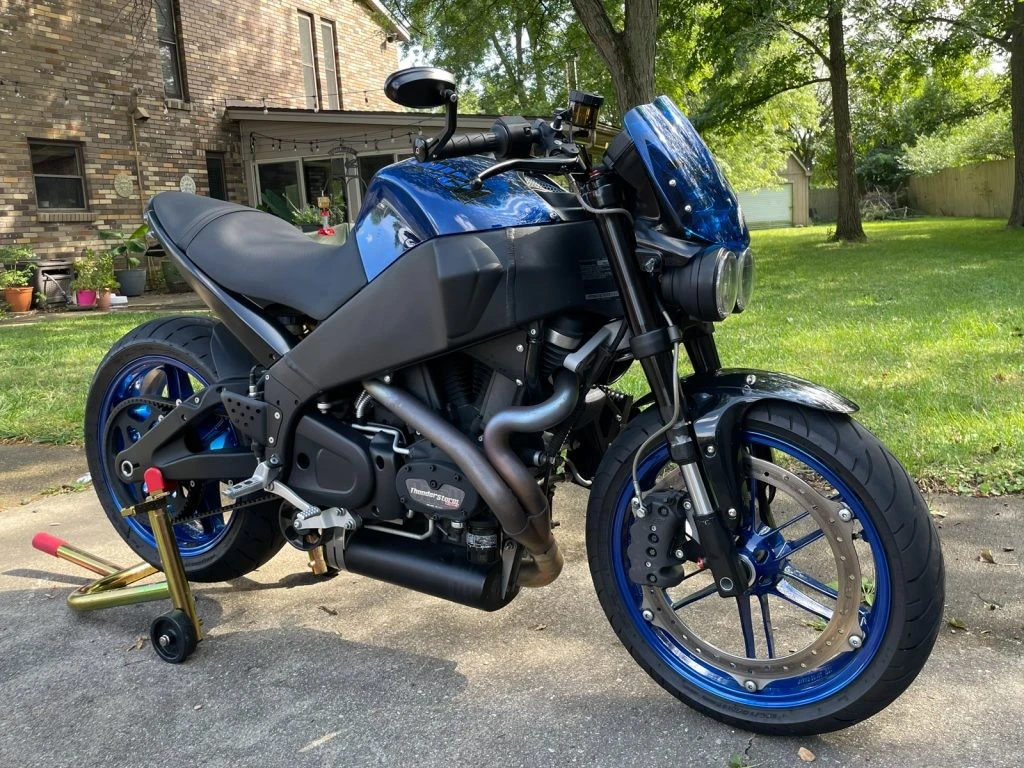

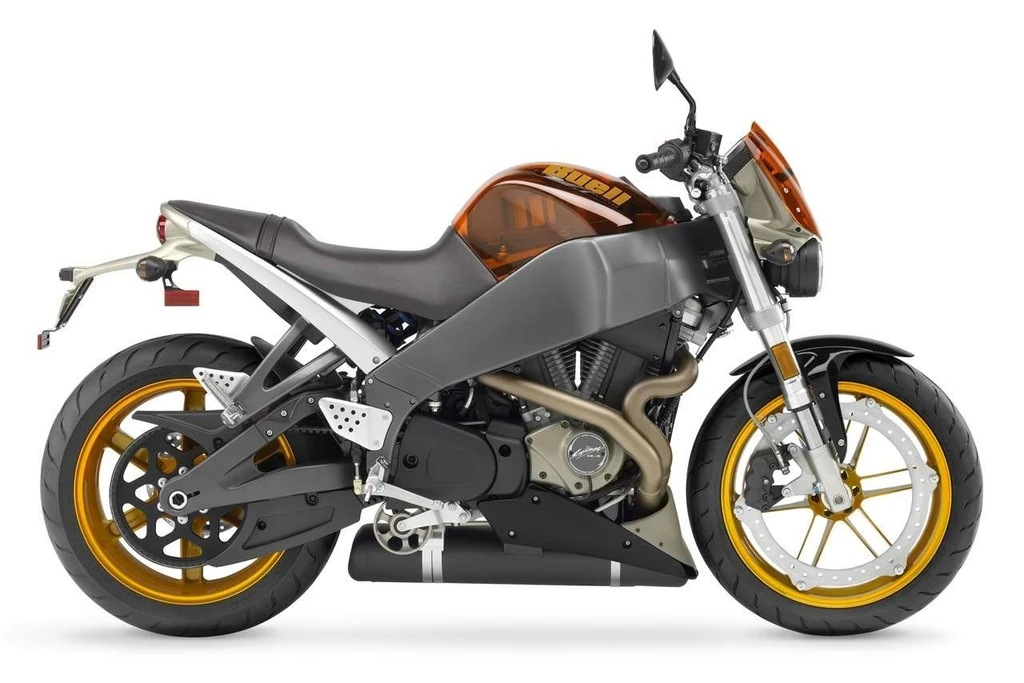

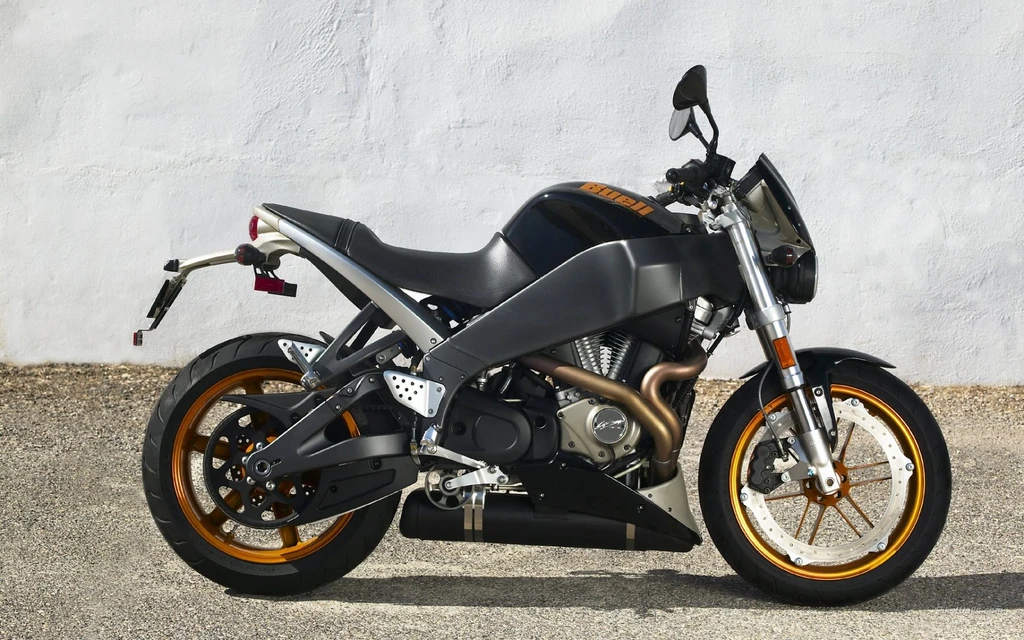

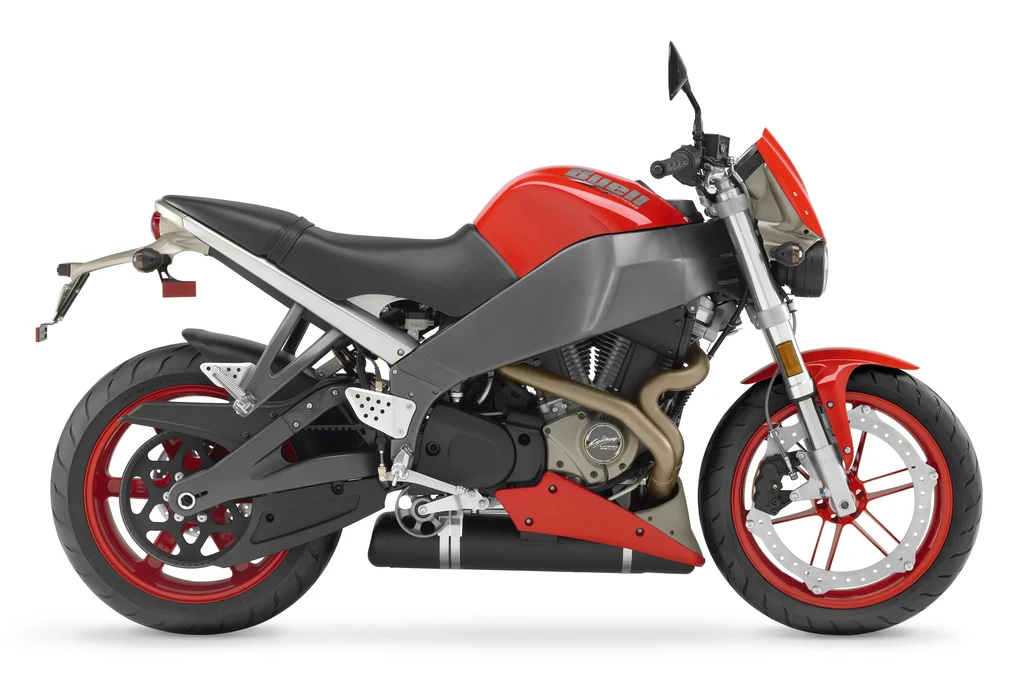

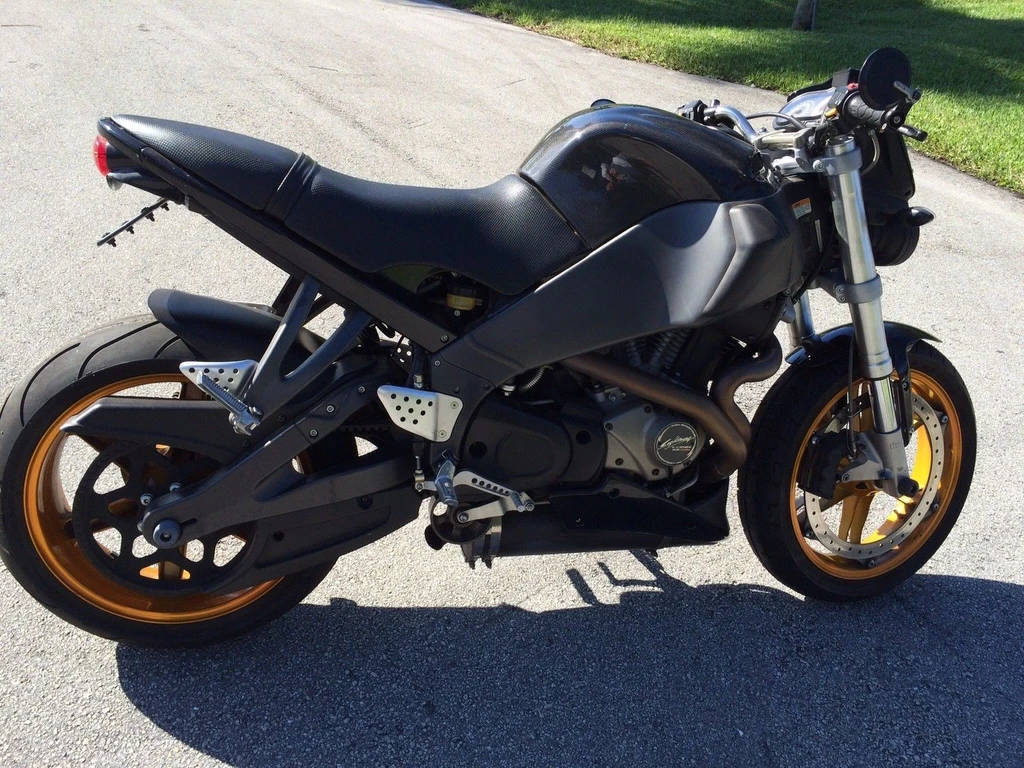

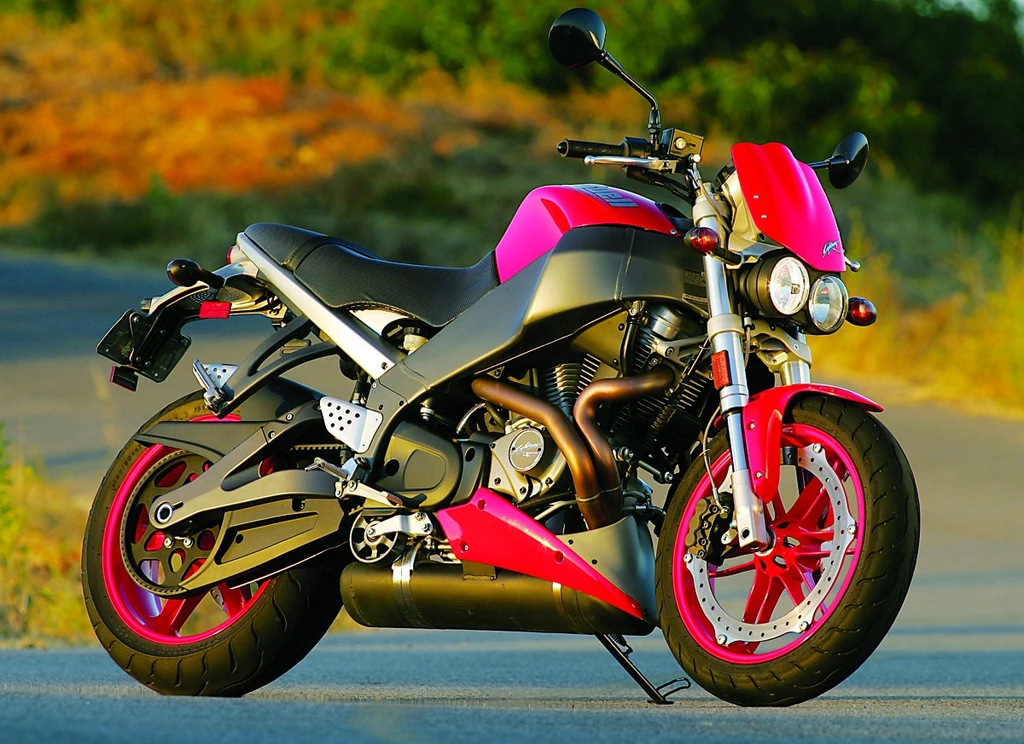

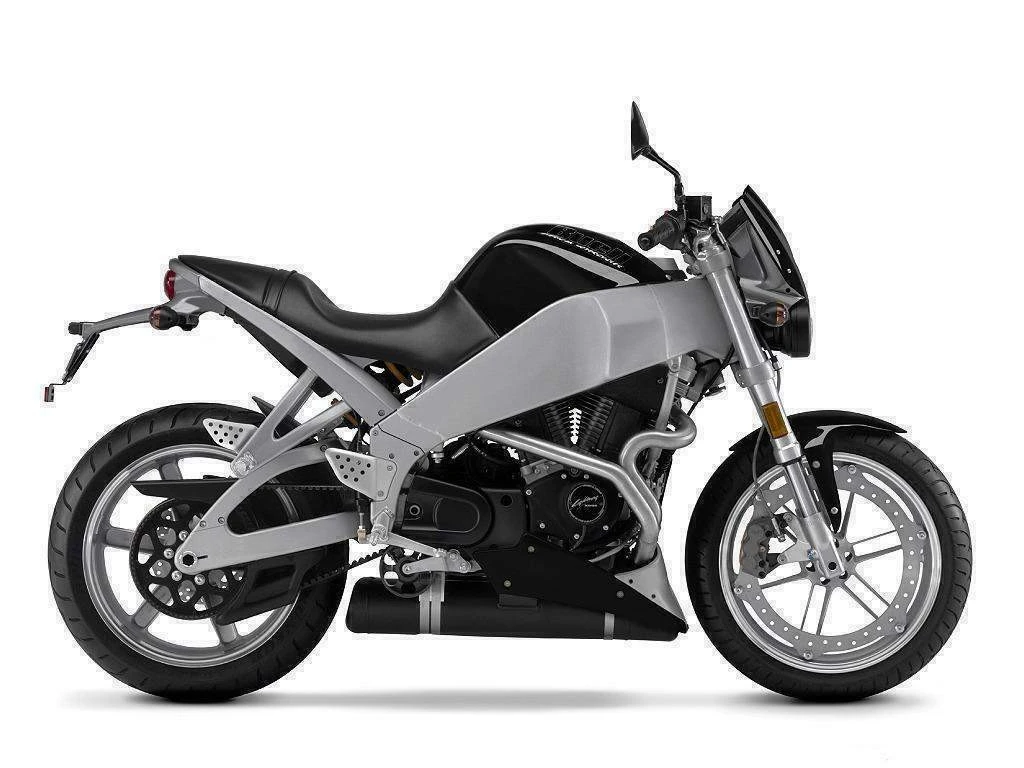

Buell XB12S Lightning (2006)

The Buell XB12S Lightning takes the street fighter to its edge, delivering a well-rounded portion of torque thanks to the innovative Buell InterActive Exhaust system.

A potent combination of performance and control awaits riders in the saddle, with a coarse-texture seat and athletic riding position providing outstanding grip and precision. The 2006 model boasts significant upgrades, including a new, stiffer swingarm and smooth-shifting transmission, further amplifying its already impressive credentials.

The Thunderstorm 1203 V-Twin engine produces 103 peak hp and 84 ft. lbs. of torque, while the Buell ZTL front brake system provides exceptional stopping power. With its sleek, high-gloss Translucent Amber wheels and aggressive styling, the XB12S Lightning is a true road warrior, ready to unleash your inner Buelligan on any twisty road or deserted highway – it’s time to let the beast out of its cage!

Key Specifications

Engine Type	45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity	1203 cc / 73 cu in
Max Power	86.9 kw / 103 hp
Max Torque	114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Fuel Tank Capacity	14 L / 3.7 US gal
Seat Height	775 mm / 30.5 inches

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Buell XB12S Lightning
Year	2006

Engine

Engine Type	45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement	1203 cc / 73 cu in
Bore x Stroke	88.9 x 96.8 mm
Compression Ratio	10.0:1
Max Horsepower	86.9 kw / 103 hp
Max Torque	114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Engine Management System	49 mm downdraft DDFI II fuel injection
Cooling System	Air cooled
Exhaust	Free breathing, 2-into-1 Buell Interactive exhaust system

Performance

Top Speed

216.2 km/h / 134 mph

*n/a – information not provided by manufacturer

Transmission

Gearbox	5 Speed
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Aluminium frame with Uniplanar Powertrain vibration isolation system
Front Suspension	Showa inverted forks compression damping, rebound damping and spring preload adjustable
Front Suspension Travel	120 mm / 4.7″
Rear Suspension	Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload, 127mm wheel travel
Rear Suspension Travel	127 mm / 5.0″
Rake	21
Trail	83 mm / 3.3″

Wheels & Brakes

Front Wheel/Rim Size	3.50 x 17″
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	5.50 x 17″
Rear Tire Size	180/55 ZR17
Front Brakes	ZTL type brake, 6 piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Rear Brakes	Single 240 mm disc, 1 piston floating caliper

Dimension & Weights

Overall Length	1924 mm / 75.7 inches
Overall Width	768 mm / 30. inches
Overall Height	1092 mm / 43 inches
Seat Height	775 mm / 30.5 inches
Wheelbase	1320 mm / 52.0 inches
Ground Clearance	127 mm / 5.0 inches
Fuel Tank Capacity	14 L / 3.7 US gal
Dry Weight	179 kg / 395 lbs

Features

Buell Thunderstorm 1203 V-Twin engine
103 peak hp, 84 ft. lbs. peak torque
Buell InterActive Exhaust
New easy-shifting transmission
Goodyear Hibrex drive belt with Flexten Plus technology
Lighter, stiffer swingarm design
Air intake location change
Valencia Orange Translucid bodywork
Fuel-in-frame oil system
43mm fully adjustable Showa upside-down fork
Fully adjustable Showa rear shock absorber
Buell ZTL front brake system
Translucent Amber wheels
Flat track-style handlebars
