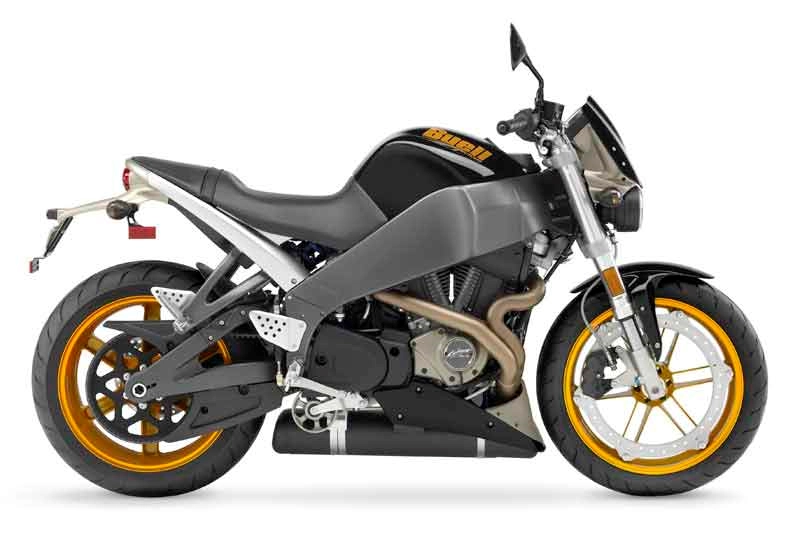

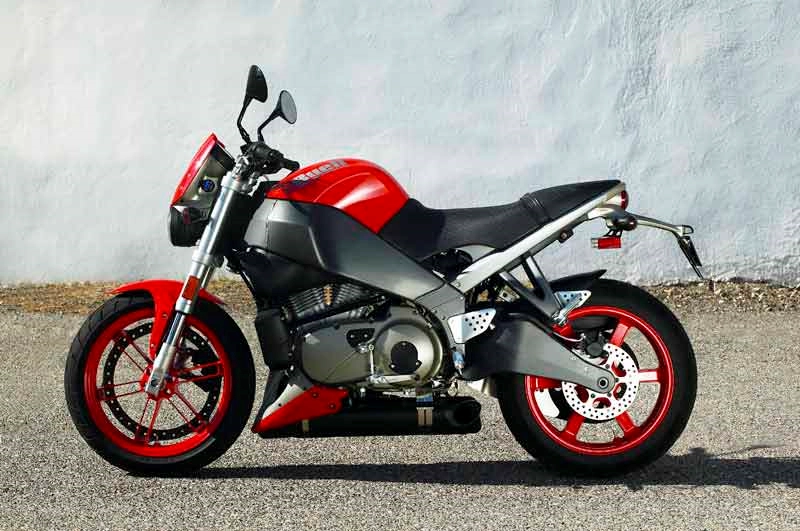

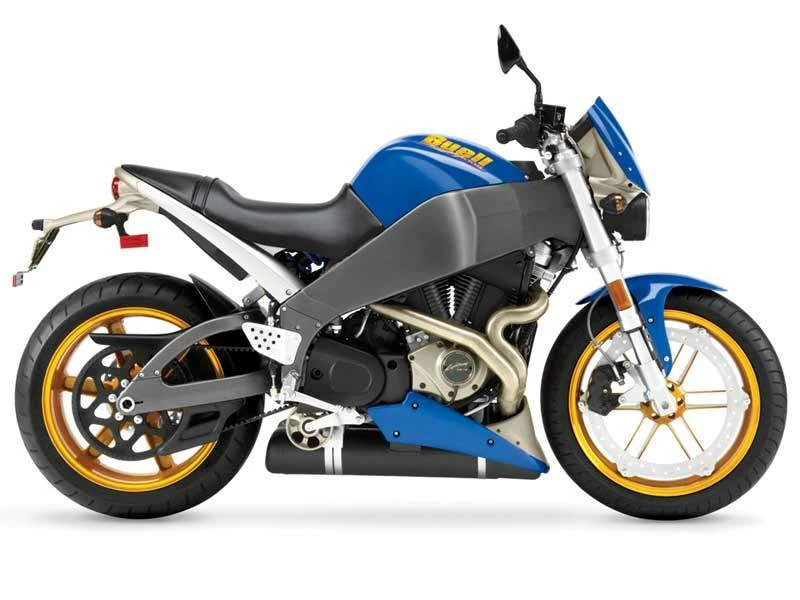

The Buell XB12S Lightning is a force to be reckoned with, pushing the boundaries of what a streetfighter can deliver.
At its heart lies the Thunderstorm 1203 V-Twin engine, a masterclass in torque and power that’s expertly managed by the Buell InterActive Exhaust. This innovative system dynamically adjusts exhaust flow to optimize engine performance, making every twist of the wrist a thrill.
The riding experience is nothing short of exhilarating, with a low-slung seat and athletic stance placing you firmly in command. The new swingarm and transmission elevate the XB12S to new heights, while the high-gloss Translucent Amber wheels add a touch of sophistication.
Riding the Buell Lightning XB12S is akin to unleashing your inner rebel, a chance to let loose and experience the raw thrill of the ride without compromise.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73 cu in
Max Power
86 kw / 100 hp
Max Torque
110 Nm / 11.2 kgf-m / 81 ft-lbs @ 6000 rpm
Fuel Tank Capacity
14 L / 3.7 US gal
Seat Height
765 mm / 30″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell XB12S Lightning
Year
2004
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73 cu in
Bore x Stroke
88.9 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
86 kw / 100 hp
Max Torque
110 Nm / 11.2 kgf-m / 81 ft-lbs @ 6000 rpm
Engine Management System
49 mm downdraft DDFI II fuel injection
Cooling System
Air cooled
Exhaust
Free breathing, 2-into-1 Buell Interactive exhaust system
Performance
Top Speed
216 km/h / 134 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Aluminium frame with Uniplanar Powertrain vibration isolation system
Front Suspension
Showa inverted forks compression damping, rebound damping and spring preload adjustable
Front Suspension Travel
120 mm / 4.7″
Rear Suspension
Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload, 127mm wheel travel
Rear Suspension Travel
127 mm / 5.0″
Rake
21
Trail
83 mm / 3.3″
Wheels & Brakes
Front Wheel/Rim Size
3.50 x 17″
Front Tire Size
120/70 ZR17
Rear Wheel/Rim Size
5.50 x 17″
Rear Tire Size
180/55 ZR17
Front Brakes
ZTL type brake, 6 piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Goodyear Hibrex drive belt with Flexten Plus technology
Lighter, stiffer swingarm design
Air intake location change
Valencia Orange Translucid bodywork
Fuel-in-frame, oil-in-swingarm design
43mm fully adjustable Showa upside-down fork
Fully adjustable Showa rear shock absorber
Buell ZTL front brake system
Translucent Amber wheels
Flat track-style handlebars
New stiffer swingarm
