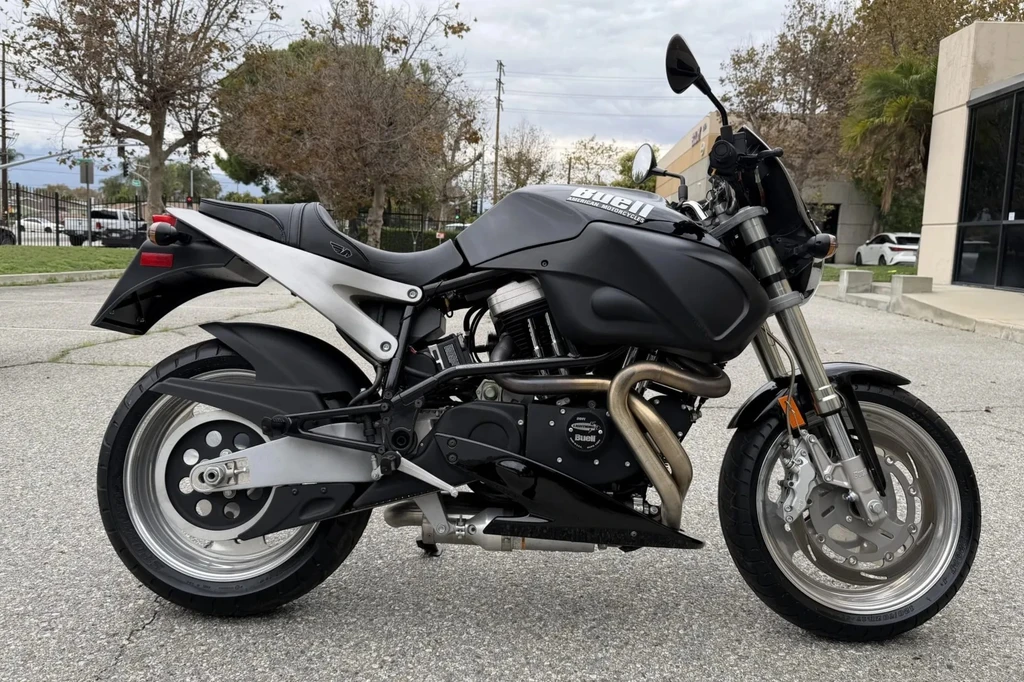

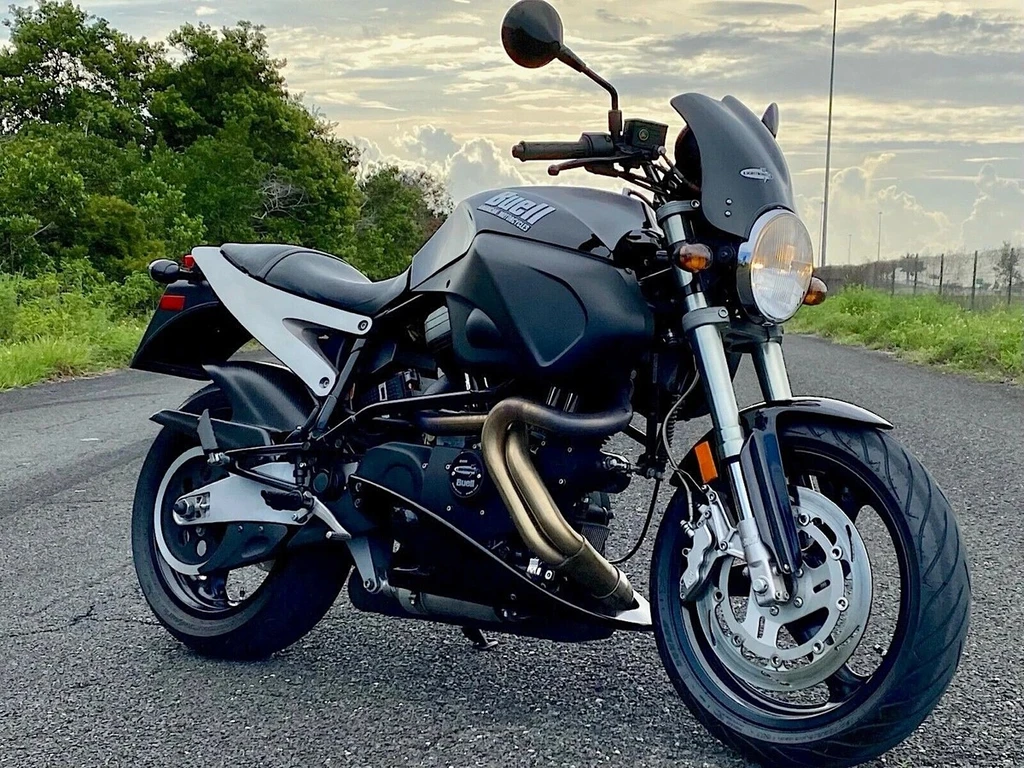

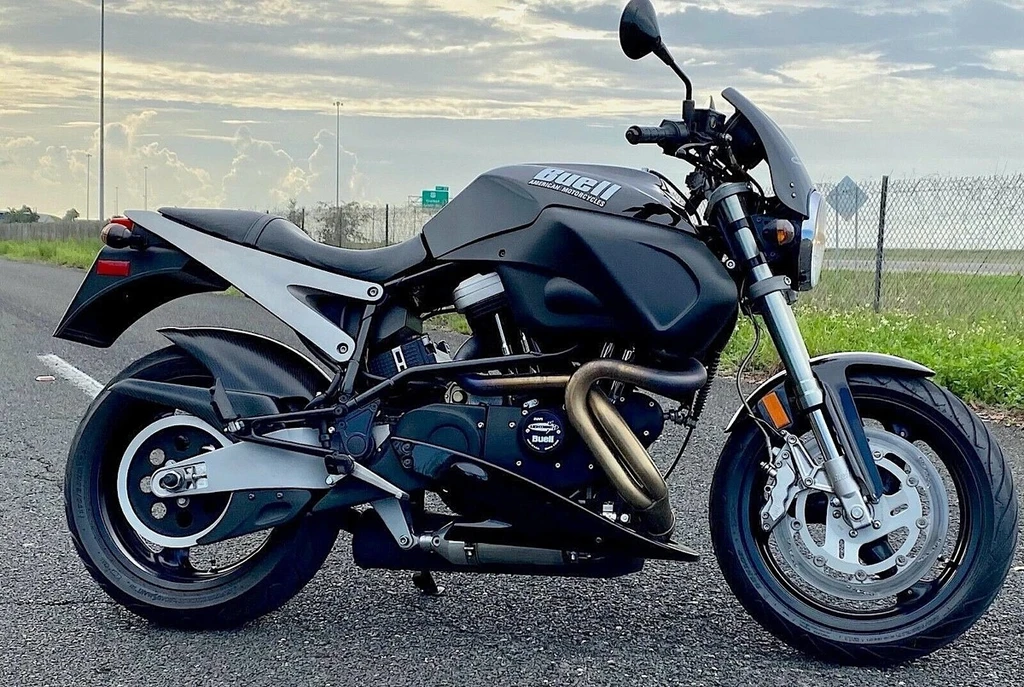

The Buell X1 Lightning is a thrilling testament to innovation and refinement, marking a significant milestone in Erik Buell’s illustrious career.
With its potent air-cooled V-twin engine, now boasting ‘Thunderstorm’ cylinder heads, the X1 unleashes 95bhp at 6200rpm, outpacing its Harley-Davidson Sportster sibling by over 35bhp. This power surge is expertly managed through a new fuel-injection system and optimised combustion chambers.
The result is a riding experience that seamlessly blends agility with raw speed, as the X1 Lightning effortlessly cruises at 70mph before unleashing its full fury in a genuine 140mph (225km/h) dash to the horizon.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73.4 cu in
Max Power
64.2 kw / 88 hp
Max Torque
104 Nm / 10.6 kgf-m / 76.7 ft.lb @ 5600 rpm
Fuel Tank Capacity
15.8 L / 4.2 US gal
Seat Height
749 mm / 29.5″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell X1 Lightning
Year
2000
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73.4 cu in
Bore x Stroke
88.8 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
64.2 kw / 88 hp
Max Torque
104 Nm / 10.6 kgf-m / 76.7 ft.lb @ 5600 rpm
Engine Management System
Dynamic Digital Fuel Injection
Lubrication System
Dry sump
Cooling System
Air Cooled
Performance
Top Speed
225 km/h / 140 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Gear Ratios
1st2.69 / 2nd1.85 / 3rd1.43 / 4th1.18 / 5th1.00:1
Final Drive
Kevlar belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
41 mm Showa upside-down front forks adjustable compression and rebound damping
Rear Suspension
Showa shock absorber under engine adjustable spring preload, compression and rebound damping
Wheels & Brakes
Front Tire Size
120/70-17
Rear Tire Size
170/60-17
Front Brakes
Single 340 mm disc, 6 piston caliper
Rear Brakes
Single 230 mm disc, 1 piston caliper
Dimension & Weights
Seat Height
749 mm / 29.5″
Fuel Tank Capacity
15.8 L / 4.2 US gal
Dry Weight
200 kg / 440 lbs
Features
Air-cooled 45-degree pushrod V-twin motor
Harley-Davidson 1200 Sportster engine with ‘Thunderstorm’ cylinder heads
Bigger valves in the Thunderstorm cylinder heads
Reworked ports in the Thunderstorm cylinder heads
Reshaped combustion chambers in the Thunderstorm cylinder heads
Fuel-injection system
Peak output of 95bhp at 6200rpm
Generous mid-range torque
Rubber-mounted motor for smoothness
Stiffer steel frame
Aluminium rear subframe and swingarm
Uprated Showa suspension front and rear
Sharpened chassis geometry
Light steering for rapid direction changes
Six-piston caliper front brake combination
Huge single disc front brake
Generous steering lock
Dashboard-mounted ignition switch
Easily adjustable mirrors
Under-seat storage
