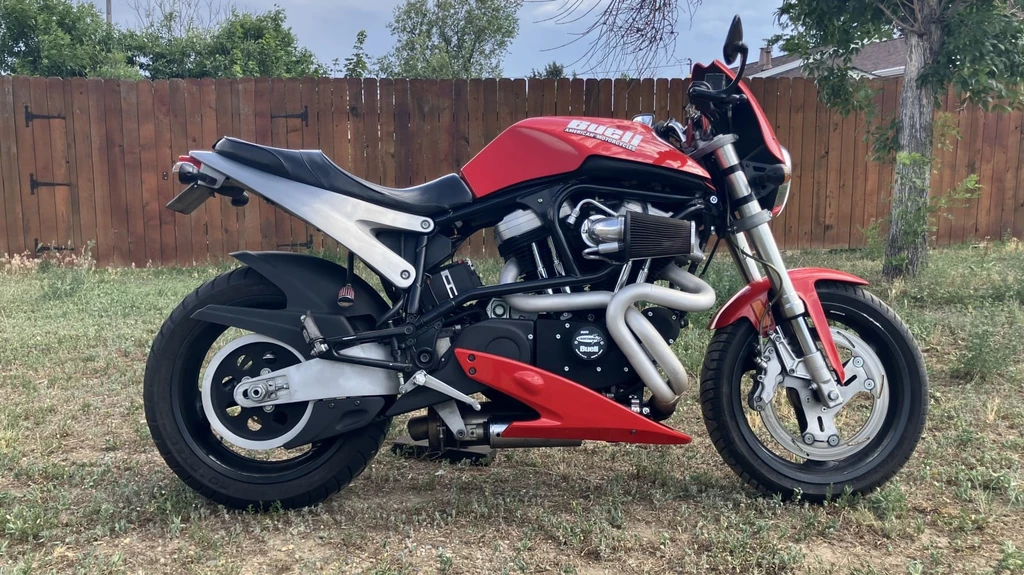

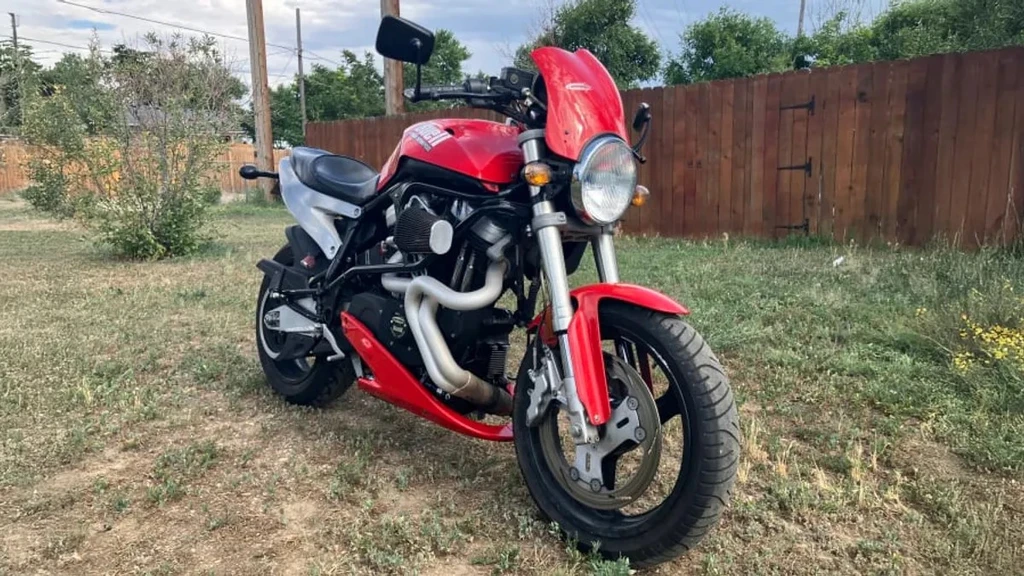

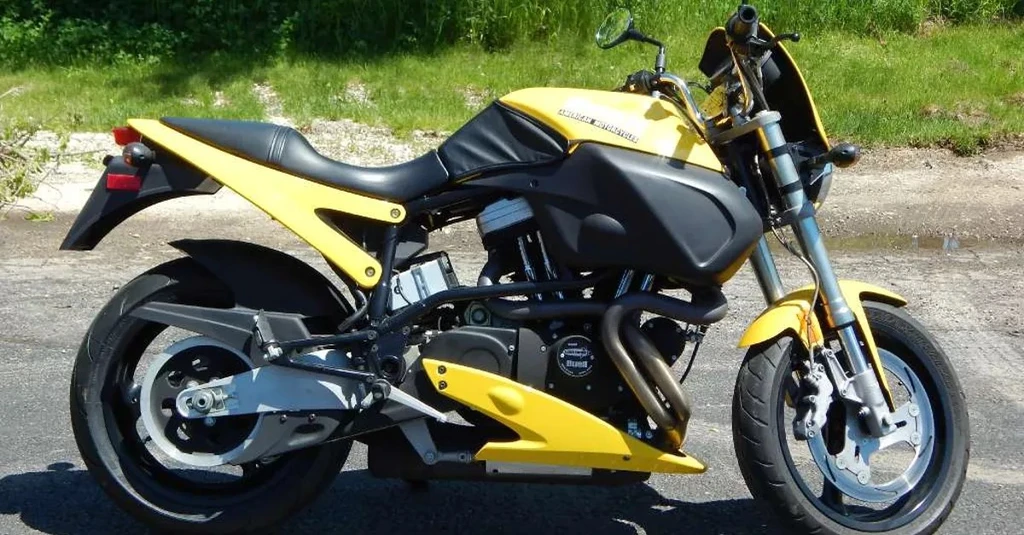

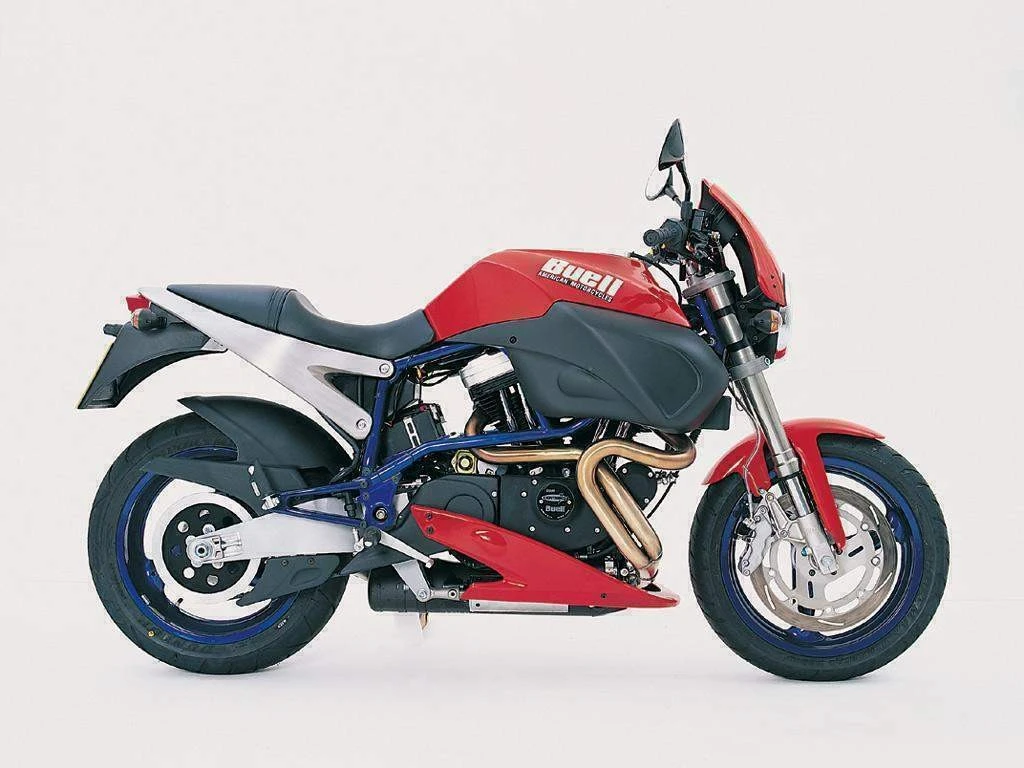

The Buell X1 Lightning represents a significant leap forward in Erik Buell’s pursuit of high-performance motorcycles. This Wisconsin-based engineer has been perfecting his craft for over a decade, and it shows in every aspect of the X1.
With its sleek new styling, refined engine character, and improved ergonomics, the X1 is a far cry from its eccentric predecessors. Gone are the oversized air filters and truck-like exhausts; instead, the X1 boasts a smaller air filter, belly pan, and larger seat for increased comfort on long rides.
But it’s what’s under the hood that truly sets the X1 apart. The air-cooled V-twin engine has been tweaked to perfection with Buell’s ‘Thunderstorm’ cylinder heads, delivering an impressive 95bhp at 6200rpm. Coupled with a new fuel-injection system, this powerhouse of an engine provides effortless acceleration and smooth power delivery.
The result is a bike that not only looks stunning but also handles like a dream. With its stiffer steel frame, new aluminum subframe, and Showa suspension, the X1 Lightning is capable of reaching genuine speeds of 140mph (225km/h).
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73.4 cu in
Max Power
64.2 kw / 88 hp
Max Torque
104 Nm / 10.6 kgf-m / 76.7 ft.lb @ 5600 rpm
Fuel Tank Capacity
15.8 L / 4.2 US gal
Seat Height
749 mm / 29.5″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell X1 Lightning
Year
1999
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve.hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73.4 cu in
Bore x Stroke
88.8 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
64.2 kw / 88 hp
Max Torque
104 Nm / 10.6 kgf-m / 76.7 ft.lb @ 5600 rpm
Engine Management System
Dynamic Digital Fuel Injection
Lubrication System
Dry sump
Cooling System
Air cooled
Performance
Top Speed
225 km/h / 140 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Gear Ratios
1st2.69 / 2nd1.85 / 3rd1.43 / 4th1.18 / 5th1.00:1
Final Drive
Kevlar belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
41 mm Showa upside-down front forks adjustable compression and rebound damping
Rear Suspension
Showa shock absorber under engine adjustable spring preload, compression and rebound damping
Wheels & Brakes
Front Tire Size
120/70-17
Rear Tire Size
170/60-17
Front Brakes
Single 340 mm disc, 6 piston caliper
Rear Brakes
Single 230 mm disc, 1 piston caliper
Dimension & Weights
Seat Height
749 mm / 29.5″
Fuel Tank Capacity
15.8 L / 4.2 US gal
Dry Weight
200 kg / 440 lbs
Features
Air-cooled 45-degree pushrod V-twin engine
‘Thunderstorm’ cylinder heads with bigger valves and reworked ports
Reshaped combustion chambers
New fuel-injection system
Peak output of 95bhp at 6200rpm
Stiffer steel frame
Aluminium rear subframe and swingarm
Uprated Showa suspension at front and rear
Front brake combination with six-piston caliper and huge single disc
Generous steering lock
Dashboard-mounted ignition switch
Easily adjustable mirrors
Under-seat storage
Smaller air filter
Belly pan to cover the silencer
Larger seat
Normal footrests
Better cooling to engine parts, including rear cylinder
