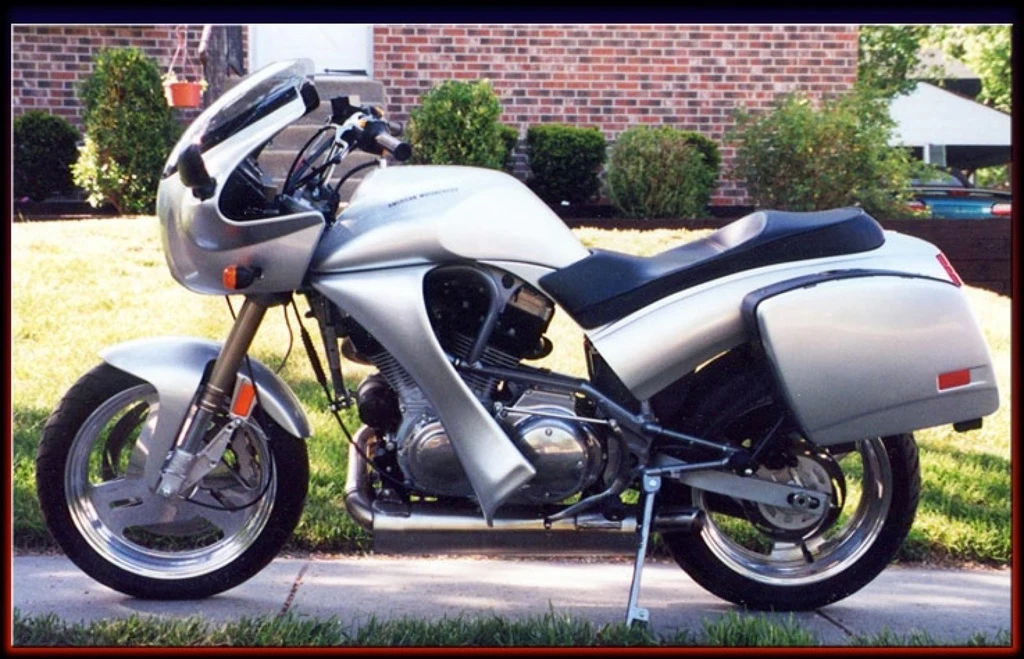

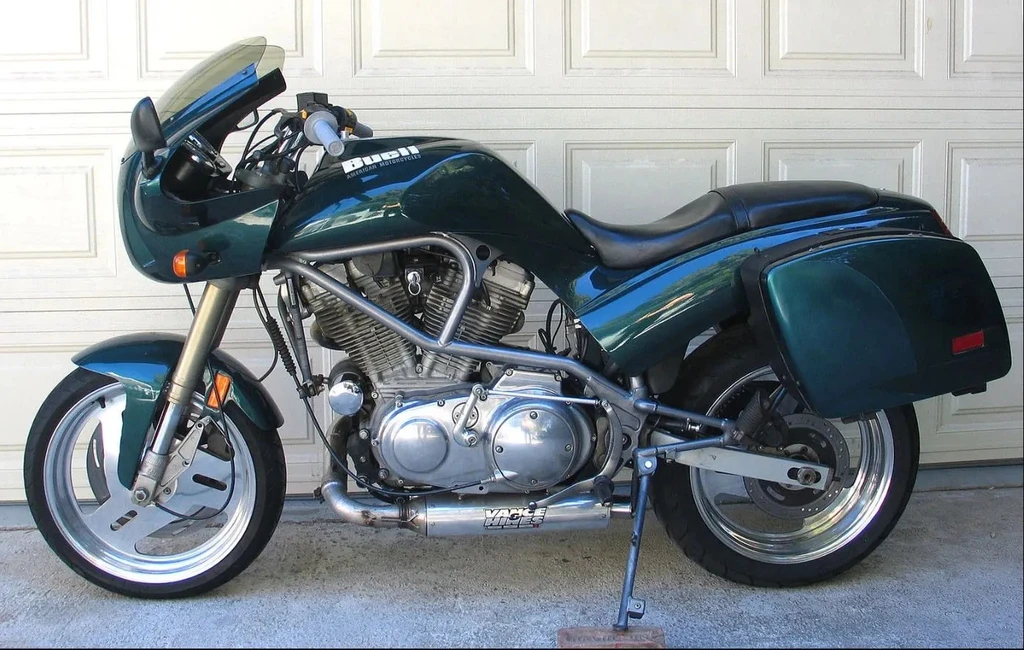

The 1997 Buell S3 Thunderbolt: a true iconoclast in the world of motorcycles. Powered by a potent 45-degree V-Twin engine, this machine exudes a raw energy and unbridled excitement.
As you sit atop the S3’s minimalist seat, the unmistakable rumble of its pushrod-actuated overhead valve engine comes alive beneath you. With hydraulic self-adjusting lifters and two valves per cylinder, every twist of the throttle unleashes a torrent of torque that’s nothing short of exhilarating.
The ride itself is nothing short of intoxicating – a symphony of speed, agility, and sheer riding joy that defies categorization. Buell enthusiasts will attest to this, having made the switch from other high-performance sport bikes to experience the unparalleled rush of the S3 Thunderbolt for themselves. With its reputation as the top-of-the-line model in the Buell stable, it’s clear why this motorcycle has captured the hearts of thrill-seekers everywhere: “The Buell S3 Thunderbolt is a riding experience like no other, an adrenaline-fueled ride that will leave you breathless and begging for more.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve,hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73.4 cu in
Max Power
73.6 kw / 101 hp
Max Torque
90 Nm / 9.2 kgf-m / 66.4 lb.ft @ 5500 rpm
Fuel Tank Capacity
20.4 L / 5.4 US gal
Weight (Wet/Kerb)
513 lbs / 233 kg
Seat Height
749 mm / 29.5″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell S3 Thunderbolt
Year
1997
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve,hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73.4 cu in
Bore x Stroke
88.8 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
73.6 kw / 101 hp
Max Torque
90 Nm / 9.2 kgf-m / 66.4 lb.ft @ 5500 rpm
Engine Management System
Fuel injection, 43 mm throttle bodies
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Kevlar belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
40 mm Showa fork, adjustable for compression and rebound damping
Front Suspension Travel
120 mm / 4.7″
Rear Suspension
Single Showa shock, spring preload, compression and preload damping
Rear Suspension Travel
116 mm / 4.6″
Rake
24.5
Trail
96.5 mm / 3.8″
Wheels & Brakes
Wheels
Hollow 3-spoke cast wheels
Front Tire Size
120/70 ZR17
Rear Tire Size
170/60 ZR17
Front Brakes
Single 340 mm disc, 6 piston caliper
Rear Brakes
Single 230 mm disc, 2 piston caliper
Dimension & Weights
Seat Height
749 mm / 29.5″
Wheelbase
1397 mm / 55″
Fuel Tank Capacity
20.4 L / 5.4 US gal
Wet (kerb/curb) Weight
513 lbs / 233 kg
Dry Weight
219 kg / 483 lbs
Features
45 V-Twin engine
Four stroke
Pushrod actuated overhead valve
Hydraulic self-adjusting lifters
2 valves per cylinder
Sport-touring oriented design
Modified Harley-Davidson Sportster 1200 motor
Visible V-twin motor
Frame mounted sport fairing
Fairing designed to protect rider and gas tank
Variety of color combinations available

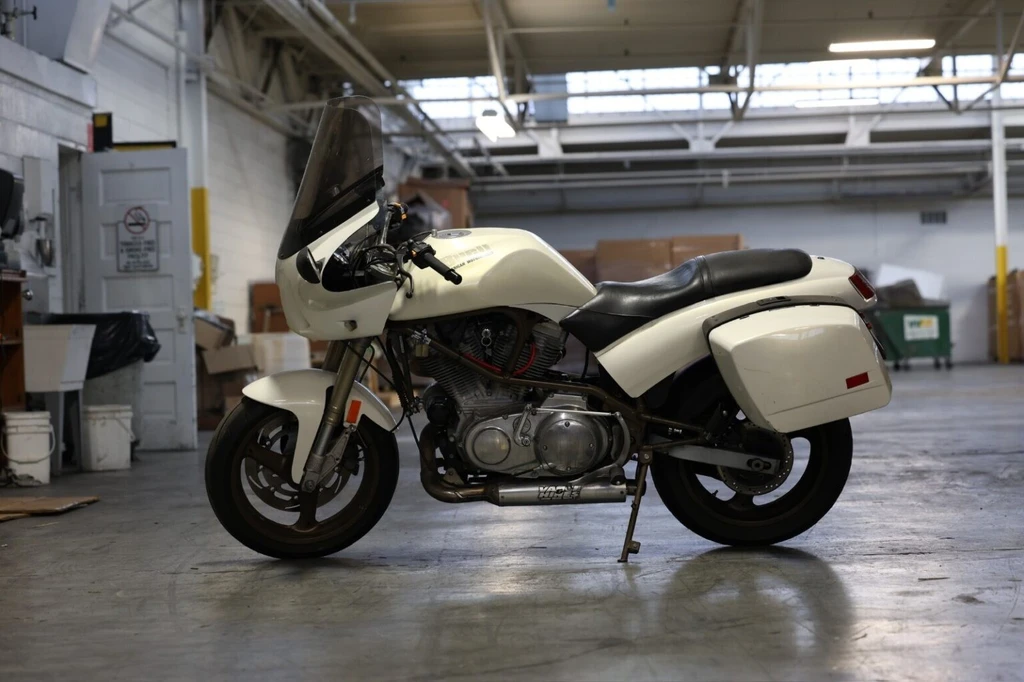

Touring package with touring handlebars, fairing lowers, and storage bags
Detachable, hard saddlebags
Fitted removable liners in saddlebags
Hydraulic self-adjusting lifters for quiet engine operation
Engine left open to view
