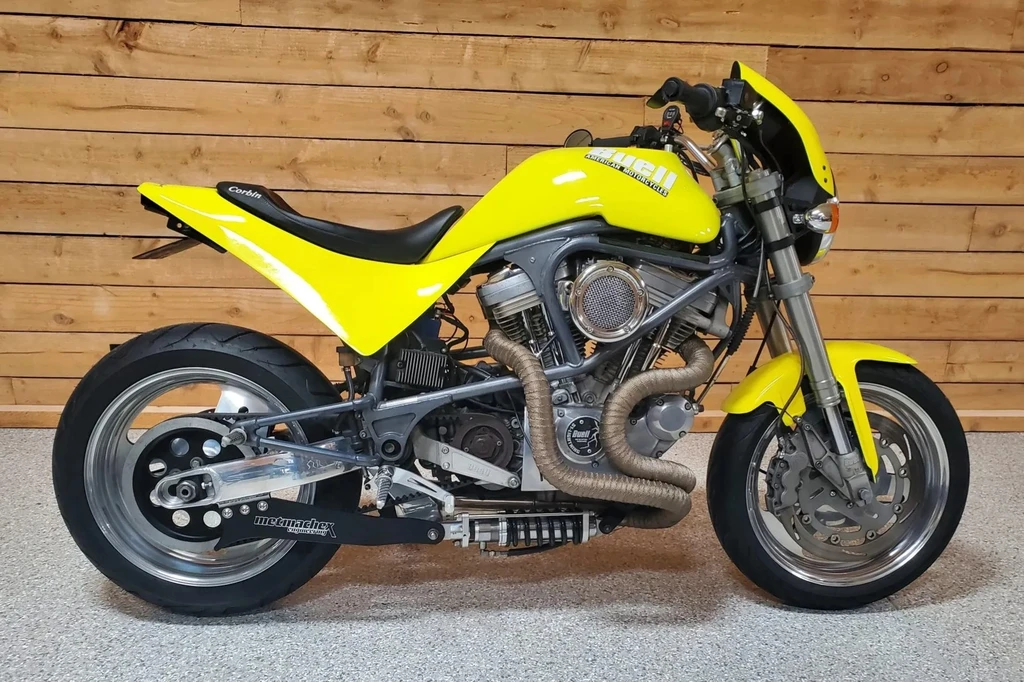

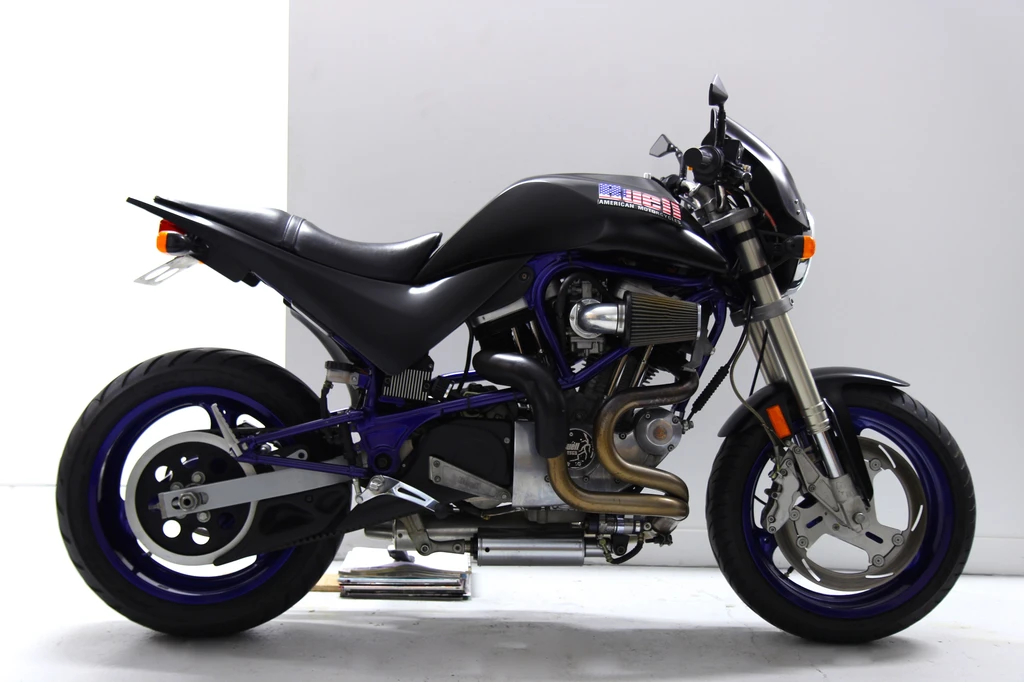

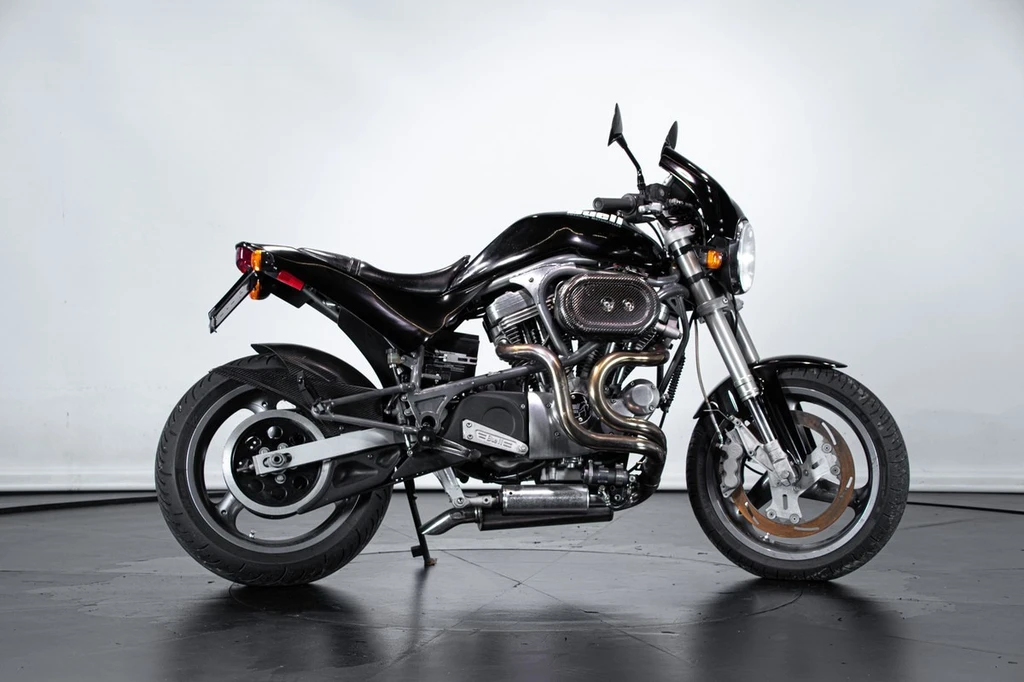

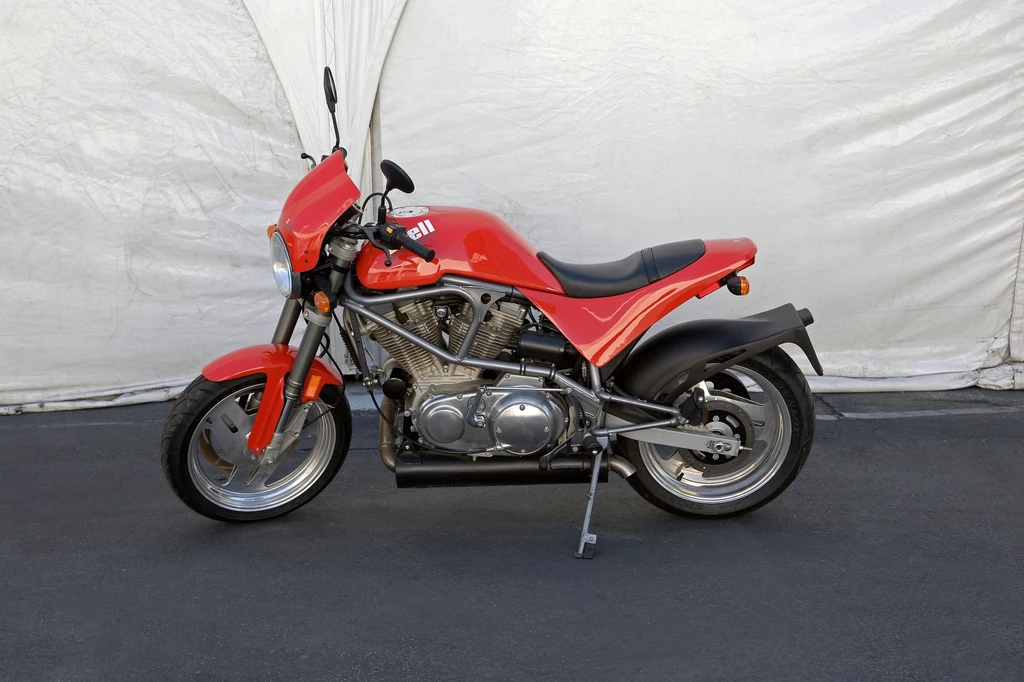

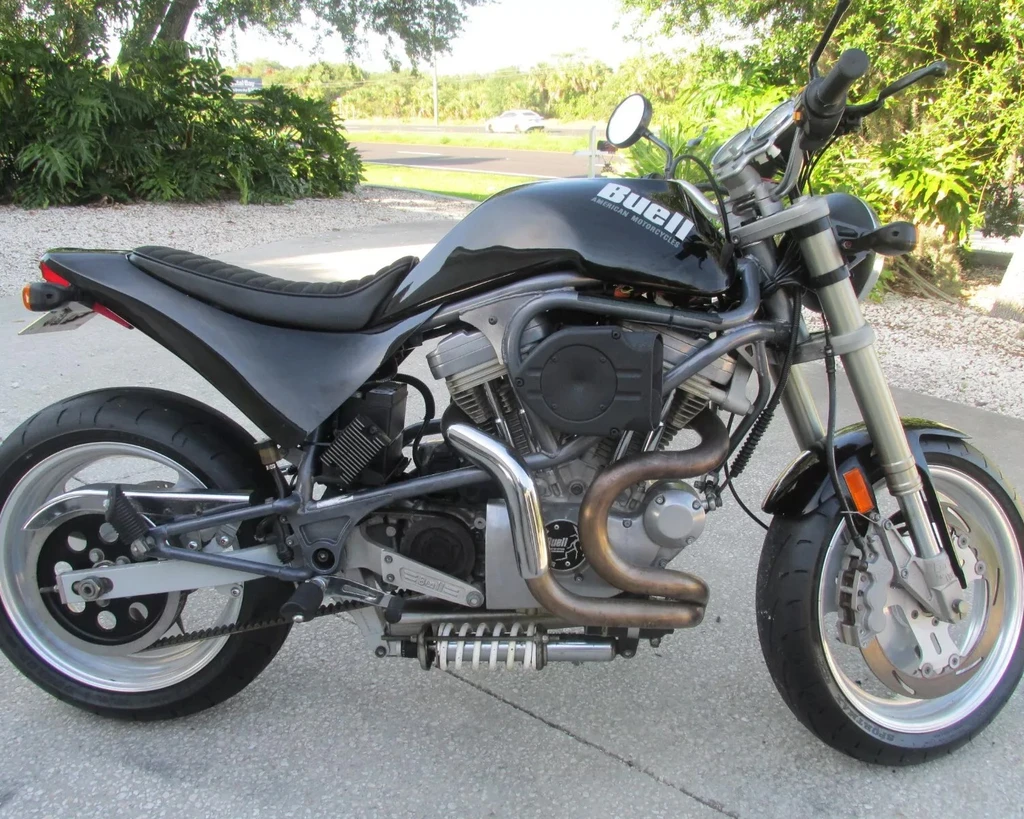

The Buell S1 Lightning – a rebuke to those who thought the independent spirit of Erik Buell’s company had been extinguished by its partnership with Harley-Davidson. This potent 45 V-Twin, with its 10:1 compression ratio and 91 horsepower at 5,800 rpm, is the antithesis of compromise.
The engine character is raw and immediate, with a snarl that belies its relatively modest weight of 440 pounds (200kg). The Lightning’s unique windscreen, tank, seat, and rear fender all contribute to its aerodynamic efficiency and 25-pound weight advantage over the Thunderbolt.
As a result, the S1 delivers blistering acceleration and speed – quarter-mile times under 12 seconds at 114 mph (183km/h), with a top speed of 130 (209km/h). In short, the Buell S1 Lightning is an uncompromising American sport bike that proudly wears its heritage on its sleeve.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve,hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73.4 cu in
Max Power
73.6 kw / 101 hp
Max Torque
128.6 Nm / 13.1 kgf-m / 94.8 lb.ft @ 5500 rpm
Fuel Tank Capacity
15.1 L / 4 US gal
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell S1 Lightning
Year
1996
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve,hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73.4 cu in
Bore x Stroke
88.8 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
73.6 kw / 101 hp
Max Torque
128.6 Nm / 13.1 kgf-m / 94.8 lb.ft @ 5500 rpm
Engine Management System
2 x 40 mm Keihin carburetors
Cooling System
Air cooled
Performance
Top Speed
207.5 km/h / 128.9 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Kevlar belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
40 mm Fork, adjustable for compression and rebound damping
Front Suspension Travel
120 mm / 4.7″
Rear Suspension
Single shock, spring preload, compression and preload damping
Quarter-mile times under 12 seconds at 114 mph (183km/h)
Top speed of 130 mph (209km/h)
