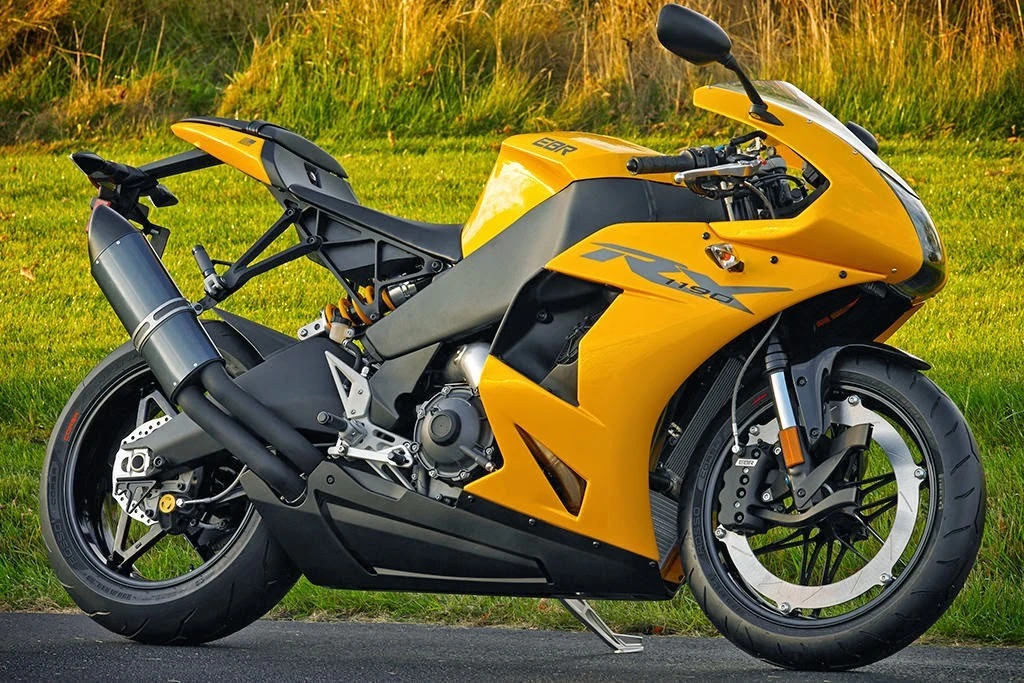

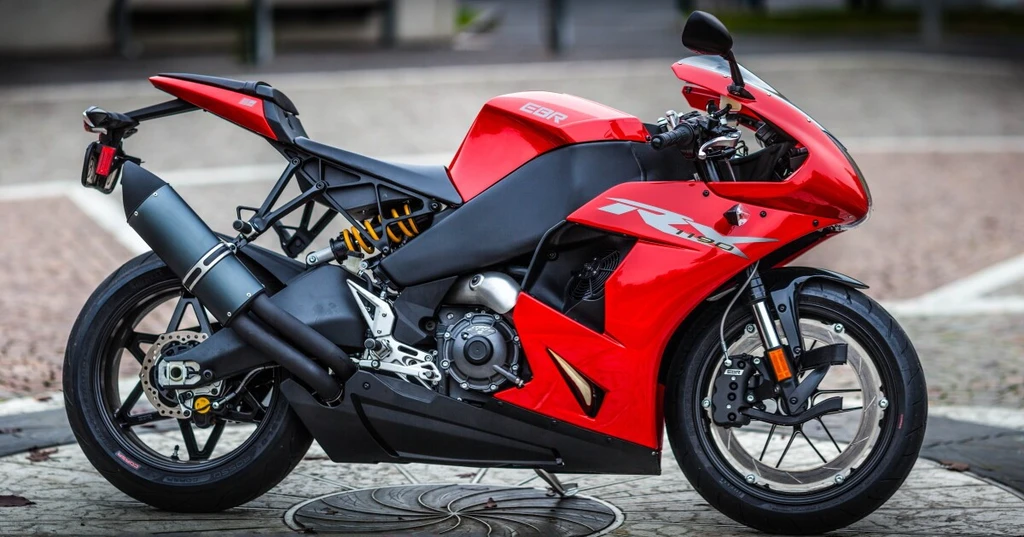

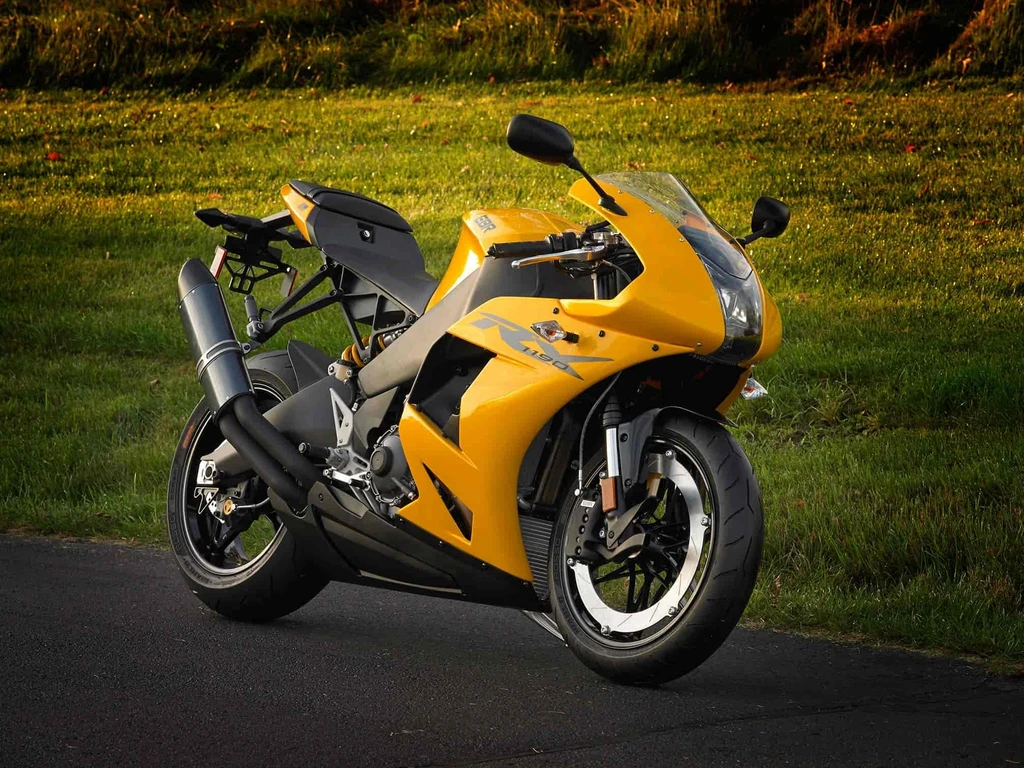

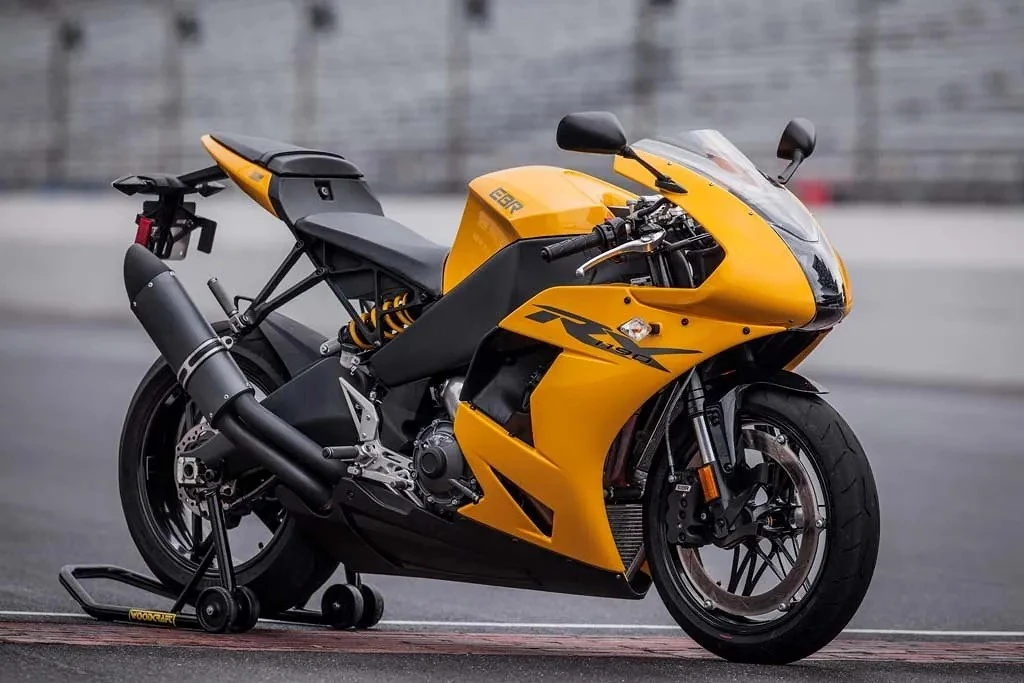

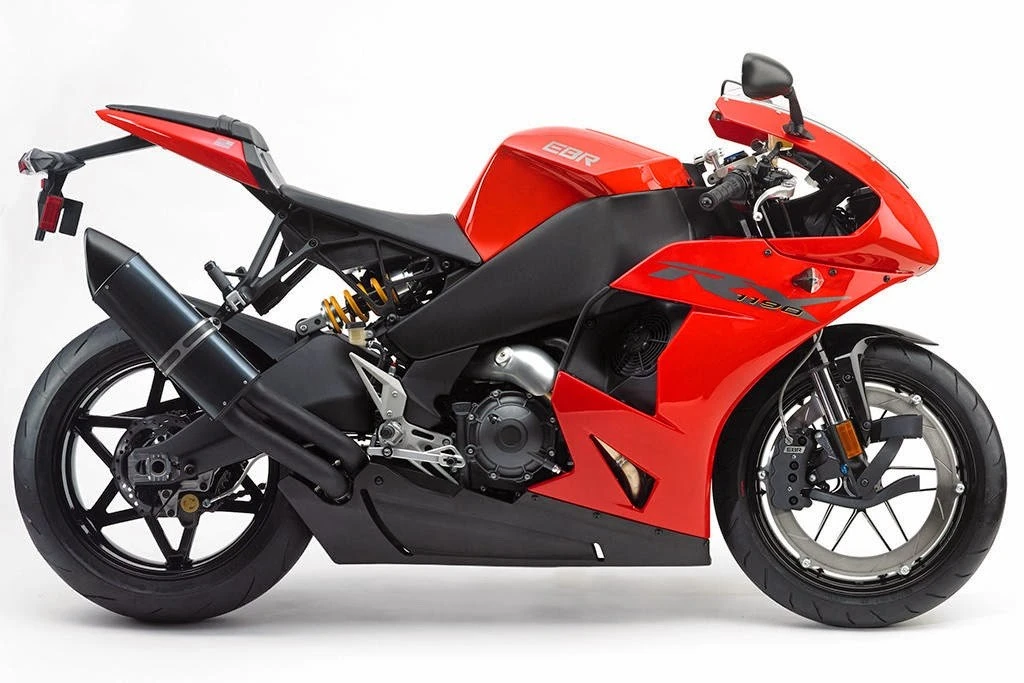

Buell EBR 1190RX (2014)

The wait is over for performance enthusiasts as Erik Buell Racing (EBR) proudly introduces the 1190RX, a direct descendant of their race-bred limited edition 1190RS superbike. This street-legal high-performance motorcycle packs a punch with its liquid-cooled, fuel-injected 1190cc V-twin engine, producing an impressive 185 horsepower and 138Nm of torque.

The EBR 1190RX is built for the most demanding riders, with a chassis and swingarm crafted from light, stiff aluminium. Showa suspension components, including USD big piston forks at the front and an adjustable monoshock at the back, ensure exceptional handling and control. The bike’s braking system features a 386mm single perimeter rotor with an 8-piston caliper up front and a 220mm disc with twin-piston caliper at the rear.

With its exceptional engine character and razor-sharp handling, the EBR 1190RX is set to shake things up in the world of high-performance motorcycles. As Erik Buell himself puts it, “We have been working to create a pure riders machine and a true world brand.” With the 1190RX, that mission has finally been accomplished.

Key Specifications

Engine Type	Four stroke, r72 V-Twin,
Engine Capacity	1190 cc / 72.6 cu in
Max Power	138 kw / 185 hp
Max Torque	137.8 Nm / 14.05 kgf-m / 101.6 ft-lbs. @ 8200 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Seat Height	32.5 inches / 826 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Buell EBR 1190RX
Year	2014

Engine

Engine Type	Four stroke, r72 V-Twin,
Displacement	1190 cc / 72.6 cu in
Bore x Stroke	106 x 67.5 mm
Compression Ratio	13.4 :1
Max Horsepower	138 kw / 185 hp
Max Torque	137.8 Nm / 14.05 kgf-m / 101.6 ft-lbs. @ 8200 rpm
Engine Management System	Electronic Fuel injection with 2 port injectors and 2 showerhead injectors
Cooling System	Liquid cooled
Exhaust	Primary + Secondary

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Hydraulic actuation, vacuum operated slipper
Gearbox	6 Speed
Gear Ratios	1st2.46 / 2nd1.75 / 3rd1.38 / 4th1.17 / 5th1.04 / 6th0.96
Final Drive	520 Z-ring chain, 16/41

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Aluminum frame with integral fuel reservoir
Front Suspension	Showa, inverted big piston front forks
Rear Suspension	Showa, single shock without linkage
Rake	22.4
Trail	96.5 mm / 3.8 in
Swingarm	Optimized stiffness aluminum

Wheels & Brakes

Front Wheel/Rim Size	17 x 3.5″ Aluminum
Front Tire Size	Pirelli Diablo Rosso Corsa 120/70 ZR-17
Rear Wheel/Rim Size	17 x 6.0″ Aluminum
Rear Tire Size	Pirelli Diablo Rosso Corsa 190/55 ZR-17
Front Brakes	386 mm (15.19in.) Single perimeter rotor, 8 piston inside-out caliper
Rear Brakes	Single 220mm (8.66in.) disc, 2-piston Hayes performance brakes caliper

Dimension & Weights

Overall Length	2040 mm / 80.3 in
Overall Width	737 mm / 29 in
Overall Height	1110 mm / 43.7 in
Seat Height	32.5 inches / 826 mm
Ground Clearance	120 mm / 4.7in.
Fuel Tank Capacity	4.5 US gallons / 17.0 L

Features

386mm single perimeter rotor
8 piston inside-out caliper
1190cc V-twin engine
Liquid-cooled and fuel-injected
185 horsepower
138Nm of torque
17-inch alloy wheels
Pirelli Diablo Rosso Corsa tyres (120/70 front, 190/55 rear)
Aluminium chassis and swingarm
USD big piston forks at the front
Adjustable monoshock at the back
Perimeter type front brake
220mm disc with twin-piston caliper at the back
