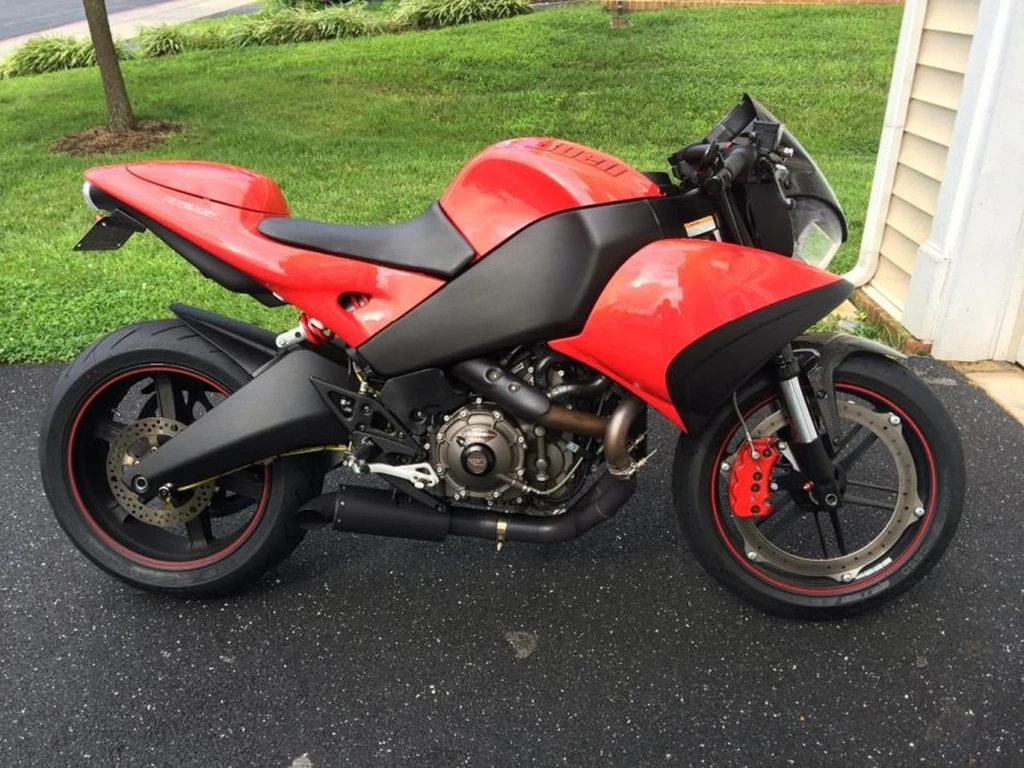

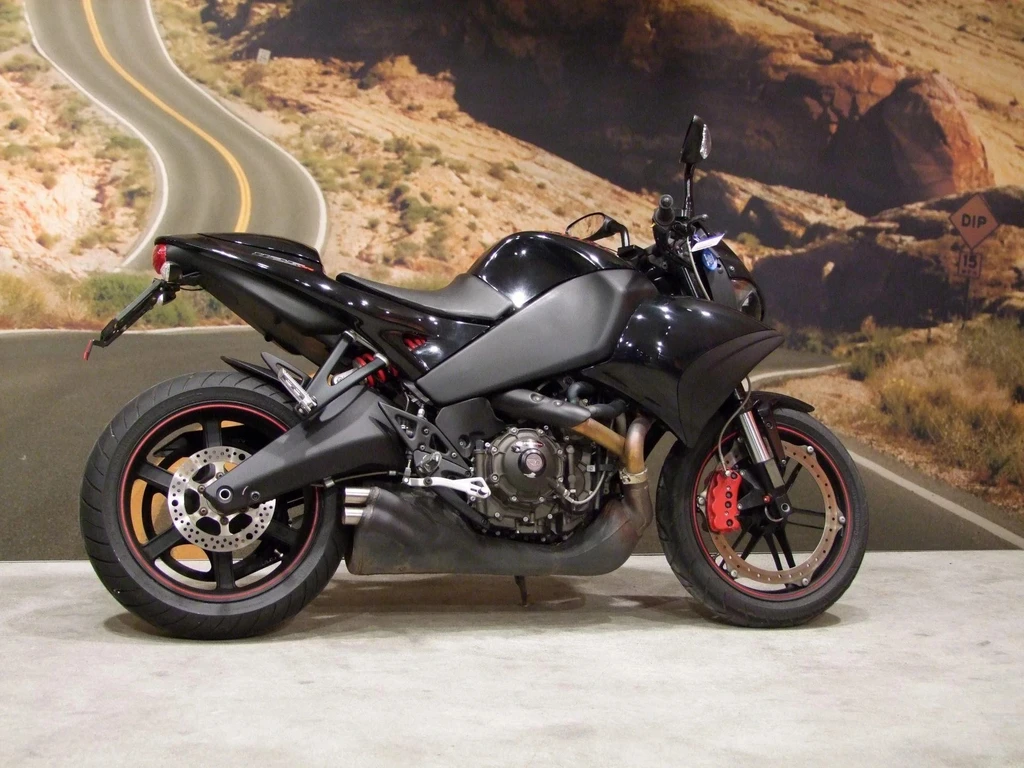

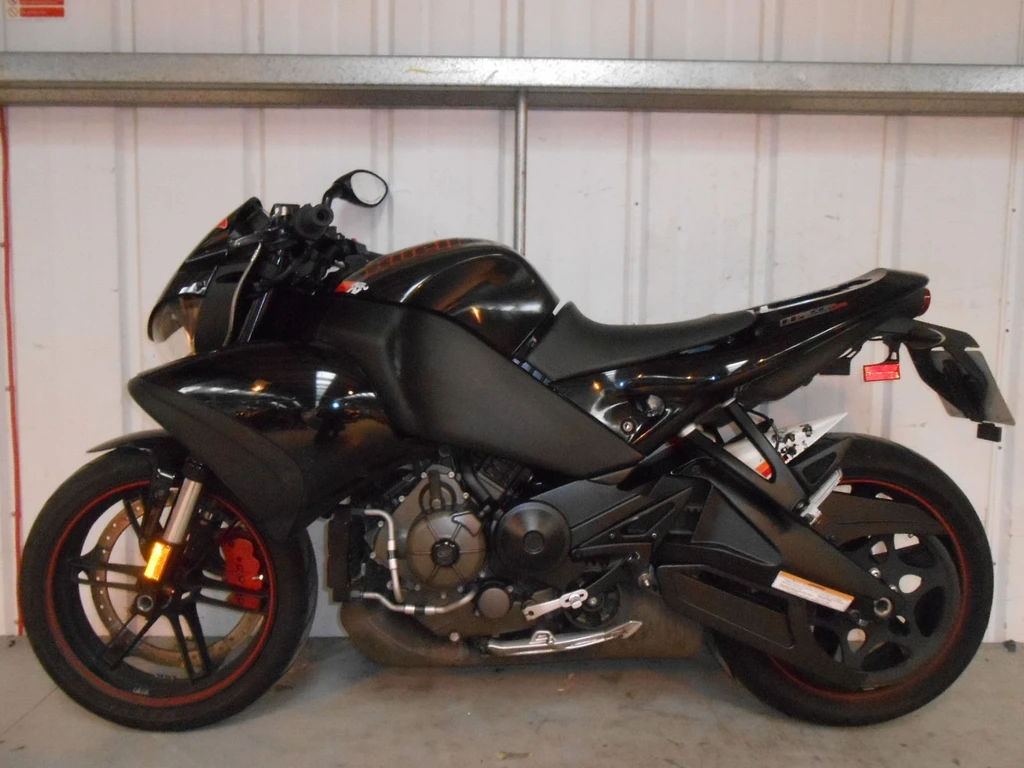

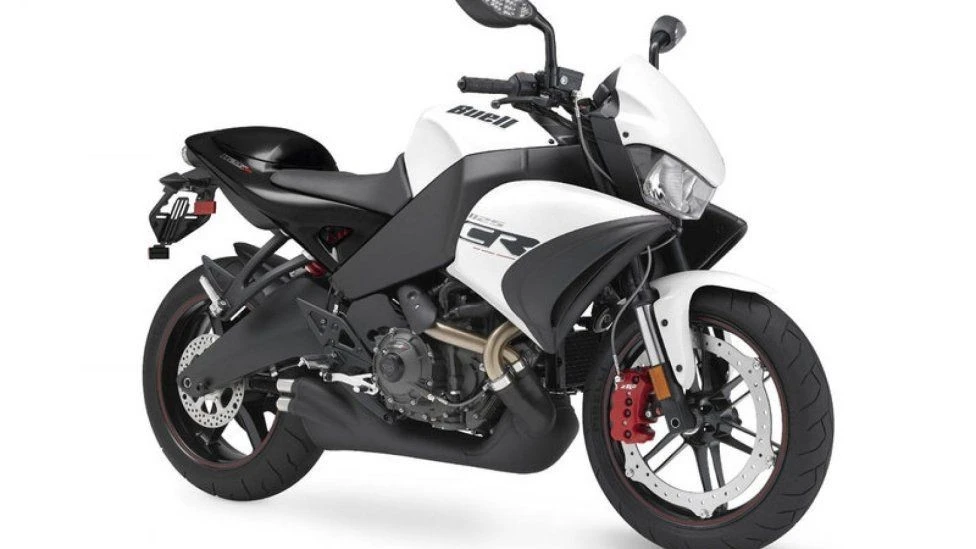

The 2010 Buell 1125CR is a modern café racer that embodies Erik Buell’s vision of raw, unbridled power. The liquid-cooled Helicon 1125cc V-Twin engine pumps out 146-hp, its smooth throttle response and linear power delivery making it a joy to ride in both urban and rural environments.
The IRC (Intuitive Response Chassis) frame provides the perfect balance between agility and stability, allowing riders to carve through twisties with confidence. The new upright tapered aluminum handlebar adds comfort while transforming the ride into a pure streetfighter experience.
Final-drive gearing has been optimized for street use, ensuring lightning-fast acceleration out of corners. Meanwhile, an upgraded front master cylinder improves brake feel, complementing the powerful Buell ZTL2 four-pad, eight-piston front brake. With its menacing styling and wicked attitude, the 1125CR is set to push the boundaries of the streetfighter category.
The result is a thrilling riding experience that’s both exhilarating and accessible, making it an ideal choice for riders seeking a high-performance machine with a unique personality. The Buell 1125CR is now available in select dealerships nationwide, ready to unleash its raw energy on the streets.
Key Specifications
Engine Type
Four stroke, 72 V-Twin
Engine Capacity
1125 cc / 68.7 cu in
Max Power
109 kw / 146 hp
Max Torque
111 Nm / 11.3 kgf-m / 81.9 ft.lbs@ 9000 rpm
Fuel Tank Capacity
21.2 L / 5.6 US gal
Seat Height
775 mm / 30.5″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell 1125CR
Year
2010
Engine
Engine Type
Four stroke, 72 V-Twin
Displacement
1125 cc / 68.7 cu in
Bore x Stroke
103 x 67.5 mm
Compression Ratio
12.3:1
Max Horsepower
109 kw / 146 hp
Max Torque
111 Nm / 11.3 kgf-m / 81.9 ft.lbs@ 9000 rpm
Engine Management System
Dual 61 mm downdraft throttle Bbodies, DDFI III Fuel Injection System
47 mm Showa inverted forks, adjustable compression damping. rebound damping and spring preload. 120mm wheel travel.
Front Suspension Travel
120 mm / 4.7″
Rear Suspension
120 mm / 4.7″
Wheels & Brakes
Wheels
6-Spoke cast aluminium
Front Tire Size
120/70 ZR17, Pirelli Diablo Corsa III
Rear Tire Size
180/55 ZR17, Pirelli Diablo Corsa III
Front Brakes
ZTL type brake, 6-piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Rear Brakes
Single 240 mm disc, 2 piston floating caliper
Dimension & Weights
Seat Height
775 mm / 30.5″
Wheelbase
1384 mm / 54.5″
Fuel Tank Capacity
21.2 L / 5.6 US gal
Dry Weight
168 kg / 370 lbs
Features
146-hp, liquid-cooled Helicon 1125 cc V-Twin engine
Buell Intuitive Response Chassis (IRC)
Upright tapered aluminum handlebar
Final-drive gearing for optimized acceleration on the street
Upgraded front master cylinder for improved brake feel
New graphics and bodywork colors
Blacked-out components
LED taillight
Rear turn signals
Flycut ZTL2 logo on the brake caliper
Engine cover sightglass for oil checks
Pre-wired battery tender plug
Artic White/Midnight Black color combination
Designer Black wheels with red pinstripe
Polished stainless steel headers
Master cylinder piston seals for improved brake feel
