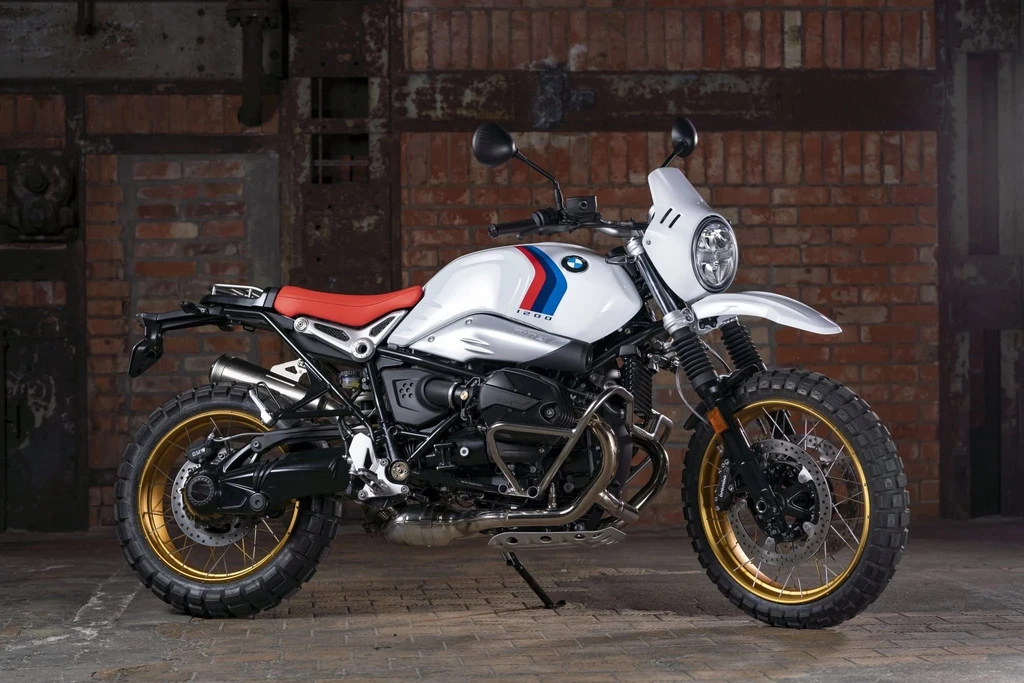

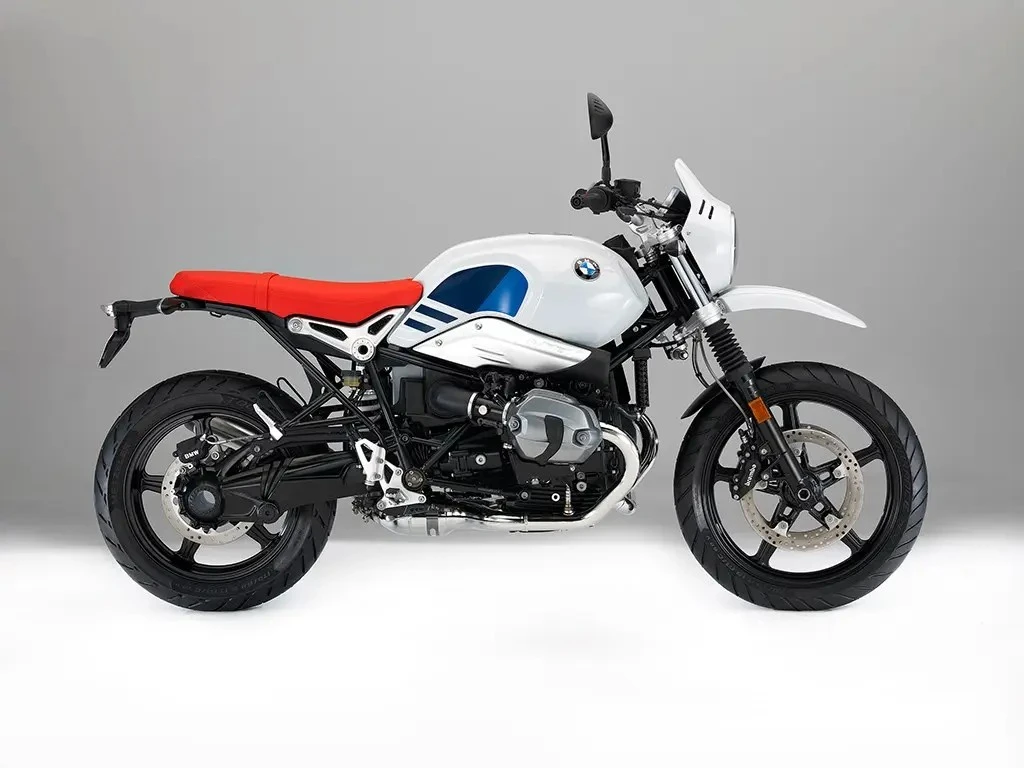

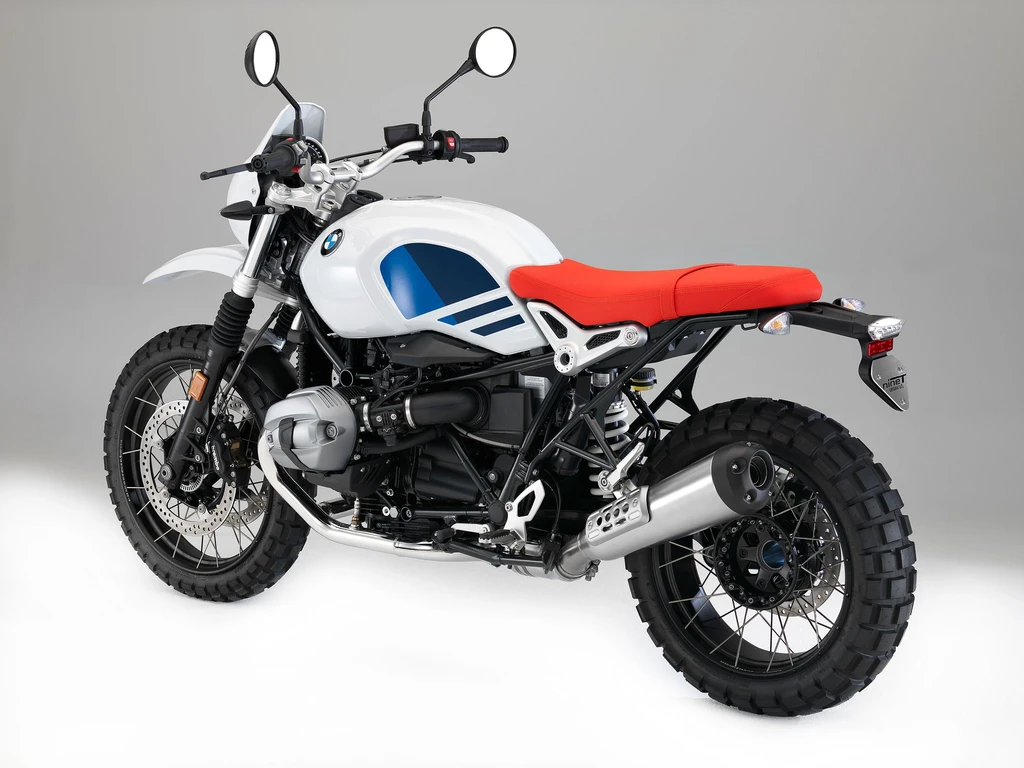

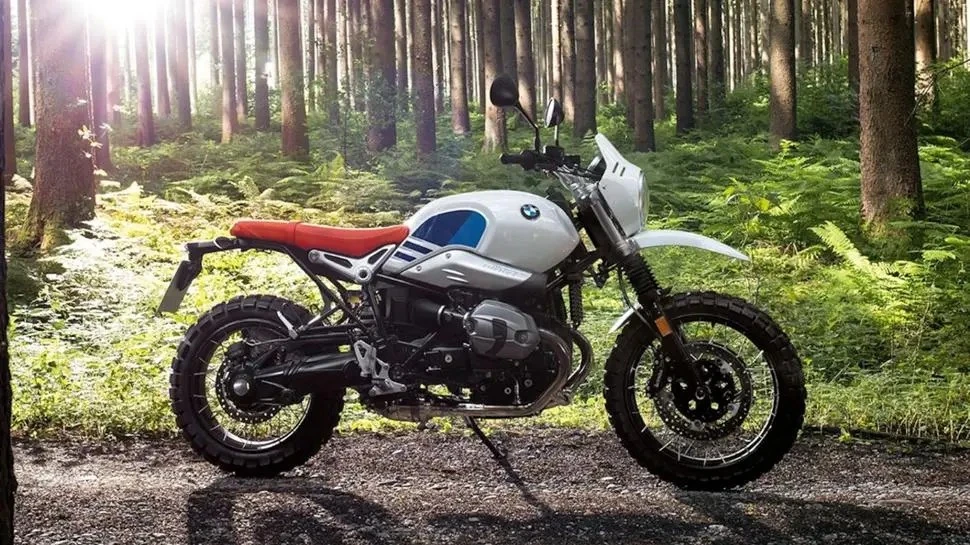

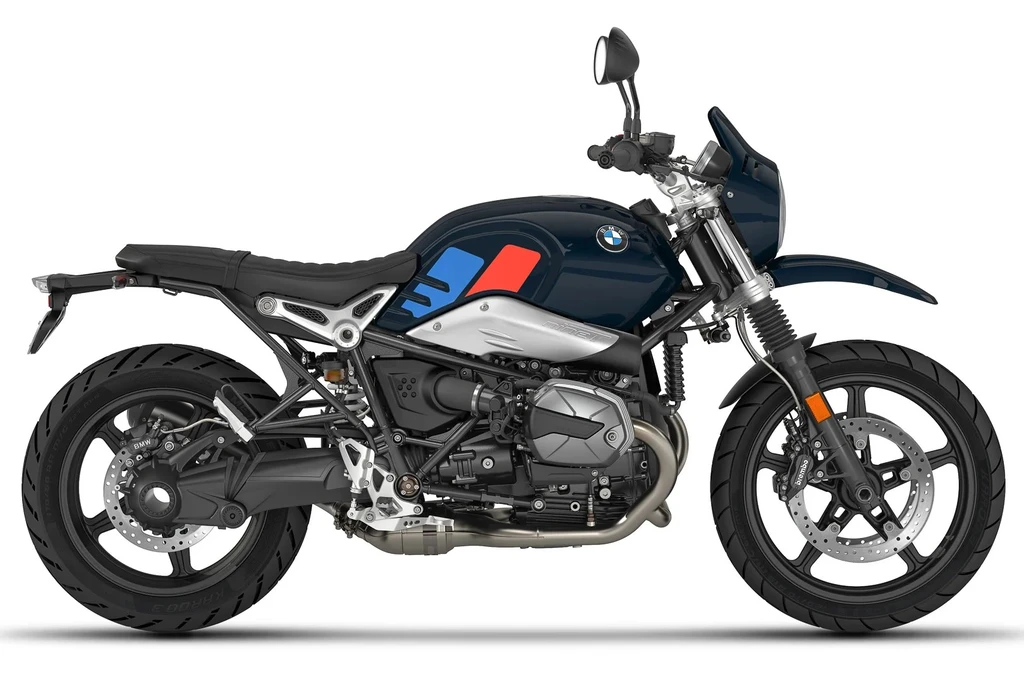

The BMW R nineT Urban G/S is a masterclass in retro-futurism, blending timeless design with cutting-edge technology to create an unparalleled riding experience. Its 1170cc Boxer engine roars to life with a distinctive growl, delivering a wave of torque that’s simply addictive.
At the heart of this machine lies a Four-Part Frame Concept, expertly crafted to provide exceptional stability and agility on both urban streets and off-pavement terrain. The addition of BMW Motorrad Paralever ensures smooth suspension travel, while the central spring strut and adjustable rebound-stage damping further refine the ride.
Whether carving through twisties or tackling rugged trails, the R nineT Urban G/S is an exercise in unbridled freedom – its Boxer engine, now meeting EU-5 requirements with new cylinder heads, provides even greater pulling power than before.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Engine Capacity
1170 cc / 71.4 cub in
Max Power
80 kw / 109 hp
Max Torque
116 Nm / 11.8 kgf-m /85.6 lb-ft @ 6000 rpm
Fuel Tank Capacity
4.5 US gallons / 17.0 L
Weight (Wet/Kerb)
491.6 lbs / 223 kg
Seat Height
33.4 inches / 850 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMWR nineTUrban G/S
Year
2022
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Displacement
1170 cc / 71.4 cub in
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Max Horsepower
80 kw / 109 hp
Max Torque
116 Nm / 11.8 kgf-m /85.6 lb-ft @ 6000 rpm
Engine Management System
Electronic intake pipe injection / digital engine management with overrun cutoff, twin-spark ignition
Lubrication System
Wet sump
Cooling System
Air/Oil cooled
Fuel
Unleaded super(premium), octane number 95-98 (RON) (rated output at 98 RON)
6-speed, Claw-shifted transmission with helical-cut splines
Final Drive
Shaft
Electrical & Electronics System
Battery
12 V / 12 Ah, maintenance-free
Starter
Electric
ABS
BMW Motorrad ABS Pro
Chassis & Suspension
Frame Type
Four-part frame concept with front frame and three-part rear frame, load-bearing engine-gearbox unit, rear-seat frame removeable for one-up riding
Front Suspension
46 mm upside-down telescopic forks
Front Suspension Travel
4.9 inches / 125 mm
Rear Suspension
Cast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut, spring preload fully adjustable by hook wrench, adjustable rebound-stage damping
Electronic intake pipe injection / digital engine management
Overrun cutoff system
Twin-spark ignition
6-speed transmission
Claw-shifted transmission with helical-cut splines
Four-part frame concept
Load-bearing engine-gearbox unit
Rear-seat frame removeable for one-up riding
Cast aluminium single swinging arm with BMW Motorrad Paralever
Central spring strut
Spring preload fully adjustable by hook wrench
Adjustable rebound-stage damping
ABS Pro including DBC (Dynamic Brake Control)
Travel-dependent damping (WAD) suspension strut
Rain and Road riding modes
New R nineT mode
