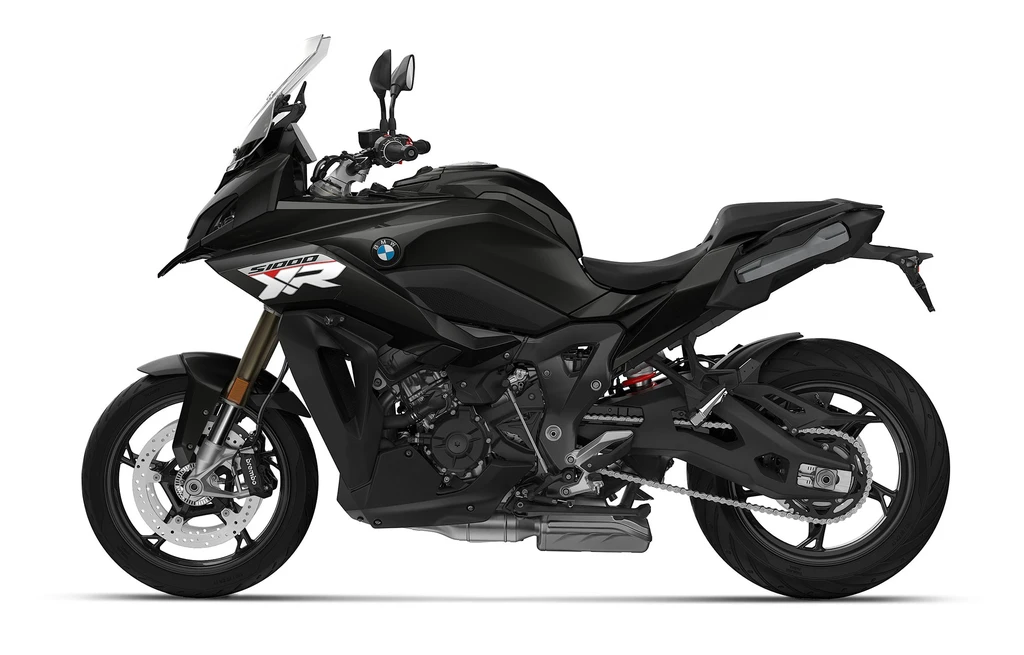

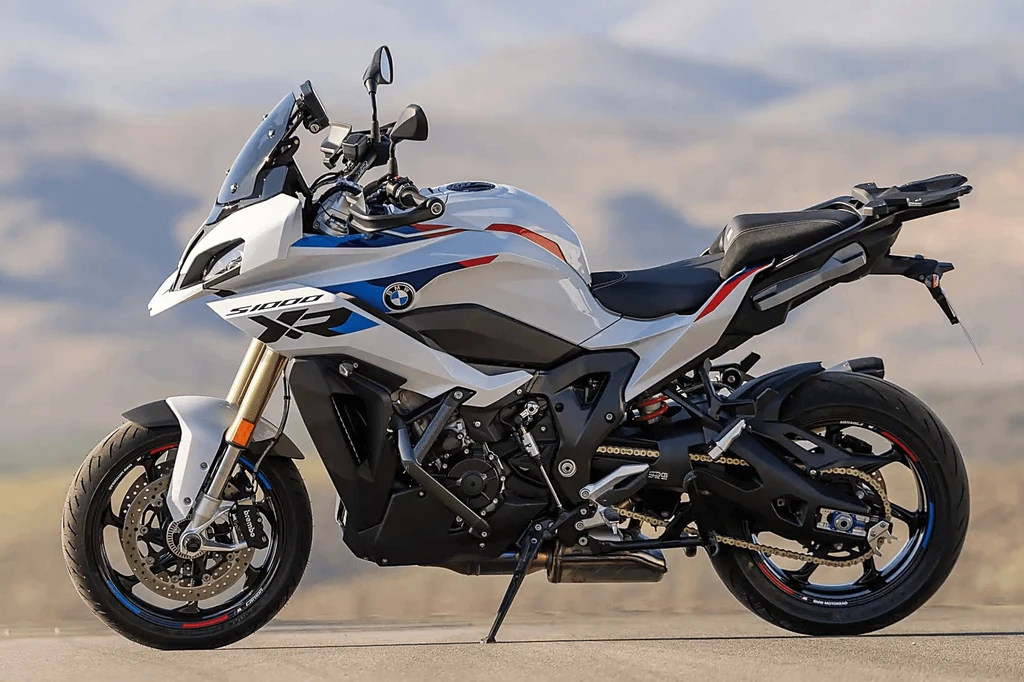

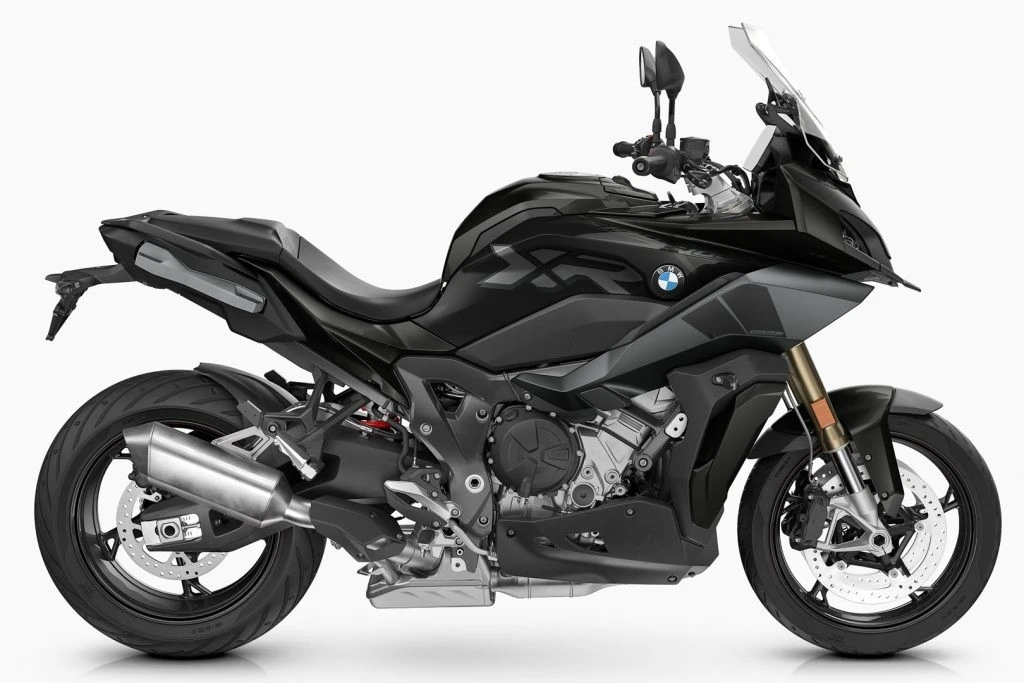

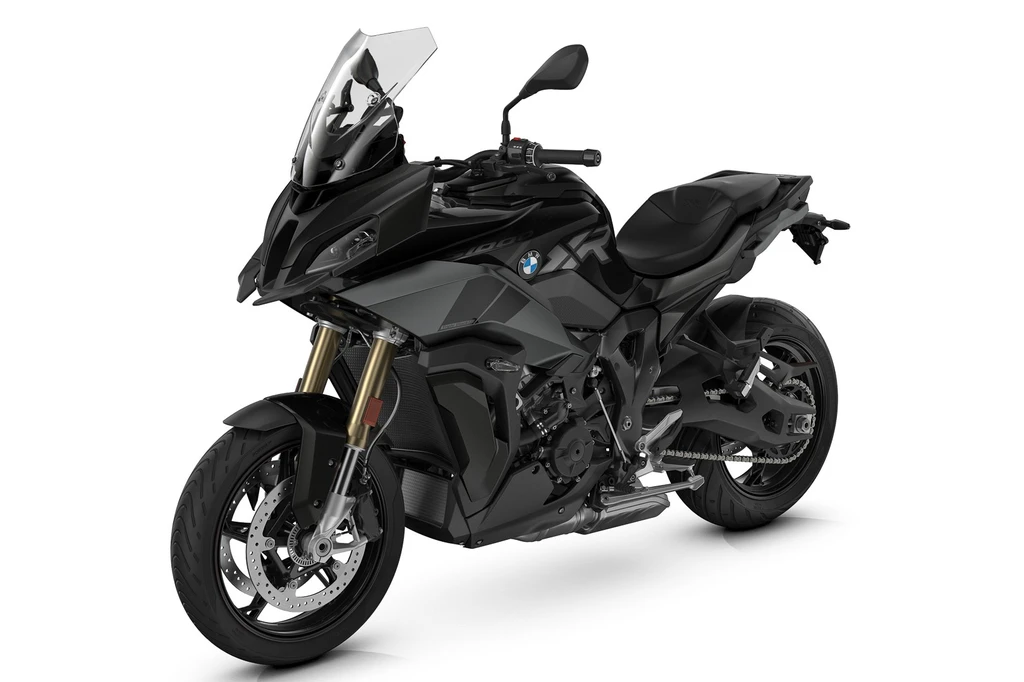

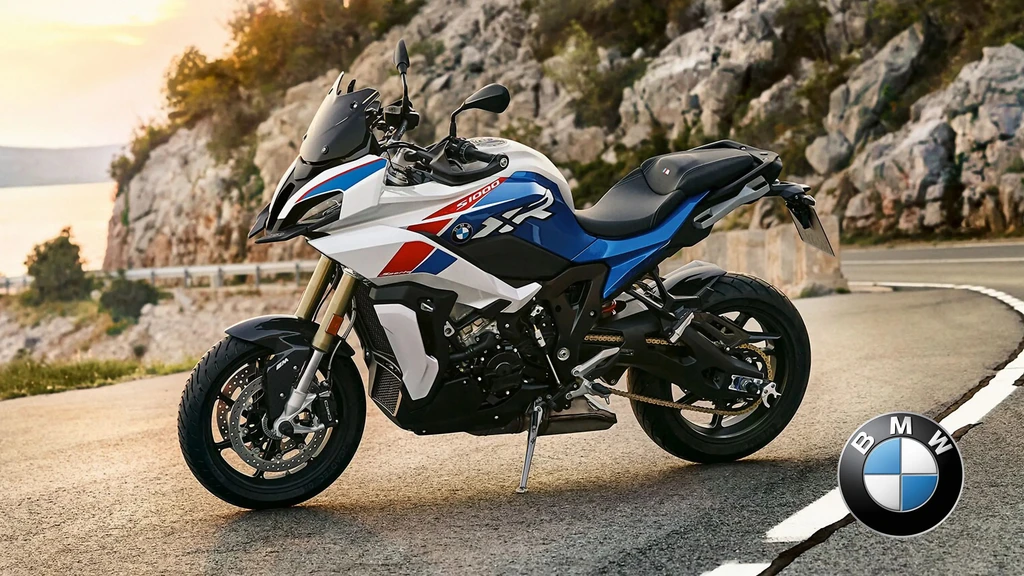

BMW S 1000XR (2022)

The new BMW S 1000 XR embodies the ultimate challenge of curves and kilometres, where every millimetre counts and every kilometre covered per day makes a difference.

Its sporty aggressiveness is unmistakable, courtesy of its RR-inspired DNA, while its exceptional ergonomics provide an upright, relaxed seat position that lets you fight for every curve and straightaway all day.

The front fairing and lighting system are defined by sharp edges, combined with striking beading that shapes the overall line aggressively to the finish. The revised aerodynamics and fairing provide even better protection against the cold, driving noises, and the elements.

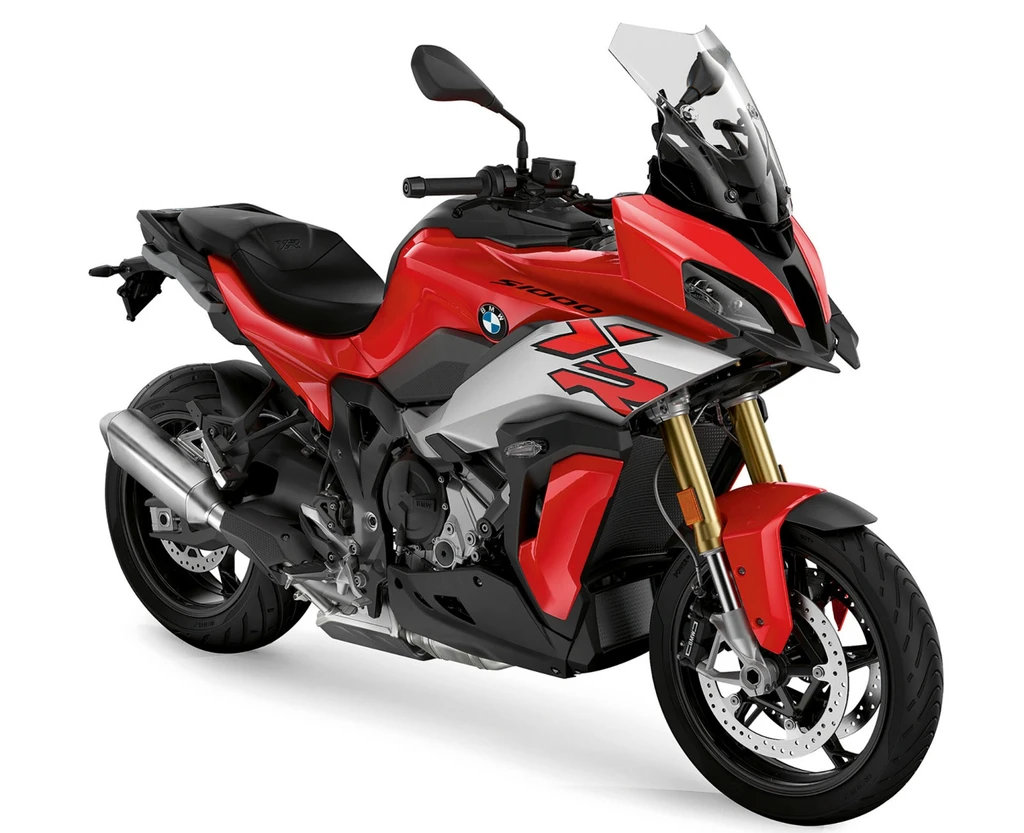

With its adjustable windshield and paint variants like Racing Red or Black Storm Metallic, you’re already making a clear visual statement: this bike is built for speed, and it’s ready to take on whatever kilometres come your way.

Key Specifications

Engine Type	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Engine Capacity	60.9 cubic inches / 999 cc
Max Power	121 kw / 165 hp
Max Torque	84 ft-lb / 114 nm
Fuel Tank Capacity	5.2 US gallons / 20.0 L
Weight (Wet/Kerb)	498 lbs / 226 kg
Seat Height	33.0 inches / 840 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW S 1000XR
Year	2022

Engine

Engine Type	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Displacement	60.9 cubic inches / 999 cc
Bore x Stroke	80 x 49.7 mm
Compression Ratio	12.5:1
Max Horsepower	121 kw / 165 hp
Max Torque	84 ft-lb / 114 nm
Lubrication System	Wet sump
Cooling System	Liquid/oil cooled
Emissions Compliance	Regulated three-way catalytic converter – EURO5

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Gearbox	Six-speed synchromesh gearbox with spur gears
Primary Drive Ratio	1.652
Gear Ratios	1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 lth. 1.167
Final Drive	Chain drive, 17/45
Traction Control System	BMW Motorrad DTC

Electrical & Electronics System

Starter	Electric
Traction Control System	BMW Motorrad DTC
ABS	BMW Motorrad Race ABS, partially integral

Chassis & Suspension

Frame Type	Aluminum composite bridge frame, partially self-supporting engine
Front Suspension	45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Front Suspension Travel	5.9 inches / 150 mm
Rear Suspension	Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rear Suspension Travel	5.9 inches / 150 mm
Trail	65.1

Wheels & Brakes

Wheels	Cast aluminum wheels
Front Wheel/Rim Size	3.50 x 17
Front Tire Size	120/70 ZR 17
Rear Wheel/Rim Size	6.00 x 17
Rear Tire Size	190/55 ZR 17
Front Brakes	2x 320mm floating discs, radial four-piston fixed calipers
Rear Brakes	Single 265mm disc brake, twin-piston floating caliper
ABS	BMW Motorrad Race ABS, partially integral

Dimension & Weights

Overall Length	2333 mm / 91.8 in
Overall Width	917 mm / 36.1
Overall Height	411 mm / 55.5 in
Seat Height	33.0 inches / 840 mm
Wheelbase	59.9 inches / 1522 mm
Fuel Tank Capacity	5.2 US gallons / 20.0 L
Wet (kerb/curb) Weight	498 lbs / 226 kg

Features

Aggressive front fairing and lighting system design
Striking beading along the body lines
Visually short tail with sport bike-like design
Hinted snout and high flyline for aerodynamics
Comfortable handlebars for long-distance riding
Revised aerodynamics and fairing for improved protection
Adjustable windshield for reduced helmet movement
Multiple paint variants available, including Racing Red and Black Storm Metallic
Exclusive M package with specific paintwork combination
Engine based on RR high-performance engine
Optimised camshaft profiles for increased torque
Designated manifolds for improved performance
Longer gearbox in upper gears for smooth running
Weight reduction of 10 kg compared to predecessors
Lightest configuration weight: 223 kg
Improved acceleration and handling due to reduced mass
