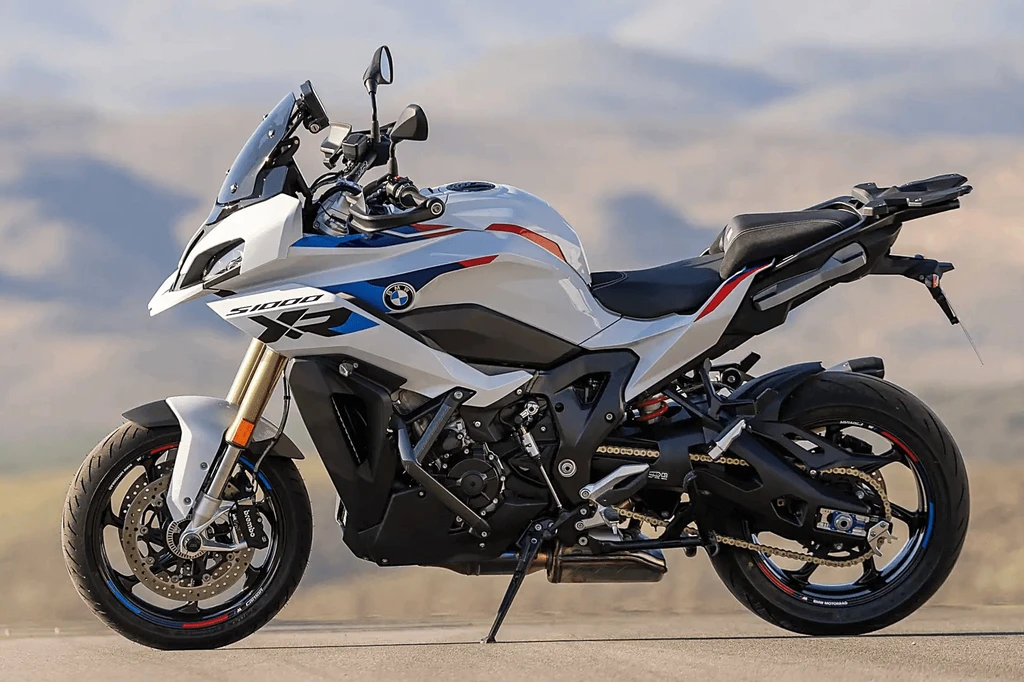

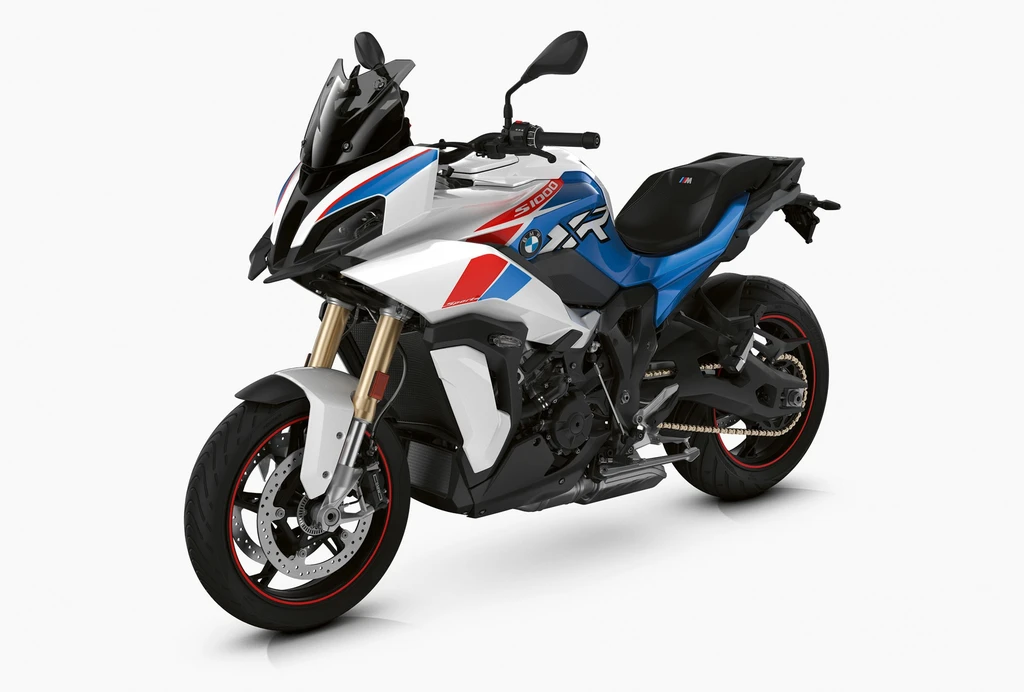

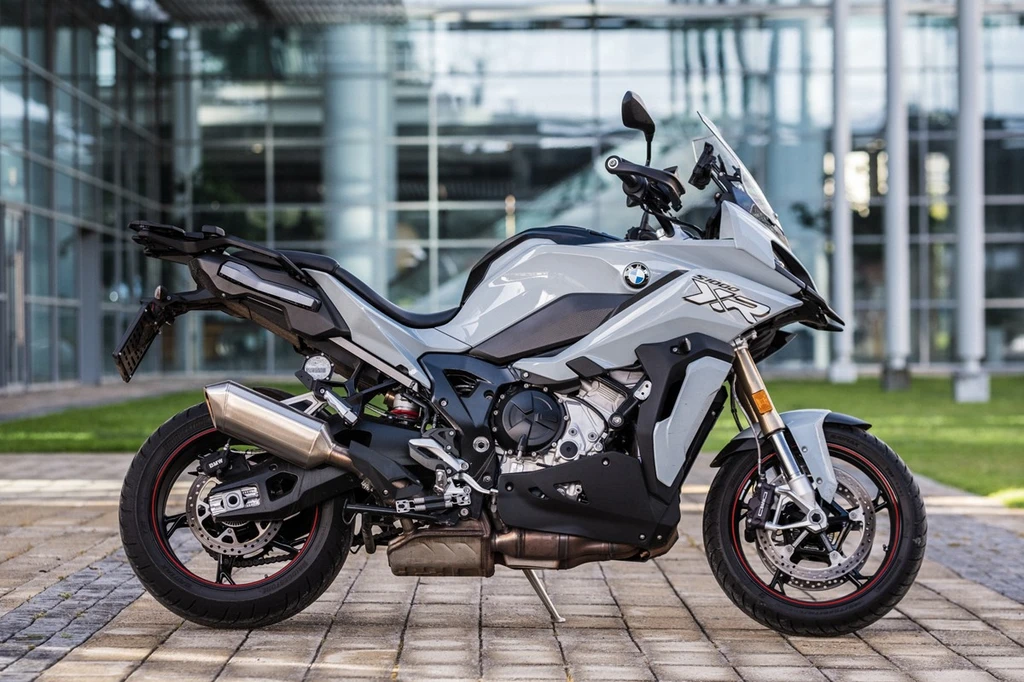

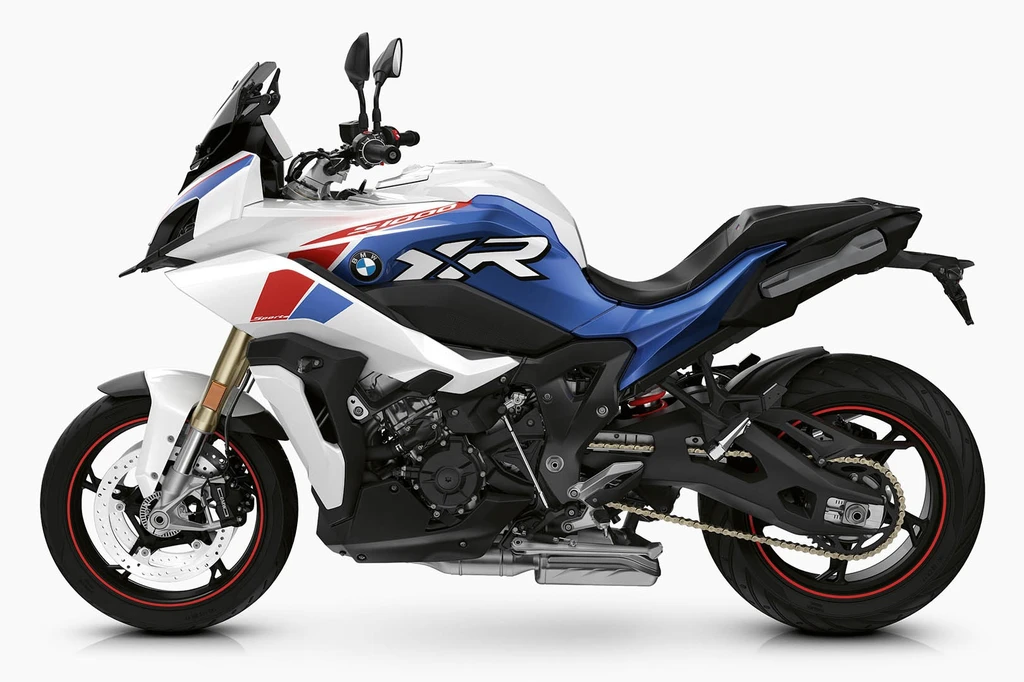

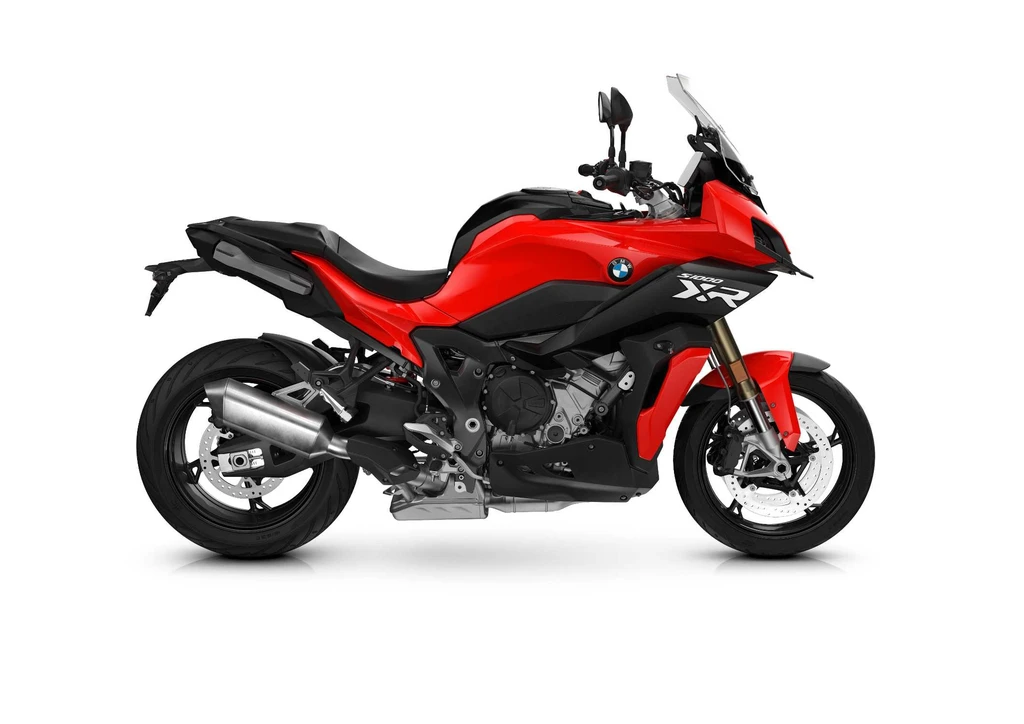

BMW S 1000XR (2021)

BMW S 1000XR (2021)

The BMW S 1000XR: an unwavering pursuit of perfection on two wheels.

In a world where compromise is often the norm, the S 1000XR defies convention by offering a motorcycle that delivers both athleticism and long-distance performance with unrelenting passion. Its sporty aggressiveness, inherited from the RR, is perfectly balanced by its upright and relaxed seat position, allowing riders to tackle every curve and straightaway with unbridled enthusiasm.

The XR’s aerodynamic prowess is evident in its striking front fairing and lighting system, which slices through the air with precision. The comfort-oriented handlebars and long-distance seat provide a welcome respite from the demands of the road, inviting riders to push their limits for hours on end.

Beneath the sleek bodywork lies a high-performance engine, born from the RR’s legendary powerplant but optimized specifically for the XR’s purpose: unrelenting long-distance performance. With its impressive torque delivery and wide usable speed range, this potent mill is the perfect partner in crime for riders who crave every mile to be a thrilling adventure.

The S 1000XR’s commitment to rider comfort and protection is evident in its revised aerodynamics and fairing, which provides superior insulation against the elements. And with its adjustable windshield and smooth-shifting gearbox, every aspect of this motorcycle has been carefully calibrated to deliver an unforgettable riding experience that will leave you breathless. It’s a bike that truly lives up to its promise: you can ride it all day, every day.

Key Specifications

Engine TypeFour stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Engine Capacity60.9 cubic inches / 999 cc
Max Power121 kw / 165 hp
Max Torque84 ft-lb / 114 nm
Fuel Tank Capacity5.2 US gallons / 20.0 L
Weight (Wet/Kerb)498 lbs / 226 kg
Seat Height33.0 inches / 840 mm
BMW S 1000XR (2021)

All Specifications

Make & Model

ModelBMW S 1000XR
Year2021

Engine

Engine TypeFour stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Displacement60.9 cubic inches / 999 cc
Bore x Stroke80 x 49.7 mm
Compression Ratio12.5:1
Max Horsepower121 kw / 165 hp
Max Torque84 ft-lb / 114 nm
Lubrication SystemWet sump
Cooling SystemLiquid/oil cooled
Emissions ComplianceRegulated three-way catalytic converter – EURO5

Performance

Top Speedn/a

Transmission

ClutchMultiplate clutch in oil bath, slipper clutch, self-reinforcing
GearboxSix-speed synchromesh gearbox with spur gears
Primary Drive Ratio1.652
Gear Ratios1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 lth. 1.167
Final DriveChain drive, 17/45
Traction Control SystemBMW Motorrad DTC

Electrical & Electronics System

StarterElectric
Traction Control SystemBMW Motorrad DTC
ABSBMW Motorrad Race ABS, partially integral

Chassis & Suspension

Frame TypeAluminum composite bridge frame, partially self-supporting engine
Front Suspension45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Front Suspension Travel5.9 inches / 150 mm
Rear SuspensionAluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rear Suspension Travel5.9 inches / 150 mm
Trail65.1

Wheels & Brakes

WheelsCast aluminum wheels
Front Wheel/Rim Size3.50 x 17
Front Tire Size120/70 ZR 17
Rear Wheel/Rim Size6.00 x 17
Rear Tire Size190/55 ZR 17
Front Brakes2x 320mm floating discs, radial four-piston fixed calipers
Rear BrakesSingle 265mm disc brake, twin-piston floating caliper
ABSBMW Motorrad Race ABS, partially integral

Dimension & Weights

Overall Length2333 mm / 91.8 in
Overall Width917 mm / 36.1
Overall Height411 mm / 55.5 in
Seat Height33.0 inches / 840 mm
Wheelbase59.9 inches / 1522 mm
Fuel Tank Capacity5.2 US gallons / 20.0 L
Wet (kerb/curb) Weight498 lbs / 226 kg

Features

  • Adjustable windshield
  • Aerodynamics and fairing revised for better protection
  • Beading on front fairing
  • Carbon engine guard as accessory option
  • Case system and top case
  • Dynamic ESA (Electronic Suspension Adjustment) Pro
  • Engine based on RR high-performance engine, optimized for long-distance performance
  • Full LED lights
  • Integrated pannier holders
  • Light White Non-Metallic/Racing Blue Metallic paint schemes available
  • Optimized weight – 22 lbs less than predecessors
  • Racing Red/White Aluminum Metallic Matte paint scheme available
  • Riding Modes Pro (including HSC Pro, MSR, ABS Pro & DTC)
  • Storage compartment underneath seat
  • Striking front design with Pro headlight
  • TFT display with BMW Motorrad Connectivity
