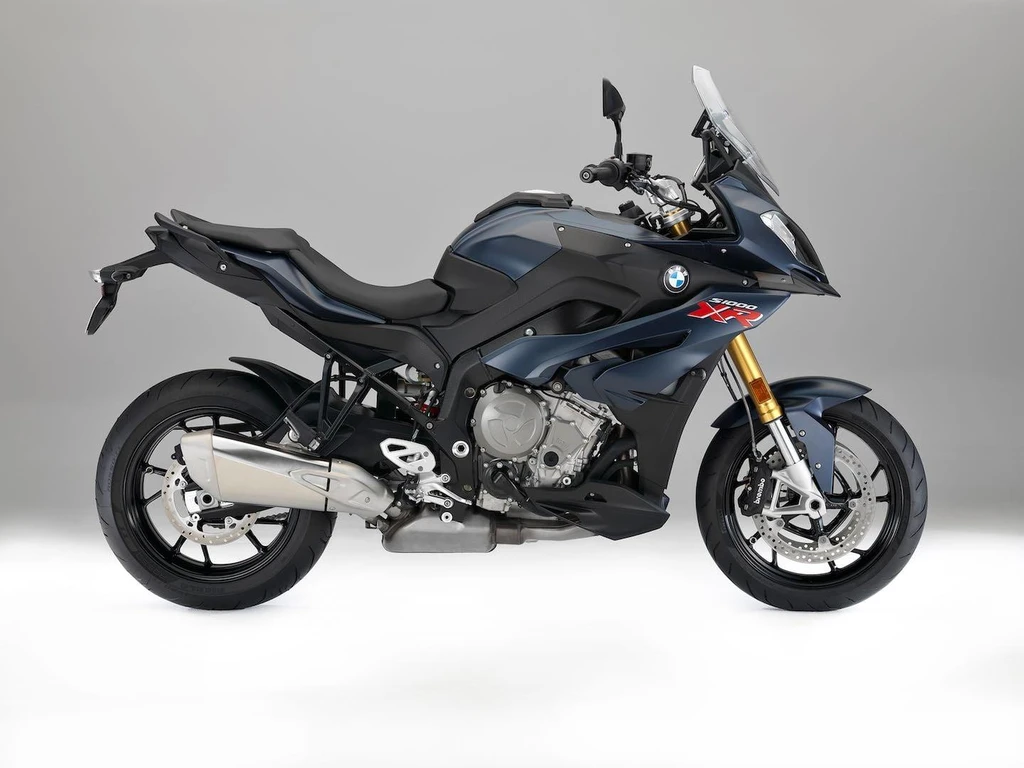

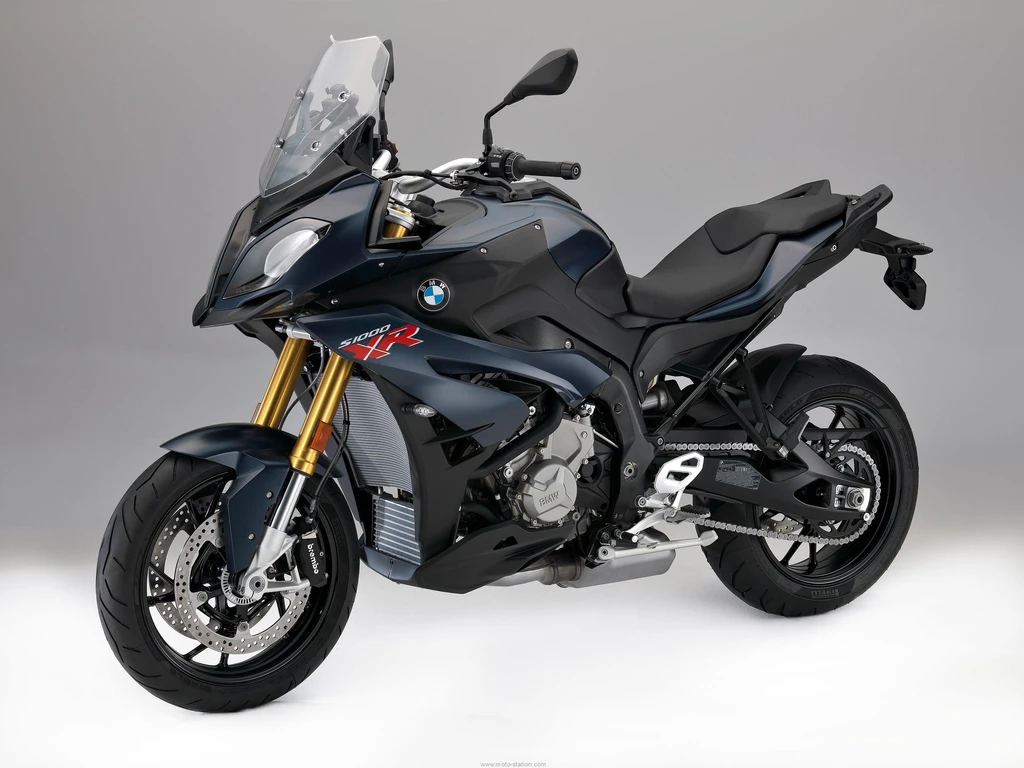

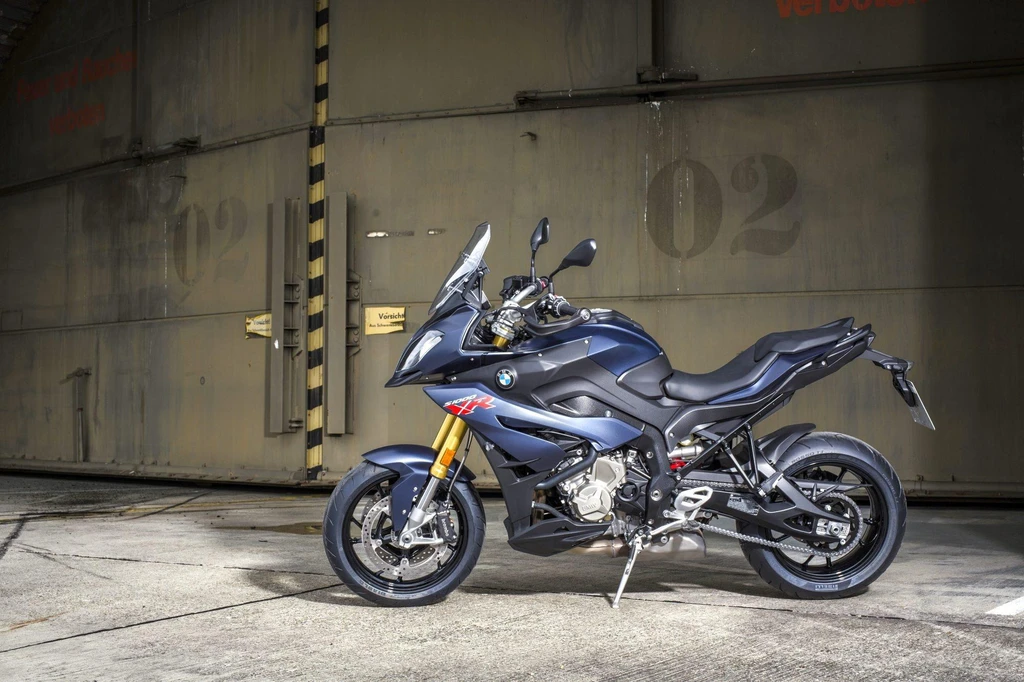

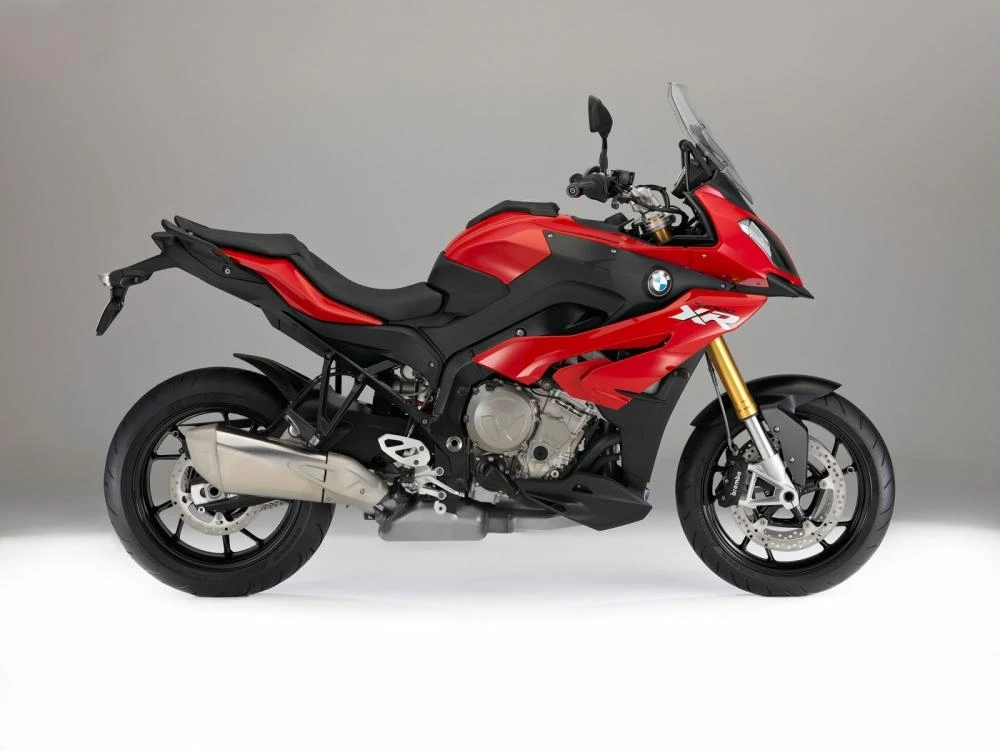

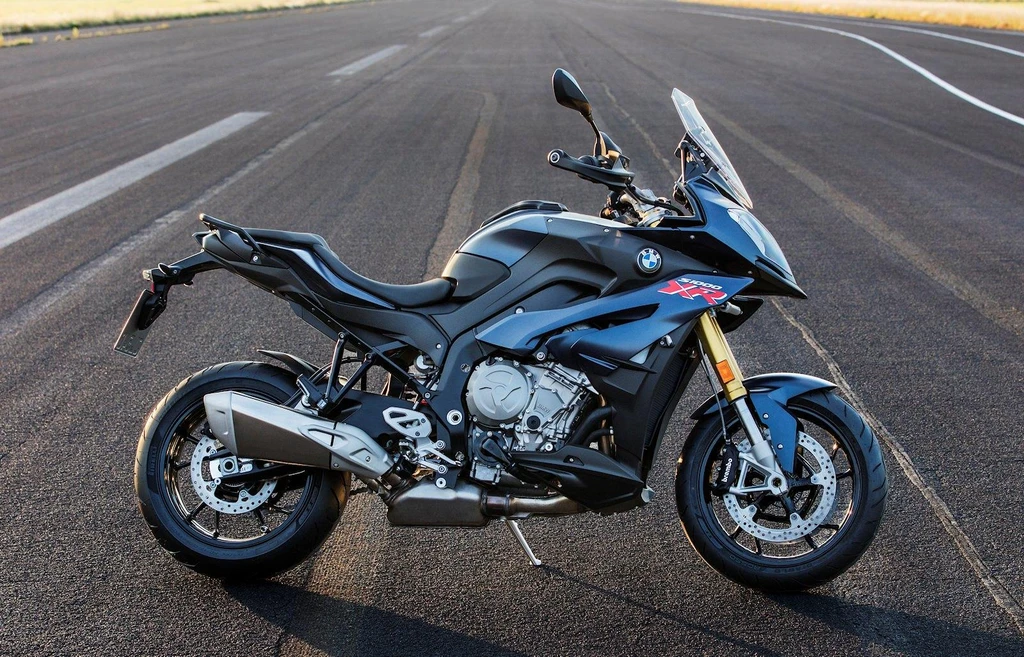

BMW S 1000XR (2017)

The BMW S 1000XR embodies the perfect blend of dynamic performance, versatility, and comfort, making it the ultimate adventure sports bike. This revolutionary motorcycle combines the sporty flair of a sports bike with the upright seating position of a GS, resulting in a thrilling riding experience that knows no bounds. The S 1000XR’s powerful 160bhp engine, derived from the S 1000R, is perfectly matched to its versatile seating concept, making it at home on every road.

Its exceptional performance is further enhanced by cutting-edge technology, including the HP Shift Assistant Pro, Dynamic ESA, and Pro riding modes with ABS Pro. With these features, the S 1000XR offers an unparalleled level of adaptability and customization to suit any rider’s preferences.

Whether carving through twisties or navigating long-distance tours, the BMW S 1000XR stands out from the crowd with its sleek design and unmistakable presence on the road. Its exceptional capabilities and sheer exhilaration make it the perfect choice for anyone seeking an unforgettable riding experience.

Key Specifications

Engine Type	Four stroke, transverse four cylinder, DOHC, valve actuation via single rocker arms , 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Engine Capacity	60.9 cubic inches / 999 cc
Max Power	121 kw / 165 hp
Max Torque	112 Nm / 11.4 kgf-m / 83 lb-ft @ 9250 rpm
Fuel Tank Capacity	5.2 US gallons / 20.0 L
Weight (Wet/Kerb)	502.6 lbs / 228 kg
Seat Height	33.1 inches / 840 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW S 1000XR
Year	2017

Engine

Engine Type	Four stroke, transverse four cylinder, DOHC, valve actuation via single rocker arms , 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Displacement	60.9 cubic inches / 999 cc
Bore x Stroke	80 x 49.7 mm
Compression Ratio	12.0:1
Max Horsepower	121 kw / 165 hp
Max Torque	112 Nm / 11.4 kgf-m / 83 lb-ft @ 9250 rpm
Lubrication System	Wet sump
Cooling System	Liquid cooled
Emissions Compliance	Closed-loop 3-way catalytic converter

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-disc anti-hopping oil-bath clutch, mechanically operated
Gearbox	Constant -mesh 6-speed gearbox, straight-toothed
Primary Drive Ratio	1.652
Gear Ratios	1st 2.647 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Construction type aluminium perimeter frame, engine self-supporting
Front Suspension	Upside-down telescopic fork, stanchion diameter 46 mm, adjustable for bump and rebound optional: Dynamic ESA
Front Suspension Travel	5.9 inches / 150 mm
Rear Suspension	Aluminium double-strut swing arm with central spring strut, adjustable for rebound, optional: Dynamic ESA
Rear Suspension Travel	5.5 inches / 140 mm
Trail	64.5

Wheels & Brakes

Front Tire Size	120/70 ZR17
Rear Tire Size	190/55 ZR17
Front Brakes	2 x 320 mm Discs, 4 piston calipers, ABS Pro(dynamic brake light currently for EU markets only).
Rear Brakes	Single 220 mm disc, 1 piston caliper, ABS Pro(dynamic brake light currently for EU markets only).

Dimension & Weights

Seat Height	33.1 inches / 840 mm
Wheelbase	60.9 inches / 1548 mm
Fuel Tank Capacity	5.2 US gallons / 20.0 L
Wet (kerb/curb) Weight	502.6 lbs / 228 kg

Features

Sports engine with 160 bhp at 11,000 rpm and 112 Nm at 9,250 rpm
Upright seating position of the GS series
Combination of sports and enduro features
Highly versatile motorcycle for various riding styles
Optional extras for individual rider preferences
HP Shift Assistant Pro for minimised clutch use
Electronic suspension control via Dynamic ESA
Pro riding modes for dynamic set-ups
ABS Pro for maximum braking safety
In-line 4-cylinder engine meeting EU4 requirements
Increased engine power to 121 kW (165 hp) at 11,000 rpm
Enhanced vibration-free handlebars
Increased maximum permissible weight and payload
Softer isolating elements on the handlebars
Pro riding modes available for model year 2016
Electronic suspension control for optimum suspension performance

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
