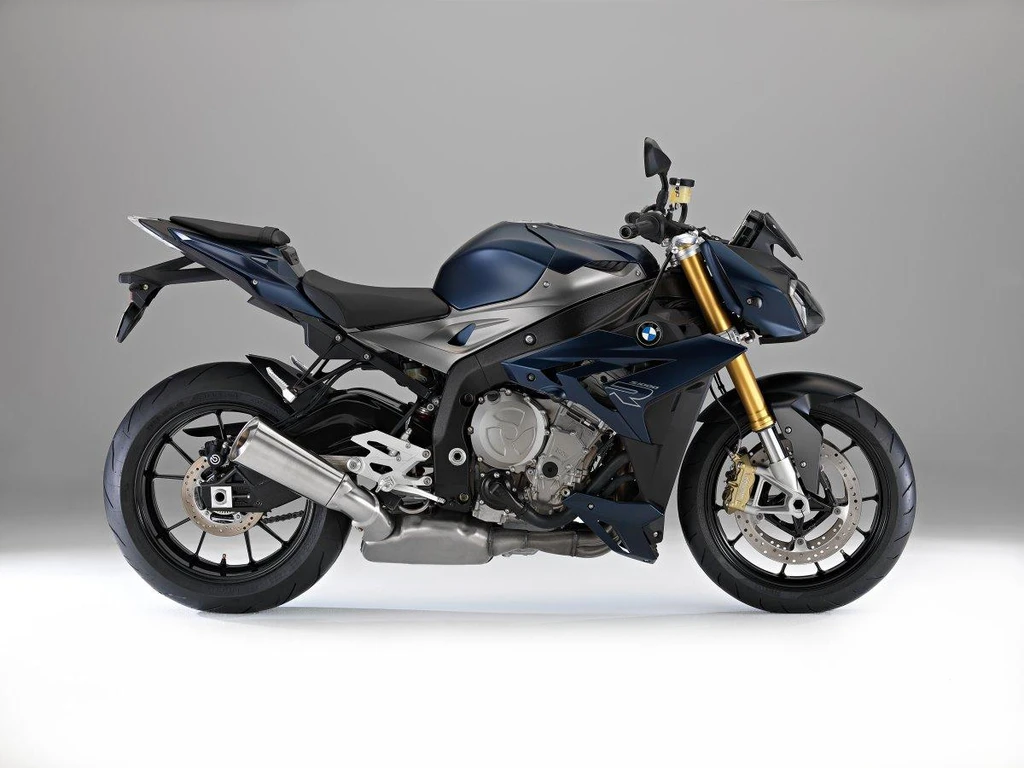

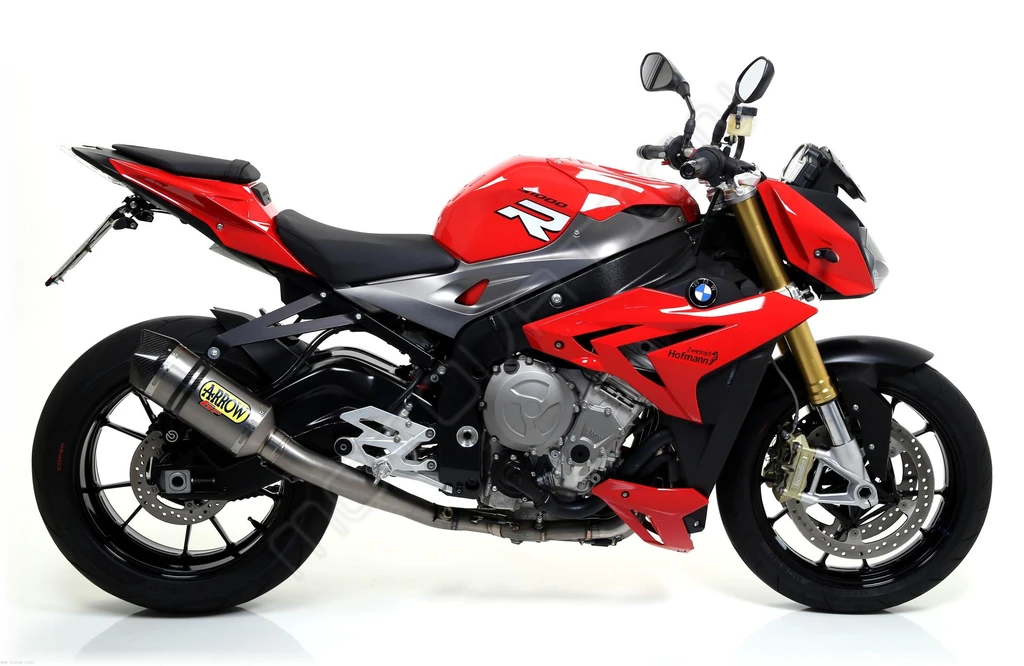

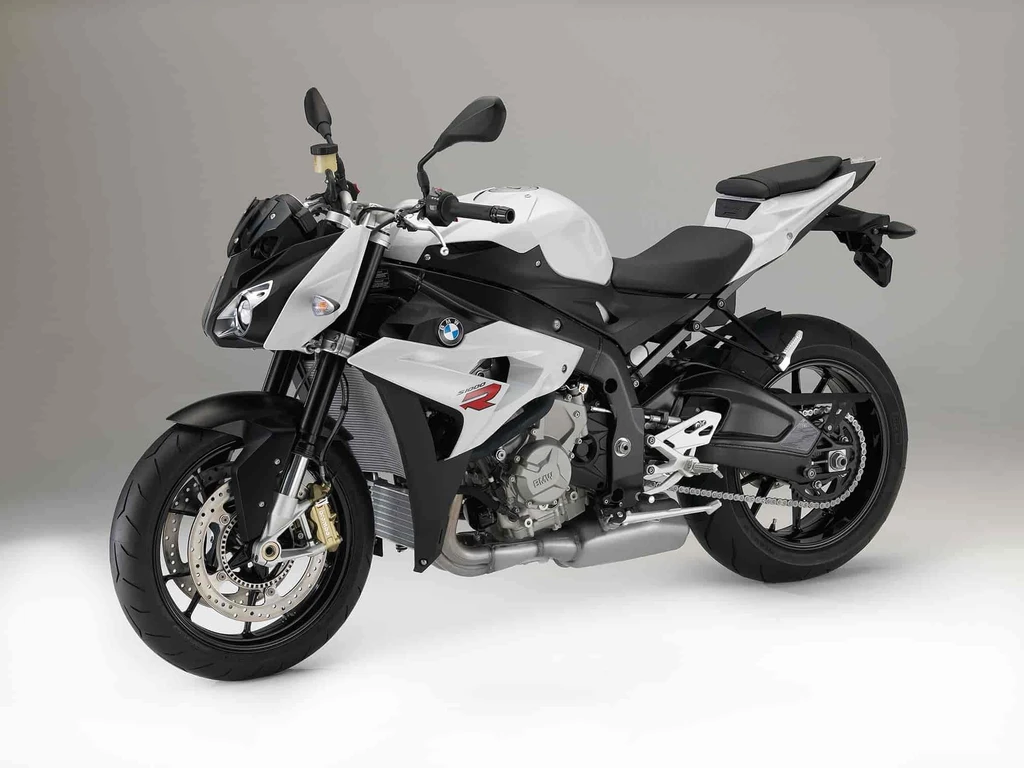

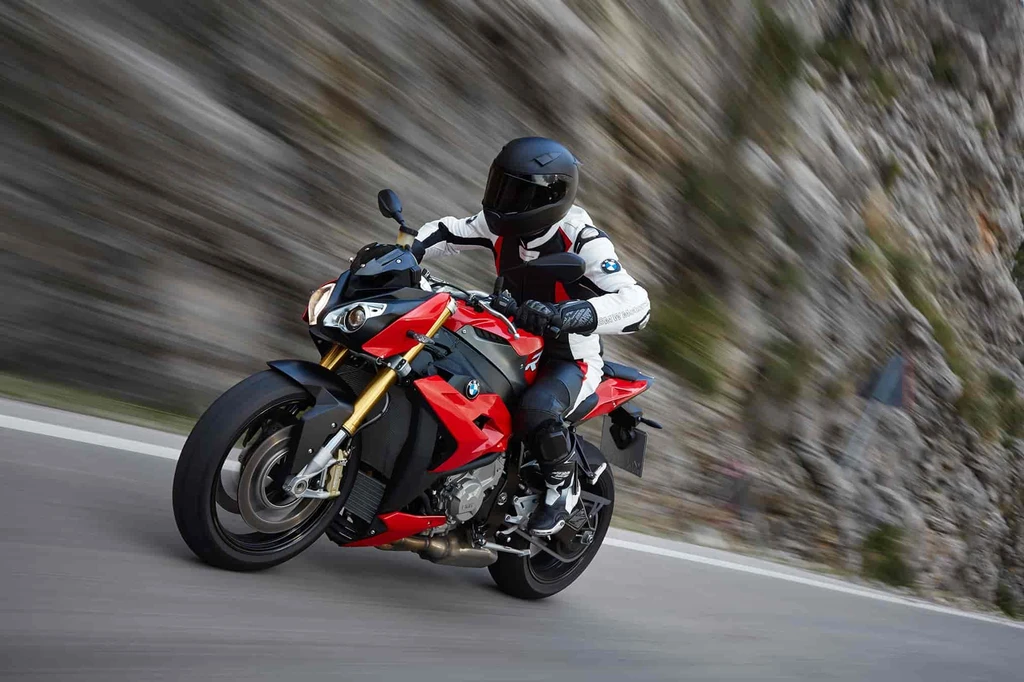

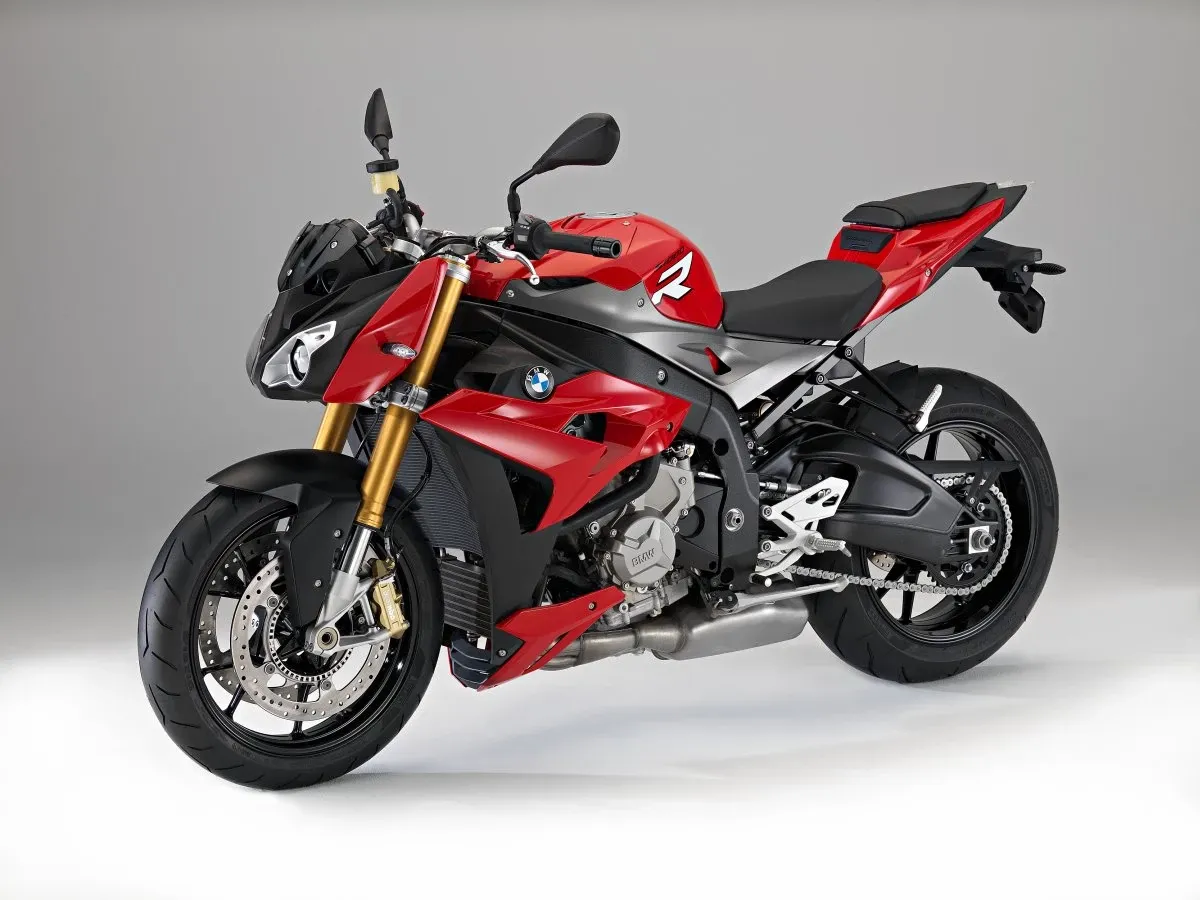

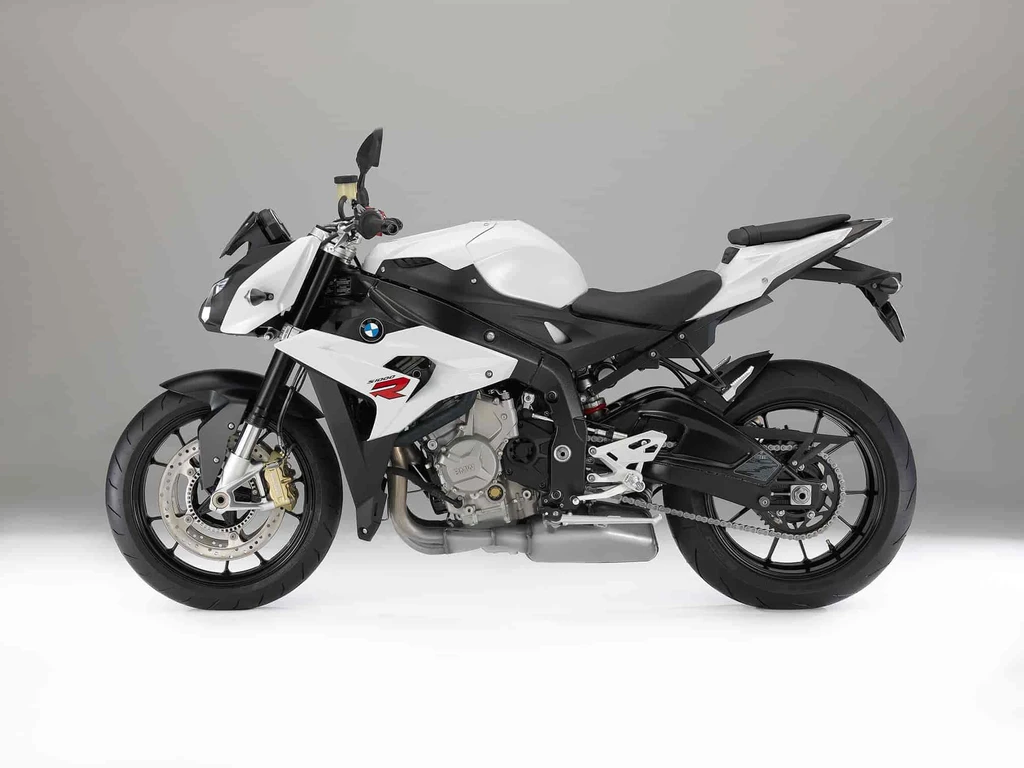

BMW S 1000R (2016)

The BMW S 1000R is a high-performance roadster that embodies the perfect blend of super bike riding dynamics and emotive roadster styling. Based on the S 1000 RR, this naked bike boasts a well-thought-out overall concept, with 160 horsepower and a weight of just 207 kg.

The 999 cc in-line four-cylinder engine has been optimized for low to mid-range performance, providing punchy response throughout the rpm range. Maximum power is reached at 11,000 rpm, with peak torque of 112 Nm at 9,250 rpm.

But what really sets the S 1000R apart is its ability to deliver exceptional riding experiences. Whether carving through twisty single-lane roads or cruising on the open road, this bike is a thrill-seeker’s dream come true.

With its advanced technology, including Race ABS, ASC, and two riding modes as standard, the BMW S 1000R is a dynamic sports roadster that truly lives up to its reputation.

Key Specifications

Engine Type	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Engine Capacity	60.9 cubic inches / 999 cc
Max Power	118 kw / 160 hp
Max Torque	112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9250 rpm
Fuel Tank Capacity	4.6 US gallons / 17.5 L
Weight (Wet/Kerb)	456.3 lbs / 207 kg
Seat Height	33.3 inches / 820 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW S 1000R
Year	2016

Engine

Engine Type	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Displacement	60.9 cubic inches / 999 cc
Bore x Stroke	80 x 49.7 mm
Compression Ratio	12.0:1/at least premium unleaded (95 RON)
Max Horsepower	118 kw / 160 hp
Max Torque	112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9250 rpm
Engine Management System	Electronic fuel injection, digital motor electronics BMS-KP
Lubrication System	Wet sump
Cooling System	Liquid cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiple disc antihopping clutch in oil bath, mechanically operated
Gearbox	6 Speed
Primary Drive Ratio	1.652
Gear Ratios	1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1
Final Drive	Chain 17/45

Electrical & Electronics System

Starter	Electric
ABS	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)

Chassis & Suspension

Frame Type	Construction type aluminium bridge frame, enqine self-supporting
Front Suspension	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping
Rear Suspension Travel	4.7 inches / 120 mm
Trail	65.4

Wheels & Brakes

Front Wheel/Rim Size	3.50 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	6.00 x 17
Rear Tire Size	190/55 ZR17
Front Brakes	2 x 320mm Discs, 4 piston calipers
Rear Brakes	Single 220mm disc, 1 piston caliper
ABS	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)

Dimension & Weights

Seat Height	33.3 inches / 820 mm
Wheelbase	56 inches / 1422 mm
Fuel Tank Capacity	4.6 US gallons / 17.5 L
Wet (kerb/curb) Weight	456.3 lbs / 207 kg

Features

Electronic fuel injection
Digital motor electronics BMS-KP
160 hp maximum power
207 kg (456 lbs) weight
Race ABS
ASC (Automatic Stability Control)
Two riding modes (Rain and Road) as standard
Riding mode Pro with two additional modes and DTC optionally available
E-Gas throttle-by-wire system
In-line four-cylinder engine
999 cc four-cylinder in-line engine
Maximum rpm of 11,000 rpm
Peak torque of 112 Nm (approx. 83 lb-ft) at 9,250 rpm
Redesigned cylinder head ducts
Modified cam profiles
BMS-X engine management system
Dynamic Traction Control (DTC) with lean angle sensor
