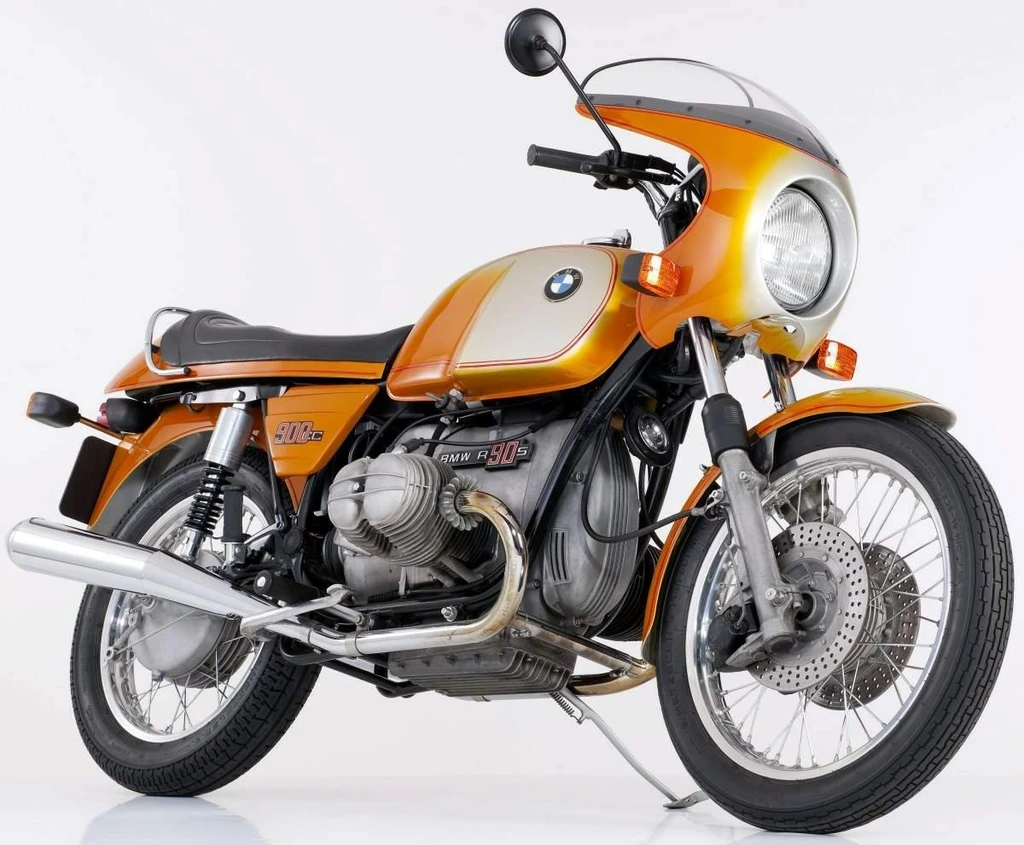

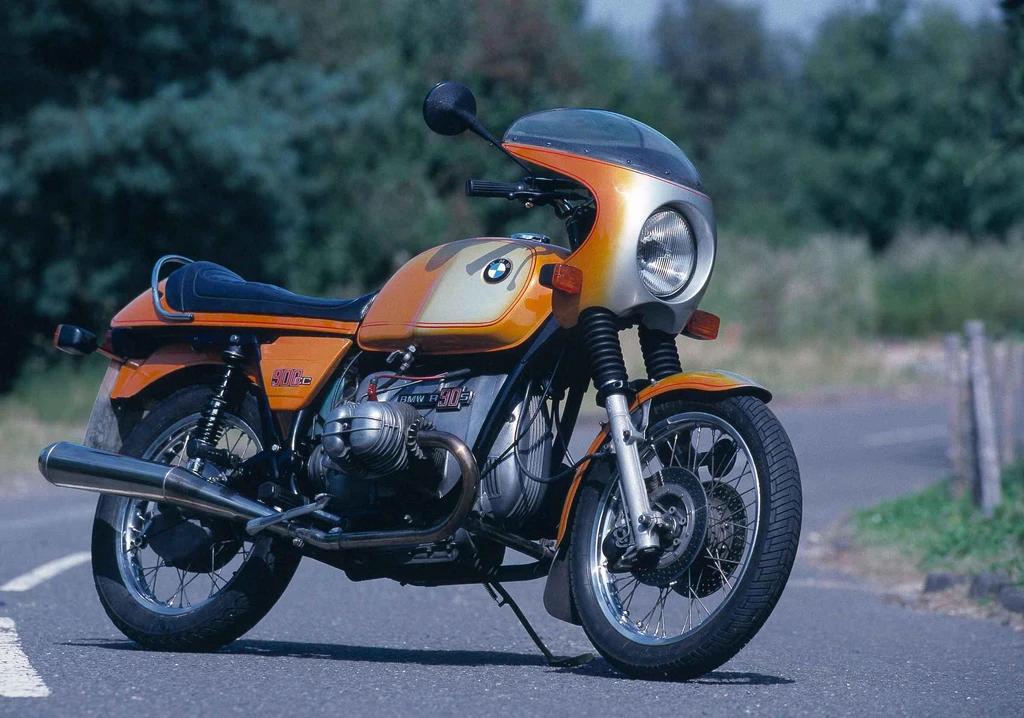

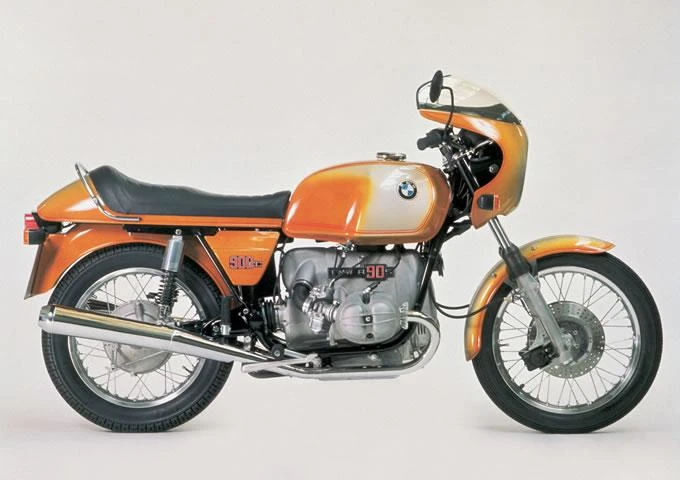

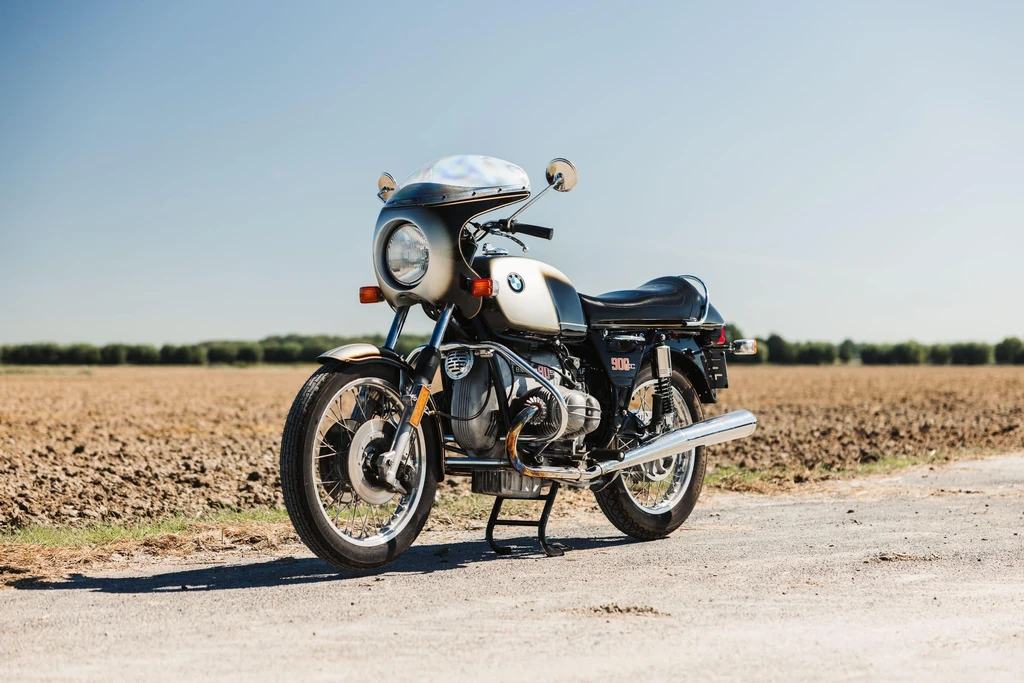

The BMW R90S, a masterpiece of German engineering, stood out as a refined and expensive sports-tourer in the mid-1970s. Its flat-twin engine, a perfect blend of power and comfort, delivered 67bhp at 7,000rpm, propelling the bike to a top speed of 125mph. The R90S’s distinctive smoked paint scheme and aggressive styling, courtesy of Hans Muth, made it a head-turner on the road.
The bike’s engine, an evolution of the R75’s, boasted a higher compression ratio and breathed in through big 38mm Dell’Orto carbs with accelerator pumps, making it a force to be reckoned with on the highway.
With its relaxed high-speed cruising ability, fine handling, and impeccable finish, the R90S was the ultimate all-round superbike of its day, offering a riding experience that was both exhilarating and comfortable. The result was a machine that excelled in every department, making it a true legend of the motorcycle world.
BMW’s R90S was the best of the best, a true masterpiece of engineering that remains an iconic and coveted classic to this day.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Engine Capacity
898 cc / 54.8 cu in.
Max Power
48.8 kw / 67 hp
Max Torque
76 Nm / 7.6 kgf-m / 55 ft-lb @ 5500 rpm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Weight (Wet/Kerb)
473 lbs / 215 kg
Seat Height
32.2 inches / 820 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 90S
Year
1973 – 76
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Displacement
898 cc / 54.8 cu in.
Bore x Stroke
90 x 70.6 mm
Compression Ratio
9.5:1
Max Horsepower
48.8 kw / 67 hp
Max Torque
76 Nm / 7.6 kgf-m / 55 ft-lb @ 5500 rpm
Engine Management System
2 x slide Dell’Orto PHM 38 carburetors
Lubrication System
Gear driven pump
Cooling System
Air cooled
Performance
Top Speed
200 km/h / 124 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry single plate, with diaphragm spring
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Double-looptubularframewithbolt-onrearsection
Front Suspension
Telescopic fork with hydraulic shock absorber
Front Suspension Travel
8.1 inches / 208 mm
Rear Suspension
Long swinging arm with adjustable strut.
Rear Suspension Travel
4.9 inches / 125 mm
Wheels & Brakes
Front Wheel/Rim Size
1.85 – B19
Front Tire Size
3.25 – H19
Rear Wheel/Rim Size
2.15 – B18
Rear Tire Size
4.00 – H18
Front Brakes
2 x ∅260mm discs, 1 piston caliper
Rear Brakes
∅200mm Drum
Dimension & Weights
Seat Height
32.2 inches / 820 mm
Wheelbase
57.67 inches / 1465 mm
Ground Clearance
165 mm / 6.49 in
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Wet (kerb/curb) Weight
473 lbs / 215 kg
Features
898cc horizontally opposed twin engine
9.5:1 compression ratio
38mm Dell’Orto carbs with accelerator pumps
67bhp at 7,000rpm
280W alternator
Revised gearchange mechanism
Stronger bottom end
Steering damper
Larger fuel tank
Second front brake disc
Twin-disc front brake system
Reliability
Impeccable finish
Smooth engine
Torquey mid-range response
Comfortable ride
Generous fuel range
Dashboard clock
Distinctive smoked paint scheme
