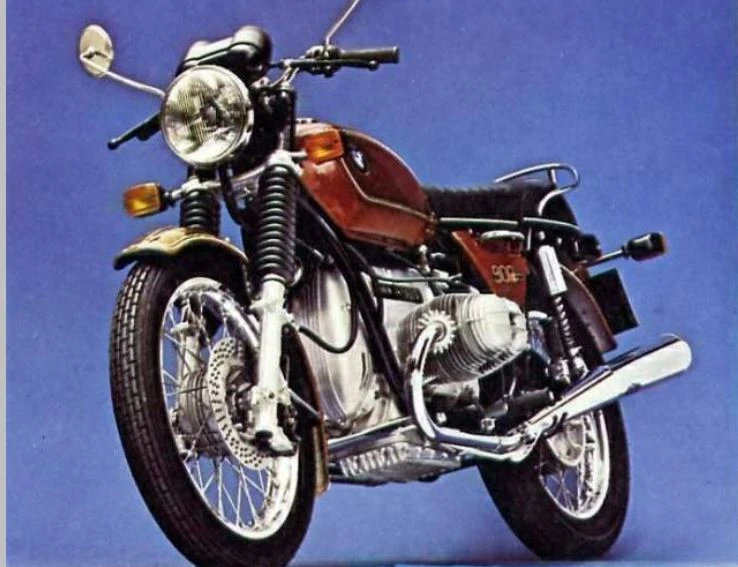

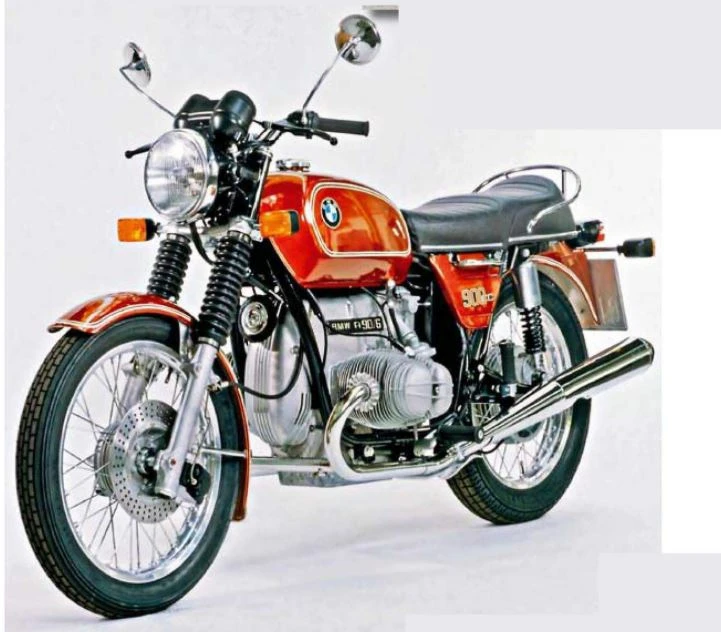

The BMW R 90/6 embodies the essence of BMW’s shift towards a more sporting image, while maintaining its reputation for elegance and comfort.
With its distinctive horizontally-opposed flat twin engine, the R 90/6 boasts a unique layout that sets it apart from its competitors.
The engine’s driveshaft is a clever innovation, providing a smooth and efficient power delivery that belies its size and weight.
As you settle into the saddle, the R 90/6’s comfortable riding position and refined ergonomics become apparent, making it an ideal companion for both daily commuting and spirited riding.
The result is a bike that combines the best of both worlds: the civility of a BMW, with the excitement of a high-performance machine. The BMW R 90/6 is a true reflection of the brand’s sporting aspirations, and a testament to its commitment to creating motorcycles that are both exceptional and desirable.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Engine Capacity
898 cc / 54.8 cu in.
Max Power
44.1 kw / 60 hp
Max Torque
73 Nm / 7.44 kgf-m / 53 ft lb @ 5500 rpm
Fuel Tank Capacity
18 Liters /4.75 US gal
Weight (Wet/Kerb)
462 lbs / 210 kg
Seat Height
31.9 inches / 810 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 90/6
Year
1973 – 76
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Displacement
898 cc / 54.8 cu in.
Bore x Stroke
90 x 70.6 mm
Compression Ratio
9.0:1
Max Horsepower
44.1 kw / 60 hp
Max Torque
73 Nm / 7.44 kgf-m / 53 ft lb @ 5500 rpm
Engine Management System
2 x Bing constant depression carburetors
Lubrication System
Gear driven pump
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry single plate, with diaphragm spring
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Double loop tubular frame with bolt on rear section
Front Suspension
Telescopic hydraulic forks.
Front Suspension Travel
8.1 inches / 208 mm
Rear Suspension
Long swinging arm with adjustable strut.
Rear Suspension Travel
4.9 inches / 125 mm
Wheels & Brakes
Front Wheel/Rim Size
1.85 – B19
Front Tire Size
3.25 – H19
Rear Wheel/Rim Size
2.15 – B18
Rear Tire Size
4.00 – H18
Front Brakes
Single ∅260mm disc, 1 piston caliper
Rear Brakes
200mm Drum
Dimension & Weights
Seat Height
31.9 inches / 810 mm
Wheelbase
57.67 inches / 1465 mm
Fuel Tank Capacity
18 Liters /4.75 US gal
Wet (kerb/curb) Weight
462 lbs / 210 kg
Features
Double loop tubular frame
Bolt on rear section
Horizontally-opposed flat twin engine
Driveshaft instead of chain or belt
Large airbox for cooling
Horizontal cylinders for cooling
29 inches wide engine
90mm bore, 70.6mm stroke
Overhead valves
180-degree crankshaft for counterbalanced pistons
Constant-velocity 32mm Bing carburetors
Electric starter
Back-up non-primary kick starter
Alternator and points mounted under engine cover
Plastic hoses connect carbs to airbox
Oil tank is integral to engine cases
